Features

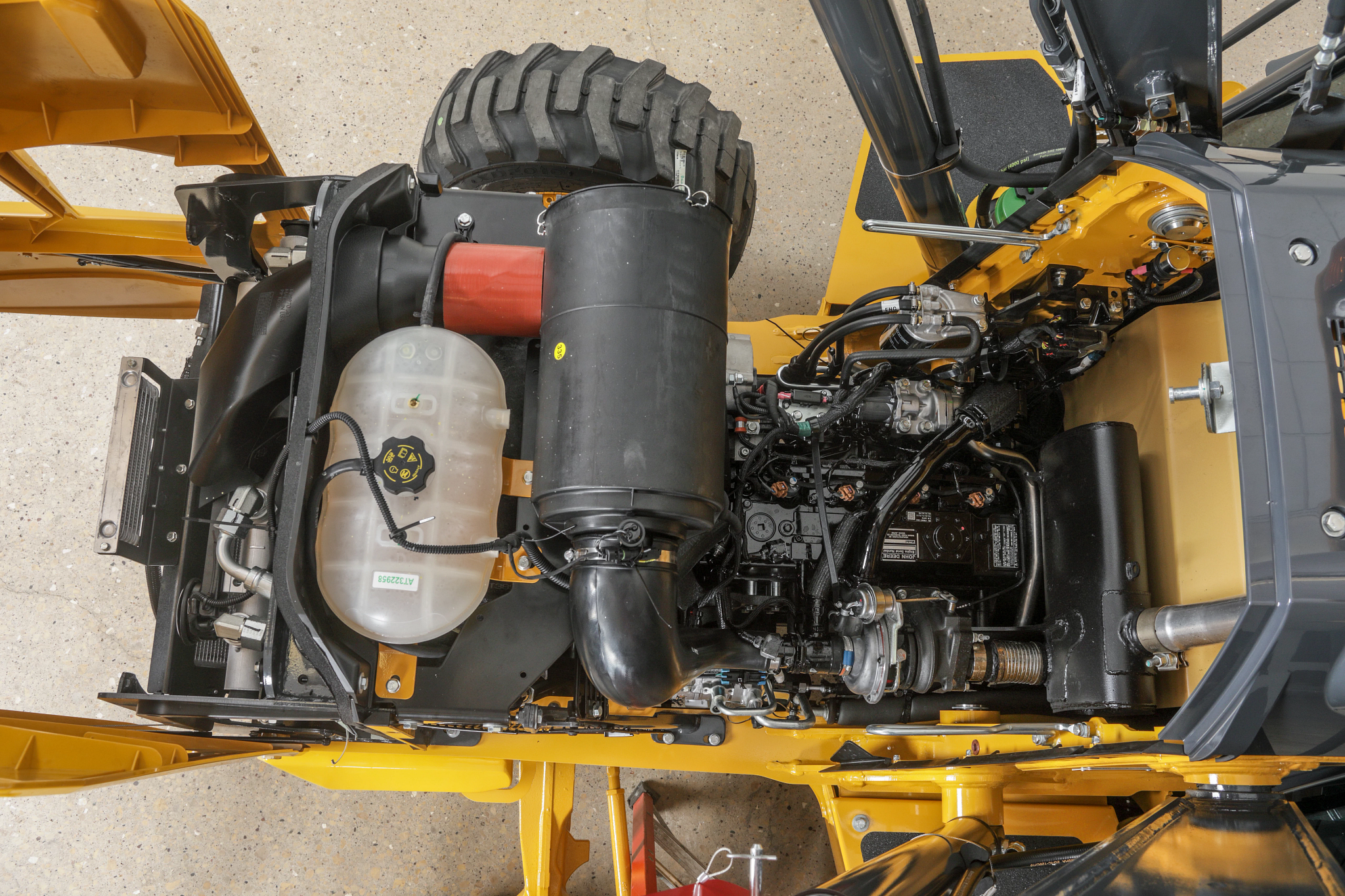

Versatile PTO System
The 210 G-tier Tractor Loader features a hydro-mechanical PTO, offering 55 hp (41 kW) at 540 rpm. This system is essential for powering a variety of attachments, enhancing the flexibility and utility of the loader for versatile uses in different terrains.

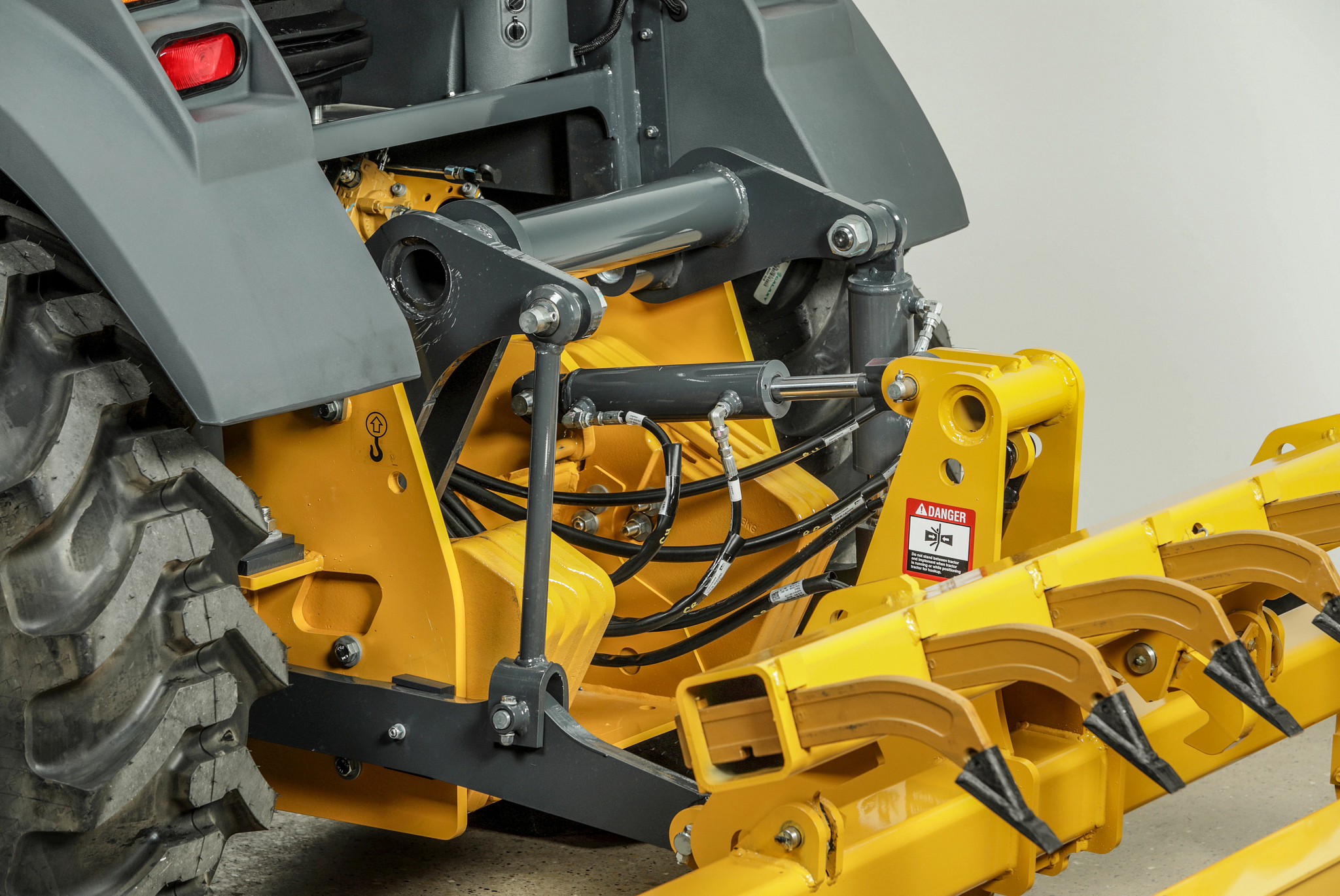

Advanced Hydraulic Control
The hydraulic system of the 210 G-tier includes both single and dual tilt cylinder options, maximizing control and precision. The dual cylinder setup offers increased blade positioning accuracy and clearance, crucial for effective cutting and grading operations.

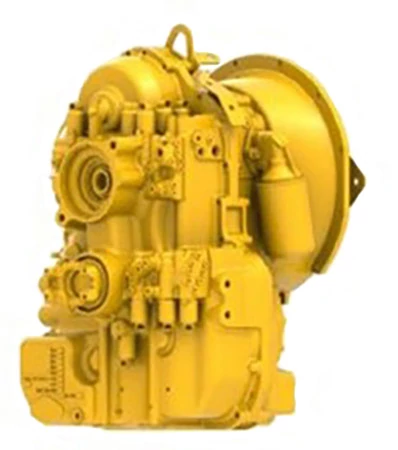

Efficient PowerShift™ Transmission
Equipped with a PowerShift™ transmission, the 210 G-tier allows for seamless gear shifts with a simple control lever. With four forward and two reverse gears, the loader ensures reliable performance and smooth operation under diverse conditions.
Specifications
Cylinders
| Cylinders Type | Heat treated, chrome-plated, polished rods, hardened steel (replaceable bushings) pivot pins |
| Loader Boom (2) Bore | 3.15 in. |
| Loader Boom (2) Bore | 80.01 mm |
| Loader Boom (2) Rod Diameter | 1.97 in. |
| Loader Boom (2) Rod Diameter | 50.04 mm |
| Loader Boom (2) Stroke | 31.1 in. |
| Loader Boom (2) Stroke | 789.94 mm |
| Loader Bucket (1) Bore | 3.54 in. |
| Loader Bucket (1) Bore | 89.92 mm |
| Loader Bucket (1) Rod Diameter | 1.97 in. |
| Loader Bucket (1) Rod Diameter | 50.04 mm |
| Loader Bucket (1) Stroke | 29.29 in. |
| Loader Bucket (1) Stroke | 743.97 mm |
| Hitch Lift (1) Bore | 3.15 in. |
| Hitch Lift (1) Bore | 80.01 mm |
| Hitch Lift (1) Rod Diameter | 1.97 in. |
| Hitch Lift (1) Rod Diameter | 50.04 mm |
| Hitch Lift (1) Stroke | 10 in. |
| Hitch Lift (1) Stroke | 254 mm |
| Hitch Pitch (1) Bore | 2.5 in. |
| Hitch Pitch (1) Bore | 63.5 mm |
| Hitch Pitch (1) Rod Diameter | 1.25 in. |
| Hitch Pitch (1) Rod Diameter | 31.75 mm |
| Hitch Pitch (1) Stroke | 7.75 in. |
| Hitch Pitch (1) Stroke | 196.85 mm |
| Hitch Tilt (1 or 2) Bore | 3 in. |
| Hitch Tilt (1 or 2) Bore | 76.2 mm |
| Hitch Tilt (1 or 2) Rod Diameter | 2 in. |
| Hitch Tilt (1 or 2) Rod Diameter | 50.8 mm |
| Hitch Tilt (1 or 2) Stroke | 4.75 in. |
| Hitch Tilt (1 or 2) Stroke | 120.65 mm |
| Mechanical Front-Wheel Drive (1) Bore | 2.56 in. |
| Mechanical Front-Wheel Drive (1) Bore | 65.02 mm |
| Mechanical Front-Wheel Drive (1) Rod Diameter | 1.57 in. |
| Mechanical Front-Wheel Drive (1) Rod Diameter | 39.88 mm |
| Mechanical Front-Wheel Drive (1) Stroke | 8.51 in. |
| Mechanical Front-Wheel Drive (1) Stroke | 216.01 mm |
Powertrain
| Transmission Type | 4‑speed, helical cut gears, full power‑shifted transmission with hydraulic reverser standard; Electric clutch cutoff on loader lever. |
| Torque Converter Type | Single stage, dual phase with 2.63:1 stall ratio |
| Torque Converter Size | 11 in. |
| Torque Converter Size | 280 mm |
| Conditions for Measuring Travel Speeds | Tire Size 16.9‑24 Rear Tires |
| Gear 1 Maximum Forward Speed | 3.2 mph |
| Gear 1 Maximum Forward Speed | 5.15 km/h |
| Gear 1 Maximum Reverse Speed | 4.2 mph |
| Gear 1 Maximum Reverse Speed | 6.76 km/h |
| Gear 2 Maximum Forward Speed | 6 mph |
| Gear 2 Maximum Forward Speed | 9.66 km/h |
| Gear 2 Maximum Reverse Speed | 7.6 mph |
| Gear 2 Maximum Reverse Speed | 12.23 km/h |
| Gear 3 Maximum Forward Speed | 12.4 mph |
| Gear 3 Maximum Forward Speed | 19.96 km/h |
| Gear 4 Maximum Forward Speed | 22.5 mph |
| Gear 4 Maximum Forward Speed | 36.21 km/h |
| Axles Oscillation Stop to Stop, Front Axle | 22 degrees |
| SAE J43 Axle Rating, Front | 11000 lb. |
| SAE J43 Axle Rating, Front | 4989 kg |
| SAE J43 Axle Rating, Rear | 13200 lb. |
| SAE J43 Axle Rating, Rear | 5987 kg |
| Dynamic Axle Rating, Front | 19800 lb. |
| Dynamic Axle Rating, Front | 8970 kg |
| Dynamic Axle Rating, Rear | 22000 lb. |
| Dynamic Axle Rating, Rear | 9979 kg |
| Static Axle Rating, Front | 51800 lb. |
| Static Axle Rating, Front | 23496 kg |
| Static Axle Rating, Rear | 58400 lb. |
| Static Axle Rating, Rear | 26491 kg |
| Ultimate Axle Rating, Front | 81600 lb. |
| Ultimate Axle Rating, Front | 36986 kg |
| Ultimate Axle Rating, Rear | 87100 lb. |
| Ultimate Axle Rating, Rear | 39508 kg |
| Mechanical Front-Wheel Drive Axle Differential Type | Open – Standard; Automatic, Limited‑Slip Traction Control - Custom or optional |
| Rear Axle Differential Type | Foot‑actuated, hydraulically engaged 100% mechanical lock |
| Steering Type | Hydrostatic power steering and emergency steering (ISO 5010) |
| Steering Axle | Mechanical front‑wheel drive |
| Curb-Turning Radius with Brakes | 11, 4 ft, in. |
| Curb-Turning Radius with Brakes | 3.45 m |
| Curb-Turning Radius Without Brakes | 13 ft, in. |
| Curb-Turning Radius Without Brakes | 3.96 m |
| Bucket Clearance Circle with Brakes | 32, 5 ft, in. |
| Bucket Clearance Circle with Brakes | 9.88 m |
| Bucket Clearance Circle Without Brakes | 34, 10 ft, in. |
| Bucket Clearance Circle Without Brakes | 10.62 m |
| Steering Wheel Turns (Lock to Lock) | 2.7 |
| Mechanical Front-Wheel Drive Axle Final Drives | Heavy duty, outboard planetary final drives distribute shock loads over 3 gears |
| Rear Axle Final Drives | Heavy duty, outboard planetary final drives distribute shock loads over 3 gears |
| Brakes Conformance | ISO 3452 |
| Service Brakes Type | Power assisted, hydraulic wet disc, mounted inboard, self adjusting and self-equalizing |
| Parking Brake Type | Spring applied, hydraulically released, wet, multi-disc, independent of service brakes with electric switch control |
Serviceability
| Cooling System - Cab, Refill Capacity | 18.4 qt |
| Cooling System - Cab, Refill Capacity | 17.41 L |
| Cooling System - Canopy, Refill Capacity | 20.4 qt |
| Cooling System - Canopy, Refill Capacity | 19.3 L |
| Rear Axle, Refill Capacity | 19 qt |
| Rear Axle, Refill Capacity | 18 L |
| Engine Oil Capacity, Including Vertical Spin-On Filter | 11.1 qt |
| Engine Oil Capacity, Including Vertical Spin-On Filter | 10.51 L |
| Torque Converter and Transmission Capacity | 16 qt |
| Torque Converter and Transmission Capacity | 15.14 L |
| Fuel Tank with Ground-Leveling Fueling | 31 gal. |
| Fuel Tank with Ground-Leveling Fueling | 117.35 L |
| Hydraulic System Capacity | 29.5 gal. |
| Hydraulic System Capacity | 111.66 L |
| Hydraulic Reservoir Capacity | 11.3 gal. |
| Hydraulic Reservoir Capacity | 42.76 L |
| Mechanical Front-Wheel Drive Axle Differential Housing Capacity | 6.9 qt |
| Mechanical Front-Wheel Drive Axle Differential Housing Capacity | 6.53 L |
| Mechanical Front-Wheel Drive Axle Planetary (Each) Capacity | 1 qt |
| Mechanical Front-Wheel Drive Axle Planetary (Each) Capacity | 0.95 L |
Hydraulics
| Main Pump Type | Open center system, axial piston pump with electronic displacement control |
| Rated Speed | 2200 rpm |
| Pump Flow, Hitch | 12 gpm |
| Pump Flow, Hitch | 45.42 L/min |
| Pump Flow, Loader | 24.5 gpm |
| Pump Flow, Loader | 92.74 L/min |
| System Relief Pressure | 3200 psi |
| System Relief Pressure | 22063 kPa |
| Hitch Raise (Full Stroke) - Hitch Hydraulic Cycle Time | 1.7 seconds |
| Hitch Lower (To Ground Level) - Hitch Hydraulic Cycle Time | 1.2 seconds |
| Pitch Down - Hitch Hydraulic Cycle Time | 1.8 seconds |
| Pitch Up - Hitch Hydraulic Cycle Time | 2.1 seconds |
| Tilt Up - Hitch Hydraulic Cycle Time | 1.6 seconds |
| Tilt Down - Hitch Hydraulic Cycle Time | 1.2 seconds |
| Boom Raise to Full Height - Loader Hydraulic Cycle Time | 4.7 seconds |
| Bucket Dump at Maximum Height - Loader Hydraulic Cycle Time | 2.4 seconds |
| Boom Lower (Power Down) - Loader Hydraulic Cycle Time | 2.4 seconds |
| Hitch Controls | 4 lever, single tilt cylinder; 5 lever dual tilt (includes auxiliary) optional |
| Loader Controls | Single-Lever Loader/Bucket Control with Electric Clutch Cutoff Switch; Separate Lever Loader Auxiliary function optional; Single Lever Loader/Aux with metered roller switch for aux optional |
Operating Weights
| Equipment (Canopy) | 11760 lb. |
| Equipment (Canopy) | 5336 kg |
| Typical Weight with Canopy, 1000-lb Wheel Weights, and 84-in. Box Blade | 14259 lb. |
| Typical Weight with Canopy, 454-kg Wheel Weights, and 2134-mm Box Blade | 6468 kg |
| Optional Cab, Weight Difference Between Canopy and Cab | 139 lb. |
| Optional Cab, Weight Difference Between Canopy and Cab | 63 kg |
| 84-in. Box Blade, Optional | 1499 lb. |
| 2134-mm Box Blade, Optional | 680 kg |
| 88-in. Box Blade, Optional | 1534 lb. |
| 2235-mm Box Blade, Optional | 696 kg |
| Wheel Weights, Optional | 1000 lb. |
| Wheel Weights, Optional | 454 kg |
| Hitch Weights, Option One | 700 lb. |
| Hitch Weights, Option One | 318 kg |
| Hitch Weights, Option Two | 1500 lb. |
| Hitch Weights, Option Two | 680 kg |
| Front Loader Coupler, Optional | 276 lb. |
| Front Loader Coupler, Optional | 125 kg |
Operator Station
| Standard Operator Station | Canopy, Solid Mounted, ROPS/FOPS Left Access, with 2 Post ROPS and Steel Roof |
| Optional Operator Station | Isolation-mounted, ROPS/FOPS left access, with molded roof and standard HVAC |
| Seat Rotation Left, Standard | 10 degrees |
| Seat Rotation Right, Standard | 40 degrees |
| Seat Rotation Left, Optional | 20 degrees |
| Seat Rotation Right, Optional | 50 degrees |
Engine
| Manufacturer | Yanmar® |
| Model | 4TNV98CT Turbocharged |
| Non-Road Emission Standards | EPA Interim Tier 4 equivalent, EPA Final Tier 4 compliant |
| Displacement | 3.32 L |
| Displacement | 203 cu in. |
| Engine Speed Power | 2100 rpm |
| Gross Peak Power | 72 hp |
| Gross Peak Power | 54 kW |
| Net Peak Power (ISO9249) | 69 hp |
| Net Peak Power (ISO9249) | 51 kW |
| Engine Speed Torque | 1800 rpm |
| Net Peak Torque (ISO9249) | 200 lb-ft |
| Net Peak Torque (ISO9249) | 271 Nm |
| Net Torque Rise | 29 % |
| Lubrication | Pressure system with spin‑on filter and cooler |
| Air Cleaner | Dual stage dry type with safety element and evacuator valve |
Dimensions
| Ground Clearance Minimum | 10.3 in. |
| Ground Clearance Minimum | 261.62 mm |
| Overall Length, Transport, Without Box Blade | 17, 5 ft, in. |
| Overall Length, Transport, Without Box Blade | 5.31 m |
| Transport Height with Canopy | 8, 7 ft, in. |
| Transport Height with Canopy | 2.62 m |
| Transport Height with Cab | 8, 8 ft, in. |
| Transport Height with Cab | 2.64 m |
| Length from Axle to Axle with Mechanical Front-Wheel Drive Axle | 7, 2 ft, in. |
| Length from Axle to Axle with Mechanical Front-Wheel Drive Axle | 2.18 m |
| Length from Axle to Axle - Width Over Tires | 7, 3 ft, in. |
| Length from Axle to Axle - Width Over Tires | 2.21 m |
Electrical
| Voltage | 12 V |
| Alternator Rating, Canopy | 130 amp |
| Alternator Rating, Cab | 130 amp |
| Canopy Lights | 2 Halogen Front or 4 Optional Halogen (Rear & Front) (32,500 candlepower each), Turn Signals and Flashers, Two Front, Two Rear; stop and tail lights, two front amber reflectors, two rear reflectors; 6 LED Light Option, 2 Front, 2 Side, 2 Rear |
| Cab Lights | 4 Halogen (Rear and Front), Turn Signals and Flashers, Two Front, Two Rear; stop and tail lights, two front amber, reflectors, two rear reflectors |
Cooling
| Fan Type | Variable rate, temperature controlled (viscous) cooling fan, Standard |
| Engine Coolant Rating | -40 °F |
| Engine Coolant Rating | -40 ℃ |
| Engine Oil Cooler | Oil‑to‑water |
Wheels And Tires
| Front Tires with Mechanical Front-Wheel Drive | 12X16.5 12 PR R4, XD2010 |
| Rear Tires with Mechanical Front-Wheel Drive | 16.9-24 R4, 8 ply Galaxy tire |
