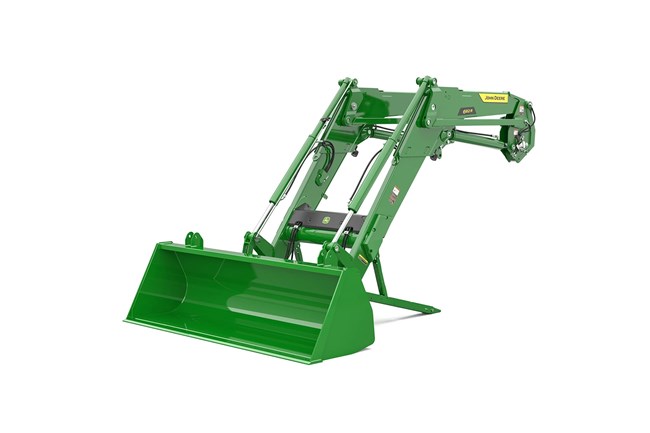

John Deere 682R
Double tap to zoom
682R
Front Loaders
Overview:
John Deere’s 682R Loader is built for high-performance material handling on 6R Tractors, offering strong lift capacity, excellent visibility, easy hookup, and precision features that boost productivity, control, and operator confidence in demanding loader work.
- Optimized Bucket Geometry and Rollback Angle Support Precise Leveling
- Ergonomic, Single‑Point Hydraulic Connection for Easy Loader Install and Removal
- Placement of Hoses, Boom, Mast, and Latch Point Provide Optimal Visibility
- Lift Capacity at Full Height: 6,349 lbs. (2,880 kg)
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Loan Calculator
Use the Loan Calculator to help you determine the financing and payment options that are best for you.
**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. You should obtain personal advice from qualified professionals. This information is provided for illustrative purposes only and does not constitute an application. This notice does not guarantee loan approval, nor is it an offer or commitment to make a loan to you on the above terms.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Share This Product:
Features
Single-Point Hydraulic Connection
The R Series Loaders feature a single-point hydraulic connection that streamlines the process of attaching and detaching the loader. This system combines all hydraulic and electrical connections into one location for efficient installation with a simple handle pull.
Concealed Oil Lines for Protection
The R Series Loaders are designed to route the oil lines and hydraulic lines through the boom arm and the torque tube. This internal routing ensures better protection of the lines from external damage and improves the overall appearance of the loader.
Automatic Mast Latch for Easy Removal
The loader is equipped with an automatic mast latch system, simplifying the process of attaching and detaching the loader. This system allows for easy parking and enhances operational uptime by enabling the loader to latch with minimal effort.
Specifications
Tractor
| Wheelbase | 114 in. |
| Wheelbase | 2900 mm |
| Rear Tire | SRI975 710/70R42 |
| Pump Capacity | 114 L/min |
| Pump Capacity | 30.1 gpm |
| Rated Pressure | 200 bar |
| Model | 6R 230, 6R 260 |
| Rated Pressure | 2900 psi |
| Front Axle Configuration | MFWD |
| Front Tire | SRI750 600/70R30 |
Loader
| Boom Breakout Force - Measured At Pivot (Y) | 3578 kg |
| Boom Breakout Force - Measured At 800 mm Ahead Of Pivot (Z) | 3144 kg |
| At Maximum Height (VV) | 6618 lb. |
| Lift Capacity At 59 in. (1500 mm) - Measured At 800 mm Ahead Of Pivot (X) | 3077 kg |
| Loader Lower | 1.79 seconds |
| Bucket Dump | 1.48 seconds |
| Dump Angle (E) | 60 degree (angle) |
| Maximum Lift Height (A) | 177 in. |
| Bucket Used | Heavy-duty grapple 2450 mm Heavy-duty grapple 96 in. |
| Lift Capacity At Full Height - Measured At Pivot (U) | 6310 lb. |
| At Maximum Height (VV) | 3002 kg |
| Base Weight | 1808.2 kg |
| Overall Length (I+F) | 230 in. |
| Maximum Lift Height (A) | 4500 mm |
| Dump Angle, Ground | 117 degree (angle) |
| Lift Capacity At Full Height - Measured At Pivot (U) | 2862 kg |
| At Full Height - Bucket Level (B) | 4164 mm |
| Bucket Weight | 826 lb. |
| Loader Raise | 2.58 seconds |
| Digging Depth (H) | 9 in. |
| Overall Length (I+F) | 5840 mm |
| Bucket Rollback Force Capacity At Ground-Level Line (ZZ) | 4667 kg |
| Boom Breakout Force - Measured At Pivot (Y) | 7888 lb. |
| Rollback Angle (G) | 57 degree (angle) |
| Boom Breakout Force - Measured At 800 mm Ahead Of Pivot (Z) | 6931 lb. |
| Lift Capacity At 59 in. (1500 mm) - Measured At 800 mm Ahead Of Pivot (X) | 6784 lb. |
| Leveling Configuration | Mechanical Self Leveling (MSL) |
| At Full Height - Bucket Level (B) | 164 in. |
| Bucket Weight | 375 kg |
| Digging Depth (H) | 235 mm |
| Bucket Rollback | 1.48 seconds |
| Bucket Rollback Force Capacity At Ground-Level Line (ZZ) | 10289 lb. |
