Features
Concealed Oil Lines for Protection

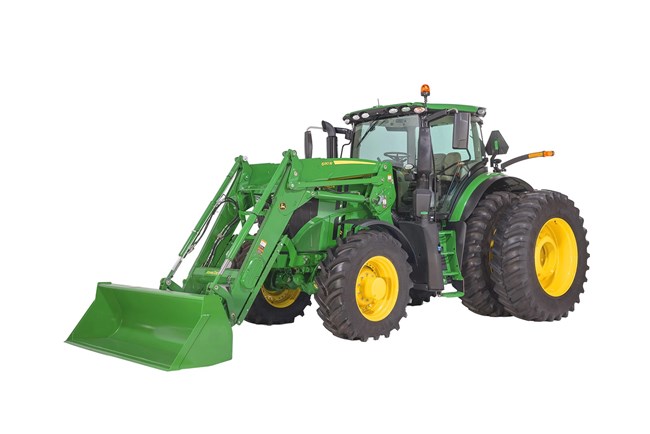

The R Series Loaders are designed to route the oil lines and hydraulic lines through the boom arm and the torque tube. This internal routing ensures better protection of the lines from external damage and improves the overall appearance of the loader.
Automatic Mast Latch for Easy Removal
The loader is equipped with an automatic mast latch system, simplifying the process of attaching and detaching the loader. This system allows for easy parking and enhances operational uptime by enabling the loader to latch with minimal effort.
Single-Point Hydraulic Connection
The R Series Loaders feature a single-point hydraulic connection that streamlines the process of attaching and detaching the loader. This system combines all hydraulic and electrical connections into one location for efficient installation with a simple handle pull.
Specifications
Tractor
| Model | 6175R/M, 6195R/M, 6215R |
| Front Tire | 600/70R28 |
| Rear Tire | 650/85R38 |
| Front Axle Configuration | MFWD |
| Wheelbase | 2800 mm |
| Wheelbase | 110 in. |
| Pump Capacity | 114 L/min |
| Pump Capacity | 30.1 gpm |
| Rated Pressure | 200 bar |
| Rated Pressure | 2900 psi |
Loader
| Base Weight | 1808.2 kg |
| Base Weight | 3986.4 lb. |
| Leveling Configuration | Mechanical Self-Leveling (MSL) |
| Bucket Used | Heavy-duty grapple 2450 mm / 96 in. |
| Bucket Weight | 375 kg |
| Bucket Weight | 826 lb. |
| Lift Capacity At Full Height - Measured At Pivot (U) | 2453 kg |
| Lift Capacity At Full Height - Measured At Pivot (U) | 5408 lb. |
| Lift Capacity At Full Height - Measured At 800 mm Ahead Of Pivot | 2431 kg |
| Lift Capacity At Full Height - Measured At 800 mm Ahead Of Pivot | 5359 lb. |
| Lift Capacity At 59 in. (1500 mm) - Measured At Pivot | 2989 kg |
| Lift Capacity At 59 in. (1500 mm) - Measured At Pivot | 6590 lb. |
| Lift Capacity At 59 in. (1500 mm) - Measured At 800 mm Ahead Of Pivot (X) | 2821 kg |
| Lift Capacity At 59 in. (1500 mm) - Measured At 800 mm Ahead Of Pivot (X) | 6219 lb. |
| Boom Breakout Force - Measured At Pivot (Y) | 3411 kg |
| Boom Breakout Force - Measured At Pivot (Y) | 7520 lb. |
| Boom Breakout Force - Measured At 800 mm Ahead Of Pivot (Z) | 3001 kg |
| Boom Breakout Force - Measured At 800 mm Ahead Of Pivot (Z) | 6616 lb. |
| At Maximum Height (VV) | 3117 kg |
| At Maximum Height (VV) | 6872 lb. |
| At 59-in. (1500 mm) Lift Height (XX) | 4486 kg |
| At 59-in. (1500 mm) Lift Height (XX) | 9890 lb. |
| Bucket Rollback Force Capacity At Ground-Level Line (ZZ) | 4336 kg |
| Bucket Rollback Force Capacity At Ground-Level Line (ZZ) | 9559 lb. |
| Maximum Lift Height (A) | 4480 mm |
| Maximum Lift Height (A) | 176 in. |
| At Full Height - Bucket Level (B) | 4240 mm |
| At Full Height - Bucket Level (B) | 167 in. |
| Clearance At Full Height - Bucket Dumped | 3465 mm |
| Clearance At Full Height - Bucket Dumped | 136 in. |
| Overall Length (I+F) | 5500 mm |
| Overall Length (I+F) | 215 in. |
| Digging Depth (H) | 96 mm |
| Digging Depth (H) | 5 in. |
| Reach - At Maximum Height (D) | 1346 mm |
| Reach - At Maximum Height (D) | 53 in. |
| Reach - At Ground Level - Bucket Level | 2931 mm |
| Reach - At Ground Level - Bucket Level | 115 in. |
| Dump Angle (E) | 60 degree (angle) |
| Rollback Angle (G) | 48 degree (angle) |
| Dump Angle, Ground | 117 degree (angle) |
| Loader Raise | 4.19 seconds |
| Loader Lower | 2.89 seconds |
| Bucket Dump | 1.81 seconds |
| Bucket Rollback | 1.81 seconds |
