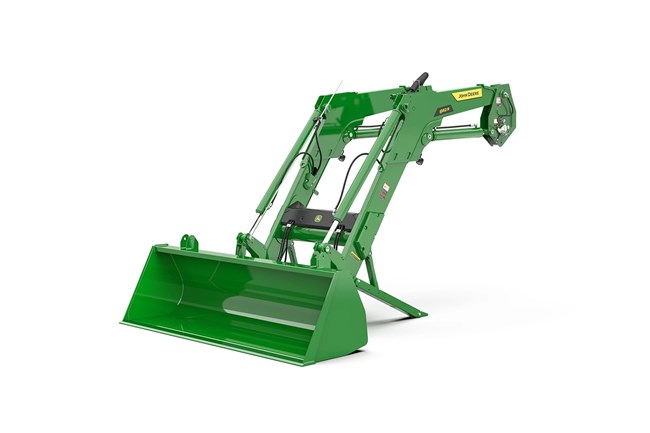

John Deere 662R
Double tap to zoom
662R
Front Loaders
Overview:
The 662R Loader offers better bucket control/leveling, easier install/removal, and improved operator visibility on 6R tractors, plus optional automation features like Return to Position, Dynamic Weighing, and Level to Horizon that reduce repetitive effort and speed up material handling.
- Optimized Bucket Geometry and Rollback Angle Support Precise Leveling
- Ergonomic, Single‑Point Hydraulic Connection for Easy Loader Install and Removal
- Placement of Hoses, Boom, Mast, and Latch Point Provide Optimal Visibility
- Lift Capacity at Height: 4,343 lbs. (1,970 kg). For MSL: 5,573 lbs. (2,528 kg).
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Loan Calculator
Use the Loan Calculator to help you determine the financing and payment options that are best for you.
**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. You should obtain personal advice from qualified professionals. This information is provided for illustrative purposes only and does not constitute an application. This notice does not guarantee loan approval, nor is it an offer or commitment to make a loan to you on the above terms.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Share This Product:
Features
Automatic Mast Latch for Easy Removal
The loader is equipped with an automatic mast latch system, simplifying the process of attaching and detaching the loader. This system allows for easy parking and enhances operational uptime by enabling the loader to latch with minimal effort.
Concealed Oil Lines for Protection
The R Series Loaders are designed to route the oil lines and hydraulic lines through the boom arm and the torque tube. This internal routing ensures better protection of the lines from external damage and improves the overall appearance of the loader.
Single-Point Hydraulic Connection
The R Series Loaders feature a single-point hydraulic connection that streamlines the process of attaching and detaching the loader. This system combines all hydraulic and electrical connections into one location for efficient installation with a simple handle pull.
Specifications
Tractor
| Wheelbase | 110 in. |
| Wheelbase | 2800 mm |
| Rear Tire | SRI975 650/85R38 |
| Pump Capacity | 114 L/min |
| Pump Capacity | 30.1 gpm |
| Rated Pressure | 200 bar |
| Model | 6R 180, 6R 200, 6R 220, 6R 240 |
| Rated Pressure | 2900 psi |
| Front Axle Configuration | MFWD |
| Front Tire | SRI750 480/70R34 |
Loader
| Boom Breakout Force - Measured At Pivot (Y) | 2974 kg |
| Boom Breakout Force - Measured At 800 mm Ahead Of Pivot (Z) | 2266 kg |
| At Maximum Height (VV) | 6263 lb. |
| Lift Capacity At 59 in. (1500 mm) - Measured At 800 mm Ahead Of Pivot (X) | 2268 kg |
| Loader Lower | 1.99 seconds |
| Bucket Dump | 2.8 seconds |
| Dump Angle (E) | 51 degree (angle) |
| Maximum Lift Height (A) | 173 in. |
| Bucket Used | Heavy-duty grapple 2150 mm Heavy-duty grapple 85 in. |
| Lift Capacity At Full Height - Measured At Pivot (U) | 5883 lb. |
| At Maximum Height (VV) | 2841 kg |
| Base Weight | 1674.3 kg |
| Overall Length (I+F) | 230 in. |
| Maximum Lift Height (A) | 4405 mm |
| Dump Angle, Ground | 132 degree (angle) |
| Lift Capacity At Full Height - Measured At Pivot (U) | 2668 kg |
| At Full Height - Bucket Level (B) | 4069 mm |
| Bucket Weight | 721 lb. |
| Loader Raise | 2.89 seconds |
| Digging Depth (H) | 7 in. |
| Overall Length (I+F) | 5854 mm |
| Bucket Rollback Force Capacity At Ground-Level Line (ZZ) | 4794 kg |
| Boom Breakout Force - Measured At Pivot (Y) | 6557 lb. |
| Rollback Angle (G) | 56 degree (angle) |
| Boom Breakout Force - Measured At 800 mm Ahead Of Pivot (Z) | 4996 lb. |
| Lift Capacity At 59 in. (1500 mm) - Measured At 800 mm Ahead Of Pivot (X) | 5000 lb. |
| Leveling Configuration | Non-Self Leveling (NSL) |
| At Full Height - Bucket Level (B) | 160 in. |
| Bucket Weight | 327 kg |
| Digging Depth (H) | 185 mm |
| Bucket Rollback | 1.91 seconds |
| Bucket Rollback Force Capacity At Ground-Level Line (ZZ) | 10569 lb. |
