Features

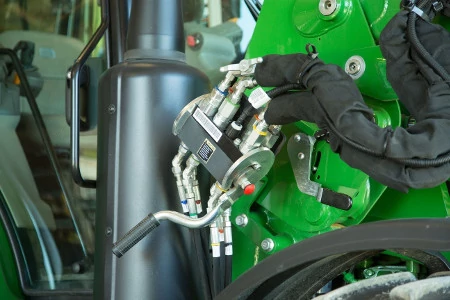

Single-Point Hydraulic Connection
The R Series Loaders feature a single-point hydraulic connection that streamlines the process of attaching and detaching the loader. This system combines all hydraulic and electrical connections into one location for efficient installation with a simple handle pull.

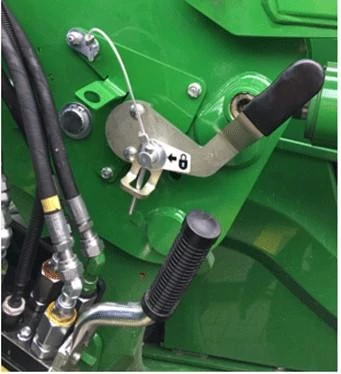

Automatic Mast Latch for Easy Removal
The loader is equipped with an automatic mast latch system, simplifying the process of attaching and detaching the loader. This system allows for easy parking and enhances operational uptime by enabling the loader to latch with minimal effort.

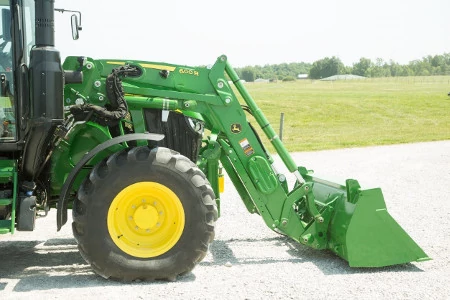

Concealed Oil Lines for Protection
The R Series Loaders are designed to route the oil lines and hydraulic lines through the boom arm and the torque tube. This internal routing ensures better protection of the lines from external damage and improves the overall appearance of the loader.
Specifications
Tractor
| Model | 6105R/M, 6115R/M, 6125R/M |
| Front Tire | 480/70R24 |
| Rear Tire | 520/70R38 |
| Front Axle Configuration | MFWD with Limited Slip Differential |
| Wheelbase | 2580 mm |
| Wheelbase | 102 in. |
| Pump Capacity | 114 L/min |
| Pump Capacity | 30.1 gpm |
| Rated Pressure | 200 bar |
| Rated Pressure | 2901 psi |
Loader
| Base Weight | 1498.4 kg |
| Base Weight | 3303.4 lb. |
| Leveling Configuration | Mechanical Self-Leveling (MSL) |
| Bucket Used | 2150HD Grapple |
| Bucket Weight | 372 kg |
| Bucket Weight | 821 lb. |
| Lift Capacity At Full Height - Measured At Pivot (U) | 2348 kg |
| Lift Capacity At Full Height - Measured At Pivot (U) | 5176 lb. |
| Lift Capacity At Full Height - Measured At 800 mm Ahead Of Pivot | 2189 kg |
| Lift Capacity At Full Height - Measured At 800 mm Ahead Of Pivot | 4829 lb. |
| Lift Capacity At 59 in. (1500 mm) - Measured At Pivot | 2686 kg |
| Lift Capacity At 59 in. (1500 mm) - Measured At Pivot | 5922 lb. |
| Lift Capacity At 59 in. (1500 mm) - Measured At 800 mm Ahead Of Pivot (X) | 2531 kg |
| Lift Capacity At 59 in. (1500 mm) - Measured At 800 mm Ahead Of Pivot (X) | 5580 lb. |
| Boom Breakout Force - Measured At Pivot (Y) | 3006 kg |
| Boom Breakout Force - Measured At Pivot (Y) | 6627 lb. |
| Boom Breakout Force - Measured At 800 mm Ahead Of Pivot (Z) | 2546 kg |
| Boom Breakout Force - Measured At 800 mm Ahead Of Pivot (Z) | 5613 lb. |
| At Maximum Height (VV) | 2433 kg |
| At Maximum Height (VV) | 5364 lb. |
| At 59-in. (1500 mm) Lift Height (XX) | 4301 kg |
| At 59-in. (1500 mm) Lift Height (XX) | 9482 lb. |
| Bucket Rollback Force Capacity At Ground-Level Line (ZZ) | 4238 kg |
| Bucket Rollback Force Capacity At Ground-Level Line (ZZ) | 9343 lb. |
| Maximum Lift Height (A) | 4131 mm |
| Maximum Lift Height (A) | 163 in. |
| At Full Height - Bucket Level (B) | 3891 mm |
| At Full Height - Bucket Level (B) | 153 in. |
| Clearance At Full Height - Bucket Dumped | 3123 mm |
| Clearance At Full Height - Bucket Dumped | 123 in. |
| Overall Length (I+F) | 4900 mm |
| Overall Length (I+F) | 194 in. |
| Digging Depth (H) | 53 mm |
| Digging Depth (H) | 2 in. |
| Reach - At Maximum Height (D) | 819 mm |
| Reach - At Maximum Height (D) | 32 in. |
| Reach - At Ground Level - Bucket Level | 2504 mm |
| Reach - At Ground Level - Bucket Level | 99 in. |
| Dump Angle (E) | -59 degree (angle) |
| Rollback Angle (G) | 48 degree (angle) |
| Dump Angle, Ground | -99 degree (angle) |
| Loader Raise | 3.37 seconds |
| Loader Lower | 2.53 seconds |
| Bucket Dump | 1.81 seconds |
| Bucket Rollback | 1.81 seconds |
