Features
Single-Point Hydraulic Connection

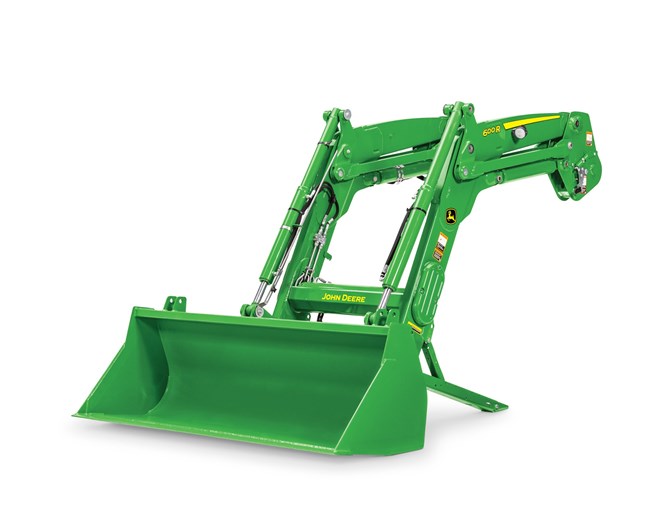

The R Series Loaders feature a single-point hydraulic connection that streamlines the process of attaching and detaching the loader. This system combines all hydraulic and electrical connections into one location for efficient installation with a simple handle pull.
Concealed Oil Lines for Protection
The R Series Loaders are designed to route the oil lines and hydraulic lines through the boom arm and the torque tube. This internal routing ensures better protection of the lines from external damage and improves the overall appearance of the loader.
Automatic Mast Latch for Easy Removal
The loader is equipped with an automatic mast latch system, simplifying the process of attaching and detaching the loader. This system allows for easy parking and enhances operational uptime by enabling the loader to latch with minimal effort.
Specifications
Tractor
| Wheelbase | 94.5 in. |
| Wheelbase | 2400 mm |
| Rear Tire | 520/70R38 |
| Pump Capacity | 80 L/min |
| Pump Capacity | 21 gpm |
| Rated Pressure | 200 bar |
| Rated Pressure | 2900.75 psi |
| Model | 6110M, 6120M |
| Front Tire | 420/70R24 |
Loader
| Boom Breakout Force - Measured At Pivot (Y) | 2665 kg |
| Boom Breakout Force - Measured At 800 mm Ahead Of Pivot (Z) | 2236 kg |
| At Maximum Height (VV) | 5617 lb. |
| Lift Capacity At 59 in. (1500 mm) - Measured At 800 mm Ahead Of Pivot (X) | 2141 kg |
| Loader Lower | 3.1 seconds |
| Bucket Dump | 2.58 seconds |
| Dump Angle (E) | -60 degree (angle) |
| At 59-in. (1500 mm) Lift Height (XX) | 4036 kg |
| Maximum Lift Height (A) | 154 in. |
| Lift Capacity At Full Height - Measured At 800 mm Ahead Of Pivot | 3924 lb. |
| Bucket Used | Heavy duty |
| Lift Capacity At 59 in. (1500 mm) - Measured At Pivot | 2297 kg |
| Lift Capacity At Full Height - Measured At Pivot (U) | 4131 lb. |
| At Maximum Height (VV) | 2548 kg |
| Clearance At Full Height - Bucket Dumped | 114 in. |
| Reach - At Ground Level - Bucket Level | 98 in. |
| At 59-in. (1500 mm) Lift Height (XX) | 8898 lb. |
| Overall Length (I+F) | 192 in. |
| Lift Capacity At Full Height - Measured At 800 mm Ahead Of Pivot | 1780 kg |
| Dump Angle, Ground | -100 degree (angle) |
| Maximum Lift Height (A) | 3900 mm |
| Reach - At Maximum Height (D) | 154 in. |
| Lift Capacity At 59 in. (1500 mm) - Measured At Pivot | 5064 lb. |
| Lift Capacity At Full Height - Measured At Pivot (U) | 1875 kg |
| At Full Height - Bucket Level (B) | 3660 mm |
| Clearance At Full Height - Bucket Dumped | 2887 mm |
| Bucket Weight | 619.5 lb. |
| Reach - At Ground Level - Bucket Level | 2490 mm |
| Loader Raise | 4.13 seconds |
| Digging Depth (H) | -6 in. |
| Overall Length (I+F) | 4890 mm |
| Bucket Rollback Force Capacity At Ground-Level Line (ZZ) | 3902 kg |
| Reach - At Maximum Height (D) | 942 mm |
| Rollback Angle (G) | 48 degree (angle) |
| Boom Breakout Force - Measured At Pivot (Y) | 5875 lb. |
| Boom Breakout Force - Measured At 800 mm Ahead Of Pivot (Z) | 4930 lb. |
| Lift Capacity At 59 in. (1500 mm) - Measured At 800 mm Ahead Of Pivot (X) | 4720 lb. |
| Leveling Configuration | Mechanical self-leveling (MSL) |
| At Full Height - Bucket Level (B) | 144 in. |
| Bucket Weight | 281 kg |
| Digging Depth (H) | -160 mm |
| Bucket Rollback | 2.58 seconds |
| Bucket Rollback Force Capacity At Ground-Level Line (ZZ) | 8602 lb. |
