Features
Concealed Oil Lines Improve Appearance and Reduce Damage
This loader has concealed oil and hydraulic lines routed through the boom arm and torque tube. This design provides protection from external damage while enhancing the loader's overall appearance.
Quick Loader Removal

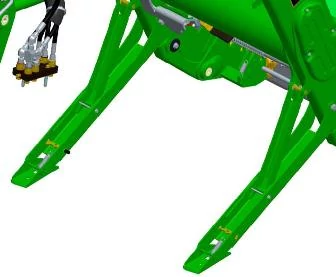

John Deere loaders can be quickly removed or reattached to tractors in minutes without tools, thanks to a tool-free system. To detach the loader, apply slight down pressure with the bucket at a 30-degree angle, lower the parking stands, and open the mast pins with the tractor in park.
Single-Point Hydraulic Connection Saves Time
A single-point hydraulic connection saves operators time when attaching or detaching the loader. This system also includes connections for electrical needs and a hydraulic lockout valve, allowing for fast installation via a simple handle pull.
Specifications
Tractor
| Model | 6105D, 6115D, 6130D, 6140D |
| Front Tire | 14.9R24 |
| Rear Tire | 18.4R38 |
| Front Axle Configuration | MFWD |
| Wheelbase | 2380 mm |
| Wheelbase | 93.7 in. |
| Pump Capacity | 76 L/min |
| Pump Capacity | 20.1 gpm |
| Rated Pressure | 195 bar |
| Rated Pressure | 2828 psi |
Loader
| Base Weight | 1113.2 kg |
| Base Weight | 2454.2 lb. |
| Leveling Configuration | Mechanical Self-Leveling (MSL) |
| Bucket Used | Materials - 1850 mm / 73 in. |
| Bucket Weight | 281 kg |
| Bucket Weight | 620 lb. |
| Lift Capacity At Full Height - Measured At Pivot (U) | 1646 kg |
| Lift Capacity At Full Height - Measured At Pivot (U) | 3629 lb. |
| Lift Capacity At Full Height - Measured At 800 mm Ahead Of Pivot | 1790 kg |
| Lift Capacity At Full Height - Measured At 800 mm Ahead Of Pivot | 3946 lb. |
| Lift Capacity At 59 in. (1500 mm) - Measured At Pivot | 2112 kg |
| Lift Capacity At 59 in. (1500 mm) - Measured At Pivot | 4656 lb. |
| Lift Capacity At 59 in. (1500 mm) - Measured At 800 mm Ahead Of Pivot (X) | 2021 kg |
| Lift Capacity At 59 in. (1500 mm) - Measured At 800 mm Ahead Of Pivot (X) | 4456 lb. |
| Boom Breakout Force - Measured At Pivot (Y) | 2583 kg |
| Boom Breakout Force - Measured At Pivot (Y) | 5695 lb. |
| Boom Breakout Force - Measured At 800 mm Ahead Of Pivot (Z) | 2259 kg |
| Boom Breakout Force - Measured At 800 mm Ahead Of Pivot (Z) | 4980 lb. |
| At Maximum Height (VV) | 1471 kg |
| At Maximum Height (VV) | 3243 lb. |
| At 59-in. (1500 mm) Lift Height (XX) | 2916 kg |
| At 59-in. (1500 mm) Lift Height (XX) | 6429 lb. |
| Bucket Rollback Force Capacity At Ground-Level Line (ZZ) | 2986 kg |
| Bucket Rollback Force Capacity At Ground-Level Line (ZZ) | 6583 lb. |
| Maximum Lift Height (A) | 3830 mm |
| Maximum Lift Height (A) | 150.8 in. |
| At Full Height - Bucket Level (B) | 3636 mm |
| At Full Height - Bucket Level (B) | 143.1 in. |
| Clearance At Full Height - Bucket Dumped | 2801 mm |
| Clearance At Full Height - Bucket Dumped | 110.3 in. |
| Overall Length (I+F) | 4900 mm |
| Overall Length (I+F) | 193 in. |
| Digging Depth (H) | 56 mm |
| Digging Depth (H) | 2.2 in. |
| Reach - At Maximum Height (D) | 923 mm |
| Reach - At Maximum Height (D) | 36.3 in. |
| Reach - At Ground Level - Bucket Level | 2519 mm |
| Reach - At Ground Level - Bucket Level | 99.2 in. |
| Dump Angle (E) | -79 degree (angle) |
| Rollback Angle (G) | 43 degree (angle) |
| Dump Angle, Ground | -95 degree (angle) |
| Loader Raise | 3.9 seconds |
| Loader Lower | 2.9 seconds |
| Bucket Dump | 2.1 seconds |
| Bucket Rollback | 2.1 seconds |
