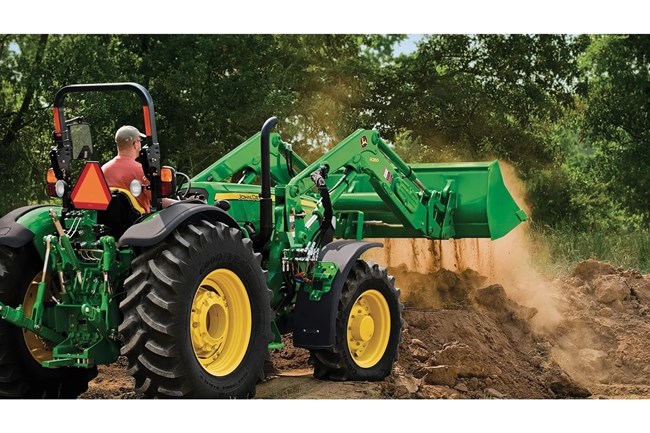

John Deere 540M
Double tap to zoom
540M
Front Loaders
Overview:
The John Deere 540M Loader offers a seamless combination of high lift capacity and innovative features like a single-point hydraulic connection and concealed oil lines for enhanced efficiency and protection, making it an ideal choice for diverse material handling needs.
- Superior Strength and Visibility
- For Heavy-Duty Chores
- Parking Stands are Integrated on the Loader
- Mechanical Self-Leveling (MSL) Linkage
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Loan Calculator
Use the Loan Calculator to help you determine the financing and payment options that are best for you.
**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. You should obtain personal advice from qualified professionals. This information is provided for illustrative purposes only and does not constitute an application. This notice does not guarantee loan approval, nor is it an offer or commitment to make a loan to you on the above terms.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Share This Product:
Features
Single-Point Hydraulic Connection Saves Time
A single-point hydraulic connection saves operators time when attaching or detaching the loader. This system also includes connections for electrical needs and a hydraulic lockout valve, allowing for fast installation via a simple handle pull.
Boom Lockout for Easy Service
A hydraulic shut-off valve prevents the loader from lowering unexpectedly, enabling safe maintenance under the boom.
Concealed Oil Lines for Protection
Wider tractor hoods have reduced space for traditional oil line routing along the boom, increasing the risk of damage. To address this, the oil lines are now routed through the boom arm and torque tube, enhancing protection and improving the loader’s appearance.
Specifications
Tractor
| Model | 6135E |
| Front Tire | 14.9R24 |
| Rear Tire | 18.4R38 |
| Front Axle Configuration | MFWD |
| Wheelbase | 2380 mm |
| Wheelbase | 94 in. |
| Pump Capacity | 75.7 L/min |
| Pump Capacity | 20 gpm |
| Rated Pressure | 195 bar |
| Rated Pressure | 2828 psi |
Loader
| Base Weight | 1028.2 kg |
| Leveling Configuration | Mechanical Self-Leveling (MSL) |
| Bucket Used | Materials - 1850 mm / 73 in. |
| Bucket Weight | 246 kg |
| Bucket Weight | 542 lb. |
| Lift Capacity At Full Height - Measured At Pivot (U) | 1373 kg |
| Lift Capacity At Full Height - Measured At Pivot (U) | 3027 lb. |
| Lift Capacity At Full Height - Measured At 800 mm Ahead Of Pivot | 1481 kg |
| Lift Capacity At 59 in. (1500 mm) - Measured At Pivot | 2015 kg |
| Lift Capacity At 59 in. (1500 mm) - Measured At 800 mm Ahead Of Pivot (X) | 1931 kg |
| Boom Breakout Force - Measured At Pivot (Y) | 2671 kg |
| Boom Breakout Force - Measured At 800 mm Ahead Of Pivot (Z) | 2325 kg |
| At Maximum Height (VV) | 1636 kg |
| At 59-in. (1500 mm) Lift Height (XX) | 2986 kg |
| Bucket Rollback Force Capacity At Ground-Level Line (ZZ) | 3046 kg |
| Maximum Lift Height (A) | 3578 mm |
| Maximum Lift Height (A) | 141 in. |
| At Full Height - Bucket Level (B) | 3383 mm |
| At Full Height - Bucket Level (B) | 133 in. |
| Clearance At Full Height - Bucket Dumped | 2538 mm |
| Clearance At Full Height - Bucket Dumped | 100 in. |
| Overall Length (I+F) | 4800 mm |
| Overall Length (I+F) | 190 in. |
| Digging Depth (H) | 47 mm |
| Digging Depth (H) | 1.9 in. |
| Reach - At Maximum Height (D) | 1011 mm |
| Reach - At Maximum Height (D) | 39.8 in. |
| Reach - At Ground Level - Bucket Level | 2426 mm |
| Reach - At Ground Level - Bucket Level | 95.5 in. |
| Dump Angle (E) | -74 degree (angle) |
| Rollback Angle (G) | 42 degree (angle) |
| Dump Angle, Ground | -96 degree (angle) |
| Loader Raise | 3.4 seconds |
| Loader Lower | 2.5 seconds |
| Bucket Dump | 2.1 seconds |
| Bucket Rollback | 2.1 seconds |
