Features
Loader Removal Made Easy
John Deere loaders are easily removed and reinstalled on tractors without tools. The parking system allows removing or attaching the loader to the tractor in minutes without the need for tools.
Easier Hydraulic Connection
The 500M Utility Loader offers versatile hydraulic connection styles to improve efficiency. Options include direct loader hoses to tractor mid-valve, individual quick couplers, and single-point hydraulic quick couplers, making installation and removal straightforward.

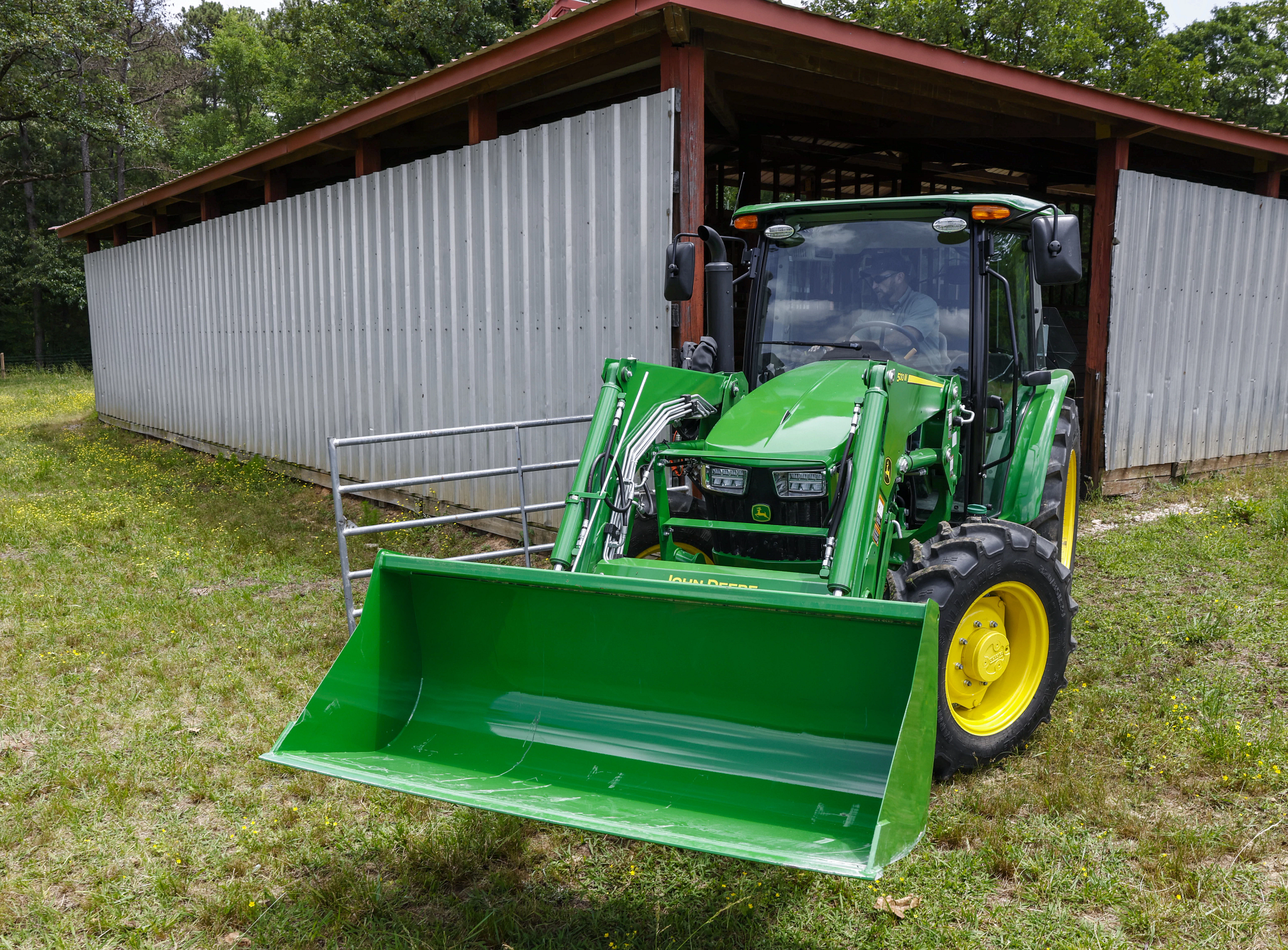

Perfect Fit for 5E 3-Cylinder Tractors
The 500M Loader is a more compact and better-matched option for 5E 3-Cylinder Tractors, offering improved maneuverability in tight spaces like barns or tree lines. It also features significantly better ground-level reach than the 520M, enhancing operator confidence and ease of use during tasks.
Specifications
Tractor
| Model | 5E 3-Cyl FT4 (5045E, 5050E, 5055E, 5060E, 5065E, 5067E, 5075E) |
| Front Tire | 9.5 - 24 |
| Wheelbase | 205 mm |
| Wheelbase | 80.7 in. |
| Pump Capacity | 43.2 L/min |
| Pump Capacity | 11.4 gpm |
| Rated Pressure | 2828 psi |
Loader
| Leveling Configuration | Non-Self Leveling (NSL) |
| Bucket Used | General Purpose 1850 mm / 73 in. |
| Bucket Weight | 220 kg |
| Bucket Weight | 458 lb. |
| Lift Capacity At Full Height - Measured At Pivot (U) | 1463 kg |
| Lift Capacity At Full Height - Measured At Pivot (U) | 3225 lb. |
| Lift Capacity At Full Height - Measured At 800 mm Ahead Of Pivot | 896 kg |
| Lift Capacity At Full Height - Measured At 800 mm Ahead Of Pivot | 1975 lb. |
| Lift Capacity At 59 in. (1500 mm) - Measured At Pivot | 1715 kg |
| Lift Capacity At 59 in. (1500 mm) - Measured At Pivot | 3780 lb. |
| Lift Capacity At 59 in. (1500 mm) - Measured At 800 mm Ahead Of Pivot (X) | 1208 kg |
| Lift Capacity At 59 in. (1500 mm) - Measured At 800 mm Ahead Of Pivot (X) | 2663 lb. |
| Boom Breakout Force - Measured At Pivot (Y) | 1975 kg |
| Boom Breakout Force - Measured At Pivot (Y) | 4354 lb. |
| Boom Breakout Force - Measured At 800 mm Ahead Of Pivot (Z) | 1295 kg |
| Boom Breakout Force - Measured At 800 mm Ahead Of Pivot (Z) | 2855 lb. |
| At Maximum Height (VV) | 2030 kg |
| At Maximum Height (VV) | 4475 lb. |
| At 59-in. (1500 mm) Lift Height (XX) | 3388 kg |
| At 59-in. (1500 mm) Lift Height (XX) | 7469 lb. |
| Bucket Rollback Force Capacity At Ground-Level Line (ZZ) | 3369 kg |
| Bucket Rollback Force Capacity At Ground-Level Line (ZZ) | 7427 lb. |
| Maximum Lift Height (A) | 3150 mm |
| Maximum Lift Height (A) | 124 in. |
| At Full Height - Bucket Level (B) | 2964 mm |
| At Full Height - Bucket Level (B) | 116 in. |
| Clearance At Full Height - Bucket Dumped | 2187 mm |
| Clearance At Full Height - Bucket Dumped | 86 in. |
| Overall Length (I+F) | 4207 mm |
| Overall Length (I+F) | 165 in. |
| Digging Depth (H) | 122 mm |
| Digging Depth (H) | 4.8 in. |
| Reach - At Maximum Height (D) | 486 mm |
| Reach - At Maximum Height (D) | 19 in. |
| Reach - At Ground Level - Bucket Level | 2157 mm |
| Reach - At Ground Level - Bucket Level | 85 in. |
| Dump Angle (E) | 57 degree (angle) |
| Rollback Angle (G) | 42 degree (angle) |
| Dump Angle, Ground | 149 degree (angle) |
| Loader Raise | 2.8 seconds |
| Loader Lower | 2 seconds |
| Bucket Dump | 4.2 seconds |
| Bucket Rollback | 3 seconds |
