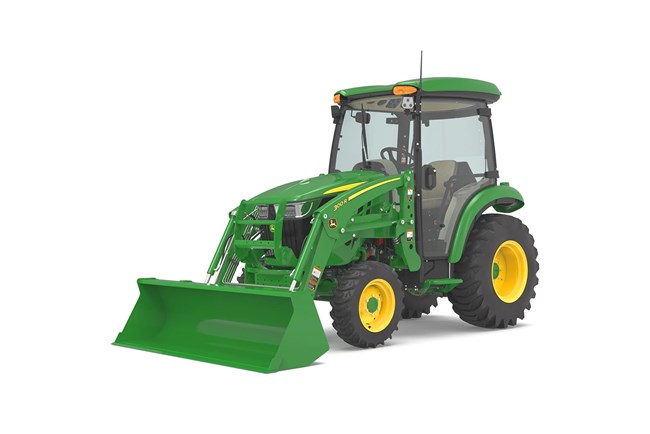

John Deere 320R
Double tap to zoom
320R
Front Loaders
Overview:
The 320R Loader features a Quik-Park™ system for easy mounting/removal, a quick-change carrier, and end-of-pin lubrication for easy maintenance, enhancing versatility and efficiency for various applications.
- Compatible With 3R Series Tractors
- Quik-Park™ Mounting System for Efficient Attachment and Removal
- Quik-Change Attachment Carrier Makes it Easier and Faster to Move From Chore to Chore
- 1,598 lb. (725 kg) Lift Capacity
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Loan Calculator
Use the Loan Calculator to help you determine the financing and payment options that are best for you.
**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. You should obtain personal advice from qualified professionals. This information is provided for illustrative purposes only and does not constitute an application. This notice does not guarantee loan approval, nor is it an offer or commitment to make a loan to you on the above terms.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Share This Product:
Features
End-of-Pin Lubrication
Grease fittings accessible from the loader’s side make maintenance easier.
Quick-Change Attachment Carrier
The quick-change attachment carrier allows for fast, easy removal and mounting of attachments without tools.
Quik-Park™ Loader Mounting System
This system allows for the quick removal and reattachment of the loader without needing any tools. The integrated parking stand lowers by joystick action, transitioning the loader swiftly to a parked position once unlocked, enhancing operational convenience.
Specifications
Tractor
| Model | 4105 |
| Front Tire | 10-16.5 6PR R4T1 |
| Rear Tire | 17.52-24 8PR R4T1 |
| Wheelbase | 1727 mm |
| Wheelbase | 68 in. |
| Pump Capacity | 5.7 gpm |
| Rated Pressure | 2500 psi |
Loader
| Base Weight | 281.09 kg |
| Bucket Used | Materials |
| Bucket Weight | 93.8 kg |
| Bucket Weight | 207 lb. |
| Lift Capacity At Full Height - Measured At Pivot (U) | 633 kg |
| Lift Capacity At Full Height - Measured At Pivot (U) | 1393 lb. |
| Lift Capacity at Full Height - Measured at 500 mm Ahead of Pivot | 457 kg |
| Lift Capacity at Full Height - Measured at 500 mm Ahead of Pivot | 1005 lb. |
| Lift Capacity At 59 in. (1500 mm) - Measured At Pivot | 959 kg |
| Lift Capacity At 59 in. (1500 mm) - Measured At Pivot | 2109 lb. |
| Lift Capacity at 59 in (1500 mm) - Measured at 500 mm Ahead of Pivot | 745 kg |
| Lift Capacity at 59 in. (1500 mm) - Measured at 500 mm Ahead of Pivot | 1639 lb. |
| Boom Breakout Force - Measured At Pivot (Y) | 1710 kg |
| Boom Breakout Force - Measured At Pivot (Y) | 3769 lb. |
| Boom Breakout Force - Measured at 500 mm Ahead of Pivot | 1209 kg |
| Boom Breakout Force - Measured at 500 mm Ahead of Pivot | 2665 lb. |
| At Maximum Height (VV) | 822 kg |
| At Maximum Height (VV) | 1819 lb. |
| At 59-in. (1500 mm) Lift Height (XX) | 1397 kg |
| At 59-in. (1500 mm) Lift Height (XX) | 3079 lb. |
| Bucket Rollback Force Capacity At Ground-Level Line (ZZ) | 1335.4 kg |
| Bucket Rollback Force Capacity At Ground-Level Line (ZZ) | 2944 lb. |
| Maximum Lift Height (A) | 2616 mm |
| Maximum Lift Height (A) | 103.3 in. |
| At Full Height - Bucket Level (B) | 2411 mm |
| At Full Height - Bucket Level (B) | 94.9 in. |
| Clearance At Full Height - Bucket Dumped | 2003 mm |
| Clearance At Full Height - Bucket Dumped | 78.8 in. |
| Overall Length (I+F) | 3218 mm |
| Overall Length (I+F) | 127 in. |
| Digging Depth (H) | 121 mm |
| Digging Depth (H) | 4.76 in. |
| Reach - At Maximum Height (D) | 766 mm |
| Reach - At Maximum Height (D) | 30.1 in. |
| Reach - At Ground Level - Bucket Level | 1491 mm |
| Reach - At Ground Level - Bucket Level | 50.7 in. |
| Dump Angle (E) | 49.3 degree (angle) |
| Rollback Angle (G) | 23.8 degree (angle) |
| Dump Angle, Ground | 138 degree (angle) |
| Loader Raise | 3.6 seconds |
| Loader Lower | 2.1 seconds |
| Bucket Dump | 3 seconds |
| Bucket Rollback | 1.8 seconds |
