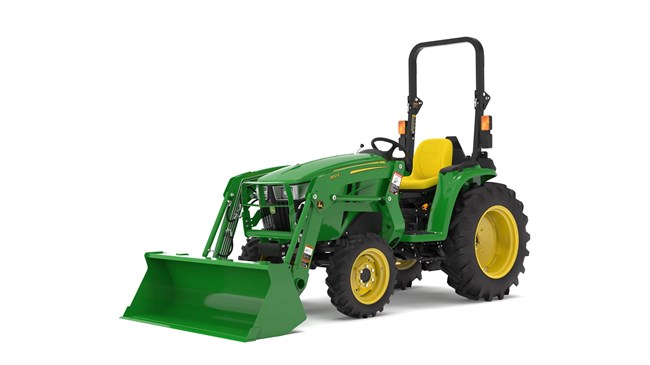

John Deere 300E
Double tap to zoom
300E
Front Loaders
Overview:
The 300E Loader offers effortless operation with the optional mechanical self-leveling feature, increasing lift capacity and minimizing material loss. It features end-of-pin lubrication for easy maintenance and a quick-change attachment carrier for versatility.
- Compatible With 3025D, 3035D, 3043D, 3025E, 3032E, and 3038E
- Curved Boom Design Improves Operator Visibility to Front Implements
- Larger Knee Plates for Strength and Durability Without Sacrificing Compact Stance
- Mechanical Self-Leveling (MSL) Loader Option With 1,283 lb. (583 kg) Lift Capacity
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Loan Calculator
Use the Loan Calculator to help you determine the financing and payment options that are best for you.
**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. You should obtain personal advice from qualified professionals. This information is provided for illustrative purposes only and does not constitute an application. This notice does not guarantee loan approval, nor is it an offer or commitment to make a loan to you on the above terms.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Share This Product:
Features
End-of-Pin Lubrication
Grease fittings accessible from the loader’s side make maintenance easier.
Quick-Change Attachment Carrier
The quick-change attachment carrier allows for fast, easy removal and mounting of attachments without tools.

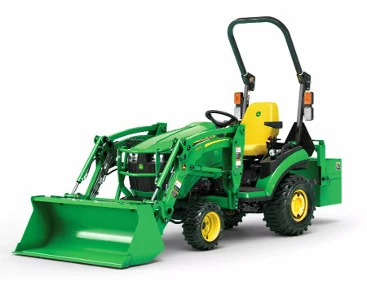

Optional Field-Installed Mechanical Self-Leveling Loader (MSL)
The MSL loader for 1, 2, 3D, and 3E Tractors enables operators of all experience levels to handle loads with greater ease and confidence, thanks to features like consistent implement positioning, increased lift capacity, and reduced material loss.
Specifications
Tractor
| Model | 3025E, 3032E, 3038E |
| Front Tire | 25x8.50-14 4PR R4 |
| Rear Tire | 15.00-19.5 4PR |
| Wheelbase | 1595 mm |
| Wheelbase | 62.8 in. |
| Pump Capacity | 5.3 gpm |
| Rated Pressure | 2495 psi |
Loader
| Base Weight | 306.4 kg |
| Bucket Used | Materials - 1550 mm |
| Bucket Weight | 93 kg |
| Bucket Weight | 205 lb. |
| Lift Capacity At Full Height - Measured At Pivot (U) | 539 kg |
| Lift Capacity At Full Height - Measured At Pivot (U) | 1186 lb. |
| Lift Capacity at Full Height - Measured at 500 mm Ahead of Pivot | 384 kg |
| Lift Capacity at Full Height - Measured at 500 mm Ahead of Pivot | 845 lb. |
| Lift Capacity At 59 in. (1500 mm) - Measured At Pivot | 588 kg |
| Lift Capacity At 59 in. (1500 mm) - Measured At Pivot | 1294 lb. |
| Lift Capacity at 59 in (1500 mm) - Measured at 500 mm Ahead of Pivot | 444 kg |
| Lift Capacity at 59 in. (1500 mm) - Measured at 500 mm Ahead of Pivot | 977 lb. |
| Boom Breakout Force - Measured At Pivot (Y) | 760 kg |
| Boom Breakout Force - Measured At Pivot (Y) | 1704 lb. |
| Boom Breakout Force - Measured at 500 mm Ahead of Pivot | 537 kg |
| Boom Breakout Force - Measured at 500 mm Ahead of Pivot | 1204 lb. |
| At Maximum Height (VV) | 639 kg |
| At Maximum Height (VV) | 1433 lb. |
| At 59-in. (1500 mm) Lift Height (XX) | 809 kg |
| At 59-in. (1500 mm) Lift Height (XX) | 1814 lb. |
| Bucket Rollback Force Capacity At Ground-Level Line (ZZ) | 634 kg |
| Bucket Rollback Force Capacity At Ground-Level Line (ZZ) | 1422 lb. |
| Maximum Lift Height (A) | 2140 mm |
| Maximum Lift Height (A) | 84 in. |
| At Full Height - Bucket Level (B) | 1979 mm |
| At Full Height - Bucket Level (B) | 78 in. |
| Clearance At Full Height - Bucket Dumped | 1596 mm |
| Clearance At Full Height - Bucket Dumped | 63 in. |
| Overall Length (I+F) | 2900 mm |
| Overall Length (I+F) | 114 in. |
| Overall Height In Carry Position | 161 mm |
| Overall Height In Carry Position | 6 in. |
| Digging Depth (H) | 131 mm |
| Digging Depth (H) | 5 in. |
| Reach - At Maximum Height (D) | 603 mm |
| Reach - At Maximum Height (D) | 24 in. |
| Reach - At Ground Level - Bucket Level | 1369 mm |
| Reach - At Ground Level - Bucket Level | 54 in. |
| Dump Angle (E) | 43.8 degree (angle) |
| Rollback Angle (G) | 31.4 degree (angle) |
| Dump Angle, Ground | 122 degree (angle) |
| Loader Raise | 3.31 seconds |
| Loader Lower | 2.75 seconds |
| Bucket Dump | 1.75 seconds |
| Bucket Rollback | 1.88 seconds |
