Features

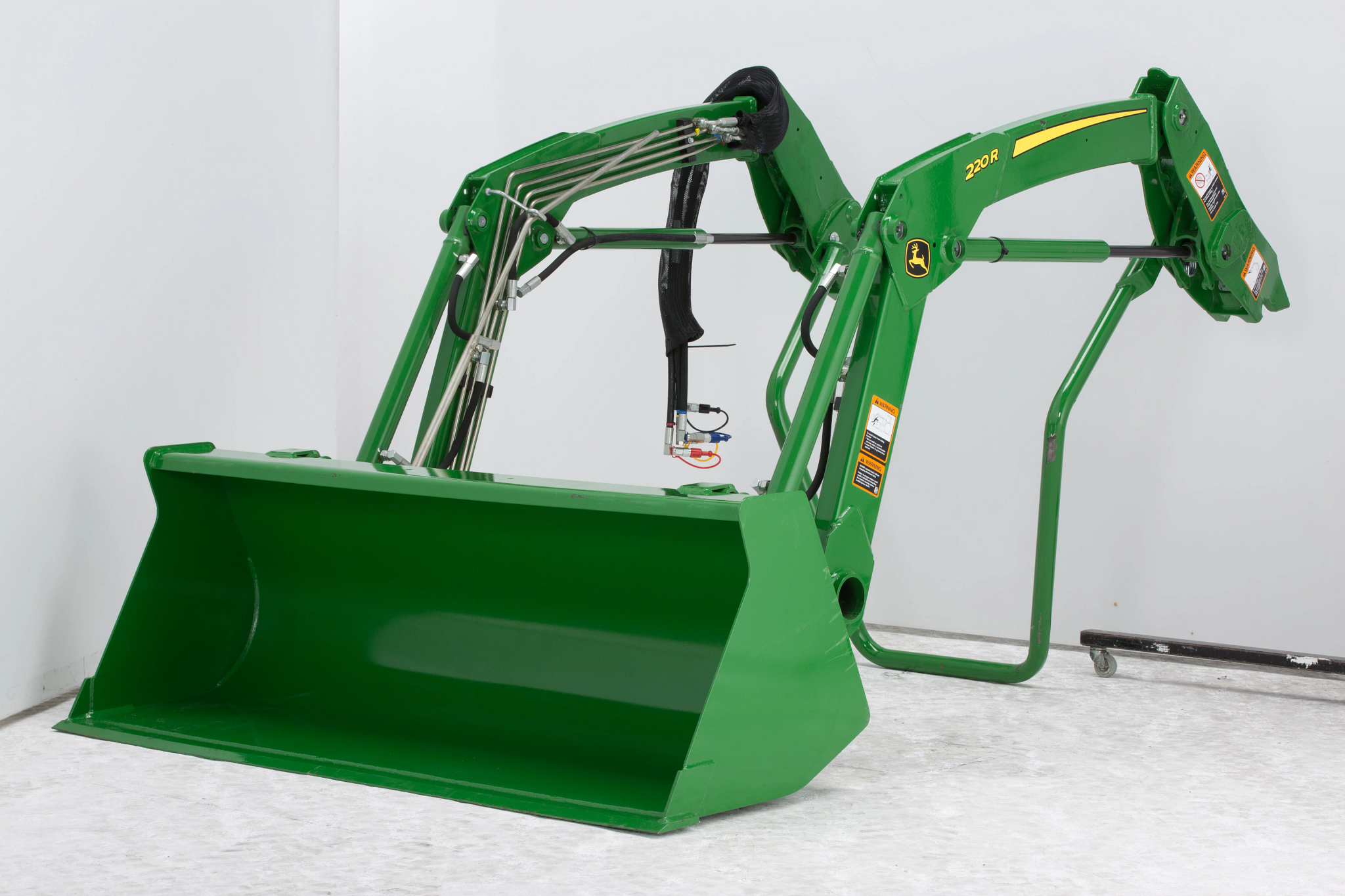

Quik-Park™ Loader Mounting System Without Tools
The 220R Loader features the Quik-Park™ system, enabling tool-free attachment and detachment from the tractor. The parking stand is easily positioned by operating the joystick to raise, allowing the loader to move seamlessly into the park position.
End-of-Pin Lubrication on Cylinder and Pivot Pins
The offset-head pivot pins eliminate the need for cross-pins and cotter pins by using a nut for easy installation, prevent rotation to reduce wear, and feature lubrication grooves and end-of-pin grease access for long-lasting, easily serviced performance.

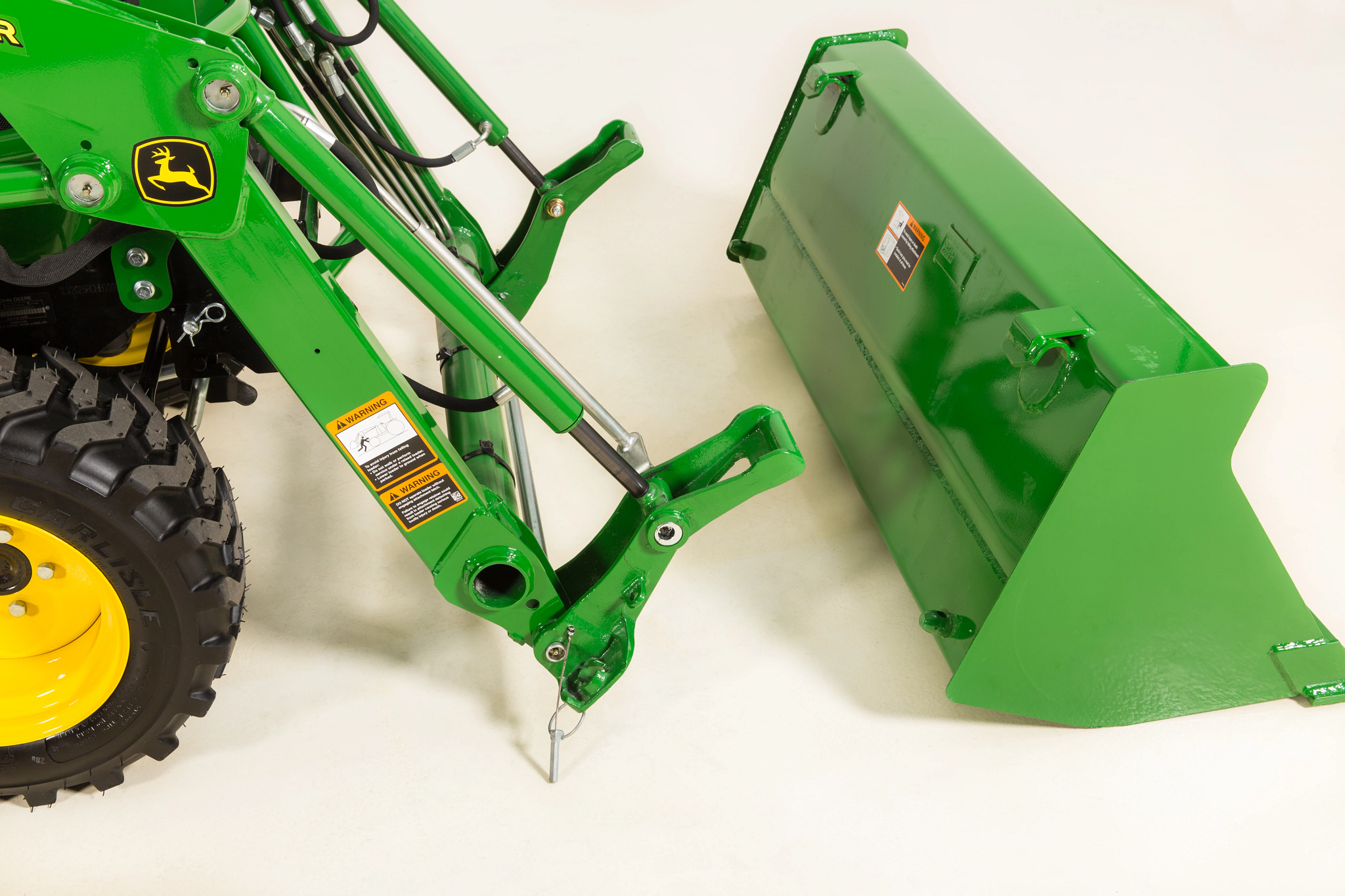

Quick-Change Attachment Carrier
The Quik-Change attachment carrier allows for quick, tool-less attachment swaps. A single person can effortlessly change attachments by disconnecting retaining pins and repositioning the boom and attachment, which enhances operational efficiency.
Specifications
Tractor
| Model | 2032R, 2038R |
| Front Tire | 23x8.50-14 4PR R4 |
| Rear Tire | 14-17.5 6PR R4 |
| Wheelbase | 1725 mm |
| Wheelbase | 68 in. |
| Pump Capacity | 20.2 L/min |
| Pump Capacity | 5.3 gpm |
| Rated Pressure | 2499 psi |
Loader
| Base Weight | 330.9 kg |
| Base Weight | 729 lb. |
| Leveling Configuration | Non-Self Leveling |
| Bucket Used | 1450 mm / 57 in. |
| Bucket Weight | 88 kg |
| Bucket Weight | 194 lb. |
| Lift Capacity At Full Height - Measured At Pivot (U) | 509 kg |
| Lift Capacity At Full Height - Measured At Pivot (U) | 1120 lb. |
| Lift Capacity at Full Height - Measured at 500 mm Ahead of Pivot | 365 kg |
| Lift Capacity at Full Height - Measured at 500 mm Ahead of Pivot | 803 lb. |
| Lift Capacity At 59 in. (1500 mm) - Measured At Pivot | 589 kg |
| Lift Capacity At 59 in. (1500 mm) - Measured At Pivot | 1296 lb. |
| Lift Capacity at 59 in (1500 mm) - Measured at 500 mm Ahead of Pivot | 445 kg |
| Lift Capacity at 59 in. (1500 mm) - Measured at 500 mm Ahead of Pivot | 979 lb. |
| Boom Breakout Force - Measured At Pivot (Y) | 886 kg |
| Boom Breakout Force - Measured At Pivot (Y) | 1949 lb. |
| Boom Breakout Force - Measured at 500 mm Ahead of Pivot | 618 kg |
| Boom Breakout Force - Measured at 500 mm Ahead of Pivot | 1360 lb. |
| At Maximum Height (VV) | 1044 kg |
| At Maximum Height (VV) | 2297 lb. |
| At 59-in. (1500 mm) Lift Height (XX) | 1302 kg |
| At 59-in. (1500 mm) Lift Height (XX) | 2864 lb. |
| Bucket Rollback Force Capacity At Ground-Level Line (ZZ) | 972 kg |
| Bucket Rollback Force Capacity At Ground-Level Line (ZZ) | 2138 lb. |
| Maximum Lift Height (A) | 2160 mm |
| Maximum Lift Height (A) | 85 in. |
| At Full Height - Bucket Level (B) | 1999 mm |
| At Full Height - Bucket Level (B) | 79 in. |
| Clearance At Full Height - Bucket Dumped | 1667 mm |
| Clearance At Full Height - Bucket Dumped | 66 in. |
| Overall Length (I+F) | 3076 mm |
| Overall Length (I+F) | 121 in. |
| Digging Depth (H) | 149 mm |
| Digging Depth (H) | 6 in. |
| Reach - At Maximum Height (D) | 756 mm |
| Reach - At Maximum Height (D) | 30 in. |
| Reach - At Ground Level - Bucket Level | 1351 mm |
| Reach - At Ground Level - Bucket Level | 51 in. |
| Dump Angle (E) | 36 degree (angle) |
| Rollback Angle (G) | 34 degree (angle) |
| Dump Angle, Ground | 115 degree (angle) |
| Loader Raise | 3.19 seconds |
| Loader Lower | 1.94 seconds |
| Bucket Dump | 4.76 seconds |
| Bucket Rollback | 2.91 seconds |
