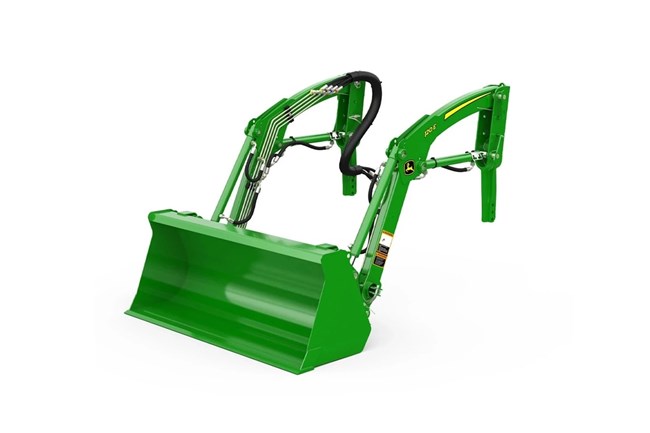

John Deere 120E
Double tap to zoom
120E
Front Loaders
Overview:
The John Deere 120E Front Loader offers seamless versatility and enhanced productivity for compact utility tractors, featuring an easy tool-free mounting system, impressive lift capacity, and integrated hydraulic control for ergonomic operation, making it ideal for a variety of material handling tasks.
- Compatible With 1023E and 1025R Tractors
- Curved Boom Design
- Quik-Change Attachment Carrier Standard
- Parkable
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Loan Calculator
Use the Loan Calculator to help you determine the financing and payment options that are best for you.
**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. You should obtain personal advice from qualified professionals. This information is provided for illustrative purposes only and does not constitute an application. This notice does not guarantee loan approval, nor is it an offer or commitment to make a loan to you on the above terms.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Share This Product:
Features
Easily Remove the Loader From the Tractor Without Tools
The parking mounting system is designed for easy removal and mounting to and from the tractor without tools. To park the loader, simply install parking stands, remove pivot pins from the mast, disconnect the hydraulic hoses, and back out the tractor.

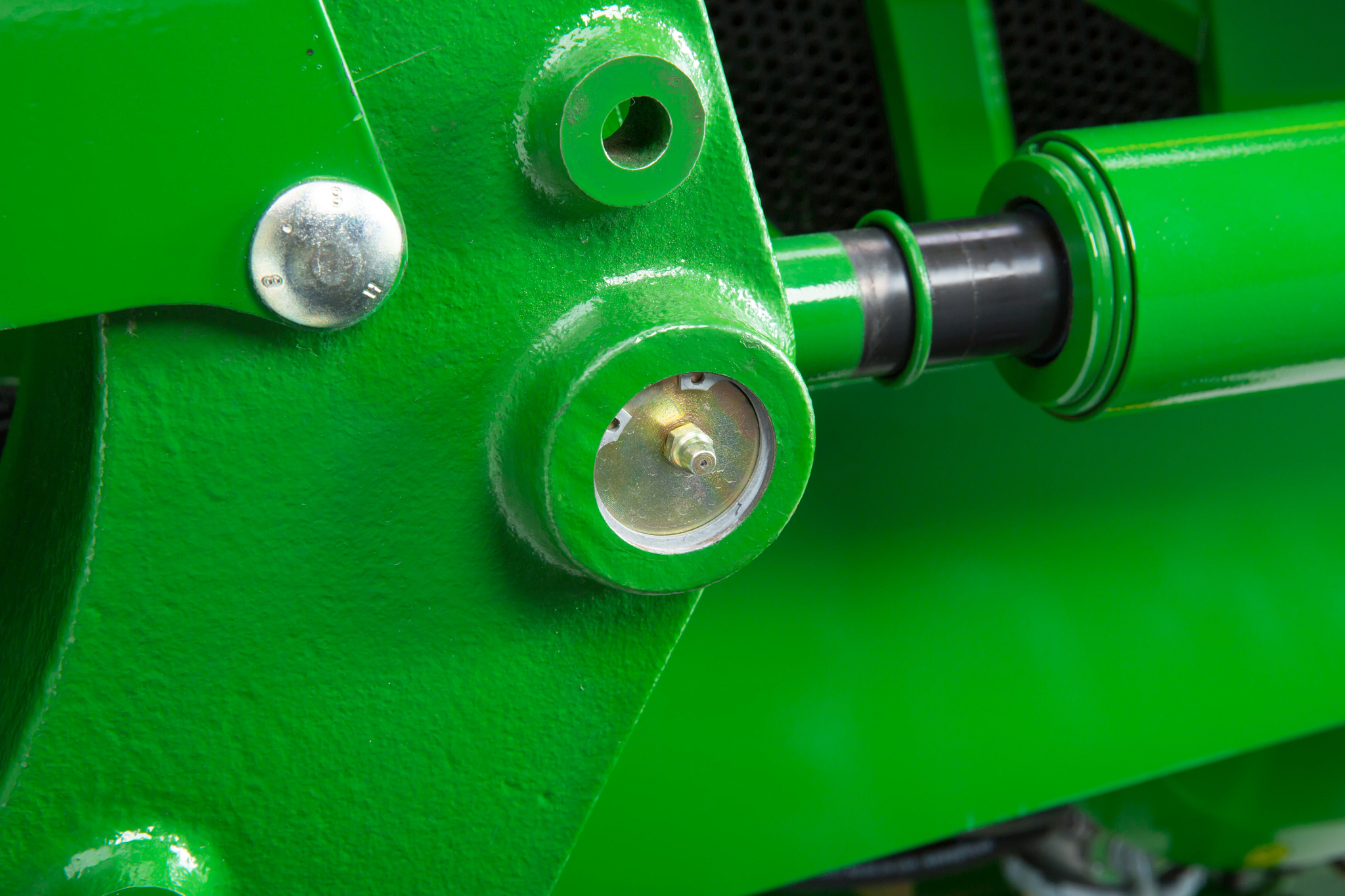

End-of-Pin Lubrication
Grease fittings accessible from the loader’s side make maintenance easier.
Quick-Change Attachment Carrier
The quick-change attachment carrier allows for fast, easy removal and mounting of attachments without tools.
Specifications
Tractor
| Model | 1023E/1026R Tractor |
| Front Tire | 18x8.5-10 4PR R4 |
| Rear Tire | 26x12.00-12 4PR R4 |
| Wheelbase | 1450 mm |
| Wheelbase | 57 in. |
| Pump Capacity | 13.2 L/min |
| Pump Capacity | 3.5 gpm |
| Rated Pressure | 137 bar |
| Rated Pressure | 1987 psi |
Loader
| Base Weight | 220.5 kg |
| Base Weight | 486 lb. |
| Bucket Used | Pin on Materials, 1250 mm 49 in. |
| Bucket Weight | 53 kg |
| Bucket Weight | 117 lb. |
| Lift Capacity At Full Height - Measured At Pivot (U) | 375 kg |
| Lift Capacity At Full Height - Measured At Pivot (U) | 825 lb. |
| Lift Capacity at Full Height - Measured at 500 mm Ahead of Pivot | 259 kg |
| Lift Capacity at Full Height - Measured at 500 mm Ahead of Pivot | 570 lb. |
| Lift Capacity At 59 in. (1500 mm) - Measured At Pivot | 429 kg |
| Lift Capacity At 59 in. (1500 mm) - Measured At Pivot | 944 lb. |
| Lift Capacity at 59 in (1500 mm) - Measured at 500 mm Ahead of Pivot | 309 kg |
| Lift Capacity at 59 in. (1500 mm) - Measured at 500 mm Ahead of Pivot | 608 lb. |
| Boom Breakout Force - Measured At Pivot (Y) | 806 kg |
| Boom Breakout Force - Measured At Pivot (Y) | 1808 lb. |
| Boom Breakout Force - Measured at 500 mm Ahead of Pivot | 552 kg |
| Boom Breakout Force - Measured at 500 mm Ahead of Pivot | 1238 lb. |
| At Maximum Height (VV) | 593 kg |
| At Maximum Height (VV) | 1330 lb. |
| At 59-in. (1500 mm) Lift Height (XX) | 711 kg |
| At 59-in. (1500 mm) Lift Height (XX) | 1568 lb. |
| Bucket Rollback Force Capacity At Ground-Level Line (ZZ) | 707 kg |
| Bucket Rollback Force Capacity At Ground-Level Line (ZZ) | 1559 lb. |
| Maximum Lift Height (A) | 1809 mm |
| Maximum Lift Height (A) | 71.2 in. |
| At Full Height - Bucket Level (B) | 1653 mm |
| At Full Height - Bucket Level (B) | 65.1 in. |
| Clearance At Full Height - Bucket Dumped | 1371 mm |
| Clearance At Full Height - Bucket Dumped | 54 in. |
| Overall Length (I+F) | 2600 mm |
| Overall Length (I+F) | 102.4 in. |
| Digging Depth (H) | -101 mm |
| Digging Depth (H) | -4 in. |
| Reach - At Maximum Height (D) | 571 mm |
| Reach - At Maximum Height (D) | 22.5 in. |
| Reach - At Ground Level - Bucket Level | 1176 mm |
| Reach - At Ground Level - Bucket Level | 46.3 in. |
| Dump Angle (E) | -40.1 degree (angle) |
| Rollback Angle (G) | 31.2 degree (angle) |
| Dump Angle, Ground | -114 degree (angle) |
| Loader Raise | 4 seconds |
| Loader Lower | 2.5 seconds |
| Bucket Dump | 5.7 seconds |
| Bucket Rollback | 3.5 seconds |
