Features
Achieve Comfort and Productivity in a Spacious Cab

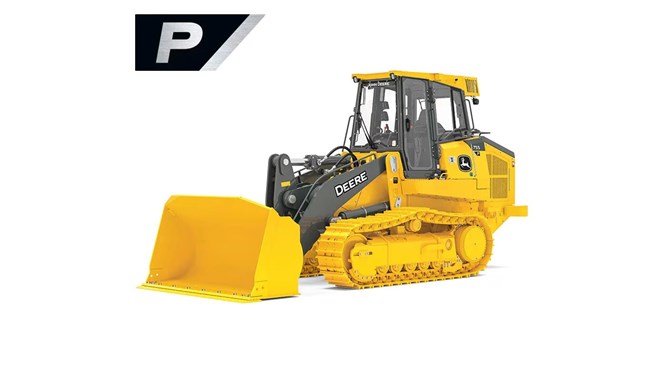

The crawler loader features a spacious, quiet cab designed to enhance operator comfort and productivity. With extensive legroom, wide doorways, and user-friendly latches, operators can easily enter and exit. The cab is equipped with an air-suspension seat, air conditioning, and conveniences like a power port and AM/FM radio.
Enhance Uptime with Serviceability Features
John Deere's innovative design enhances serviceability with easy-access service doors and onboard diagnostics. The Quad-Cool™ cooling system simplifies maintenance by preventing debris build-up and offering accessible sides for cleaning. Engineers prioritized uptime by making it simple to perform daily service checks and maintenance tasks quickly and efficiently.
Electrohydraulic (EH) Control System
The machine’s state-of-the-art EH controls offer intuitive management of hydraulic and transmission functionalities. Operators benefit from smooth, responsive, single-lever steering, setting new efficiency standards. This system includes multiple configuration options to fit various operator styles, enhancing productivity with less operator fatigue.
Specifications
Electrical
| Voltage (V) | 24 V |
| Number of 12-V batteries | 2 |
| Battery capacity (CCA) | 950 CCA |
| Reserve capacity time (min.) | 190 min. |
| Alternator rating cab (amp) | 100 amp |
| Alternator rating canopy (amp) | 100 amp |
| Lights | Halogen cab mounted forward facing (two), rear-mounted (two), engine compartment (one) |
Cylinders
| Cylinders type | Heat treated, chrome-plated, polished cylinder rods, hardened steel pivot pins with replaceable bushings |
| Lift cylinders bore (in.) | 5.5 in. |
| Lift cylinders bore (mm) | 140 mm |
| Lift cylinders rod diameter (in.) | 3.1 in. |
| Lift cylinders rod diameter (mm) | 78.7 mm |
| Lift cylinders stroke (in.) | 33.6 in. |
| Lift cylinders stroke (mm) | 853.4 mm |
| Bucket dump cylinder bore (in.) | 7 in. |
| Bucket dump cylinder bore (mm) | 177.8 mm |
| Bucket dump cylinder rod diameter (in.) | 4.5 in. |
| Bucket dump cylinder rod diameter (mm) | 114.3 mm |
| Bucket dump cylinder stroke (in.) | 21.7 in. |
| Bucket dump cylinder stroke (mm) | 551 mm |
Machine Dimensions
| Overall height (ft in.) | 10, 11 ft, in. |
| Overall height (mm) | 3327 mm |
| Tread depth with double-bar grouser (in.) | 1.7 in. |
| Tread depth with double-bar grouser (mm) | 43 mm |
| Length to front of track (ft in.) | 16, 11 ft, in. |
| Length to front of track (mm) | 5156 mm |
| Overall length with bucket and teeth (ft in.) | 22, 5 ft, in. |
| Overall length with bucket and teeth (mm) | 6832.6 mm |
| Track gauge (ft in.) | 6, 2 ft, in. |
| Track gauge (mm) | 1880 ft, in. |
| Ground clearance (excludes grouser height) (in.) | 17 in. |
| Ground clearance (excludes grouser height) (mm) | 432 mm |
| Dumping Height at 45 degrees (in.) | 116 in. |
| Dumping Height at 45 degrees (mm) | 2946 mm |
| Reach at 45 degrees (in.) | 43 in. |
| Reach at 45 degrees (mm) | 1092 mm |
| Maximum digging depth below grade (in.) | 8.9 in. |
| Maximum digging depth below grade (mm) | 226 mm |
| Maximum operating height (in.) | 220 in. |
| Maximum operating height (mm) | 5588 mm |
| Maximum height of hinge pin (in.) | 160.6 in. |
| Width of bucket (ft in.) | 8, 6 ft, in. |
| Overall length (with MP bucket and teeth) (ft in.) | 22, 5 ft, in. |
| Overall length (with MP bucket and teeth) (mm) | 6832.6 mm |
| Dumping height at 45 degrees (bucket) (in.) | 116.5 in. |
| Dumping height at 45 degrees (bucket) (mm) | 2959.1 mm |
| Dumping height at 45 degrees (blade) (in.) | 144 in. |
| Dumping height at 45 degrees (blade) (mm) | 3657.6 mm |
| Reach at 45 degrees (bucket) (in.) | 39.7 in. |
| Reach at 45 degrees (bucket) (mm) | 1008.4 mm |
| Reach at 45 degrees (blade) (in.) | 16 in. |
| Reach at 45 degrees (blade) (mm) | 406.4 mm |
| Maximum operating height (open) (in.) | 215.5 in. |
| Maximum operating height (open) (mm) | 5473.7 mm |
| Maximum operating height (closed) (in.) | 245 in. |
| Maximum operating height (closed) (mm) | 6223 mm |
| Maximum height of hinge pin (ft in.) | 13, 5 ft, in. |
| Maximum height of hinge pin (mm) | 4089.4 mm |
| Height of hinge pin, transport (in.) | 18 in. |
| Height of hinge pin, transport (mm) | 457.2 mm |
| Width of bucket (mm) | 2540 mm |
| Width of opening (in.) | 48.8 in. |
| Width of opening (mm) | 1239.5 mm |
Rear Ripper
| Rear ripper type | Multi-shank (three) radial ripper with ESCO ripper tips |
| Rear ripper weight (lb) | 1950 lb. |
| Rear ripper weight (kg) | 884.5 kg |
| Ground clearance below toolbar (in.) | 6.5 in. |
| Ground clearance below toolbar (mm) | 165 mm |
| Ripping width (ft in.) | 6, 2 ft, in. |
| Ripping width (mm) | 1880 mm |
| Toolbar width (in.) | 83.4 in. |
| Toolbar width (mm) | 2118.4 mm |
| Lifting height (in.) | 31.5 in. |
| Lifting height (mm) | 800 mm |
| Ripping depth (in.) | 10 in. |
| Ripping depth (mm) | 254 mm |
| Additional overall length, raised (in.) | 24 in. |
| Additional overall length, raised (mm) | 610 mm |
| Additional overall length, lowered (in.) | 23.8 in. |
| Additional overall length, lowered (mm) | 604.5 mm |
| Distance between teeth (ft in.) | 3, 1 ft, in. |
| Distance between teeth (mm) | 940 mm |
| Approach angle, ripper raised (degrees) | 17 degrees |
Bucket
| Bucket type | General purpose with teeth and multi-purpose with teeth |
| General purpose bucket (with teeth) width (ft in.) | 8, 6 ft, in. |
| General purpose bucket (with teeth) width (mm) | 2591 mm |
| General purpose bucket (with teeth) capacity heaped (cu yd.) | 3.2 cu yd |
| General purpose bucket (with teeth) capacity heaped (m³) | 2.4 m³ |
| General purpose bucket (with teeth) weight (lb) | 3404 lb. |
| General purpose bucket (with teeth) weight (kg) | 1544 kg |
| General purpose bucket (with teeth) breakout force (lbf) | 44287 lbf |
| General purpose bucket (with teeth) breakout force (kN) | 197 kN |
| General purpose bucket (with teeth) static tipping load (lb) | 33867 lb. |
| General purpose bucket (with teeth) static tipping load (kg) | 15361.8 kg |
| Multi-purpose bucket (with teeth) width (ft in.) | 8, 6 ft, in. |
| Multi-purpose bucket (with teeth) width (mm) | 2591 mm |
| Multi-purpose bucket (with teeth) capacity heaped (cu yd) | 2.6 cu yd |
| Multi-purpose bucket (with teeth) capacity heaped (m³) | 2 m³ |
| Multi-purpose bucket (with teeth) bucket weight (lb) | 4035 lb. |
| Multi-purpose bucket (with teeth) bucket weight (kg) | 1830.2 kg |
| Multi-purpose bucket (with teeth) breakout force (lbf) | 44287 lbf |
| Multi-purpose bucket (with teeth) breakout force (kN) | 197 kN |
| Multi-purpose bucket (with teeth) static tipping load (lb) | 32851 lb. |
| Multi-purpose bucket (with teeth) static tipping load (kg) | 14900 kg |
| Multi-purpose bucket (with teeth) maximum clamping force (lbf) | 24493 lbf |
| Multi-purpose bucket (with teeth) maximum clamping force (kgf) | 11109.8 kgf |
Serviceability
| Fuel tank capacity with lockable cap (gal.) | 86 gal. |
| Fuel tank capacity with lockable cap (L) | 325.5 L |
| Cooling system with recovery tank capacity (gal.) | 8.5 gal. |
| Cooling system with recovery tank capacity (L) | 32.2 L |
| Engine oil capacity with filter (gal.) | 6.5 gal. |
| Engine oil capacity with filter (L) | 24.6 L |
| Hydraulic reservoir capacity with filter (gal.) | 27.2 gal. |
| Hydraulic reservoir capacity with filter (L) | 103 L |
| Diesel exhaust fluid (DEF) reservoir capacity (gal.) | 2.2 gal. |
| Diesel exhaust fluid (DEF) reservoir capacity (L) | 8.3 L |
| Final drive inner final drive capacity (gal.) | 2.5 gal. |
| Final drive inner final drive capacity (L) | 9.5 L |
| Final drive outer planetary capacity (gal.) | 4.2 gal. |
| Final drive outer planetary capacity (L) | 16 L |
Undercarriage
| Tracks type | Track frame with front and rear track guides and sprocket guards |
| Track gauge (in.) | 74 in. |
| Track gauge (mm) | 1880 mm |
| Grouser width (in.) | 22 in. |
| Grouser width (mm) | 558.8 mm |
| Chain | Sealed and lubricated |
| Shoes per side | 38 |
| Track rollers per side | 6 |
| Track length on ground (in.) | 102 in. |
| Track length on ground (mm) | 2591 mm |
| Ground contact area 20-in. grouser width (sq in.) | 4076 sq in. |
| Ground contact area 508-mm grouser width (cm²) | 26297 cmSquaredSup |
| Ground contact area 22-in. grouser width (sq in.) | 4493 sq in. |
| Ground contact area 560-mm grouser width (cm²) | 28987 cmSquaredSup |
| Ground pressure 20-in. grouser width (GP bucket) (psi) | 11.1 psi |
| Ground pressure 510-mm grouser width (GP bucket) (kPa) | 76.5 kPa |
| Ground pressure 22-in. grouser width (GP bucket) (psi) | 10.1 psi |
| Ground pressure 560-mm grouser width (GP bucket) (kPa) | 69.6 kPa |
| Ground pressure 20-in. grouser width (MP bucket) (psi) | 11.2 psi |
| Ground pressure 510-mm grouser width (MP bucket) (kPa) | 77.2 kPa |
| Ground pressure 22-in. grouser width (MP bucket) (psi) | 10.2 psi |
| Ground pressure 560-mm grouser width (MP bucket) (kPa) | 70.3 kPa |
| Track pitch (in.) | 8 in. |
| Track pitch (mm) | 203.2 mm |
| Oscillation at front roller +/- (in.) | 1.4 in. |
| Oscillation at front roller +/- (mm) | 35.6 mm |
Powertrain
| Transmission type | Automatic, dual-path, hydrostatic drive |
| System relief pressure (psi) | 6650 psi |
| System relief pressure (kPa) | 45832.7 kPa |
| Travel speeds forward (mph) | 6.2 mph |
| Travel speeds forward (km/h) | 10 km/h |
| Travel speeds reverse (mph) | 6.2 mph |
| Travel speeds reverse (km/h) | 10 km/h |
| Travel speeds maximum (optional) (psi) | 6.2 psi |
| Travel speeds maximum (optional) (km/h) | 10 km/h |
| Steering options | Single-lever steering, speed, direction control and counterrotation |
| Final drives type | Double-reduction, planetary final drives transfer torque loads over three gear sets |
| Final drives total ratio | 44.75 - 1 |
| Drawbar pull weight maximum (lb) | 77600 lb. |
| Drawbar pull weight maximum (kN) | 345.2 kN |
| Drawbar pull weight at 1.2 mph (lb) | 39000 lb. |
| Drawbar pull weight at 1.9 km/h (kN) | 173.5 kN |
| Drawbar pull weight at 2.0 mph (lb) | 26600 lb. |
| Drawbar pull weight at 3.2 km/h (kN) | 118.3 kN |
| Brakes | Decelerator/brake pedal; automatic power management with manual override for matching ground speed to available engine power |
| Service brakes | Hydrostatic (dynamic) braking stops the machine whenever direction-control lever is moved to neutral or whenever the decelerator is depressed to the end of travel |
| Service brakes type | Hydraulic |
| Parking brakes | Exclusive safety feature engages wet, multiple-disc brakes whenever the engine stops, whenever the decelerator is depressed to the end of travel, or whenever the park lock lever is placed in the upward position or the transmission control lever is placed in the neutral position and motion is detected; machine cannot be driven with brake applied, reducing wear-out or need for adjustment; spring-applied, hydraulic release |
Engine
| Manufacturer | John Deere |
| Model | PowerTech PVS 6068 |
| Non-road emission standards | EPA Final Tier 4/EU Stage IV |
| Displacement (cu in.) | 414 cu in. |
| Displacement (L) | 6.8 L |
| SAE net rated power at 1700 rpm (hp) | 194 hp |
| SAE net rated power at 1700 rpm (kW) | 144.7 kW |
| Net peak tourque at 1400 rpm (lb-ft) | 695 lb-ft |
| Net peak tourque at 1400 rpm (Nm) | 942.3 Nm |
| Aspiration | Turbocharged with charge air cooler |
| Air cleaner | Dual-stage dry tube with tangential unloader |
Operating Weights
| Base weight (lb) | 45178 lb. |
| Base weight (kg) | 20492 kg |
| Optional cab pressurizer and heater/air-conditioner | In base |
| Optional lift-cylinder guards (lb) | 55 lb. |
| Optional lift-cylinder guards (kg) | 24 kg |
| Optional full-length rock guards (lb) | 480 lb. |
| Optional full-length rock guards (kg) | 217.7 kg |
| Optional final drive trash guards (lb) | 155 lb. |
| Optional final drive trash guards (kg) | 70.3 kg |
| Optional clam cylinder protection for MP bucket (lb) | 110 lb. |
| Optional clam cylinder protection for MP bucket (kg) | 49.9 kg |
| Optional retrieval hitch (lb) | 147 lb. |
| Optional retrieval hitch (kg) | 66.7 kg |
| Optional 20-in. double-bar grousers (lb) | -311 lb. |
| Optional 510-mm double-bar grousers (kg) | -141 kg |
Hydraulics
| Hydraulics type | Load sense, piston pump |
| Hydraulics pump flow (gpm) | 65 gpm |
| Hydraulics pump flow (L/min) | 246 L/min |
| System relief pressure (psi) | 3775 psi |
| System relief pressure (kPa) | 26019 kPa |
| Differential pressure (psi) | 275 psi |
| Differential pressure (kPa) | 1896 kPa |
| Maximum flow at unloaded high idle (gpm) | 68 gpm |
| Maximum flow at unloaded high idle (L/min) | 257.4 L/min |
| Control | Dual-axis joystick with optional MP bucket function or 2 or 3 lever stackable |
Cooling
| Fan type | Variable-speed suction fan with automatic reversing |
| Engine coolant rating (°F) | -34 degrees |
| Engine coolant rating (°C) | -36.7 degrees |
| Engine radiator | 10.2 fins per inch |
Operator Station
| Standard | Rollover Protection Structure (ROPS) (ISO 3471 - 2008) |
