Features
Premium Cab, Advanced Hydraulics, and Attachment Versatility

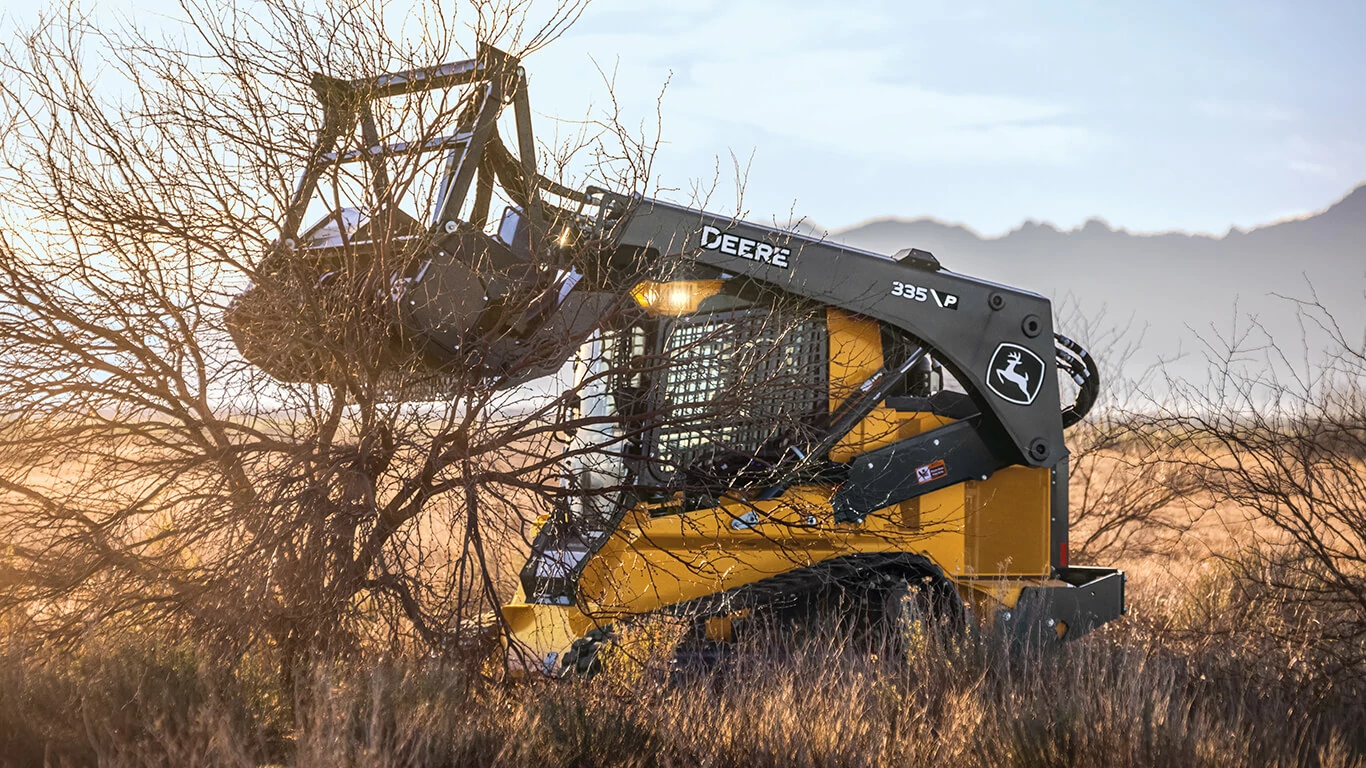

A completely redesigned, sealed, and pressurized cab delivers a quieter, cleaner, and more comfortable operator environment, with features such as a touchscreen display, hands‑free Bluetooth calling, and ergonomic electrohydraulic controls. High‑flow hydraulics and compatibility with over 100 John Deere attachments allow the 335 P‑Tier to take on everything from grading and material handling to mulching and land clearing—making it one of the most versatile CTLs in the lineup.

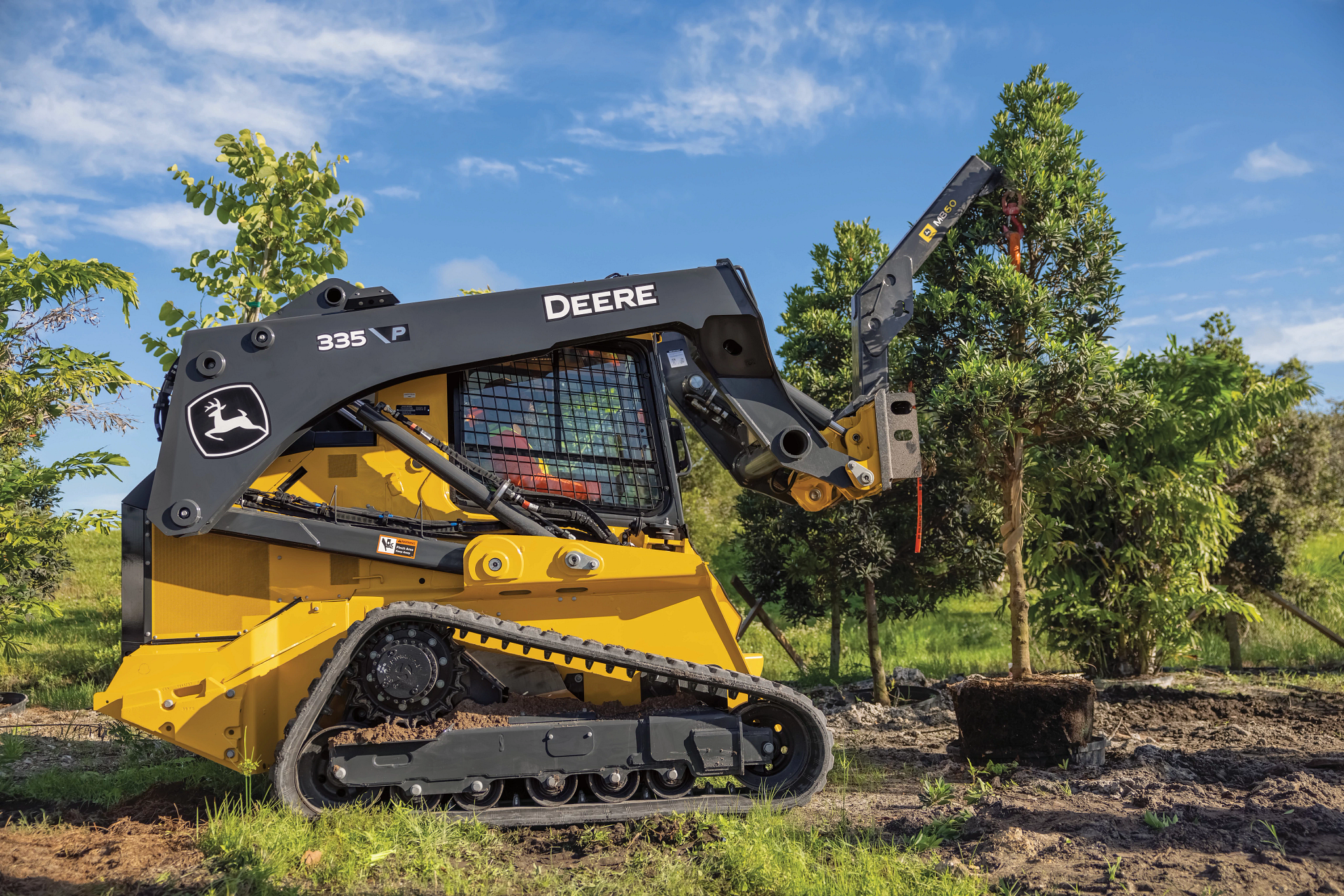

Maximum Power and Lift for High‑Production Work
With 118 gross horsepower and a high rated operating capacity, the 335 P‑Tier is engineered to handle demanding applications such as site development, roadbuilding, and vegetation management. Its vertical‑lift boom design delivers excellent reach and stability for truck loading and material placement, while the tracked undercarriage provides traction and control on soft or uneven ground.

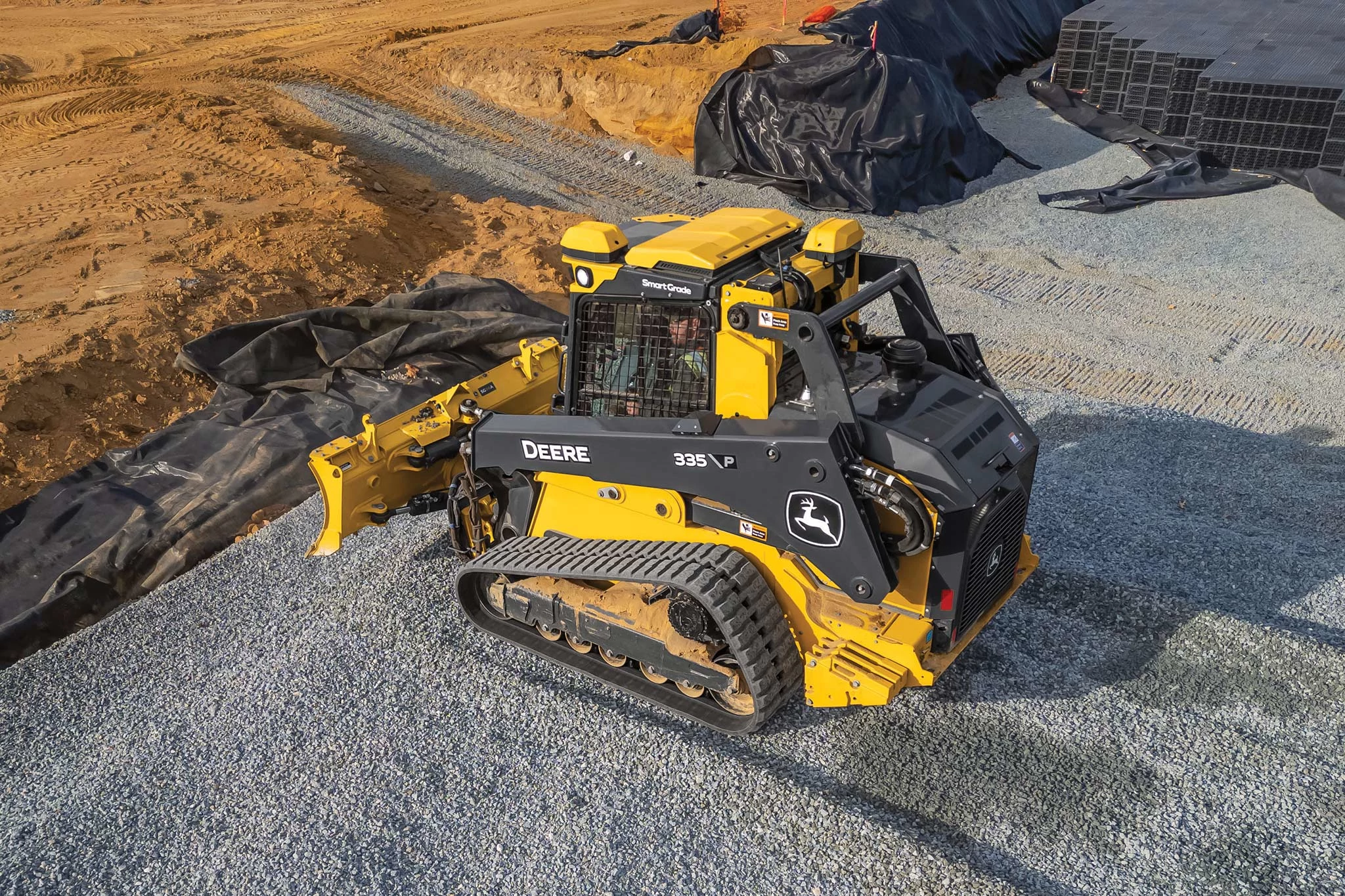

SmartGrade™ Technology for Precision and Efficiency
The 335 P‑Tier can be equipped with John Deere SmartGrade™ technology, along with slope control and laser slope control options, helping operators grade faster and more accurately with fewer passes and less rework. By automating blade movement and maintaining consistent grade, SmartGrade improves productivity and makes it easier for operators of all experience levels to achieve quality results the first time.
Specifications
Machine Dimensions
| Length without bucket (in.) | 125 in. |
| Length without bucket (ft in.) | 10, 5 ft, in. |
| Length without bucket (m) | 3.18 m |
| Length with foundry bucket (in.) | 151.2 in. |
| Length with foundry bucket (ft in.) | 12, 7 ft, in. |
| Length with foundry bucket (m) | 3.84 m |
| Width without bucket with 15.8-in. tracks (in.) | 78.86 in. |
| Width without bucket with 15.8-in. tracks (ft in.) | 6, 7 ft, in. |
| Width without bucket with 400-mm tracks (m) | 2 m |
| Width without bucket with 17.7-in. tracks (in.) | 80.7 in. |
| Width without bucket with 17.7-in. tracks (ft in.) | 6, 9 ft, in. |
| Width without bucket with 450-mm tracks (m) | 2.05 m |
| Height to top of rollover protective structure (ROPS) (in.) | 87.4 in. |
| Height to top of rollover protective structure (ROPS) (ft in.) | 7, 3 ft, in. |
| Height to top of rollover protective structure (ROPS) (m) | 2.22 m |
| Height to hinge pin (in.) | 132 in. |
| Height to hinge pin (ft in.) | 11, 0 ft, in. |
| Height to hinge pin (m) | 3.35 m |
| Dump height, foundry bucket (in.) | 106.08 in. |
| Dump height, foundry bucket (ft in.) | 8, 10 ft, in. |
| Dump height, foundry bucket (m) | 2.69 m |
| Dump reach, foundry bucket (in.) | 29 in. |
| Dump reach, foundry bucket (ft in.) | 2, 5 ft, in. |
| Dump reach, foundry bucket (m) | 0.74 m |
| Dump reach, construction bucket, no edge (in.) | 36.2 in. |
| Dump reach, construction bucket, no edge (ft in.) | 3, 0 ft, in. |
| Dump reach, construction bucket, no edge (m) | 0.92 m |
| Ground clearance (in.) | 9.75 in. |
| Ground clearance (m) | 0.25 m |
| Angle of departure degree | 24.7 degree (angle) |
| Front turn radius, foundry bucket (in.) | 86 in. |
| Front turn radius, foundry bucket (m) | 2.18 m |
| Front turn radius, foundry bucket (ft in.) | 7, 2 ft, in. |
| Dump angle (full lift height) degree | 48 degree (angle) |
| Bucket rollback (ground level) degree | 35 degree (angle) |
Hydraulics
| Standard pump flow (gpm) | 25 gpm |
| Standard pump flow (L/min) | 94.6 L/min |
| High flow option total pump flow (gpm) | 44 gpm |
| High flow option total pump flow (L/min) | 166.6 L/min |
| System pressure at couplers (psi) | 3500 psiPerMin |
| System pressure at couplers (kPa) | 24131 kPa |
| Optional high pressure system pressure at couplers (psi) | 4000 psi |
| Optional high pressure system pressure at couplers (kPa) | 27579 kPa |
| Hydraulic horsepower standard flow (calculated) (hp) | 51.05 hp |
| Hydraulic horsepower standard flow (calculated) (kW) | 38.1 kW |
| Hydraulic horsepower high flow/high pressure (calculated) (hp) | 102.68 hp |
| Hydraulic horsepower high flow/high pressure (calculated) (kW) | 76.6 kW |
Powertrain
| Pump type | Axial piston hydrostatic pump |
| Controls type | Electrohydraulic |
| Travel speed low (mph) | 5.5 mph |
| Travel speed low (km/h) | 8.85 km/h |
| Travel speed high (mph) | 8.5 mph |
| Travel speed high (km/h) | 13.68 km/h |
| Parking brake type | Integral, automatic, spring applied, hydraulically released wet-disk brake |
Undercarriage
| Rubber tracks construction | New-generation smooth-ride long-life rubber with steel inserts |
| Standard track width (in.) | 17.7 in. |
| Standard track width (mm) | 449.6 mm |
| Optional track width (in.) | 15.8 in. |
| Optional track width (mm) | 401.3 mm |
| Ground pressure standard track (psi) | 4.76 psi |
| Ground pressure standard track (kPa) | 32.8 kPa |
| Ground pressure optional track (psi) | 5.28 psi |
| Ground pressure optional track (kPa) | 36.4 kPa |
| Track rollers (per side) | 5 triple-flange smooth-ride, all-steel rollers |
| Track idlers (per side) | 2 double-flange smooth-ride, all-steel rollers |
| Bearings/seals (rollers/idlers) type | Not specified |
| Tractive effort (lbf) | 11500 lbf |
| Tractive effort (kgf) | 5216.4 kgf |
Monitoring
| Alternator, low voltage | Indicator light |
| Auxiliary hydraulics | Indicator light |
| Battery voltage | Indicator light, Digital |
| Diagnostics | Digital |
| Engine air filter restriction indicator | Indicator light |
| Engine coolant temperature | Indicator light, Gauge, Digital |
| Engine oil pressure | Indicator light |
| Engine rpm indicator | Digital |
| Fuel gauge | Gauge |
| Diesel exhaust fluid (DEF) level indicator | Audible warning, Gauge |
| Hourmeter | Digital |
| Hydraulic oil filter restriction | Indicator light |
| Hydraulic oil temperature | Indicator light, Gauge, Digital |
| Park brake engaged | Indicator light |
| Hi-flow indicator | Indicator light |
| Warm-up indicator | Indicator light, Digital |
Loader Performance
| SAE rated operating capacity at 35% tipping load (construction bucket) (lb) | 4025 lb. |
| SAE rated operating capacity at 35% tipping load (construction bucket) (kg) | 1825.3 kg |
| SAE rated operating capacity at 50% tipping load (construction bucket) (lb) | 4800 lb. |
| SAE rated operating capacity at 50% tipping load (construction bucket) (kg) | 2177 kg |
| Boom breakout force with foundry bucket (lb) | 8500 lb. |
| Boom breakout force with foundry bucket (kg) | 3855.5 kg |
| Boom breakout force with construction bucket (lb) | 7800 lb. |
| Boom breakout force with construction bucket (kg) | 3538.4 kg |
| Bucket breakout force with foundry bucket (lb) | 13800 lb. |
| Bucket breakout force with foundry bucket (kg) | 6259.7 kg |
Cylinders
| Cylinders type | John Deere heat treated, chrome-plated, polished cylinder rods, hardened steel (replaceable bushings) pivot pins |
Engine
| Manufacturer | Yanmar® |
| Model | 4TNV94FHT |
| Non-road emission standards | Final Tier 4 |
| Engine cylinders | 4 |
| Net power (SAE J1349, ISO 9249) at 2500 rpm (hp) | 114.66 hp |
| Net power (SAE J1349, ISO 9249) at 2500 rpm (kW) | 85.5 kW |
| Rated gross power (ISO 14396) at 2500 rpm (hp) | 118 hp |
| Rated gross power (ISO 14396) at 2500 rpm (kW) | 88 kW |
| Rated gross power (ISO 14396) at 2600 rpm (hp) | 118 hp |
| Rated gross power (ISO 14396) at 2600 rpm (kW) | 88 kW |
| Peak torque at 1700 rpm (lb-ft) | 291.34 lb-ft |
| Peak torque at 1700 rpm (Nm) | 395.1 Nm |
| Displacement (cu in.) | 186.33 cu in. |
| Displacement (L) | 3.05 L |
| Rated engine speed (rpm) | 2500 rpm |
| Torque rise percent at 1700 rpm (%) | 39 % |
| Aspiration | Turbocharged, intercooled |
| Air cleaner type | Dry dual element |
Operating Weights
| Machine configuration that will produce base machine weight (ISO 6016) | Standard 17.7-in. (450 mm) Track |
| Standard track (lb) | 12320 lb. |
| Standard track (kg) | 5589.4 kg |
Serviceability
| Fuel tank (gal.) | 36 gal. |
| Fuel tank (L) | 136.3 L |
Electrical
| Voltage (V) | 12 V |
| Battery Capacity (CCA) | 950 CCA |
| Alternator rating with A/C (amp) | 120 amp |
| Lighting options | Halogen, Two (2) Front and One (1) Rear; (Optional): LED, Four (4) Front, and One (1) Rear |
Operator Station
| Structure | ROPS (ISO3471) FOPS (ISO3449) Structure with Quick Pivot |
Cooling
| Fan drive type | Variable speed hydraulic drive |
