Features
Additional Attachment Offerings for Optimal Pairing
Availability of over 100 John Deere attachments allows the 331 P‑Tier to move seamlessly between tasks such as grading, material handling, and site preparation. Advanced electrohydraulic controls make attachment operation smooth and responsive, while optional technology features—including grade‑management readiness—help operators work more efficiently and precisely as jobsite demands change.
Excellent Visibility for Increased Situational and Jobsite Awareness

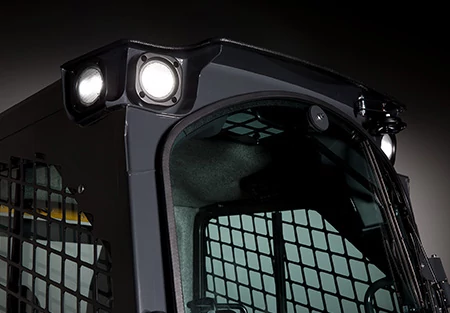

Enhanced visibility features enable the operator to view the jobsite to be as precise and productive as possible while also increasing jobsite awareness. Equipped with optional deluxe LED lights and a rearview camera, operators benefit from increased visibility, especially in low light conditions. Clear sight lines improve safety and precision on the jobsite.
Maximize Uptime With Easy Service Access
Easy serviceability minimizes downtime: the hood and side panels provide quick ground-level access to daily checks, and the cab swings up in under 5 minutes for major drivetrain access. JDLink™ alerts also help catch issues early.
Specifications
Machine Dimensions
| Length without bucket (in.) | 112.3 in. |
| Length without bucket (ft in.) | 9, 4 ft, in. |
| Length without bucket (m) | 2.85 m |
| Length with foundry bucket (in.) | 136.3 in. |
| Length with foundry bucket (ft in.) | 11, 4 ft, in. |
| Length with foundry bucket (m) | 3.46 m |
| Width without bucket with 12.6-in. tracks (in.) | 71.5 in. |
| Width without bucket with 12.6-in. tracks (ft in.) | 6, 0 ft, in. |
| Width without bucket with 320-mm tracks (m) | 1.82 m |
| Width without bucket with 15.8-in. tracks (in.) | 74.7 in. |
| Width without bucket with 15.8-in. tracks (ft in.) | 6, 3 ft, in. |
| Width without bucket with 400-mm tracks (m) | 1.9 m |
| Height to top of rollover protective structure (ROPS) (in.) | 81.1 in. |
| Height to top of rollover protective structure (ROPS) (ft in.) | 6, 9 ft, in. |
| Height to top of rollover protective structure (ROPS) (m) | 2.06 m |
| Height to hinge pin (in.) | 126.1 in. |
| Height to hinge pin (ft in.) | 10, 6 ft, in. |
| Height to hinge pin (m) | 3.2 m |
| Dump height, foundry bucket (in.) | 102.1 in. |
| Dump height, foundry bucket (ft in.) | 8, 6 ft, in. |
| Dump height, foundry bucket (m) | 2.59 m |
| Dump reach, foundry bucket (in.) | 29.7 in. |
| Dump reach, foundry bucket (ft in.) | 2, 6 ft, in. |
| Dump reach, foundry bucket (m) | 0.75 m |
| Dump reach, construction bucket, no edge (in.) | 37 in. |
| Dump reach, construction bucket, no edge (ft in.) | 3, 1 ft, in. |
| Dump reach, construction bucket, no edge (m) | 0.94 m |
| Ground clearance (in.) | 9.3 in. |
| Ground clearance (m) | 0.24 m |
| Angle of departure degree | 30.5 degree (angle) |
| Front turn radius, foundry bucket (in.) | 80 in. |
| Front turn radius, foundry bucket (m) | 2.03 m |
| Front turn radius, foundry bucket (ft in.) | 6, 8 ft, in. |
| Dump angle (full lift height) degree | 41 degree (angle) |
| Bucket rollback (ground level) degree | 34 degree (angle) |
Hydraulics
| Standard pump flow (gpm) | 21 gpm |
| Standard pump flow (L/min) | 79.5 L/min |
| High flow option total pump flow (gpm) | 32 gpm |
| High flow option total pump flow (L/min) | 121.1 L/min |
| System pressure at couplers (psi) | 3450 psiPerMin |
| System pressure at couplers (kPa) | 23787 kPa |
| Hydraulic horsepower standard flow (calculated) (hp) | 41.7 hp |
| Hydraulic horsepower standard flow (calculated) (kW) | 31.1 kW |
| Hydraulic horsepower high flow (calculated) (hp) | 63.6 hp |
| Hydraulic horsepower high flow (calculated) (kW) | 47.4 kW |
Powertrain
| Pump type | Axial-piston hydrostatic pump |
| Controls type | Electrohydraulic |
| Single speed (mph) | 5.8 mph |
| Single speed (km/h) | 9.34 km/h |
| Travel speed low (mph) | 5.2 mph |
| Travel speed low (km/h) | 8.37 km/h |
| Travel speed high (mph) | 8.2 mph |
| Travel speed high (km/h) | 13.2 km/h |
| Parking brake type | Integral, automatic, spring-applied, hydraulically-released, wet-disk brake |
Engine
| Manufacturer | Yanmar® |
| Model | 4TNV98CT |
| Non-road emission standards | EPA Final Tier 4/EU Stage IV |
| Engine cylinders | 4 |
| Net power (SAE J1349, ISO 9249) at 2500 rpm (hp) | 70 hp |
| Net power (SAE J1349, ISO 9249) at 2500 rpm (kW) | 52.2 kW |
| Rated gross power (ISO 14396) at 2500 rpm (hp) | 74 hp |
| Rated gross power (ISO 14396) at 2500 rpm (kW) | 55.2 kW |
| Rated gross power (ISO 14396) at 2600 rpm (hp) | 74 hp |
| Rated gross power (ISO 14396) at 2600 rpm (kW) | 54.9 kW |
| Peak torque at 1800 rpm (lb-ft) | 207 lb-ft |
| Peak torque at 1800 rpm (Nm) | 280.7 Nm |
| Displacement (cu in.) | 203 cu in. |
| Displacement (L) | 3.33 L |
| Rated engine speed (rpm) | 2500 rpm |
| Torque rise percent at 1800 rpm (%) | 34 % |
| Aspiration | Turbocharged |
| Air cleaner type | Dry dual element |
Serviceability
| Fuel tank (gal.) | 21 gal. |
| Fuel tank (L) | 79.5 L |
| Cooling system (qt) | 13.2 qt |
| Cooling system (L) | 12.5 L |
| Engine oil capacity with filter (qt) | 13.2 qt |
| Engine oil capacity with filter (L) | 12.5 L |
| Hydraulic reservoir (gal.) | 7 gal. |
| Hydraulic reservoir (L) | 26.5 L |
| Hydraulic planetary gearbox (gal.) | 0.84 gal. |
| Hydraulic planetary gearbox (L) | 3.18 L |
Undercarriage
| Rubber tracks construction | New-generation, smooth-ride, long-life rubber with steel inserts |
| Standard track width (in.) | 12.6 in. |
| Standard track width (mm) | 320 mm |
| Optional track width (in.) | 15.8 in. |
| Optional track width (mm) | 401.3 mm |
| Ground pressure standard track (psi) | 5.7 psi |
| Ground pressure standard track (kPa) | 39.3 kPa |
| Ground pressure optional track (psi) | 4.7 psi |
| Ground pressure optional track (kPa) | 32.4 kPa |
| Track rollers (per side) | Four triple-flange, smooth-ride, all-steel rollers |
| Track idlers (per side) | Two double-flange, smooth-ride, all-steel rollers |
| Bearings/seals (rollers/idlers) type | Heavy-duty journal bearings and metal face seals |
| Tractive effort (lbf) | 8500 lbf |
| Tractive effort (kgf) | 3855.5 kgf |
Loader Performance
| SAE rated operating capacity at 35% tipping load (construction bucket) (lb) | 2590 lb. |
| SAE rated operating capacity at 35% tipping load (construction bucket) (kg) | 1175.6 kg |
| SAE rated operating capacity at 50% tipping load (construction bucket) (lb) | 3700 lb. |
| SAE rated operating capacity at 50% tipping load (construction bucket) (kg) | 1678.3 kg |
| Boom breakout force with foundry bucket (lb) | 5250 lb. |
| Boom breakout force with foundry bucket (kg) | 2381.4 kg |
| Boom breakout force with construction bucket (lb) | 4750 lb. |
| Boom breakout force with construction bucket (kg) | 2154.2 kg |
| Bucket breakout force with foundry bucket (lb) | 8750 lb. |
| Bucket breakout force with foundry bucket (kg) | 3968.3 kg |
| Bucket breakout force with heavy-duty construction bucket (lb) | 6000 lb. |
| Bucket breakout force with heavy-duty construction bucket (kg) | 2721.6 kg |
Monitoring
| Alternator, low voltage | Indicator light |
| Auxiliary hydraulics | Digital |
| Battery voltage | Digital |
| Diagnostics | Digital |
| Engine air filter restriction indicator | Indicator light |
| Engine coolant temperature | Indicator light, audible warning, gauge, digital |
| Engine oil pressure | Indicator light, audible warning |
| Engine rpm indicator | Digital |
| Fuel gauge | Gauge |
| Hourmeter | Digital |
| Hydraulic oil filter restriction | Indicator light |
| Hydraulic oil temperature | Indicator light, audible warning, digital |
| Park brake engaged | Indicator light |
| Seat belt reminder | Indicator light |
| Hi-flow indicator | Indicator light |
| Warm-up indicator | Digital |
Cylinders
| Cylinders type | John Deere, heat-treated, chrome-plated, polished cylinder rods, hardened steel (replaceable bushings) pivot pins |
Operating Weights
| Standard track (lb) | 9500 lb. |
| Standard track (kg) | 4309.1 kg |
| Optional track (lb) | 9650 lb. |
| Optional track (kg) | 4377.2 kg |
Electrical
| Voltage (V) | 12 V |
| Battery Capacity (CCA) | 750 standard / 925 optional CCA |
| Alternator rating with A/C (amp) | 75 amp |
| Lighting options | Halogen (two front and one rear) |
Operator Station
| Structure | Rollover protective structure (ISO 3471) / falling object protective structure (ISO 3449) with quick-pivot standard |
Cooling
| Fan drive type | Variable-speed hydraulic drive standard / reversing fan drive optional |
