Features

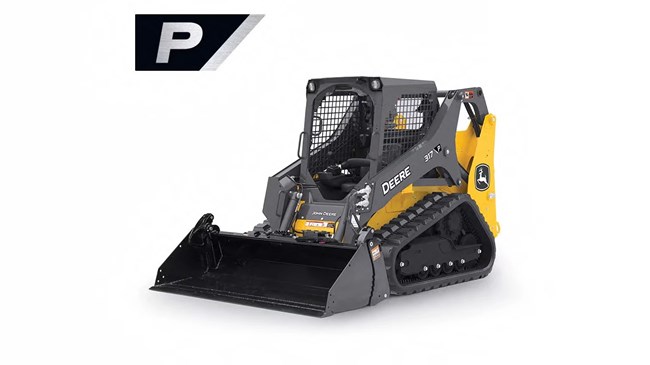

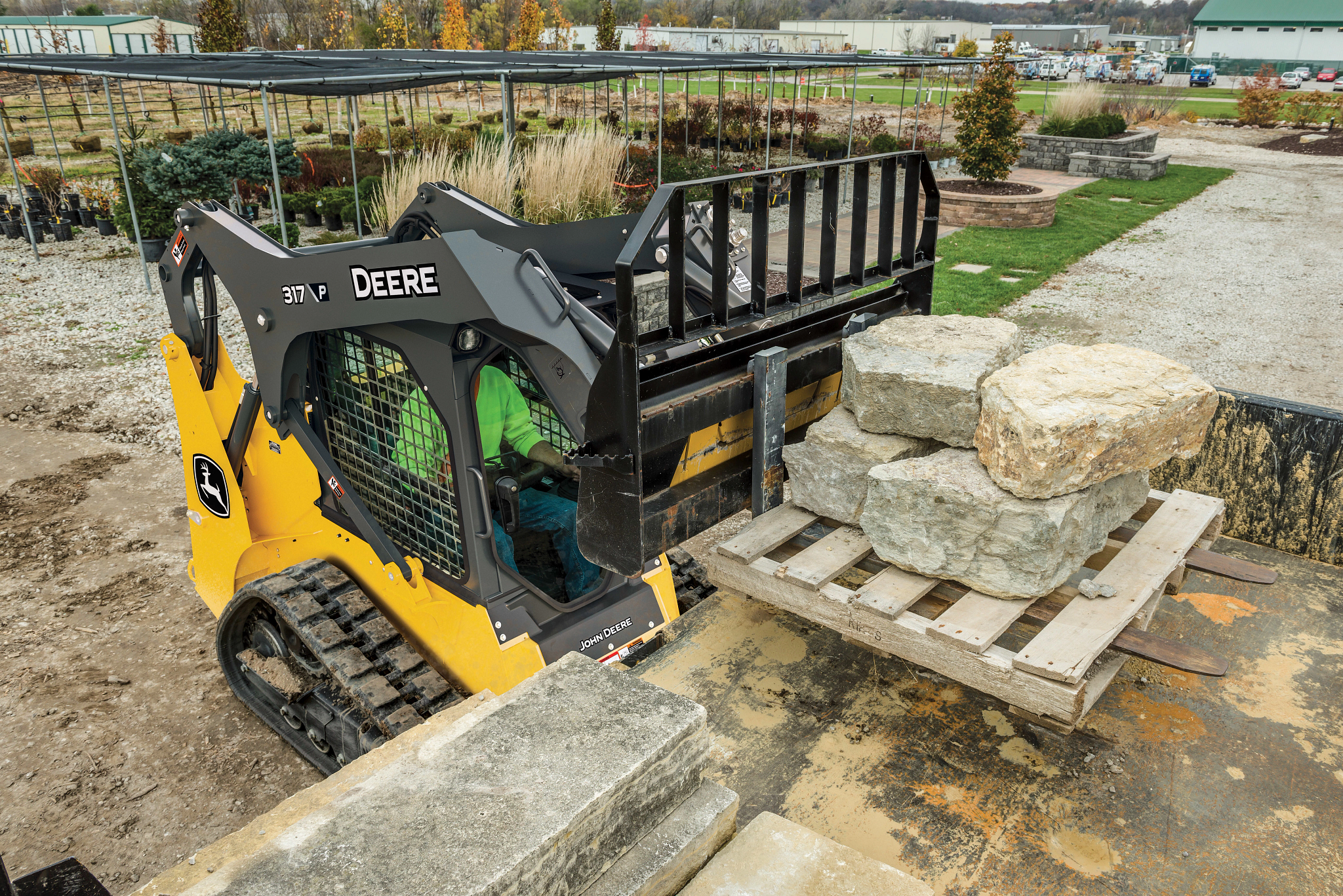

Compact Size with Vertical‑Lift Performance
The 317 P‑Tier features a vertical‑lift boom design that provides excellent reach and stability at full lift, enabling precise pallet placement and efficient material loading. With a compact footprint and low ground pressure, it works confidently in tight spaces while maintaining the lifting performance typically found in larger machines.

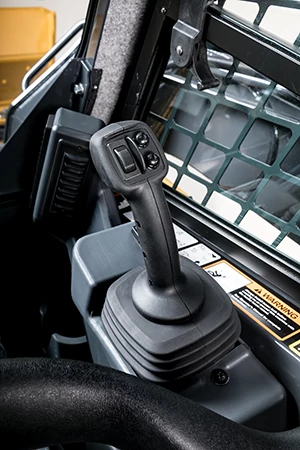

Operator‑Focused Cab and Electrohydraulic Controls
A spacious, sealed, and pressurized cab helps reduce noise and dust while keeping operators comfortable throughout long workdays. Electrohydraulic (EH) ISO‑pattern joystick controls offer smooth, responsive operation with customizable settings, allowing operators to work more precisely and with less fatigue across a wide range of applications.

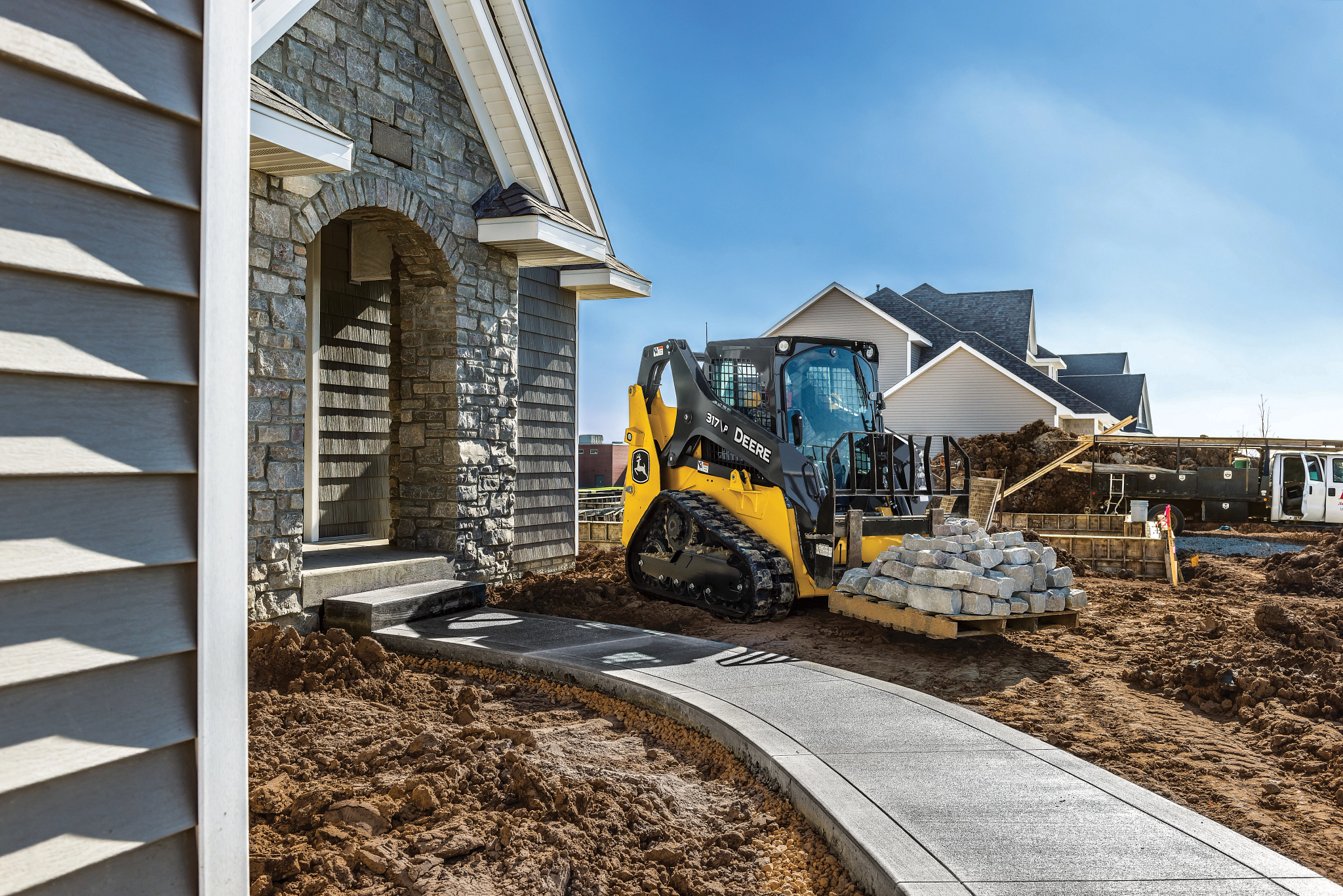

Built‑In Versatility and Easy Transport
Factory‑installed attachment readiness and compatibility with more than 100 John Deere attachments allow the 317 P‑Tier to transition easily between landscaping, material handling, and site‑prep tasks. Its compact size and tie‑down accessibility make it easy to transport behind a standard pickup truck—keeping crews mobile and productive between jobsites.
Specifications
Machine Dimensions
| Length without bucket (in.) | 103 in. |
| Length without bucket (ft in.) | 8.6 ft, in. |
| Length without bucket (m) | 2.6 m |
| Length with foundry bucket (in.) | 127.6 in. |
| Length with foundry bucket (ft in.) | 10.6 ft, in. |
| Length with foundry bucket (m) | 3.24 m |
| Width without bucket with 12.6-in. tracks (in.) | 65.1 in. |
| Width without bucket with 320-mm tracks (m) | 1.65 m |
| Height to top of rollover protective structure (ROPS) (in.) | 78 in. |
| Height to top of rollover protective structure (ROPS) (ft in.) | 6.5 ft, in. |
| Height to top of rollover protective structure (ROPS) (m) | 1.98 m |
| Height to hinge pin (in.) | 121 in. |
| Height to hinge pin (ft in.) | 10.1 ft, in. |
| Height to hinge pin (m) | 3.07 m |
| Dump height, foundry bucket (in.) | 95.6 in. |
| Dump height, foundry bucket (ft in.) | 8 ft, in. |
| Dump height, foundry bucket (m) | 2.43 m |
| Ground clearance (in.) | 7.4 in. |
| Ground clearance (m) | 0.2 m |
| Angle of departure degree | 32.3 degree (angle) |
| Dump angle (full lift height) degree | 42 degree (angle) |
| Bucket rollback (ground level) degree | 30 degree (angle) |
Hydraulics
| Standard pump flow (gpm) | 17 gpm |
| Standard pump flow (L/min) | 63 L/min |
| System pressure at couplers (psi) | 3450 psiPerMin |
| System pressure at couplers (kPa) | 23787 kPa |
| Hydraulic horsepower standard flow (calculated) (hp) | 33 hp |
| Hydraulic horsepower standard flow (calculated) (kW) | 25 kW |
Undercarriage
| Standard track width (in.) | 12.6 in. |
| Standard track width (mm) | 320 mm |
| Ground pressure standard track (psi) | 5.5 psi |
| Ground pressure standard track (kPa) | 38 kPa |
Operating Weights
| Standard track (lb) | 8423 lb. |
| Standard track (kg) | 3824 kg |
Powertrain
| Travel speed high (mph) | 7 mph |
| Travel speed high (km/h) | 11.3 km/h |
Serviceability
| Fuel tank (gal.) | 19 gal. |
| Fuel tank (L) | 71 L |
Loader Performance
| Advertised tipping load with construction bucket (lbs) | 6070 lb. |
| Advertised tipping load with construction bucket (kg) | 2756 kg |
| SAE rated operating capacity at 35% tipping load (construction bucket) (lb) | 2125 lb. |
| SAE rated operating capacity at 35% tipping load (construction bucket) (kg) | 965 kg |
| Boom breakout force with construction bucket (lb) | 5250 lb. |
| Boom breakout force with construction bucket (kg) | 2381.4 kg |
| Bucket breakout force with foundry bucket (lb) | 6000 lb. |
| Bucket breakout force with foundry bucket (kg) | 2721.6 kg |
Engine
| Manufacturer | Yanmar® |
| Model | 4TNV86CHT |
| Net power (SAE J1349, ISO 9249) at 2600 rpm (hp) | 61 hp |
| Net power (SAE J1349, ISO 9249) at 2600 rpm (kW) | 45.6 kW |
| Rated gross power (ISO 14396) at 2600 rpm (hp) | 65 hp |
| Rated gross power (ISO 14396) at 2600 rpm (kW) | 48.5 kW |
| Displacement (cu in.) | 128 cu in. |
| Displacement (L) | 2.1 L |
| Rated engine speed (rpm) | 2600 rpm |
| Aspiration | Turbo |
