Features
High‑Output 4.5L PowerTech™ Engine

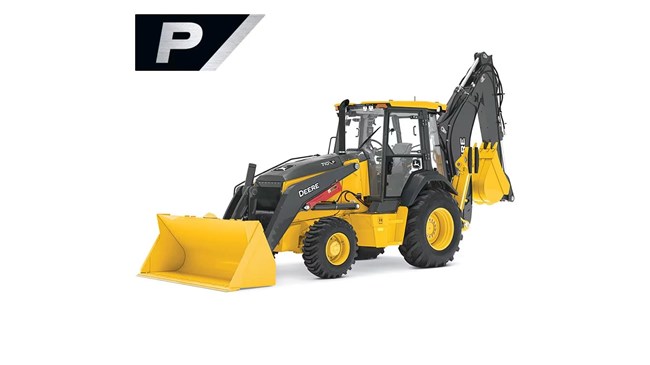

Delivering up to 148 hp, the 710 P‑Tier is powered by a John Deere PowerTech™ Plus engine with series turbochargers, providing exceptional torque, strong load response, and reliable performance for the most demanding excavation and material‑handling jobs.
Advanced Load‑Sensing Hydraulic Performance
Pressure‑compensated, load‑sensing (PCLS) hydraulics provide smooth, precise control with excellent multifunctioning and up to 15 percent greater craning capacity, when Lift Mode is engaged, allowing operators to work efficiently at lower engine speeds while maintaining productivity.
Increased Reach and Heavy‑Duty Capability

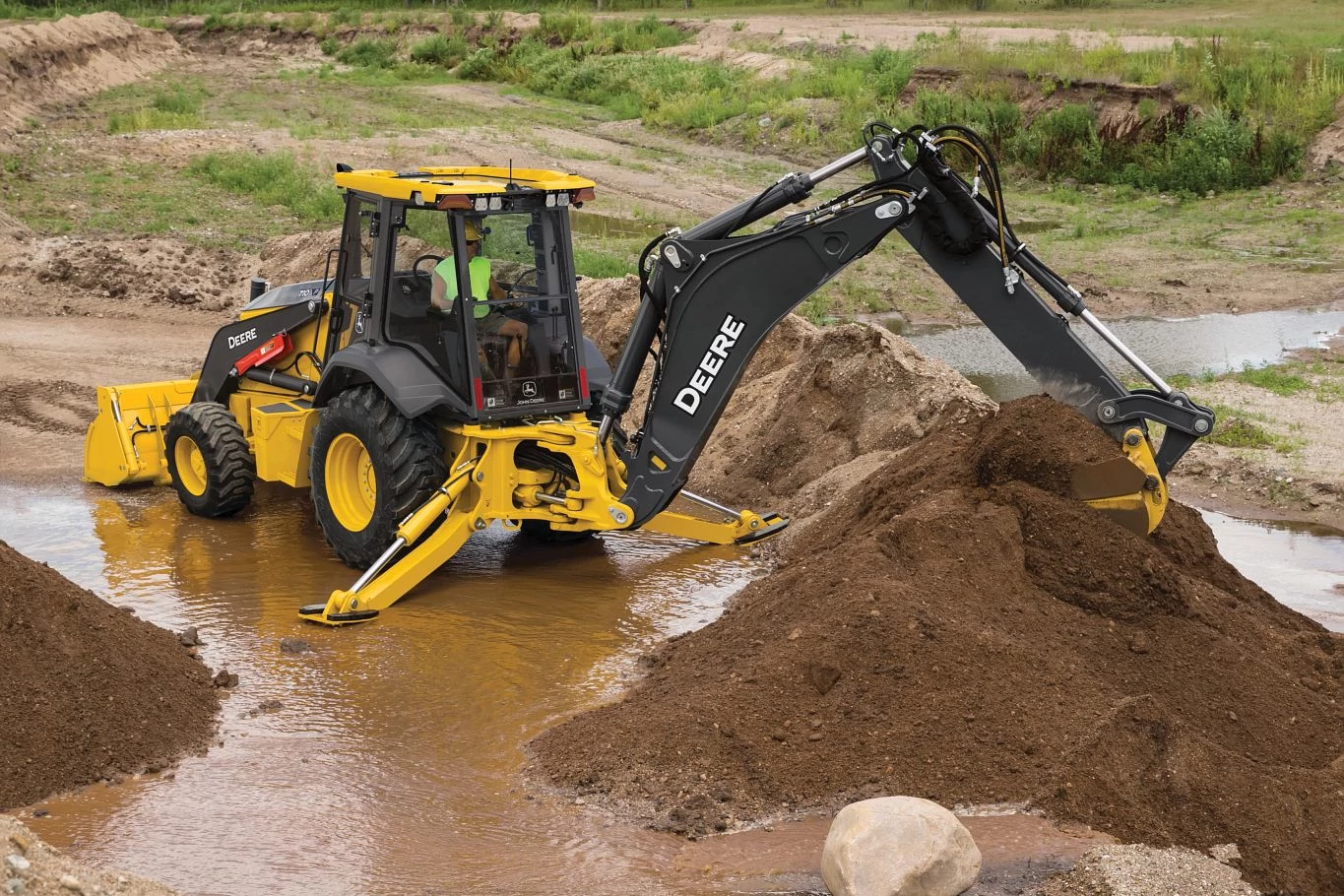

Maximum Reach and Heavy‑Duty Capability With over 17 ft (5.18 m) of digging depth and a heavy‑duty design built for high‑capacity lifting and trenching, the 710 P‑Tier is ideal for large‑scale construction, utility, and infrastructure projects that demand maximum strength and stability.
Specifications
Operating Weights
| Operator And Standard Equipment With Full Fuel Tank | 25588 lb. |
| Operator And Standard Equipment With Full Fuel Tank | 11607.2 kg |
| Typical With Cab, Extendible Dipperstick, And 1500-Lb Counterweight | 27033 lb. |
| Typical With Cab, Extendible Dipperstick, And 680-Kg Counterweight | 12264.3 kg |
| Cab | 645 lb. |
| Cab | 292.6 kg |
| Mechanical Front-Wheel Drive With Tires | 822 lb. |
| Mechanical Front-Wheel Drive With Tires | 372.9 kg |
| Extendable Dipperstick | 700 lb. |
| Extendable Dipperstick | 317.5 kg |
| Front Loader Coupler | 800 lb. |
| Front Loader Coupler | 362.9 kg |
Lift Capacity with Quick-Coupler Forks
| Hydraulic Capacity Minimum Tines | 48 in. |
| Hydraulic Capacity Minimum Tines | 1219.2 mm |
| At Maximum Height With Minimum Tines | 5803 lb. |
| At Maximum Height With Minimum Tines | 2632.7 kg |
| At Maximum Reach With Minimum Tines | 9651 lb. |
| At Maximum Reach With Minimum Tines | 4377.3 kg |
| At Ground Line With Minimum Tines | 13353 lb. |
| At Ground Line With Minimum Tines | 6057.3 kg |
| Below Ground Line With Minimum Tines | 5.5 in. |
| Below Ground Line With Minimum Tines | 139.7 mm |
Cooling
| Fan Type | Electronically controlled, variable rate, suction type cooling fan, Standard |
| Engine Coolant Rating | -40 °F |
| Engine Coolant Rating | -40 ℃ |
| Engine Radiator (Fins Per In.) | 10 |
| Engine Oil Cooler Type | Oil-to-water |
| Hydraulic Cooler Type | Oil-to-air |
| Transmission Cooler Type | Oil-to-air |
Powertrain
| Transmission Type | 4 speed, helical cut gears, full power-shifted transmission with hydraulic reverser standard; Electric clutch cutoff on loader lever; AutoShift transmission optional |
| Number Of Gears Forward | 4 |
| Number Of Gears Reverse | 3 |
| Shift Control Type | Electric forward-neutral-reverse control lever with neutral start interlock |
| Torque Converter Type | Single stage, dual phase with 1.92:1 stall ratio |
| Torque Converter | 11 in. |
| Torque Converter | 279.4 mm |
| Conditions For Measuring Travel Speeds | Power-Shift, Standard Transmission with Tire Size 21L-28 Rear Tires |
| Gear 1, Forward Maximum Speed | 3.7 mph |
| Gear 1, Forward Maximum Speed | 6 km/h |
| Gear 1, Reverse Maximum Speed | 6.8 km/h |
| Gear 1, Reverse Maximum Speed | 4.2 mph |
| Gear 2, Forward Maximum Speed | 6.2 mph |
| Gear 2, Forward Maximum Speed | 10 km/h |
| Gear 2, Reverse Maximum Speed | 7 mph |
| Gear 2, Reverse Maximum Speed | 11.3 km/h |
| Gear 3, Forward Maximum Speed | 15.3 mph |
| Gear 3, Forward Maximum Speed | 24.6 km/h |
| Gear 3, Reverse Maximum Speed | 17 mph |
| Gear 3, Reverse Maximum Speed | 27.4 km/h |
| Gear 4, Forward Maximum Speed | 22.9 mph |
| Gear 4, Forward Maximum Speed | 36.9 km/h |
| Axle Oscillation Stop To Stop, Front Axle | 18 degree (angle) |
| Front Axle, Sae J43 Rating | 19800 lb. |
| Front Axle, Sae J43 Rating | 8981 kg |
| Front Axle, Dynamic Rating | 27600 lb. |
| Front Axle, Dynamic Rating | 12519 kg |
| Front Axle, Static Rating | 67200 lb. |
| Front Axle, Static Rating | 30484 kg |
| Front Axle, Ultimate Rating | 99200 lb. |
| Front Axle, Ultimate Rating | 44999 kg |
| Rear Axle, SAE J43 Rating | 25400 lb. |
| Rear Axle, SAE J43 Rating | 11521 kg |
| Rear Axle, Dynamic Rating | 30900 lb. |
| Rear Axle, Dynamic Rating | 14016 kg |
| Rear Axle, Static Rating | 68300 lb. |
| Rear Axle, Static Rating | 30987 kg |
| Rear Axle, Ultimate Rating | 99200 lb. |
| Rear Axle, Ultimate Rating | 44999 kg |
| Maximum Axle Torque | 57500 lb. |
| Maximum Axle Torque | 26082 kg |
| Mechanical Front Wheel Drive Axle Differential Type | Automatic, Limited-Slip Traction Control |
| Rear Axle Differential Type | Foot actuated, hydraulically engaged mechanical lock |
| Rear Differential Lock Pressure | 290 psi |
| Rear Differential Lock Pressure | 1999 kPa |
| Steering Type | Hydrostatic Power Steering and Emergency Steering (ISO5010) |
| Steering Pressure | 3625 psi |
| Steering Pressure | 24991.25 kPa |
| Maximum Steer Angle, Mechanical Front-Wheel Drive (MFWD) Axle | 52 degree (angle) |
| Maximum Steer Angle, Non-Powered Front Axle | 55 degree (angle) |
| Curb-Turning Radius, With Brakes, With MFWD Axle | 13, 1 ft, in. |
| Curb-Turning Radius, With Brakes, With MFWD Axle | 3.99 m |
| Curb-Turning Radius, With Brakes, With Non-Powered Front Axle | 13, 1 ft, in. |
| Curb-Turning Radius, With Brakes, With Non-Powered Front Axle | 3.99 m |
| Curb-Turning Radius, Without Brakes, With MFWD Axle | 15, 0 ft, in. |
| Curb-Turning Radius, Without Brakes, With MFWD Axle | 4.57 m |
| Curb-Turning Radius, Without Brakes, With Non-Powered Front Axle | 15, 0 ft, in. |
| Curb-Turning Radius, Without Brakes, With Non-Powered Front Axle | 4.57 m |
| Bucket Clearance Circle, With Brakes, With MFWD Axle | 37, 6 ft, in. |
| Bucket Clearance Circle, With Brakes, With MFWD Axle | 11.43 m |
| Bucket Clearance Circle, With Brakes, With Non-Powered Front Axle | 37, 6 ft, in. |
| Bucket Clearance Circle, With Brakes, With Non-Powered Front Axle | 11.43 m |
| Bucket Clearance Circle, Without Brakes, With MFWD Axle | 40, 4 ft, in. |
| Bucket Clearance Circle, Without Brakes, With MFWD Axle | 12.29 m |
| Bucket Clearance Circle, Without Brakes, With Non-Powered Front Axle | 40, 5 ft, in. |
| Bucket Clearance Circle, Without Brakes, With Non-Powered Front Axle | 12.32 m |
| Number Of Steering Wheel Turns (Lock To Lock) With MFWD Axle | 4.4 |
| Number Of Steering Wheel Turns (Lock To Lock) With Non-Powered Front Axle | 4.7 |
| MFWD Axle Final Drives And Gears | Heavy duty, outboard planetary final drives distribute shock loads over 3 gears |
| MFWD Axle Total Ratio | 14.308:1 |
| Rear Axle Final Drives And Gears | Heavy duty, inboard planetary final drives distribute shock loads over 3 gears |
| Rear Axle Total Ratio | 20.945:1 |
| Brakes | Conform to ISO 3450 |
| Service Brakes | Full power, hydraulic wet disc, mounted inboard, self adjusting and self equalizing |
| Service Brakes Friction Disc Area Per Side | 287700 mmByMm |
Electrical
| Voltage | 12 V |
| Number Of Batteries | 2 |
| Battery Capacity (2 Batteries) | 1900 CCA |
| Reserve Capacity (2 Batteries) | 350 min. |
| Alternator Rating | 160 amp |
| Lighting Options | 10 halogen: 4 front, 4 rear, and 2 side docking (32,500 candlepower each); turn signals and flashers: 2 front and 2 rear; stop and taillights; and 2 rear reflectors; factory installed option for 2 LED spot lights and 8 LED flood lights in lieu of the standard halogen light package |
Monitoring
| Alternator, Low Voltage | Indicator light, Audible |
| Service Code Indicator | Indicator light, Audible |
| Engine Air Filter Restriction | Indicator light, Audible |
| Engine Coolant Temperature | Indicator light, Audible, Gauge |
| Engine Oil Pressure | Indicator light, Audible |
| Fuel Level | Indicator light, Audible, Gauge |
| Hydraulic Oil Filter Restriction | Audible, Digital |
| Park Brake On/Off | Indicator light |
| Seat Belt Reminder | Indicator light, Digital |
| Stop Indicator | Indicator light, Audible |
| MFWD Active | Indicator light |
| Hydraulics Enabled | Indicator light |
| Hydraulics Temperature | Indicator light, Audible, Digital |
| Engine Preheat | Indicator light, Digital |
| Aftertreatment Temperature High | Indicator light |
| Torque Converter Oil Temp | Indicator light, Audible, Gauge |
| Job Timer | Digital |
| Hourmeter | Digital |
| Engine Rpm | Digital |
| System Voltage | Digital |
| Machine Information And Configuration | Digital |
| Diesel-Exhaust Fluid (DEF) Level | Indicator light, Audible, Digital |
| Sight Gauges | Hydraulic Reservoir |
Hydraulics
| Hydraulics System Type | Pressure compensated load sensing (PCLS), axial piston pump |
| Rated Rpm | 2200 rpm |
| Backhoe Pump Flow | 52.3 gpm |
| Backhoe Pump Flow | 197.9 L/min |
| Loader Pump Flow | 52.3 gpm |
| Loader Pump Flow | 197.9 L/min |
| Backhoe System Relief Pressure | 3625 psi |
| Backhoe System Relief Pressure | 24991.25 kPa |
| Backhoe Lift Mode System Relief Pressure | 3900 psi |
| Backhoe Lift Mode System Relief Pressure | 26887.5 kPa |
| Loader System Relief Pressure | 3625 psi |
| Loader System Relief Pressure | 24991.25 kPa |
| Backhoe Controls | Pilot controls with pattern select standard; electrohydraulic (EH) auxiliary functions optional |
| Loader Controls | Single-lever control with electric clutch cutoff switch and MFWD (momentary) standard; single-lever control with electric clutch cutoff switch, electrohydraulic (EH) proportional auxiliary roller, MFWD (momentary), and transmission quick-shift optional |
Serviceability
| Diagnostics | In-Cab Monitor Information |
| Refill Capacity Cooling System (Cab) | 30 qt |
| Refill Capacity Cooling System (Cab) | 28.39 L |
| Refill Capacity Cooling System (Canopy) | 27.9 qt |
| Refill Capacity Cooling System (Canopy) | 26.4 L |
| Refill Capacity Rear Axle Differential Housing | 26.4 qt |
| Refill Capacity Rear Axle Differential Housing | 24.98 L |
| Refill Capacity Engine Oil | 13.7 qt |
| Refill Capacity Engine Oil | 12.97 L |
| Refill Capacity Torque Converter And Transmission | 16 qt |
| Refill Capacity Torque Converter And Transmission | 15.14 L |
| Refill Capacity Fuel Tank | 46 gal. |
| Refill Capacity Fuel Tank | 174.13 L |
| Refill Capacity Diesel-Exhaust Fluid (DEF) Tank | 3.6 gal. |
| Refill Capacity Diesel-Exhaust Fluid (DEF) Tank | 13.63 L |
| Refill Capacity Hydraulic System | 46 gal. |
| Refill Capacity Hydraulic System | 174.13 L |
| Refill Capacity Hydraulic Reservoir | 13.2 gal. |
| Refill Capacity Hydraulic Reservoir | 49.97 L |
| Refill Capacity Mechanical Front-Wheel Drive Housing Axle | 15.9 qt |
| Refill Capacity Mechanical Front-Wheel Drive Housing Axle | 15.05 L |
| Refill Capacity Mechanical Front-Wheel Drive Housing Planetary Each | 2.3 qt |
| Refill Capacity Mechanical Front-Wheel Drive Housing Planetary Each | 2.18 L |
Engine
| Manufacturer | John Deere |
| Model | PowerTech™ Plus series turbocharged |
| Non-Road Emission Standards | EPA Final Tier 4/EU Stage IV |
| Cylinders | 4 |
| Valves Per Cylinder | 4 |
| Displacement | 276 cu in. |
| Displacement | 4.52 L |
| Bore and Stroke | 4.19 x 5.00 in. |
| Bore and Stroke | 106.4 x 127.0 mm |
| Rated Speed | 2200 rpm |
| Gross Power At Rated Speed | 149 hp |
| Gross Power At Rated Speed | 111.1 kW |
| Peak Power Speed | 2240 rpm |
| Gross Peak Power At Peak Power Speed | 150 hp |
| Gross Peak Power At Peak Power Speed | 111.9 kW |
| Peak Torque Speed | 1400 rpm |
| Gross Peak Torque At Peak Torque Speed | 426 lb-ft |
| Gross Peak Torque At Peak Torque Speed | 577.8 Nm |
| Net Power At Rated Speed (ISO9249) | 147 hp |
| Net Power At Rated Speed (ISO9249) | 109.6 kW |
| Net Peak Power At Peak Power Speed (ISO9249) | 110.3 kW |
| Net Peak Torque At Peak Torque Speed (ISO9249) | 420 lb-ft |
| Net Peak Torque At Peak Torque Speed (ISO9249) | 569 Nm |
| Net Torque Rise | 20 % |
| Oil Specification | JD Torq-Gard or equivalent |
| Lubrication | Pressure system with spin-on filter and cooler |
| Fuel System | Level 34 Electronic Fuel System with Denso High Pressure Common Rail |
| Air Cleaner | Dual stage dry type with safety element and evacuator valve |
Operator Station
| Operator Station Type | Fully enclosed cab, isolation mounted, ROPS/FOPS, left/right access, with molded roof; optional canopy |
