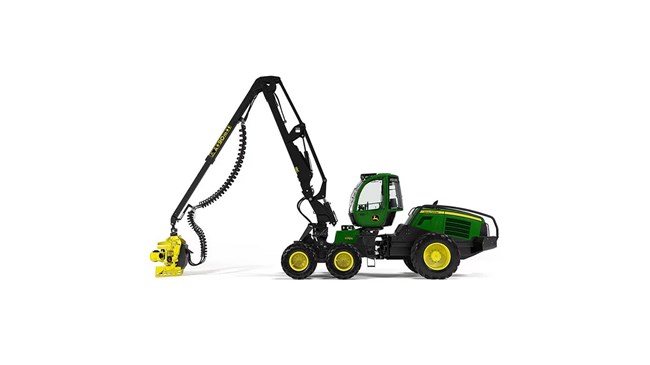

John Deere 1170G

New Products / John Deere / John Deere Products / Forestry Equipment / Wheeled Harvesters / 1170G

Double tap to zoom



Features

TimberMatic™ Maps and TimberManager™

A rugged touchscreen monitor displaying a GPS field map with highlighted rows, guidance paths, and machine location

TimberMatic™ Maps offers a real-time production view, optimized routes, and shared machine connectivity, enhancing jobsite awareness. TimberManager™ allows web-based jobsite monitoring, enabling progress tracking and fleet optimization to streamline communication and boost efficiency.

Far From the Daily Grind

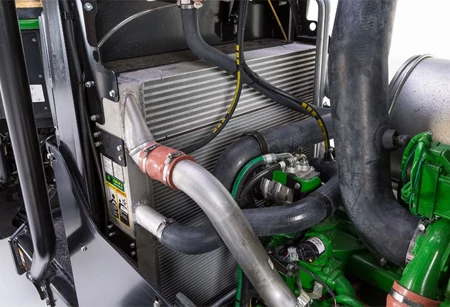

Close-up of a wheeled harvester's stacked cooling system, showing pipes, cables, and variable-speed reversing fan

The hydraulically driven, variable-speed reversing fan optimizes cooling by adjusting speed based on conditions, which reduces fuel consumption. It also automatically or manually reverses to clear debris, and its side-by-side cooler design allows for efficient cooling and easy cleaning.

Intelligent Boom Control Smooths Boom Operation

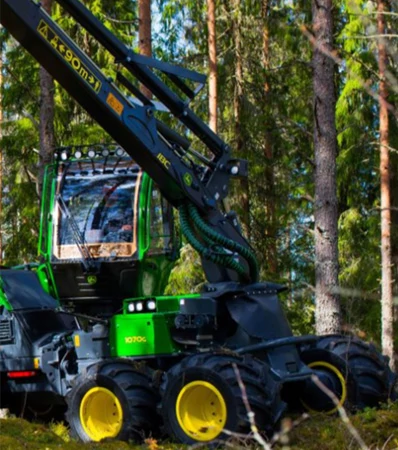

A green forestry machine with multiple large yellow wheels and a long articulated boom operates among tall trees in a wooded forest setting

Intelligent Boom Control (IBC) technology ensures smoother, more precise boom operations. This system automates the control of boom directions, greatly reducing operator fatigue while improving effectiveness and accuracy.

Specifications

Dimensions With 8 Wheels (8W)

Dimensions DisclaimerDimensions are guidelines only and may vary depending on production tolerances
Length 7.45 m
Length 24.44 ft
Front Axle - Middle Joint2.02 m
Front Axle - Middle Joint6.63 ft
Rear Axle - Middle Joint1.95 m
Rear Axle - Middle Joint6.4 ft
Wheelbase, Front Plus Rear Axle - Middle Joint3.97 m
Wheelbase, Front Plus Rear Axle - Middle Joint13.02 ft
Front Tires24.5 in (62 mm)
Rear Tires24.5 in (62 mm)
Minimum Width With 600-Series Tires2590.8 mm
Minimum Width With 600-Series Tires8.5 ft
Minimum Width With 650-Series Tires2717.6 mm
Minimum Width With 650-Series Tires8.92 ft
Minimum Width With 710-Series Tires2847.4 mm
Minimum Width With 710-Series Tires9.32 ft
Outer Turning Radius - 710-Series Tires6500 mm
Outer Turning Radius - 710-Series Tires21.31 ft
Inner Turning Radius - 710-Series Tires3467.8 mm
Inner Turning Radius - 710-Series Tires11.37 ft
Transport Height3.96 m
Transport Height13 ft
Transport Length11.8 m
Transport Length38.7 ft
Ground Clearance - Middle Joint0.62 m
Ground Clearance - Middle Joint24.3 in.
Minimum Machine Weight With Harvester Head19500 kg
Minimum Machine Weight With Harvester Head42990 lb.

Hydraulics

TypeLoad sensing
Pump Capacities190 cm³
Pump Capacities11.6 cu in.
Working Pressure Option 124 MPa
Working Pressure Option 13480 psi
Oil Flow @ 1700 RPM323 L/min
Working Pressure Option 228 MPa
Working Pressure Option 24060 psi
Maximum Operating Pressure28 MPa
Hydraulic Tank160.1 L
Hydraulic Tank42.3 gal.

Cabin

TypeRotating and leveling
Rotating Angle160 degrees
Sideways Tilt17 degrees
Forward And Backward Tilt10 degrees

Boom

TypeCH6
Maximum Reach Length Option 1, Head Included10 m
Maximum Reach Length Option 1, Head Included32.8 ft
Maximum Reach Length Option 2, Head Included11.3 m
Maximum Reach Length Option 2, Head Included37.1 ft
Gross Lifting Torque165 kNm
Gross Lifting Torque121700 lb-ft
Slewing Torque45 kNm
Slewing Torque33200 lb-ft
Slewing Angle220 degrees
Forward Tilt Angle28 degrees
Backward Tilt Angle14 degrees

Dimensions With 6 Wheels (6W)

Dimensions DisclaimerDimensions are guidelines only and may vary depending on production tolerances
Length 7.24 m
Length 23.75 ft
Front Axle - Middle Joint2.02 m
Front Axle - Middle Joint6.63 ft
Rear Axle - Middle Joint1.85 m
Rear Axle - Middle Joint6.07 ft
Wheelbase, Front Plus Rear Axle - Middle Joint3.87 m
Wheelbase, Front Plus Rear Axle - Middle Joint12.7 ft
Front Tire Size - Option 1622.3 mm
Front Tire Size - Option 124.5 in.
Front Tire Size - Option 2673.1 mm
Front Tire Size - Option 226.5 in.
Rear Tire Size863.6 mm
Rear Tire Size34 in.
Minimum Width With 600-Series Tires2590.8 mm
Minimum Width With 600-Series Tires8.5 ft
Minimum Width With 650-Series Tires2717.6 mm
Minimum Width With 650-Series Tires8.92 ft
Minimum Width With 710-Series Tires2847.4 mm
Minimum Width With 710-Series Tires9.32 ft
Outer Turning Radius - 710-Series Tires6337 mm
Outer Turning Radius - 710-Series Tires20.79 ft
Inner Turning Radius - 710-Series Tires3285.1 mm
Inner Turning Radius - 710-Series Tires10.78 ft
Transport Height3.77 m
Transport Height12.36 ft
Transport Length11.87 m
Transport Length39 ft
Ground Clearance - Middle Joint0.63 m
Ground Clearance - Middle Joint24.9 in.
Minimum Machine Weight With Harvester Head17800 kg
Minimum Machine Weight With Harvester Head39242 lb.

Electrical

Voltage24 V
Number Of Batteries2
Battery Capacity Per Each145 amp-hr
Alternator 150 amp
Alternator Voltage28 V
Lights Intensity Rating60 lux

Transmission With 8-Wheel (8W) Model

TypeHydrostatic-mechanical, 2-speed gearbox
Tractive Force160 kN
Tractive Force35969 lbf
Gear 1 - Travel Speed Range7.6 km/h
Gear 1 - Travel Speed Range4.7 mph
Gear 2 - Travel Speed Range24 km/h
Gear 2 - Travel Speed Range14.9 mph

Axles/Bogies With 6-Wheel (6W) Model

Axle Differential Lock TypeElectrohydraulic differential lock at front and rear
Front Axle TypeBalanced bogie axle
Rear Axle TypeRigid axle

Engine

ManufacturerJohn Deere
ModelPowerTech™ Plus 6068
Non-Road Emission StandardsEPA Final Tier 4 / EU Stage IV
Speed Maximum Power Measured At2000 rpm
Maximum Power155.1 kW
Maximum Power208 hp
Speed Net Peak Torque Measured At1500 rpm
Net Peak Torque978 Nm
Net Peak Torque721 lb-ft
Fuel Tank Capacity300.1 L
Fuel Tank Capacity79.3 gal.
Diesel-Exhaust Fluid (DEF) Tank Total Capacity23.8 L
Diesel-Exhaust Fluid (DEF) Tank Total Capacity6.3 gal.
DEF Tank Usable Capacity12.9 L
DEF Tank Usable Capacity3.4 gal.

Axles/Bogies With 8-Wheel (8W) Model

Axle Differential Lock TypeElectrohydraulic differential lock at front and rear
Front Axle TypeBalanced bogie axle
Rear Axle TypeBalanced bogie axle

Steering & Brakes

Steering TypeProportional frame steering with electrical joystick
Turning Angle44 degrees
Brakes TypeHydraulically actuated, oil-immersed, multi-disc service brakes
Parking/Emergency BrakeSpring actuated
Frame OscillationAutomated

Transmission With 6-Wheel (6W) Model

TypeHydrostatic-mechanical, 2-speed gearbox
Tractive Force150 kN
Tractive Force33700 lbf
Gear 1 - Travel Speed Range7.6 km/h
Gear 1 - Travel Speed Range4.7 mph
Gear 2 - Travel Speed Range24 km/h
Gear 2 - Travel Speed Range14.9 mph

Measuring And Control System

TypePC / Windows® 07-based TimberMatic™ H-16

Harvester Heads

ModelsH212, H423, H424
