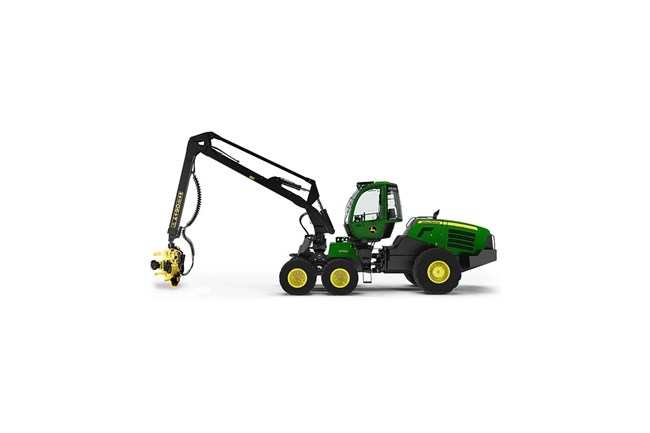

John Deere 1070G

New Products / John Deere / John Deere Products / Forestry Equipment / Wheeled Harvesters / 1070G

Double tap to zoom



Features

TimberMatic™ Maps and TimberManager™

A rugged touchscreen monitor displaying a GPS field map with highlighted rows, guidance paths, and machine location

TimberMatic™ Maps offers a real-time production view, optimized routes, and shared machine connectivity, enhancing jobsite awareness. TimberManager™ allows web-based jobsite monitoring, enabling progress tracking and fleet optimization to streamline communication and boost efficiency.

Intelligent Boom Control Smooths Boom Operation

A green forestry machine with multiple large yellow wheels and a long articulated boom operates among tall trees in a wooded forest setting

Intelligent Boom Control (IBC) technology ensures smoother, more precise boom operations. This system automates the control of boom directions, greatly reducing operator fatigue while improving effectiveness and accuracy.

Far From the Daily Grind

Close-up of a wheeled harvester's stacked cooling system, showing pipes, cables, and variable-speed reversing fan

The hydraulically driven, variable-speed reversing fan optimizes cooling by adjusting speed based on conditions, which reduces fuel consumption. It also automatically or manually reverses to clear debris, and its side-by-side cooler design allows for efficient cooling and easy cleaning.

Specifications

Dimensions With 4 Wheels (4W)

Dimensions DisclaimerDimensions are guidelines only and may vary depending on production tolerances.
Length 6.72 m
Length 22 ft
Front Axle - Middle Joint1.85 m
Front Axle - Middle Joint6.07 ft
Rear Axle - Middle Joint1.85 m
Rear Axle - Middle Joint6.07 ft
Wheelbase, Front Plus Rear Axle - Middle Joint3.7 m
Wheelbase, Front Plus Rear Axle - Middle Joint12.14 ft
Front Tires26,5 tum eller 34 tum
Front Tire Size - Option 1673.1 mm
Front Tire Size - Option 126.5 in.
Front Tire Size - Option 2863.6 mm
Front Tire Size - Option 234 in.
Rear Tires26.5 in or 34 in
Rear Tire Size864 mm
Rear Tire Size34 in.
Minimum Width With 600-Series Tires2600 mm
Minimum Width With 600-Series Tires8.53 ft
Minimum Width With 650-Series Tires2709.7 mm
Minimum Width With 650-Series Tires8.89 ft
Minimum Width With 710-Series Tires2789 mm
Minimum Width With 710-Series Tires9.15 ft
Outer Turning Radius - 710-Series Tires5800 mm
Outer Turning Radius - 710-Series Tires19 ft
Inner Turning Radius - 710-Series Tires3078.5 mm
Inner Turning Radius - 710-Series Tires10.1 ft
Transport Height3.7 m
Transport Height12.17 ft
Transport Length11.44 m
Transport Length37.52 ft
Ground Clearance - Middle Joint0.57 m
Ground Clearance - Middle Joint22.4 in.
Minimum Machine Weight With Harvester Head15200 kg
Minimum Machine Weight With Harvester Head33510 lb.

Hydraulics

TypeLoad sensing
Pump Capacities159 cm³
Pump Capacities9.7 cu in.
Pump Capacities - Secondary9.76 cu in.
Working Pressure Option 124 MPa
Working Pressure Option 13480 psi
Oil Flow @ 1700 RPM272 L/min
Working Pressure Option 228 MPa
Working Pressure Option 24060 psi
Maximum Operating Pressure28 MPa
Hydraulic Tank160.1 L
Hydraulic Tank42.3 gal.

Cabin

TypeRotating and leveling
Rotating Angle160 degrees
Sideways Tilt17 degrees
Forward And Backward Tilt10 degrees

Boom

Type180S
Maximum Reach Length Option 1, Head Included8.6 m
Maximum Reach Length Option 1, Head Included28.2 ft
Maximum Reach Length Option 2, Head Included10 m
Maximum Reach Length Option 2, Head Included32.8 ft
Maximum Reach Length Option 3, Head Included10.8 m
Maximum Reach Length Option 3, Head Included35.5 ft
Gross Lifting Torque143.1 kNm
Gross Lifting Torque105500 lb-ft
Slewing Torque38 kNm
Slewing Torque28000 lb-ft
Slewing Angle220 degrees
Forward Tilt Angle28 degrees
Backward Tilt Angle14 degrees

Dimensions With 6 Wheels (6W)

Dimensions DisclaimerDimensions are guidelines only and may vary depending on production tolerances
Length 7 m
Length 22.9 ft
Front Axle - Middle Joint1.85 m
Front Axle - Middle Joint6.07 ft
Rear Axle - Middle Joint1.85 m
Rear Axle - Middle Joint6.07 ft
Wheelbase, Front Plus Rear Axle - Middle Joint3.7 m
Wheelbase, Front Plus Rear Axle - Middle Joint12.14 ft
Front Tire Size - Option 1571.5 mm
Front Tire Size - Option 122.5 in.
Front Tire Size - Option 2710 mm
Rear Tire Size863.6 mm
Rear Tire Size34 in.
Minimum Width With 600-Series Tires2664 mm
Minimum Width With 600-Series Tires8.74 ft
Minimum Width With 650-Series Tires2709.7 mm
Minimum Width With 650-Series Tires8.89 ft
Minimum Width With 710-Series Tires2822.4 mm
Minimum Width With 710-Series Tires9.26 ft
Outer Turning Radius - 710-Series Tires6016.8 mm
Outer Turning Radius - 710-Series Tires19.74 ft
Inner Turning Radius - 710-Series Tires3246.1 mm
Inner Turning Radius - 710-Series Tires10.65 ft
Transport Height3.73 m
Transport Height12.24 ft
Transport Length11.42 m
Transport Length37.48 ft
Ground Clearance - Middle Joint0.59 m
Ground Clearance - Middle Joint23.2 in.
Minimum Machine Weight With Harvester Head16000 kg
Minimum Machine Weight With Harvester Head35274 lb.

Electrical

Voltage24 V
Number Of Batteries2
Battery Capacity Per Each145 amp-hr
Alternator 150 amp
Alternator Voltage28 V
Lights Intensity Rating60 lux

Axles/Bogies With 6-Wheel (6W) Model

Axle Differential Lock TypeElectrohydraulic differential lock at front and rear
Front Axle TypeBalanced bogie axle
Rear Axle TypeRigid axle

Engine

ManufacturerJohn Deere
ModelPowerTech™ Plus 6068
Non-Road Emission StandardsEPA Final Tier 4 / EU Stage IV
Speed Maximum Power Measured At2000 rpm
Maximum Power135.7 kW
Maximum Power182 hp
Speed Net Peak Torque Measured At1500 rpm
Net Peak Torque850.3 Nm
Net Peak Torque627 lb-ft
Fuel Tank Capacity300.1 L
Fuel Tank Capacity79.3 gal.
Diesel-Exhaust Fluid (DEF) Tank Total Capacity23.8 L
Diesel-Exhaust Fluid (DEF) Tank Total Capacity6.3 gal.
DEF Tank Usable Capacity12.9 L
DEF Tank Usable Capacity3.4 gal.

Steering & Brakes

Steering TypeProportional frame steering with electrical joystick
Turning Angle44 degrees
Brakes TypeHydraulically actuated, oil-immersed, multi-disc service brakes
Parking/Emergency BrakeSpring actuated
Frame OscillationAutomated

Transmission With 6-Wheel (6W) Model

TypeHydrostatic-mechanical, 2-speed gearbox
Tractive Force129.9 kN
Tractive Force29200 lbf
Gear 1 - Travel Speed Range7.6 km/h
Gear 1 - Travel Speed Range4.7 mph
Gear 2 - Travel Speed Range24 km/h
Gear 2 - Travel Speed Range14.9 mph

Axles/Bogies With 4-Wheel (4W) Model

Axle Differential Lock TypeElectrohydraulic differential lock at front and rear
Front Axle TypeRigid axle
Rear Axle TypeRigid axle

Measuring And Control System

TypePC / Windows® 07-based TimberMatic™ H-16

Harvester Heads

ModelsH212, H423, H424
