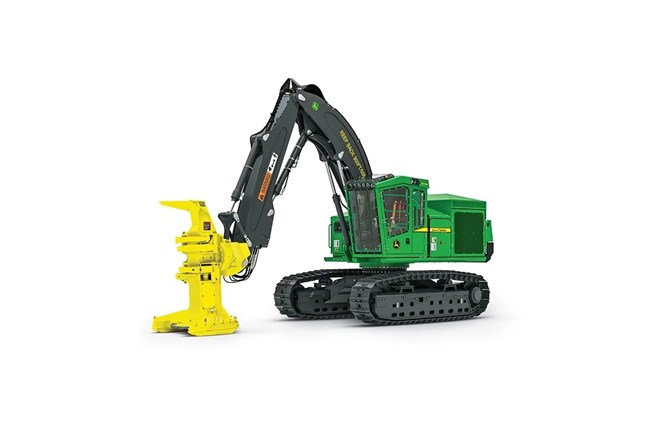

Features
TimberMatic™ Maps and TimberManager™
TimberMatic™ Maps offers a real-time production view, optimized routes, and shared machine connectivity, enhancing jobsite awareness. TimberManager™ allows web-based jobsite monitoring, enabling progress tracking and fleet optimization to streamline communication and boost efficiency.
Operate in Comfort
A large and spacious operator station features a floor-to-ceiling front window, ergonomic controls, and increased cab volume over prior models. It enhances operator comfort, which is crucial for maintaining high productivity during long operating hours.
Sure-Footed Stability
Engineered for challenging forestry applications, the M Series undercarriage delivers exceptional stability and maneuverability, especially beneficial in steep or swampy terrain. A variety of track pad options ensures adaptability to different ground conditions, balancing traction with ground pressure to maintain strong performance.
Specifications
Machine Dimensions
| Standard Undercarriage Type | U7 EXD |
| Boom Size Used For Measuring Dimensions | 23 ft |
| Boom Size Used For Measuring Dimensions | 7 m |
| Overall Height, Top Of Cab With Flat Skylight | 11, 8 ft, in. |
| Overall Height, Top Of Cab With Flat Skylight | 3.6 m |
| Overall Height, Top Of Cab With Peaked Skylight | 12, 4 ft, in. |
| Overall Height, Top Of Cab With Peaked Skylight | 3.8 m |
| Overall Height, Top Of Boom, Extended, Attachment Vertical | 12, 8 ft, in. |
| Overall Height, Top Of Boom, Extended, Attachment Vertical | 3.86 m |
| Overall Track Length | 16, 1 ft, in. |
| Overall Track Length | 4.9 m |
| Track Length (Idler To Sprocket Center) | 12, 7 ft, in. |
| Track Length (Idler To Sprocket Center) | 3.87 m |
| Tail Swing (From Swing Center) | 10, 5 ft, in. |
| Tail Swing (From Swing Center) | 3.18 m |
| Maximum Boom Reach (To Attachment Pin) With 23-ft Boom | 23, 0 ft, in. |
| Maximum Boom Reach (To Attachment Pin) With 7.01-m Boom | 7 m |
| Minimum Boom Reach (To Attachment Pin) With 23-ft Boom | 9, 10 ft, in. |
| Minimum Boom Reach (To Attachment Pin) With 7.01-m Boom | 3 m |
| Cutting Swath, Boom Reach (To Attachment Pin) With 23-ft Boom | 13, 2 ft, in. |
| Cutting Swath, Boom Reach (To Attachment Pin) With 7.01-m Boom | 4 m |
| Maximum Boom Reach (To Attachment Pin) With 26-ft, 6-in. Boom | 9, 6 ft, in. |
| Maximum Boom Reach (To Attachment Pin) With 8.08-m Boom | 2.9 m |
| Minimum Boom Reach (To Attachment Pin) With 26-ft, 6-in. Boom | 9, 6 ft, in. |
| Minimum Boom Reach (To Attachment Pin) With 8.08-m Boom | 2.9 m |
| Cutting Swath, Boom Reach (To Attachment Pin) With 26-ft, 6-in. Boom | 17, 0 ft, in. |
| Cutting Swath, Boom Reach (To Attachment Pin) With 8.08-m Boom | 5.2 m |
| Ground Clearance, Single Grouser | 31 in. |
| Ground Clearance, Single Grouser | 787 mm |
| Ground Clearance, Double Grouser | 30 in. |
| Ground Clearance, Double Grouser | 762 mm |
| Ground Clearance, Triple Grouser | 29 in. |
| Ground Clearance, Triple Grouser | 737 mm |
| Upperstructure Width, Standard | 10, 0 ft, in. |
| Upperstructure Width, Standard | 3.1 m |
| Upperstructure Width, With Optional Walkway | 10, 6 ft, in. |
| Upperstructure Width, With Optional Walkway | 3.2 m |
| Track Gauge | 8, 11 ft, in. |
| Track Gauge | 2.7 m |
| Width Over Tracks With 24-in. Track Shoes | 10, 10 ft, in. |
| Width Over Tracks With 610-mm Track Shoes | 3.3 m |
| Width Over Tracks With 28-in. Track Shoes | 11, 2 ft, in. |
| Width Over Tracks With 711-mm Track Shoes | 3.4 m |
| Width Over Tracks With 30-in. Track Shoes | 11, 4 ft, in. |
| Width Over Tracks With 760-mm Track Shoes | 3.45 m |
| Width Over Tracks With 36-in. Track Shoes | 11, 10 ft, in. |
| Width Over Tracks With 914-mm Track Shoes | 3.6 m |
7.01-m (23-ft) Boom Performance
| Conditions For Measuring Boom Performance | With FR22B |
| Maximum Reach (To Tip Of Saw Blade) | 29, 1 ft, in. |
| Maximum Reach (To Tip Of Saw Blade) | 8.7 m |
| Minimum Reach (To Tip Of Saw Blade) | 15, 11 ft, in. |
| Minimum Reach (To Tip Of Saw Blade) | 4.9 m |
| Cutting Swath | 13, 2 ft, in. |
| Cutting Swath | 4 m |
| Lift Option(s) | Standard Without Rapid Cycle System (RCS) |
| Lift Capacity, Standard Without RCS, Bare Pin At Full Reach | 12990 lb. |
| Lift Capacity, Standard Without RCS, Bare Pin At Full Reach | 5892.2 kg |
| Lift Capacity, Standard Without RCS, Bare Pin At 20 ft | 16930 lb. |
| Lift Capacity, Standard Without RCS, Bare Pin At 6.1 m | 7670.3 kg |
| Lift Capacity, High-Lift Option With RCS, Bare Pin At Full Reach | 16010 lb. |
| Lift Capacity, High-Lift Option With RCS, Bare Pin At Full Reach | 7262 kg |
| Lift Capacity, High-Lift Option With RCS, Bare Pin At 20 ft | 20660 lb. |
| Lift Capacity, High-Lift Option With RCS, Bare Pin At 6.1 m | 9371.2 kg |
Final Tier 4/EU Stage V Operating Weight
| Conditions For Measuring Operating Weight | Includes standard equipment, 7.01-m (23 ft.) boom, 610-mm (24 in.) double-grouser tracks, half-full fuel tank, and all fluids, less attachment |
| Undercarriage Size | U7 EXD |
| Counterweight Size | Small |
| Standard Boom | 23 ft |
| Standard Boom | 7 m |
| Approximate Weight Of Base Machine | 69080 lb. |
| Approximate Weight Of Base Machine | 31334 kg |
8.08-m (26-ft, 6-in.) Boom Performance
| Conditions For Measuring Boom Performance | With FR21B |
| Maximum Reach (To Tip Of Saw Blade) | 32, 3 ft, in. |
| Maximum Reach (To Tip Of Saw Blade) | 9.8 m |
| Minimum Reach (To Tip Of Saw Blade) | 15, 3 ft, in. |
| Minimum Reach (To Tip Of Saw Blade) | 4.6 m |
| Cutting Swath | 17 ft, in. |
| Cutting Swath | 5.18 m |
| Lift Option(s) | Standard With and Without RCS |
| Lift Capacity, Bare Pin At Full Reach | 10780 lb. |
| Lift Capacity, Bare Pin At Full Reach | 4890 kg |
| Lift Capacity, Bare Pin At 20 ft | 16470 lb. |
| Lift Capacity, Bare Pin At 6.1 m | 7470.67 kg |
Final Tier 4/EU Stage V Engine
| Manufacturer | John Deere |
| Model | PowerTech™ Plus 6090PSS |
| Non-road Emission Standards | EPA Final Tier 4/EU Stage V |
| Displacement | 549 cu in. |
| Displacement | 9 L |
| Speed Peak Power | 1900 rpm |
| Peak Power | 330 hp |
| Peak Power | 246 kW |
| Speed Net Peak Torque | 1500 rpm |
| Net Peak Torque | 1027 lb-ft |
| Net Peak Torque | 1392.4 Nm |
Final Tier 4/EU Stage V Refill Capacities
| Fuel Tank | 285 gal. |
| Fuel Tank | 1079 L |
| Diesel-Exhaust Fluid (DEF) | 11 gal. |
| Diesel-Exhaust Fluid (DEF) | 41.6 L |
Tier 2/EU Stage II Ground Pressure
| Counterweight Size | Small |
| Standard Boom | 23 ft |
| Standard Boom | 7 m |
Rotating Upper
| Swing Speed - Maximum, Standard Swing System | 6.7 rpm |
| Swing Torque, Standard Swing System | 59130 lb-ft |
| Swing Torque, Standard Swing System | 80170 Nm |
| Swing Brake | Sealed wet multi-disc, manually applied/released |
Final Tier 4/EU Stage V Undercarriage
| Type | Integral track guides, thick high-abrasion-resistant material, ramp angles, hydraulic track adjustment |
| Size | U7 Extreme Duty (EXD) |
| Track Chain | 8.5 in. |
| Track Chain | 216 mm |
| Number Of Track Links (Per Side) | 47 |
| Lower Rollers (Per Side) | 9 |
| Carrier Slides/Rollers (Per Side) | 2 |
| Travel Speed - High, Forward and Reverse | 2.6 mph |
| Travel Speed - High, Forward and Reverse | 4.2 km/h |
| Travel Speed - Low, Forward and Reverse | 1.3 mph |
| Travel Speed - Low, Forward and Reverse | 2.1 km/h |
| Tractive Effort | 72300 lbf |
| Tractive Effort | 322 kN |
Final Tier 4/EU Stage V Electrical
| Total Voltage | 24 V |
| Voltage Per Battery | 12 V |
| Number Of Batteries | 2 |
| Alternator Rating | 200 amp |
| Work Lights | LED (13) |
| Service Lights | LED (3) |
Final Tier 4/EU Stage V Ground Pressure
| Travel Performance And Rating | SAE J1309 |
| Conditions For Measuring Ground Pressure | Includes standard equipment, 7.01-m (23 ft.) boom, half-full fuel tank, and all fluids, less attachment |
| Undercarriage Size | U7 EXD |
| Counterweight Size | Small |
| Standard Boom | 23 ft |
| Standard Boom | 7 m |
| 24-in. Double Grouser | 8.7 psi |
| 610-mm Double Grouser | 60 kPa |
| 30-in. Double Grouser | 7.3 psi |
| 762-mm Double Grouser | 50.3 kPa |
| 24-in. Single Grouser | 8.7 psi |
| 610-mm Single Grouser | 60 kPa |
| 28-in. Single Grouser | 7.5 psi |
| 711-mm Single Grouser | 51.7 kPa |
| 36-in. Triple Grouser (Soft Terrain Only) | 6.2 psi |
Hydraulics
| Hydraulics Type | Closed center, load sense, pressure compensated |
| Standard Travel System Main Pump Type | Variable-displacement axial piston |
| Standard Travel System, Main Pump Maximum Rated Flow | 141 gpm |
| Standard Travel System, Main Pump Maximum Rated Flow | 533.7 L/min |
| Standard Travel System Continuous Saw Pump Type | Dedicated variable-displacement axial piston |
| Standard Travel System, Continuous Saw Pump Maximum Rated Flow | 30 gpm |
| Standard Travel System, Continuous Saw Pump Maximum Rated Flow | 113.6 L/min |
| Standard Travel System Attachment Pump Type | Dedicated variable-displacement axial piston |
| Standard Travel System, Attachment Pump Maximum Rated Flow | 36 gpm |
| Standard Travel System, Attachment Pump Maximum Rated Flow | 136.3 L/min |
| Oil Filtration | 2 main return filters, 10-micron return with bypass, 1 case-drain strainer, 25 micron |
Tier 3/EU Stage IIIA Ground Pressure
| Counterweight Size | Small |
| Standard Boom | 23 ft |
| Standard Boom | 7 m |
Cooling
| Fan Type | Suction type, hydraulically driven, variable speed, reversing |
