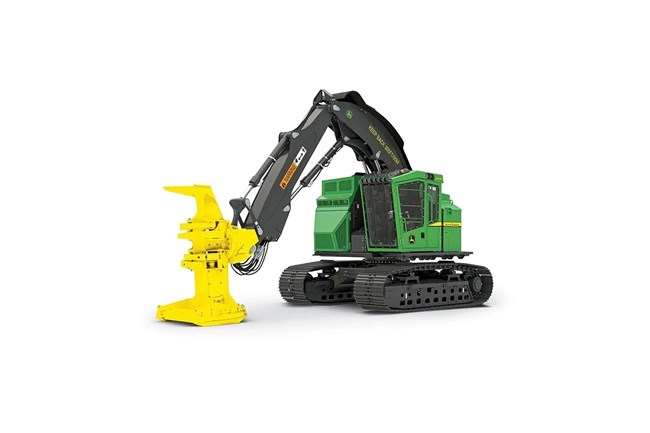

Features
TimberMatic™ Maps and TimberManager™
TimberMatic™ Maps offers a real-time production view, optimized routes, and shared machine connectivity, enhancing jobsite awareness. TimberManager™ allows web-based jobsite monitoring, enabling progress tracking and fleet optimization to streamline communication and boost efficiency.
Operate in Comfort
A large and spacious operator station features a floor-to-ceiling front window, ergonomic controls, and increased cab volume over prior models. It enhances operator comfort, which is crucial for maintaining high productivity during long operating hours.
Sure-Footed Stability
Engineered for challenging forestry applications, the M Series undercarriage delivers exceptional stability and maneuverability, especially beneficial in steep or swampy terrain. A variety of track pad options ensures adaptability to different ground conditions, balancing traction with ground pressure to maintain strong performance.
Specifications
6.71-m (22-ft) Boom Performance
| Maximum Reach (To Tip Of Saw Blade) | 27, 10 ft, in. |
| Maximum Reach (To Tip Of Saw Blade) | 8.5 m |
| Minimum Reach (To Tip Of Saw Blade) | 12, 7 ft, in. |
| Minimum Reach (To Tip Of Saw Blade) | 3.8 m |
| Cutting Swath | 15, 3 ft, in. |
| Cutting Swath | 4.6 m |
| Lift Option(s) | Rapid Cycle System (RCS) |
| Lift Capacity, Bare Pin At Full Reach | 9700 lb. |
| Lift Capacity, Bare Pin At Full Reach | 4400 kg |
| Lift Capacity, Bare Pin At 20 ft | 12170 lb. |
| Lift Capacity, Bare Pin At 6.1 m | 5520.2 kg |
| Lift Capacity, Bare Pin At 15 ft | 17620 lb. |
| Lift Capacity, Bare Pin At 4.6 m | 7992.3 kg |
Machine Dimensions
| Standard Undercarriage Type | U6 EXD |
| Boom Size Used For Measuring Dimensions | 22 ft |
| Boom Size Used For Measuring Dimensions | 6.7 m |
| Overall Height, Top Of Cab With Flat Skylight | 11, 3 ft, in. |
| Overall Height, Top Of Cab With Flat Skylight | 3.4 m |
| Overall Height, Top Of Cab With Peaked Skylight | 12, 0 ft, in. |
| Overall Height, Top Of Cab With Peaked Skylight | 3.7 m |
| Overall Height, Top Of Boom, Extended, Attachment Vertical | 12, 9 ft, in. |
| Overall Height, Top Of Boom, Extended, Attachment Vertical | 3.9 m |
| Overall Track Length | 15, 1 ft, in. |
| Overall Track Length | 4.6 m |
| Track Length (Idler To Sprocket Center) | 11, 9 ft, in. |
| Track Length (Idler To Sprocket Center) | 3.6 m |
| Tail Swing (From Swing Center) Small Counterweight | 6, 4 ft, in. |
| Tail Swing (From Swing Center) Small Counterweight | 1.9 m |
| Tail Swing (From Swing Center) Medium Counterweight | 6, 4 ft, in. |
| Tail Swing (From Swing Center) Medium Counterweight | 1.9 m |
| Tail Swing (From Swing Center) Medium Extended Counterweight | 7, 4 ft, in. |
| Tail Swing (From Swing Center) Medium Extended Counterweight | 2.2 m |
| Maximum Boom Reach (To Attachment Pin) With Standard 22-ft Boom | 22, 0 ft, in. |
| Maximum Boom Reach (To Attachment Pin) With Standard 6.71-m Boom | 6.7 m |
| Minimum Boom Reach (To Attachment Pin) With Standard 22-ft Boom | 6, 9 ft, in. |
| Minimum Boom Reach (To Attachment Pin) With Standard 6.71-m Boom | 2 m |
| Cutting Swath, Boom Reach (To Attachment Pin) With Standard 22-ft Boom | 15, 3 ft, in. |
| Cutting Swath, Boom Reach (To Attachment Pin) With Standard 6.71-m Boom | 4.6 m |
| Maximum Boom Reach (To Attachment Pin) With Optional 20-ft Boom | 20, 0 ft, in. |
| Maximum Boom Reach (To Attachment Pin) With Optional 6.10-m Boom | 6 m |
| Minimum Boom Reach (To Attachment Pin) With Optional 20-ft Boom | 7, 0 ft, in. |
| Minimum Boom Reach (To Attachment Pin) With Optional 6.10-m Boom | 2.13 m |
| Cutting Swath, Boom Reach (To Attachment Pin) With Optional 20-ft Boom | 13, 0 ft, in. |
| Cutting Swath, Boom Reach (To Attachment Pin) With Optional 6.10-m Boom | 3.96 m |
| Ground Clearance, Single Grouser | 29 in. |
| Ground Clearance, Single Grouser | 736.6 mm |
| Ground Clearance, Double Grouser | 28 in. |
| Ground Clearance, Double Grouser | 711 mm |
| Ground Clearance, Triple Grouser | 28 in. |
| Ground Clearance, Triple Grouser | 711 mm |
| Upperstructure Width, Standard | 10, 4 ft, in. |
| Upperstructure Width, Standard | 3.14 m |
| Upperstructure Width, With Optional Walkway | 11, 0 ft, in. |
| Upperstructure Width, With Optional Walkway | 3.4 m |
| Track Gauge | 8, 9 ft, in. |
| Track Gauge | 2.7 m |
| Width Over Tracks With 24-in. Track Shoes | 10, 9 ft, in. |
| Width Over Tracks With 610-mm Track Shoes | 3.3 m |
| Width Over Tracks With 28-in. Track Shoes | 11, 1 ft, in. |
| Width Over Tracks With 711-mm Track Shoes | 3.4 m |
| Width Over Tracks With 30-in. Track Shoes | 11, 3 ft, in. |
| Width Over Tracks With 760-mm Track Shoes | 3.4 m |
| Width Over Tracks With 36-in. Track Shoes | 11, 9 ft, in. |
| Width Over Tracks With 914-mm Track Shoes | 3.6 m |
Final Tier 4/EU Stage V Undercarriage
| Type | Integral track guides, thick high-abrasion-resistant material, ramp angles, hydraulic track adjustment |
| Size | U6 Extreme Duty (EXD) |
| Track Chain | 8 in. |
| Track Chain | 203.2 mm |
| Number Of Track Links (Per Side) | 47 |
| Lower Rollers (Per Side) | 9 |
| Carrier Slides/Rollers (Per Side) | 2 |
| Travel Speed - High, Standard Travel, Forward And Reverse | 2.9 mph |
| Travel Speed - High, Standard Travel, Forward And Reverse | 4.7 km/h |
| Travel Speed - Low, Standard Travel, Forward And Reverse | 1.6 mph |
| Travel Speed - Low, Standard Travel, Forward And Reverse | 2.6 km/h |
| Travel Speed - High, Dedicated Travel, Forward And Reverse | 2.9 mph |
| Travel Speed - High, Dedicated Travel, Forward And Reverse | 4.7 km/h |
| Travel Speed - Low, Dedicated Travel, Forward And Reverse | 1.6 mph |
| Travel Speed - Low, Dedicated Travel, Forward And Reverse | 2.6 km/h |
| Tractive Effort, Standard Travel | 54224 lbf |
| Tractive Effort, Standard Travel | 241.2 kN |
| Tractive Effort, Dedicated Travel | 50470 lbf |
| Tractive Effort, Dedicated Travel | 224.5 kN |
Final Tier 4/EU Stage V Operating Weight
| Conditions For Measuring Operating Weight | Includes standard equipment, 610-mm (24 in.) single-grouser tracks, standard counterweight, half-full fuel tank, and all fluids, less attachment |
| Undercarriage Size | U6 EXD |
| Approximate Weight Of Base Machine | 64610 lb. |
| Approximate Weight Of Base Machine | 29306.58 kg |
6.10-m (20-ft) Boom Performance
| Maximum Reach (To Tip Of Saw Blade) | 25, 10 ft, in. |
| Maximum Reach (To Tip Of Saw Blade) | 7.87 m |
| Minimum Reach (To Tip Of Saw Blade) | 12, 10 ft, in. |
| Minimum Reach (To Tip Of Saw Blade) | 3.9 m |
| Cutting Swath | 13, 0 ft, in. |
| Cutting Swath | 3.96 m |
| Lift Option(s) | Rapid Cycle System (RCS) |
| Lift Capacity, Bare Pin At 20 ft Full Reach | 10650 lb. |
| Lift Capacity, Bare Pin At 6.1 m Full Reach | 4830.8 kg |
| Lift Capacity, Bare Pin At 15 ft | 17290 lb. |
| Lift Capacity, Bare Pin At 4.6 m | 7842.6 kg |
Final Tier 4/EU Stage V Engine
| Manufacturer | John Deere |
| Model | PowerTech™ Plus 6090PSS |
| Non-road Emission Standards | EPA Final Tier 4/EU Stage V |
| Cylinders | 6 |
| Displacement | 549 cu in. |
| Displacement | 9 L |
| Speed Peak Power | 1900 rpm |
| Peak Power | 300 hp |
| Peak Power | 223.7 kW |
| Speed Net Peak Torque | 1500 rpm |
| Net Peak Torque | 937 lb-ft |
| Net Peak Torque | 1270.6 Nm |
Final Tier 4/EU Stage V Refill Capacities
| Fuel Tank | 228.9 gal. |
| Fuel Tank | 866.48 L |
| Diesel-Exhaust Fluid (DEF) | 8.9 gal. |
| Diesel-Exhaust Fluid (DEF) | 33.69 L |
Rotating Upper
| Swing Speed - Maximum, Standard Swing System | 7 rpm |
| Swing Torque, Standard Swing System | 73756 lb-ft |
| Swing Torque, Standard Swing System | 99999.7 Nm |
| Swing Brake | Sealed wet multi-disc, manually applied/released |
Hydraulics
| Hydraulics Type | Closed center, load sense, pressure compensated |
| Standard Travel System Main Pump Type | Variable-displacement axial piston |
| Standard Travel System, Main Pump Maximum Rated Flow | 141 gpm |
| Standard Travel System, Main Pump Maximum Rated Flow | 533.7 L/min |
| Standard Travel System Continuous Saw Pump Type | Dedicated variable-displacement axial piston |
| Standard Travel System, Continuous Saw Pump Maximum Rated Flow | 36 gpm |
| Standard Travel System, Continuous Saw Pump Maximum Rated Flow | 136.3 L/min |
| Standard Travel System Attachment Pump Type | Dedicated variable-displacement axial piston |
| Standard Travel System, Attachment Pump Maximum Rated Flow | 36 gpm |
| Standard Travel System, Attachment Pump Maximum Rated Flow | 136.3 L/min |
| Dedicated Travel System Main Pump Type | Variable-displacement axial piston |
| Dedicated Travel System, Main Pump Maximum Rated Flow | 131 gpm |
| Dedicated Travel System, Main Pump Maximum Rated Flow | 495.9 L/min |
| Dedicated Travel System Travel Pump Type | Dedicated variable-displacement axial piston |
| Dedicated Travel System, Travel Pump Maximum Rated Flow (x2) | 50 gpm |
| Dedicated Travel System, Travel Pump Maximum Rated Flow (x2) | 189.3 L/min |
| Dedicated Travel System Continuous Saw Pump Type | Dedicated variable-displacement axial piston |
| Dedicated Travel System, Continuous Saw Pump Maximum Rated Flow | 36 gpm |
| Dedicated Travel System, Continuous Saw Pump Maximum Rated Flow | 136.3 L/min |
| Dedicated Travel System Attachment Pump Type | Dedicated variable-displacement axial piston |
| Dedicated Travel System, Attachment Pump Maximum Rated Flow | 36 gpm |
| Dedicated Travel System, Attachment Pump Maximum Rated Flow | 136.3 L/min |
| Oil Filtration | 2 main return filters, 10-micron return with bypass, 1 case-drain strainer, 25 micron |
Final Tier 4/EU Stage V Electrical
| Total Voltage | 24 V |
| Voltage Per Battery | 12 V |
| Number Of Batteries | 2 |
| Alternator Rating | 200 amp |
| Work Lights | LED (12) |
| Service Lights | LED (2) |
Final Tier 4/EU Stage V Ground Pressure
| Travel Performance And Rating | SAE J1309 |
| Conditions For Measuring Ground Pressure | Includes standard equipment, medium counterweight, half-full fuel tank, and all fluids, less attachment |
| Undercarriage Size | U6 EXD |
| 24-in. Double Grouser | 9 psi |
| 610-mm Double Grouser | 62.05 kPa |
| 30-in. Double Grouser | 7.9 psi |
| 762-mm Double Grouser | 54.47 kPa |
| 24-in. Single Grouser | 9 psi |
| 610-mm Single Grouser | 62.05 kPa |
| 28-in. Single Grouser | 7.8 psi |
| 711-mm Single Grouser | 53.78 kPa |
| 36-in. Triple Grouser (Soft Terrain Only) | 6.4 psi |
| 914-mm Triple Grouser (Soft Terrain Only) | 44.13 kPa |
Cooling
| Fan Type | Suction type, hydraulically driven, variable speed, reversing |
