Features
Precision Forestry Solutions

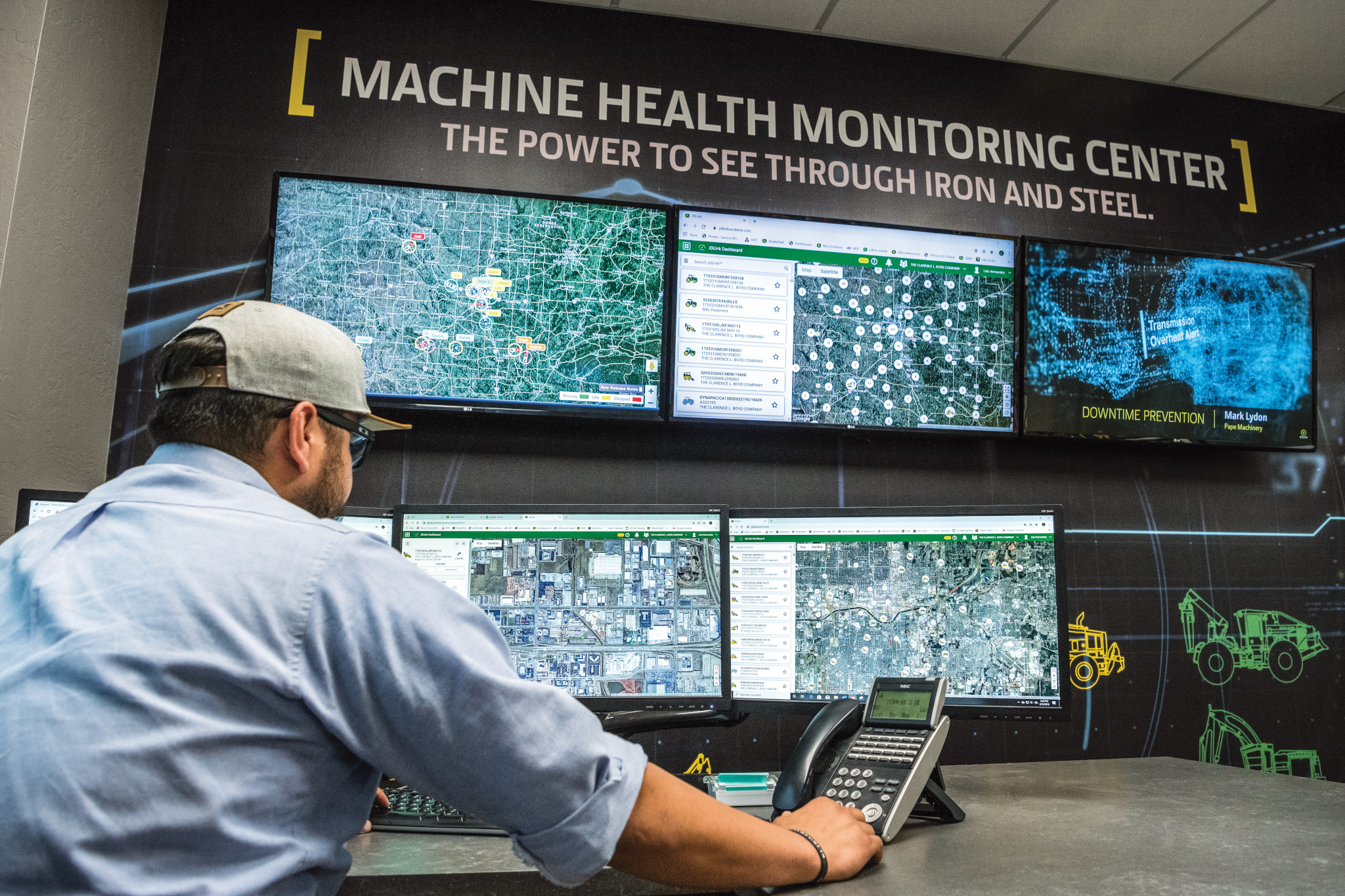

JDLink™ telematic system is now included in the base machine. JDLink provides valuable insights into machine location, utilization, and maintenance needs, optimizing uptime and operational efficiency. The system includes TimberMatic™ Maps and TimberManager™ for real-time jobsite visibility and enhanced productivity.

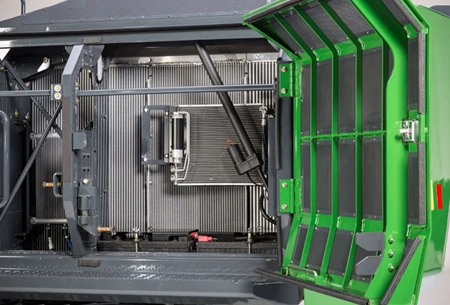

Auxiliary Hydraulic Cooler
An auxiliary hydraulic cooler with an electric fan is standard on the processor configuration. This system aids in maintaining optimal hydraulic fluid temperatures, ensuring consistent performance and prolonging equipment life even during demanding operations.

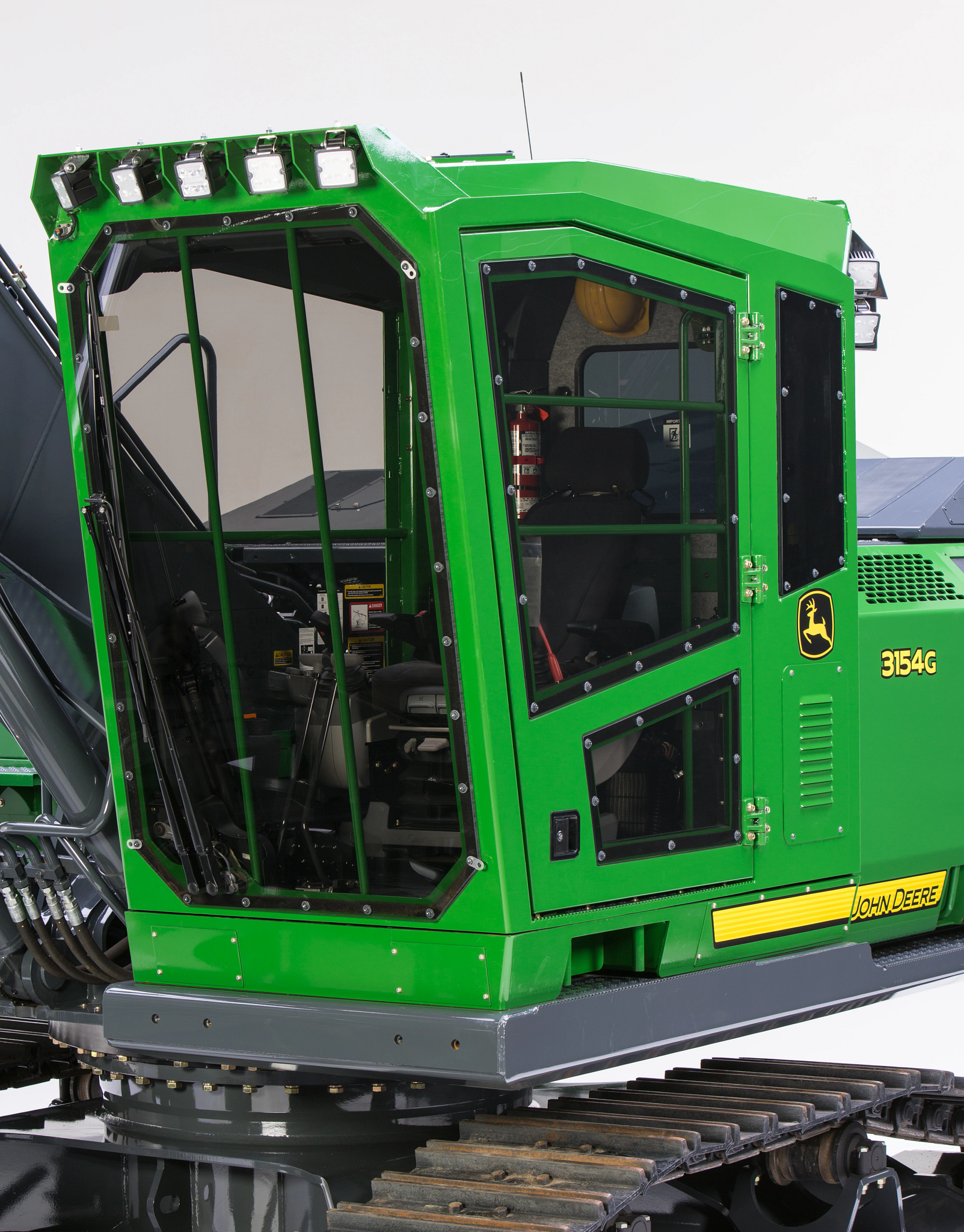

Cab Configurations
Side or rear entry cabs offered are designed for operator comfort and visibility. Features include climate control, heated/cooled seats, and floor-mounted windows for excellent visibility, essential for long working hours.
Specifications
Operating Weights, Road Builder
| SAE Operating Weight, EPA Tier 3/EU Stage IIIA / EPA Tier 2/EU Stage II | 42916.2 kg |
| Cab Forward, Optional Component, Add Weight | 2437.1 kg |
| SAE Operating Weight, EPA Tier 3/EU Stage IIIA / EPA Tier 2/EU Stage II | 94614 lb. |
| Cab Forward, Optional Component, Add Weight | 5373 lb. |
| Rear-Entry Cab, Optional Component, Add Weight | 1480 lb. |
| SAE Operating Weight, EPA FT4/EU Stage IV | 43142.9 kg |
| SAE Operating Weight, EPA FT4/EU Stage IV | 95114 lb. |
| Rear-Entry Cab, Optional Component, Add Weight | 671.3 kg |
| Conditions for Measuring Operating Weights | With full fuel tank, 79-kg (175 lb.) operator, side-entry forestry cab, 5538-kg (12,206 lb.) standard counterweight, 700-mm (28 in.) double-grouser shoes, and 2.92-m (9 ft. 7 in.) undercarriage; no attachment included |
Serviceability
| Hydraulic Tank Oil Capacity | 196.8 L |
| Engine Crankcase (Including Filter) Capacity | 27 L |
| Hydraulic Tank Oil Capacity | 52 gal. |
| Engine Crankcase (Including Filter) Capacity | 28.5 qt |
| Fuel Tank Capacity | 1078.8 L |
| Fuel Tank Capacity | 285 gal. |
| Cooling System Capacity | 10.5 gal. |
| Cooling System Capacity | 39.7 L |
| Diesel-Exhaust Fluid (DEF) Tank (FT4) Capacity | 11.5 gal. |
| Diesel-Exhaust Fluid (DEF) Tank (FT4) Capacity | 43.5 L |
Powertrain
| Drawbar Pull | 79590 lbf |
| Drawbar Pull | 36100 kgf |
| Maximum Travel Speed High | 2.4 mph |
| Maximum Travel Speed High | 3.9 km/h |
| Maximum Travel Speed Low | 1.9 mph |
| Type | 2-speed propel with automatic shift |
| Maximum Travel Speed Low | 3.1 km/h |
Final Tier 4/EU Stage V Electrical
| Standard Service Lights With Side-Entry Cab | 5 LEDs (compartments) |
| Standard Access Lights | 1 LED (right rear cab) |
| Standard Work Lights | 14 LEDs |
| Alternator Rating | 150 amp |
| Standard Service Lights With Rear-Entry Cab | 6 LEDs (compartments and riser) |
| System Voltage | 24 V |
Hydraulics
| Controls | Pilot levers; short-stroke, low-effort hydraulic pilot with shutoff lever |
| Main Pumps Type | 2 variable-displacement pumps |
| Main Pumps Maximum Rated Flow, Per 2 Pumps | 303.9 L/min |
| Main Pumps Maximum Rated Flow, Per 2 Pumps | 80.3 gpm |
| Type | Open center, pilot operated |
| Power Boost System Operating Pressure | 5511 psi |
| Power Boost System Operating Pressure | 37990 kPa |
| Implement Circuits System Operating Pressure | 4975 psi |
| Implement Circuits System Operating Pressure | 34280 kPa |
Operating Dimensions, Road Builder
| Maximum Reach at Ground Level | 10.79 m |
| Maximum Cutting Height | 7.62 m |
| Maximum Working Depth | 7.14 m |
| Tail Swing Radius | 3.68 m |
| Maximum Reach | 36, 3 ft, in. |
| Maximum Digging Depth | 34, 6 ft, in. |
| Maximum Working Height | 7.62 m |
| Minimum Swing Radius | 4.44 m |
| Maximum Reach at Ground Level | 35, 5 ft, in. |
| Maximum Cutting Height | 25 ft, in. |
| Maximum Working Depth | 23, 5 ft, in. |
| Tail Swing Radius | 12, 1 ft, in. |
| Conditions for Measuring Operating Dimensions | With standard equipment, 700-mm (28 in.) shoes; 5538-kg (12,206 lb.) standard counterweight; 3.2-m (10 ft. 6 in.) arm; 1160-kg (2,557 lb.), 1.76-m³ (2.3 cu. yd.), 1370-mm (54 in.) bucket; full fuel tank; and 79-kg (175 lb.) operator |
| Maximum Reach | 11.05 m |
| Maximum Digging Depth | 10.52 m |
| Minimum Swing Radius | 14, 7 ft, in. |
| Maximum Working Height | 25 ft, in. |
Final Tier 4/EU Stage V Engine
| Engine Speed Used for Net Rated Power | 1900 rpm |
| Non-Road Emission Standards | EPA Final Tier 4 (FT4)/EU Stage IV |
| Engine Displacement | 9 L |
| Cylinders | 6 |
| Net Rated Power at Engine Speed | 202 kW |
| Manufacturer | John Deere |
| Off-Level Capacity | 70 % |
| Engine Displacement | 549 cu in. |
| Aspiration | Series turbocharged, air-to-air charge-air cooler |
| Oil Filter, Remote Mounted | Full-flow spin-on filter |
| Off-Level Capacity | 35 degree (angle) |
| Model | PowerTech™ PSS 9.0 L |
| Net Rated Power at Engine Speed | 271 hp |
Undercarriage, LC
| Pitch With Standard-Duty Undercarriage | 215.9 mm |
| Pitch With Standard-Duty Undercarriage | 8.5 in. |
| Shoes, Double Grousers, Per Side, With Standard-Duty Undercarriage | 53 |
| Track Rollers Per Side | 9 |
| Carrier Rollers Per Side | 2 |
Undercarriage, Standard
| Pitch With Standard-Duty Undercarriage | 8.5 in. |
| Pitch With Standard-Duty Undercarriage | 215.9 mm |
| Track Rollers Per Side | 8 |
| Carrier Rollers Per Side | 2 |
| Shoes, Double Grousers, Per Side | 49 |
Operator Station
| Operator Height From Ground (Eye Level) in Side-Entry Forestry Cab | 3100 mm |
| Operator Height From Ground (Eye Level) in Side-Entry Forestry Cab | 10, 2 ft, in. |
Swing Mechanism
| Swing Speed | 11 rpm |
| Swing Torque | 119999.6 Nm |
| Swing Torque | 88507 lb-ft |
Ground Pressure, Road Builder
| Ground Pressure With 28-in. Double-Grouser Shoes and Option One Gauge and Standard-Duty Undercarriage | 9.8 psi |
| Ground Pressure With 700-mm Double-Grouser Shoes and Option One Gauge and Standard-Duty Undercarriage | 67.6 kPa |
Cooling
| Fan Drive | Cool-on-demand hydraulic-driven, suction-type fan with remote-mounted drive and standard reversing fan |
