Features
TimberMatic™ Maps and TimberManager™
TimberMatic™ Maps offers a real-time production view, optimized routes, and shared machine connectivity, enhancing jobsite awareness. TimberManager™ allows web-based jobsite monitoring, enabling progress tracking and fleet optimization to streamline communication and boost efficiency.
Easy-to-Reach Serviceability
The G-Series features easy-to-open doors for quick access to scheduled maintenance areas, and a variable-speed hydraulic reversing fan that helps purge debris from the cooling system. Additionally, it offers excellent access to the hydraulic system on the right-hand side and complete access to the cooling system on the left-hand side for cleaning and inspection.
Undercarriage Structure

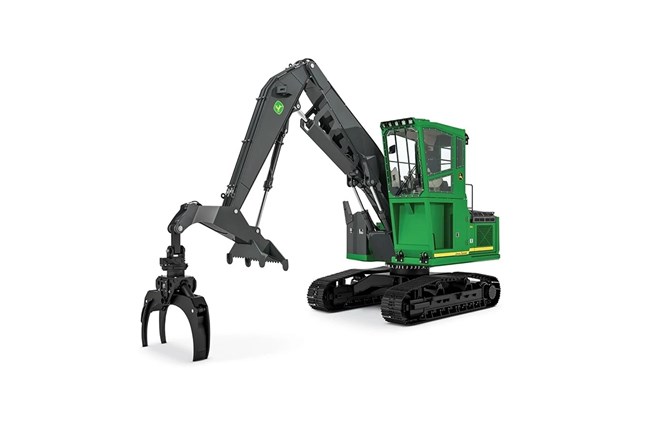

John Deere G-Series Swing Machines feature an "X" lower structure that ensures excellent load distribution and reduces stress on weld joints, while the track frames provide a smooth ride and stability across all terrains. These machines also offer tractive effort for challenging conditions, multiple track pad configurations, two-speed automatic shift travel motors, and optional tri-tracks to minimize track twisting.
Specifications
Operating Dimensions, Road Builder
| Maximum Reach at Ground Level | 38, 5 ft, in. |
| Maximum Reach at Ground Level | 11.71 m |
| Maximum Dumping Height | 28, 10 ft, in. |
| Maximum Dumping Height | 8.79 m |
| Tail Swing Radius | 10, 4 ft, in. |
| Tail Swing Radius | 3.15 m |
Operating Dimensions, VIH Log Loader Arm
| Maximum Reach at Ground Level | 38, 5 ft, in. |
| Maximum Reach at Ground Level | 11.71 m |
| Tail Swing Radius | 10, 4 ft, in. |
| Tail Swing Radius | 3.15 m |
Serviceability
| Fuel Tank Capacity | 211 gal. |
| Fuel Tank Capacity | 800 L |
| Hydraulic Tank Oil Capacity | 36 gal. |
| Hydraulic Tank Oil Capacity | 136 L |
Powertrain
| Maximum Travel Speed High | 2.4 mph |
| Maximum Travel Speed High | 3.9 km/h |
Operating Dimensions, Processor Arm
| Maximum Reach at Ground Level | 38, 5 ft, in. |
| Maximum Reach at Ground Level | 11.71 m |
| Tail Swing Radius | 10, 4 ft, in. |
| Tail Swing Radius | 3.15 m |
Final Tier 4/EU Stage V Engine
| Manufacturer | John Deere |
| Model | PowerTech PVS 6.8 L |
| Net Rated Power at Engine Speed | 194 hp |
| Net Rated Power at Engine Speed | 145 kW |
| Engine Displacement | 415 cu in. |
| Engine Displacement | 6.8 L |
Hydraulics
| Main Pumps Type | Variable Axial Piston |
| Main Pumps Maximum Rated Flow, Per 2 Pumps | 65.5 gpm |
| Main Pumps Maximum Rated Flow, Per 2 Pumps | 248 L/min |
| Power Boost System Operating Pressure | 5511 psi |
| Power Boost System Operating Pressure | 38000 kPa |
Swing Mechanism
| Swing Torque | 79560 lb-ft |
| Swing Torque | 107869 Nm |
Operating Dimensions, Live-Heel Log Loader Arm
| Tail Swing Radius | 10, 4 ft, in. |
| Tail Swing Radius | 3.15 m |
Undercarriage, Standard
| Carrier Rollers Per Side | 2 |
| Track Rollers Per Side | 9 |
