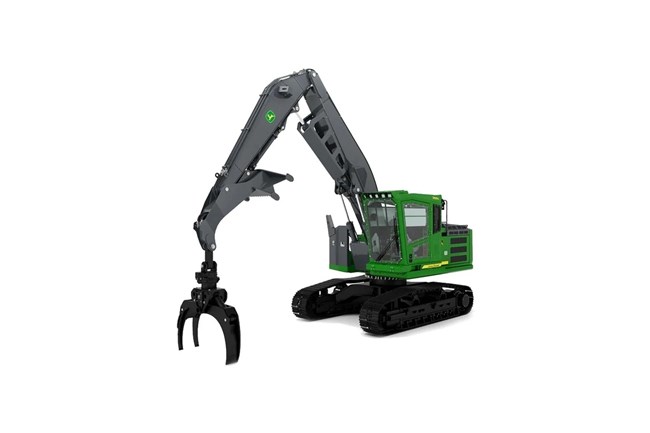

John Deere 2156G

New Products / John Deere / John Deere Products / Forestry Equipment / Swing Machines / 2156G

Double tap to zoom



Features

TimberMatic™ Maps and TimberManager™

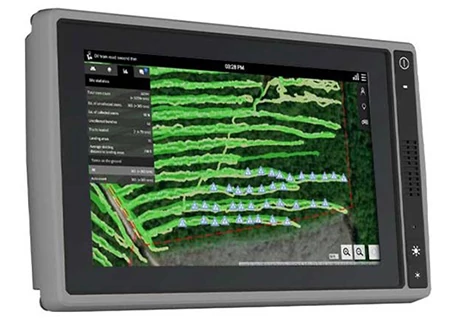

A rugged touchscreen monitor displaying a GPS field map with highlighted rows, guidance paths, and machine location

TimberMatic™ Maps offers a real-time production view, optimized routes, and shared machine connectivity, enhancing jobsite awareness. TimberManager™ allows web-based jobsite monitoring, enabling progress tracking and fleet optimization to streamline communication and boost efficiency.

Easy-to-Reach Serviceability

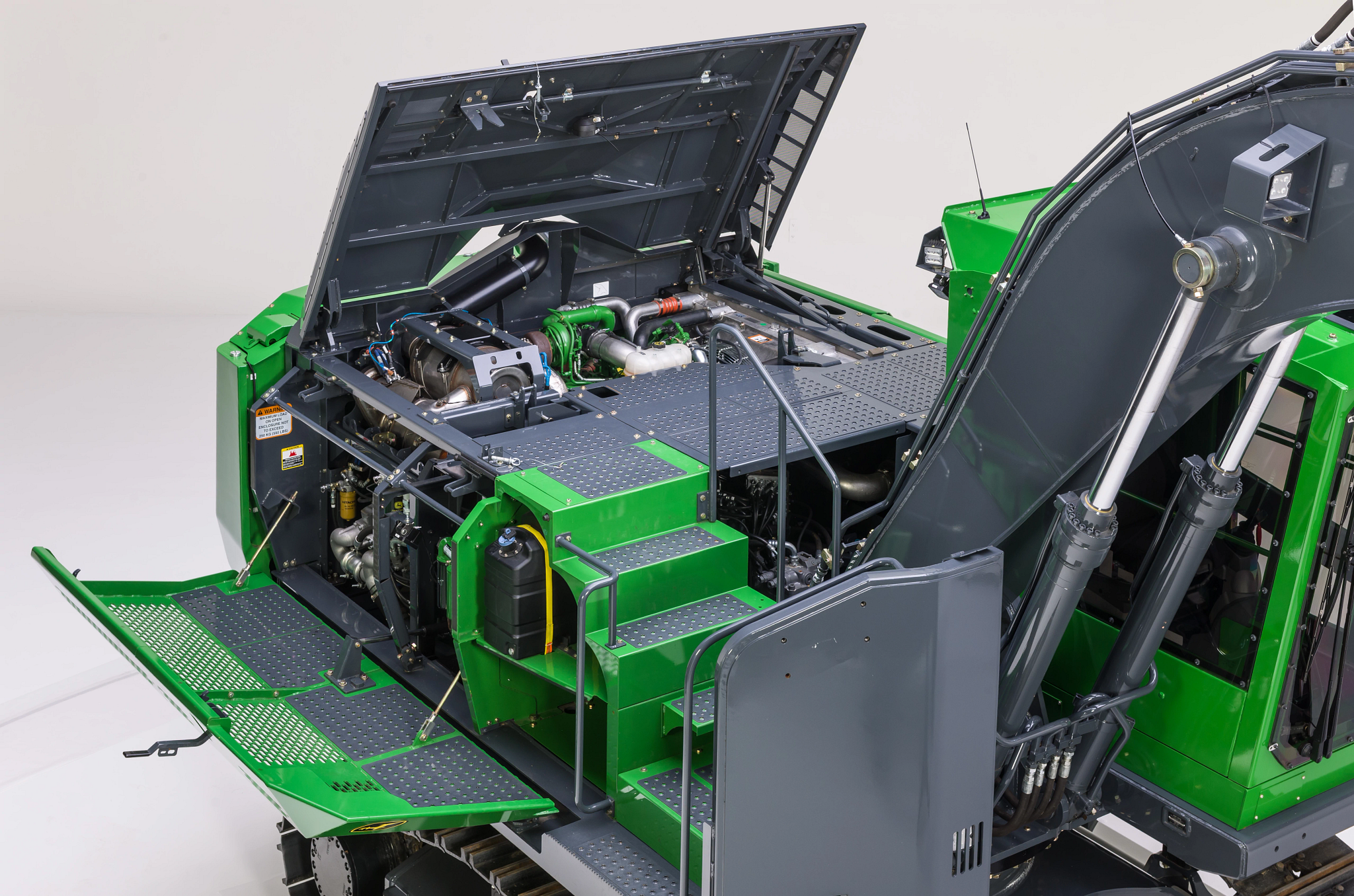

Industrial machine with open access panels revealing the engine compartment, hydraulic components, steps, and service platforms.

The G-Series features easy-to-open doors for quick access to scheduled maintenance areas, and a variable-speed hydraulic reversing fan that helps purge debris from the cooling system. Additionally, it offers excellent access to the hydraulic system on the right-hand side and complete access to the cooling system on the left-hand side for cleaning and inspection.

Undercarriage Structure

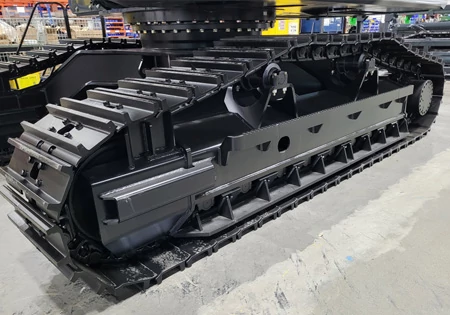

Side view of a swing machine's undercarriage, featuring one black track frame

John Deere G-Series Swing Machines feature an "X" lower structure that ensures excellent load distribution and reduces stress on weld joints, while the track frames provide a smooth ride and stability across all terrains. These machines also offer tractive effort for challenging conditions, multiple track pad configurations, two-speed automatic shift travel motors, and optional tri-tracks to minimize track twisting.

Specifications

Ground Pressure, Live-Heel Log Loader

Option One - Heavy-Duty Undercarriage Gauge8, 7 ft, in.
Option One - Heavy-Duty Undercarriage Gauge2.62 m
Option Two - Extreme-Duty Undercarriage Gauge9, 2 ft, in.
Option Two - Extreme-Duty Undercarriage Gauge2.79 m
Ground Pressure With 28-in. Double-Grouser Shoes and Option One Gauge and Heavy-Duty Undercarriage9.89 psi
Ground Pressure With 700-mm Double-Grouser Shoes and Option One Gauge and Heavy-Duty Undercarriage68.2 kPa
Ground Pressure With 28-in. Double-Grouser Shoes and Option One Gauge and Extreme-Duty Undercarriage9.21 psi
Ground Pressure With 700-mm Double-Grouser Shoes and Option One Gauge and Extreme-Duty Undercarriage63.5 kPa
Ground Pressure With 28-in. Double-Grouser Shoes and Option Two Gauge and Heavy-Duty Undercarriage8.51 psi
Ground Pressure With 700-mm Double-Grouser Shoes and Option Two Gauge and Heavy-Duty Undercarriage58.7 kPa
Ground Pressure With 28-in. Double-Grouser Shoes and Option Two Gauge and XDLC Undercarriage8.63 psi
Ground Pressure With 700-mm Double-Grouser Shoes and Option Two Gauge and XDLC Undercarriage59.5 kPa

Operating Dimensions, Live-Heel Log Loader Arm

Conditions for Measuring Operating DimensionsWith standard equipment, 700-mm (28 in.) shoes, 5673-kg (12,503 lb.) counterweight, full fuel tank, and 79-kg (175 lb.) operator
Maximum Reach36 ft, in.
Maximum Reach10.97 m
Maximum Reach at Ground Level35, 4 ft, in.
Maximum Reach at Ground Level10.77 m
Maximum Working Depth14, 2 ft, in.
Maximum Working Depth4.32 m
Maximum Working Height41, 6 ft, in.
Maximum Working Height12.65 m
Maximum Log-Level Height (Verify Attachment Dependency)27 ft, in.
Maximum Log-Level Height (Verify Attachment Dependency)8.23 m
Minimum Swing Radius13, 11 ft, in.
Minimum Swing Radius4.24 m
Tail Swing Radius10, 8 ft, in.
Tail Swing Radius3.25 m

Operating Dimensions, VIH Log Loader Arm

Conditions for Measuring Operating DimensionsWith standard equipment, 700-mm (28 in.) shoes, 5673-kg (12,503 lb.) counterweight, full fuel tank, and 79-kg (175 lb.) operator
Maximum Reach32, 7 ft, in.
Maximum Reach9.93 m
Maximum Reach at Ground Level31, 10 ft, in.
Maximum Reach at Ground Level9.7 m
Maximum Working Depth10, 10 ft, in.
Maximum Working Depth3.3 m
Maximum Working Height38, 1 ft, in.
Maximum Working Height11.61 m
Maximum Log-Level Height (Verify Attachment Dependency)30, 2 ft, in.
Maximum Log-Level Height (Verify Attachment Dependency)9.19 m
Minimum Swing Radius15 ft, in.
Minimum Swing Radius4.57 m
Tail Swing Radius10, 8 ft, in.
Tail Swing Radius3.25 m

Tier 3/EU Stage IIIA // Tier 2/EU Stage II Electrical

System Voltage24 V
Alternator Rating130 amp
Standard Work Lights14 LEDs
Standard Service Lights With Side-Entry Cab5 LEDs (compartments)
Standard Service Lights With Rear-Entry Cab6 LEDs (compartments and riser)
Standard Access Lights1 LED (right rear cab)

Serviceability

Fuel Tank Capacity211 gal.
Fuel Tank Capacity800 L
Cooling System Capacity8.1 gal.
Cooling System Capacity30.5 L
Diesel-Exhaust Fluid (DEF) Tank (FT4) Capacity11.2 gal.
Diesel-Exhaust Fluid (DEF) Tank (FT4) Capacity42.4 L
Engine Crankcase (Including Filter) Capacity20.6 qt
Engine Crankcase (Including Filter) Capacity20 L
Hydraulic Tank Oil Capacity36 gal.
Hydraulic Tank Oil Capacity136 L

Undercarriage, LC

Carrier Rollers Per Side2
Track Rollers Per Side With Standard-, Heavy- and Extreme-Duty Undercarriage8
Track Rollers Per Side With XDLC Undercarriage9
Shoes, Double Grousers, Per Side, With Heavy-Duty Undercarriage46
Shoes, Double Grousers, Per Side, With Extreme-Duty Undercarriage45
Pitch With Heavy-Duty Undercarriage8 in.
Pitch With Heavy-Duty Undercarriage203 mm
Pitch With Extreme-Duty Undercarriage8.5 in.
Pitch With Extreme-Duty Undercarriage216 mm

Tier 3/EU Stage IIIA // Tier 2/EU Stage II Engine

ManufacturerJohn Deere
ModelPowerTech™ Plus 6.8 L
Non-Road Emission StandardsEPA Tier 3/EU Stage IIIA; EPA Tier 2/EU Stage II
Engine Speed Used for Net Rated Power2000 rpm
Net Rated Power at Engine Speed164 hp
Net Rated Power at Engine Speed122 kW
Cylinders6
Engine Displacement415 cu in.
Engine Displacement6.8 L
Off-Level Capacity70 %
Off-Level Capacity35 degree (angle)
AspirationTurbocharged, air-to-air charge-air cooler
Oil Filter, Remote MountedFull-flow spin-on filter

Final Tier 4/EU Stage V Engine

ManufacturerJohn Deere
ModelPowerTech PVS 6.8 L
Non-Road Emission StandardsEPA Final Tier 4 (FT4)/EU Stage IV
Engine Speed Used for Net Rated Power2000 rpm
Net Rated Power at Engine Speed164 hp
Net Rated Power at Engine Speed122 kW
Cylinders6
Engine Displacement415 cu in.
Engine Displacement6.8 L
Off-Level Capacity70 %
Off-Level Capacity35 degree (angle)
AspirationTurbocharged, air-to-air charge-air cooler
Oil Filter, Remote MountedFull-flow spin-on filter

Powertrain

Type2-speed propel with automatic shift
Maximum Travel Speed Low (Option One Standard-and Heavy-Duty Undercarriage)2 mph
Maximum Travel Speed Low (Option One Standard-and Heavy-Duty Undercarriage)3.2 km/h
Maximum Travel Speed Low (Option One Extreme-Duty Undercarriage)1.6 mph
Maximum Travel Speed Low (Option One Extreme-Duty Undercarriage)2.6 km/h
Maximum Travel Speed High (Option One Standard-and Heavy-Duty Undercarriage)3 mph
Maximum Travel Speed High (Option One Standard-and Heavy-Duty Undercarriage)4.8 km/h
Maximum Travel Speed High (Option One Extreme-Duty Undercarriage)2.2 mph
Maximum Travel Speed High (Option One Extreme-Duty Undercarriage)3.6 km/h
Drawbar Pull (Option One Standard-and Heavy-Duty Undercarriage)49900 lbf
Drawbar Pull (Option One Standard-and Heavy-Duty Undercarriage)22634 kgf
Drawbar Pull (Option One Extreme-Duty Undercarriage)66910 lbf
Drawbar Pull (Option One Extreme-Duty Undercarriage)30350 kgf
Drawbar Pull (Option Two Standard-and Heavy-Duty Undercarriage)49900 lbf
Drawbar Pull (Option Two Standard-and Heavy-Duty Undercarriage)22634 kgf
Drawbar Pull (Option Two XDLC Undercarriage)66910 kgf
Drawbar Pull (Option Two XDLC Undercarriage)30350 lbf

Final Tier 4/EU Stage V Electrical

System Voltage24 V
Alternator Rating150 amp
Standard Work Lights14 LEDs
Standard Service Lights With Side-Entry Cab5 LEDs (compartments)
Standard Service Lights With Rear-Entry Cab6 LEDs (compartments and riser)
Standard Access Lights1 LED (right rear cab)

Hydraulics

TypeOpen center, pilot operated
Main Pumps Type2 variable-displacement pumps
Main Pumps Maximum Rated Flow, Per 2 Pumps62.3 gpm
Main Pumps Maximum Rated Flow, Per 2 Pumps236 L/min
Implement Circuits System Operating Pressure4975 psi
Implement Circuits System Operating Pressure34300 kPa
Power Boost System Operating Pressure5511 psi
Power Boost System Operating Pressure38000 kPa
ControlsPilot levers; short-stroke, low-effort hydraulic pilot with shutoff lever

Swing Mechanism

Swing Speed12.6 rpm
Swing Torque54857 lb-ft
Swing Torque74376 Nm

Undercarriage, Standard

Carrier Rollers Per Side2
Track Rollers Per Side8

Operator Station

Operator Height From Ground (Eye Level) in Side-Entry Forestry Cab9, 11 ft, in.
Operator Height From Ground (Eye Level) in Side-Entry Forestry Cab2998 mm
Operator Height From Ground (Eye Level) in Rear-Entry Log Loader Cab14, 4 ft, in.
Operator Height From Ground (Eye Level) in Rear-Entry Log Loader Cab4345 mm

Operating Weights, Live-Heel Log Loader Arm

SAE Operating Weight, EPA FT4/EU Stage IV69465 lb.
SAE Operating Weight, EPA FT4/EU Stage IV31509 kg

Operating Dimensions, Road Builder

Maximum Dumping Height27 ft, in.
Maximum Dumping Height8.23 m

Cooling

Fan DriveCool-on-demand hydraulic-driven, suction-type fan with remote-mounted drive and standard reversing fan
