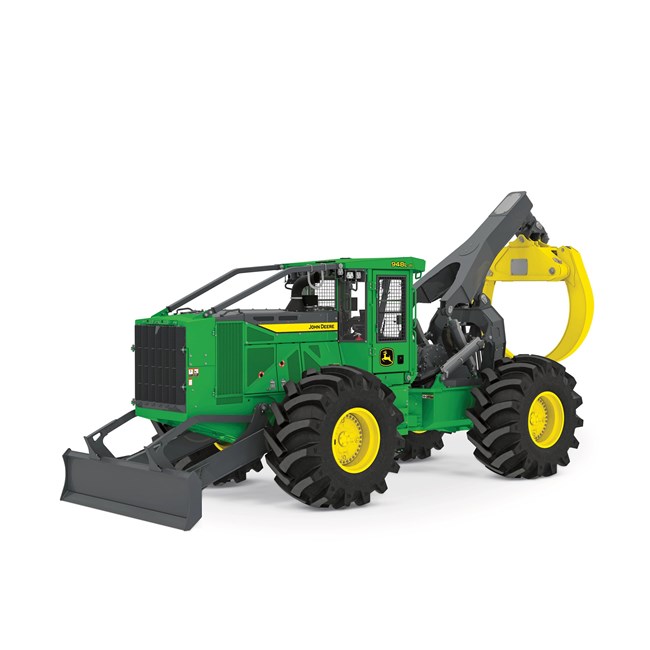

John Deere 948L-III

Double tap to zoom



Features

Continuously Variable Transmission (CVT) Offers the Best of Both Worlds

Computer-generated graphic of the green Continuously Variable Transmission (CVT) used in L-III skidders

The CVT combines the efficiency of a direct-drive with the smooth operation of a hydrostatic drive, delivering efficient power and eliminating the need for gear shifting. This helps operators maintain desired speeds and maximizes productivity by easing the learning curve.

Easy Serviceability Increases Uptime

Side view of a 768-III bogie skidder's engine housing, featuring removable panels and swing-out coolers

The skidders are designed for efficient maintenance with ground-level access to daily service points, swing-out coolers for easy debris cleaning, and detachable engine panels for wide-open access. These features, along with remote diagnostics and extended hydraulic filter intervals, help reduce downtime and prevent costly repairs.

All Day Productivity with More Comfort

View from left door of a 768L-II bogie skidder's cab interior

The cab, designed by loggers for loggers, features 43 sq ft (4 m²) of window area and a 240-degree rotating seat to enhance visibility and reduce neck strain. Electrohydraulic joysticks offer customizable, fingertip control, while optional LED lights and a heated leather-trimmed seat boost comfort and productivity.

Specifications

Weights

Operating Weight50913 lb.
Operating Weight23094 kg

Dimensions

Overall Length9982 mm
Overall Length393 in.
Overall Width3575 mm
Overall Width140.7 in.
Height Over Cab3454 mm
Height Over Cab136 in.
Wheelbase3975 mm
Wheelbase156.5 in.
Dozer Blade Height691 mm
Dozer Blade Height27.2 in.
Ground Clearance604 mm
Ground Clearance23.7 in.
Dozer Blade Width2962.4 mm
Dozer Blade Width116.6 in.
Dozer Blade - Dig Depth298 mm
Dozer Blade - Dig Depth11.7 in.
Tong Opening at Tips3886 mm
Tong Opening at Tips153 in.
Enclosure Area1.63 m²
Enclosure Area17.5 sq ft
Steering Articulation Angle45 degree (angle)

Performance Data

Travel Speed25 km/h
Travel Speed15.53 mph
Oscillation PointFront axle
Oscillation Angle15 degree (angle)
Rated Line Pull47997 lbf
Rated Line Pull213.5 kN
Rated Line Speed66 fpm
Rated Line Speed20.1 m/min
System Voltage24 V
PumpVar. piston

Driveline

Engine ManufacturerJohn Deere
Engine ModelPowerTech™ PSS 9.0L
Displacement9 L
Displacement549 in³
Engine Output224 kW
Engine Output300 hp
Engine Torque1369 Nm
Engine Torque1009 lb-ft
TransmissionContinuous Variable Transmission
PlanetariesInboard
Service Brake TypeInboard Wet discs
Parking Brake TypeWet multi-disc in Transmission

Capacities

Fuel Tank391.8 L
Fuel Tank103.5 gal.
Hydraulic Tank123.6 L
Hydraulic Tank32.6 gal.
Alternator Output150 amp

Description

Standard Arch FunctionDual
