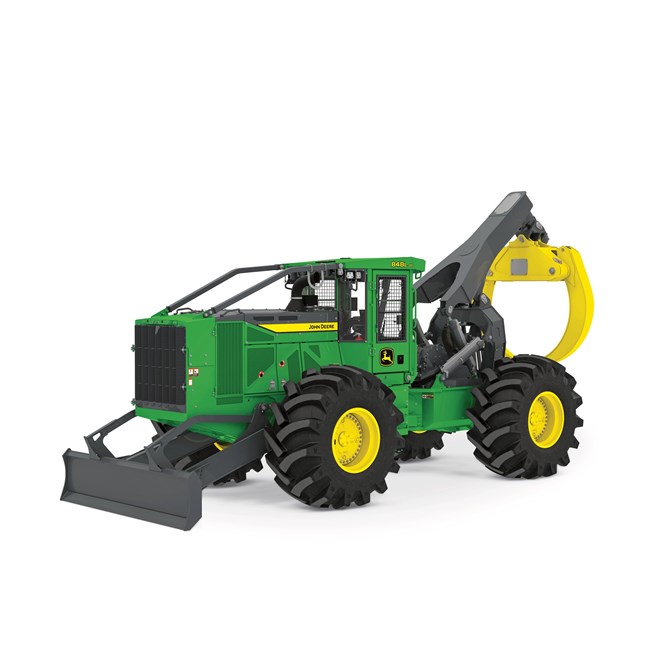

John Deere 848L-III
848L-III
Skidders
Overview:
The 848L-III Grapple Skidder combines exceptional power, durability, and efficiency to optimize your forestry operations, ensuring increased productivity and reduced operating costs with its innovative technology and robust design.
- Gross Power: 281 hp (210 kW)
- Gross Torque: 941 ft-lb (1276 Nm)
- Maximum Grapple Capacity: 19.1 sq ft (1.77 m²)
- Operating Weight: 49,499 lb. (22,384 kg)
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Loan Calculator
Use the Loan Calculator to help you determine the financing and payment options that are best for you.
**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. You should obtain personal advice from qualified professionals. This information is provided for illustrative purposes only and does not constitute an application. This notice does not guarantee loan approval, nor is it an offer or commitment to make a loan to you on the above terms.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Share This Product:
Features

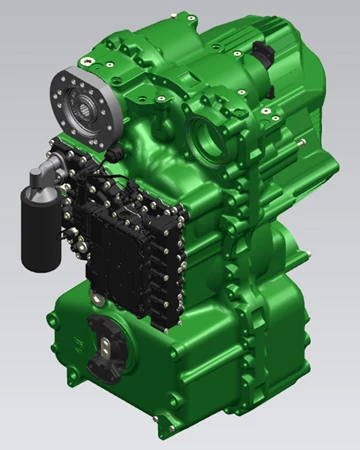

Continuously Variable Transmission (CVT) Offers the Best of Both Worlds

The CVT combines the efficiency of a direct-drive with the smooth operation of a hydrostatic drive, delivering efficient power and eliminating the need for gear shifting. This helps operators maintain desired speeds and maximizes productivity by easing the learning curve.

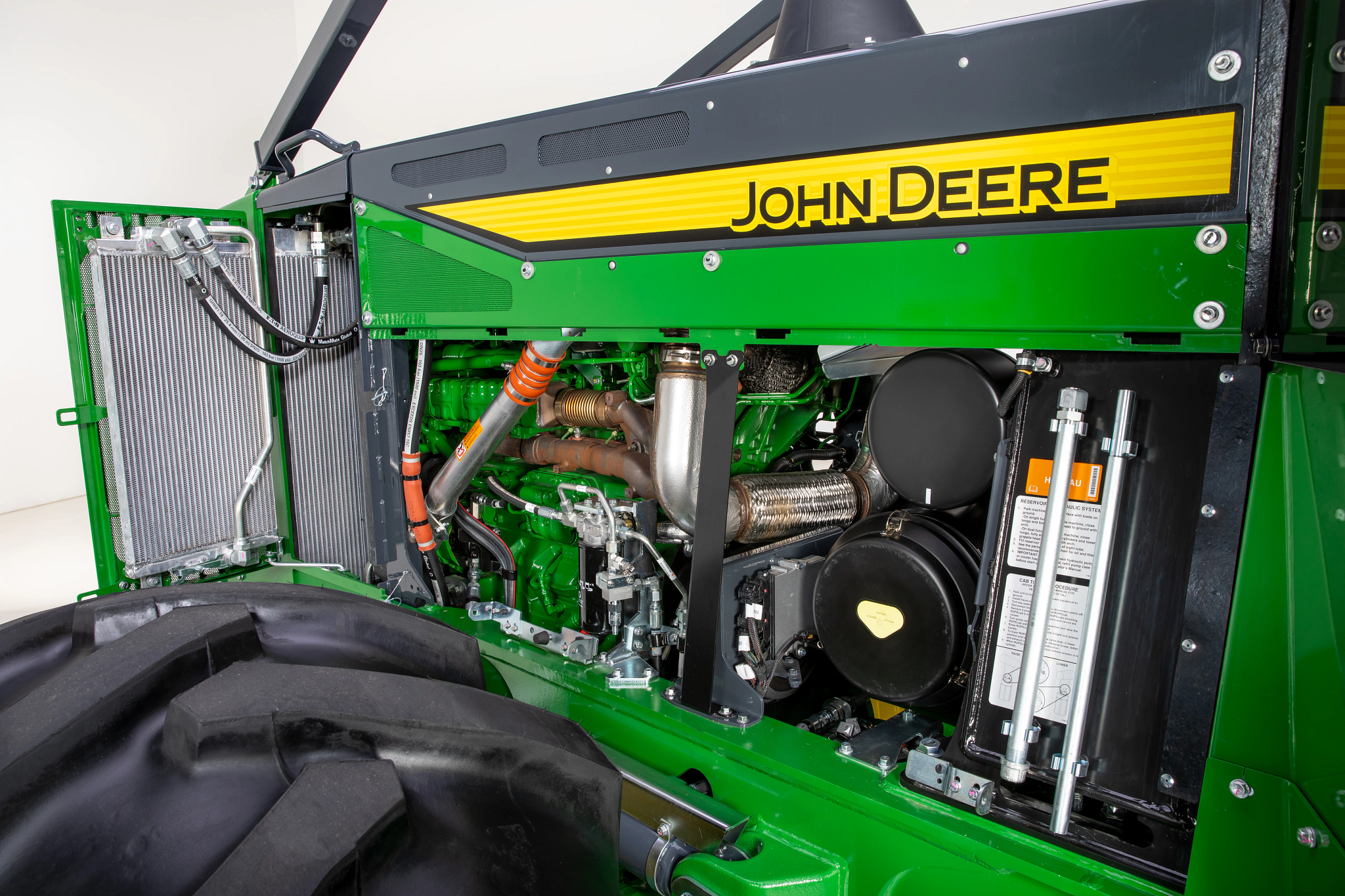

Easy Serviceability Increases Uptime

The skidders are designed for efficient maintenance with ground-level access to daily service points, swing-out coolers for easy debris cleaning, and detachable engine panels for wide-open access. These features, along with remote diagnostics and extended hydraulic filter intervals, help reduce downtime and prevent costly repairs.

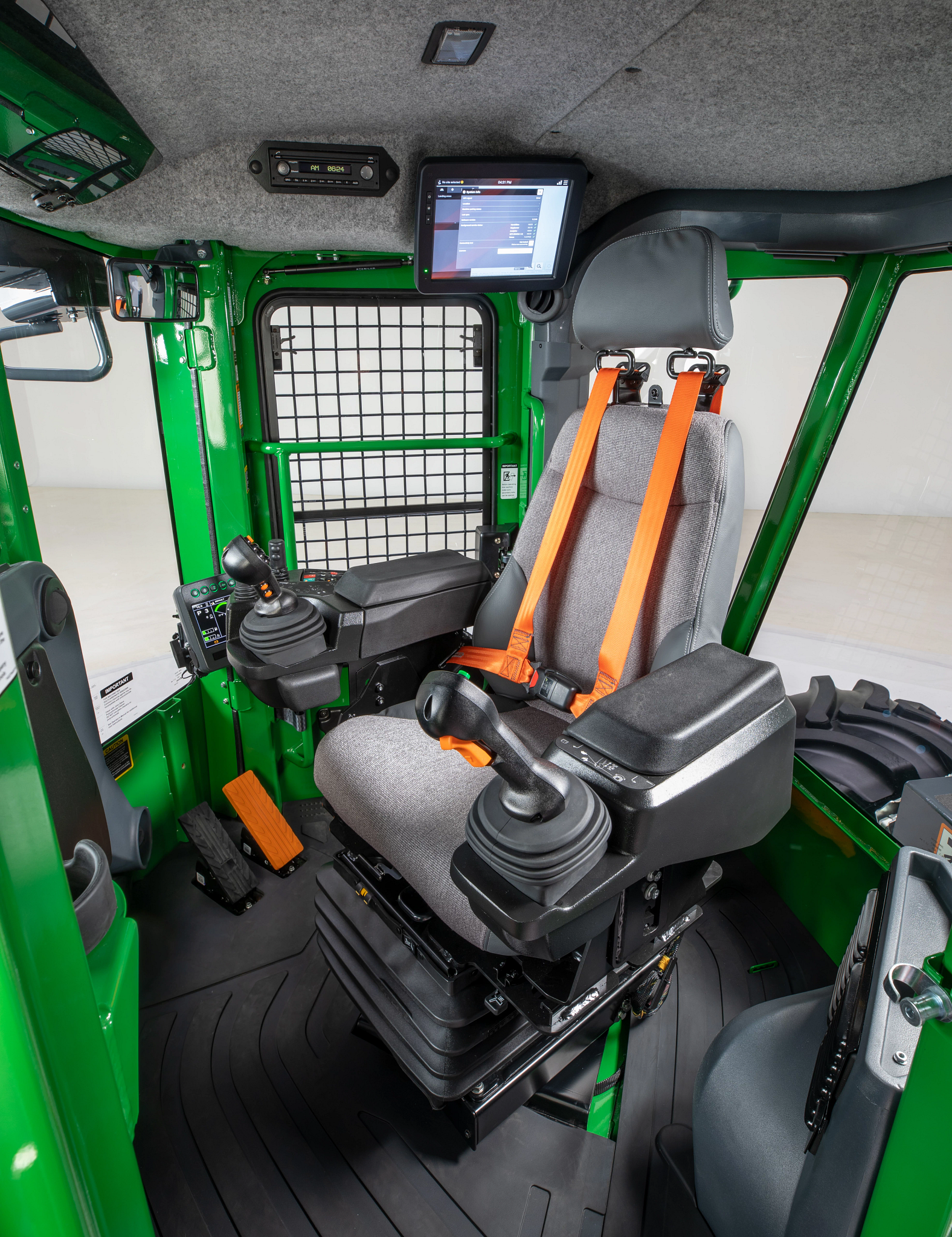

All Day Productivity with More Comfort

The cab, designed by loggers for loggers, features 43 sq ft (4 m²) of window area and a 240-degree rotating seat to enhance visibility and reduce neck strain. Electrohydraulic joysticks offer customizable, fingertip control, while optional LED lights and a heated leather-trimmed seat boost comfort and productivity.
Specifications
Weights
| Operating Weight | 50728 lb. |
| Operating Weight | 23010 kg |
Dimensions
| Overall Length | 9982 mm |
| Overall Length | 393 in. |
| Overall Width | 3575 mm |
| Overall Width | 140.7 in. |
| Height Over Cab | 3454 mm |
| Height Over Cab | 136 in. |
| Wheelbase | 3975 mm |
| Wheelbase | 156.5 in. |
| Dozer Blade Height | 691 mm |
| Dozer Blade Height | 27.2 in. |
| Ground Clearance | 604 mm |
| Ground Clearance | 23.7 in. |
| Dozer Blade Width | 2962.4 mm |
| Dozer Blade Width | 116.6 in. |
| Dozer Blade - Dig Depth | 298 mm |
| Dozer Blade - Dig Depth | 11.7 in. |
| Tong Opening at Tips | 3785 mm |
| Tong Opening at Tips | 149 in. |
| Enclosure Area | 1.63 m² |
| Enclosure Area | 17.5 sq ft |
| Steering Articulation Angle | 45 degree (angle) |
Performance Data
| Travel Speed | 25 km/h |
| Travel Speed | 15.53 mph |
| Oscillation Point | Front axle |
| Oscillation Angle | 15 degree (angle) |
| Rated Line Pull | 49696 lbf |
| Rated Line Pull | 221 kN |
| Rated Line Speed | 66 fpm |
| Rated Line Speed | 20.1 m/min |
| System Voltage | 24 V |
| Pump | Var. piston |
Driveline
| Engine Manufacturer | John Deere |
| Engine Model | PowerTech™ PSS 9.0L |
| Displacement | 9 L |
| Displacement | 549 in³ |
| Engine Output | 210 kW |
| Engine Output | 281 hp |
| Engine Torque | 1276 Nm |
| Engine Torque | 941 lb-ft |
| Transmission | Continuous Variable Transmission |
| Planetaries | Inboard |
| Service Brake Type | Inboard wet discs |
| Parking Brake Type | Wet multi-disc in Transmission |
Capacities
| Fuel Tank | 391.8 L |
| Fuel Tank | 103.5 gal. |
| Hydraulic Tank | 123.6 L |
| Hydraulic Tank | 32.6 gal. |
| Alternator Output | 150 amp |
Description
| Standard Arch Function | Dual |
