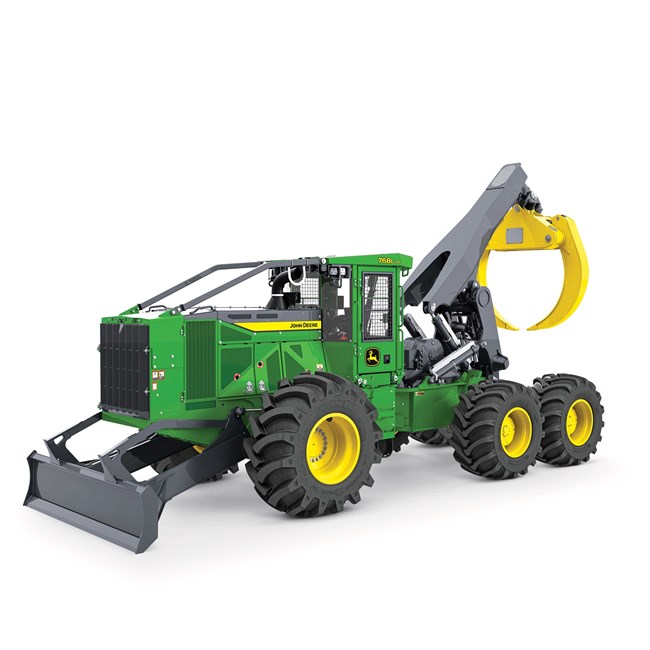

John Deere 768L-III

Double tap to zoom



Features

TimberMatic™ Maps and TimberManager™

A rugged touchscreen monitor displaying a GPS field map with highlighted rows, guidance paths, and machine location

TimberMatic™ Maps offers a real-time production view, optimized routes, and shared machine connectivity, enhancing jobsite awareness. TimberManager™ allows web-based jobsite monitoring, enabling progress tracking and fleet optimization to streamline communication and boost efficiency.

Continuously Variable Transmission (CVT) Offers the Best of Both Worlds

Computer-generated graphic of the green Continuously Variable Transmission (CVT) used in L-III skidders

The CVT combines the efficiency of a direct-drive with the smooth operation of a hydrostatic drive, delivering efficient power and eliminating the need for gear shifting. This helps operators maintain desired speeds and maximizes productivity by easing the learning curve.

Easy Serviceability Increases Uptime

Side view of a 768-III bogie skidder's engine housing, featuring removable panels and swing-out coolers

The skidders are designed for efficient maintenance with ground-level access to daily service points, swing-out coolers for easy debris cleaning, and detachable engine panels for wide-open access. These features, along with remote diagnostics and extended hydraulic filter intervals, help reduce downtime and prevent costly repairs.

Specifications

Weights

Operating Weight52245 lb.
Operating Weight23697 kg

Dimensions

Overall Length11100 mm
Overall Length437 in.
Overall Width3508 mm
Overall Width138.1 in.
Height Over Cab3365 mm
Height Over Cab132.5 in.
Wheelbase4416.7 mm
Wheelbase173.8 in.
Dozer Blade Height691 mm
Dozer Blade Height27.2 in.
Ground Clearance557 mm
Ground Clearance21.9 in.
Dozer Blade Width2962.4 mm
Dozer Blade Width116.6 in.
Dozer Blade - Dig Depth359 mm
Dozer Blade - Dig Depth14.1 in.
Tong Opening at Tips3785 mm
Tong Opening at Tips149 in.
Enclosure Area1.63 m²
Enclosure Area17.5 sq ft
Steering Articulation Angle45 degree (angle)

Performance Data

Travel Speed17.97 km/h
Travel Speed11.2 mph
Oscillation PointFront axle
Oscillation Angle15 degree (angle)
Rated Line Pull47997 lbf
Rated Line Pull213.5 kN
Rated Line Speed66 fpm
Rated Line Speed20.1 m/min
System Voltage24 V
PumpVar. axial-piston

Driveline

Engine ManufacturerJohn Deere
Engine ModelPowerTech™ PSS 9.0L
Displacement9 L
Displacement549 in³
Engine Output210 kW
Engine Output281 hp
Engine Torque1276 Nm
Engine Torque941 lb-ft
TransmissionContinuous Variable Transmission
PlanetariesInboard
Rear AxleBogie
Service Brake TypeInboard Wet discs
Parking Brake TypeWet multi-disc in Transmission

Capacities

Fuel Tank352 L
Fuel Tank93 gal.
Hydraulic Tank123.6 L
Hydraulic Tank32.6 gal.
Alternator Output150 amp

Description

Standard Arch FunctionDual
