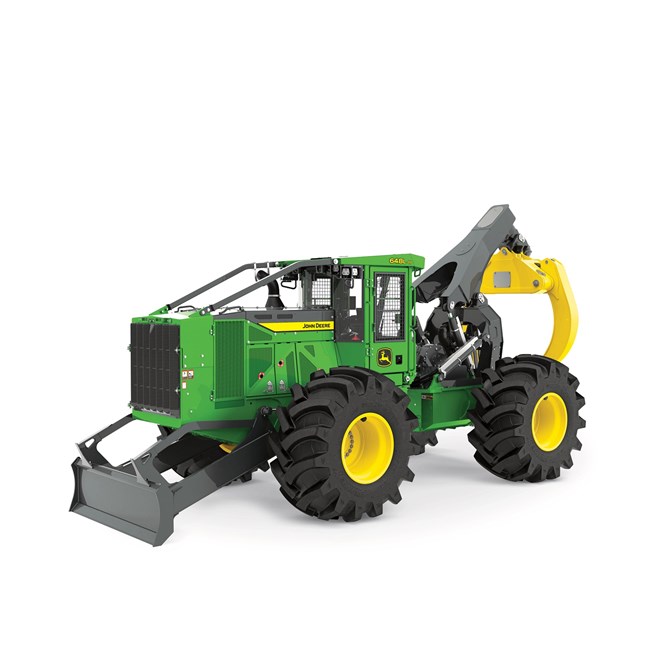

John Deere 648L-III
Double tap to zoom
648L-III
Skidders
Overview:
The John Deere 648L-III Grapple Skidder offers power and efficiency for forestry professionals, delivering superior traction, durability, and comfort to maximize productivity in the most demanding terrain.
- Gross Power: 237 hp (177 kW)
- Gross Torque: 756 ft-lb (1025 Nm)
- Maximum Grapple Capacity: 17.5 sq ft (1.63 m²)
- Operating Weight: 42,512 lb. (19,283 kg)
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Loan Calculator
Use the Loan Calculator to help you determine the financing and payment options that are best for you.
**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. You should obtain personal advice from qualified professionals. This information is provided for illustrative purposes only and does not constitute an application. This notice does not guarantee loan approval, nor is it an offer or commitment to make a loan to you on the above terms.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Share This Product:
Features
Continuously Variable Transmission (CVT) Offers the Best of Both Worlds
The CVT combines the efficiency of a direct-drive with the smooth operation of a hydrostatic drive, delivering efficient power and eliminating the need for gear shifting. This helps operators maintain desired speeds and maximizes productivity by easing the learning curve.
Easy Serviceability Increases Uptime
The skidders are designed for efficient maintenance with ground-level access to daily service points, swing-out coolers for easy debris cleaning, and detachable engine panels for wide-open access. These features, along with remote diagnostics and extended hydraulic filter intervals, help reduce downtime and prevent costly repairs.

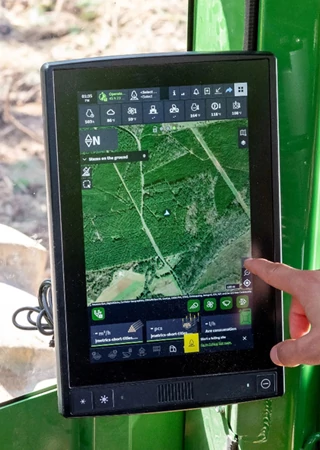

Primary Display Unit
Ergonomic, 12-in. Primary Display Unit centralizes machine gauges, work-time analytics, TimberMatic™ Maps/TimberManager™, camera views, and enables Remote Display Access for faster remote diagnostics and reduced downtime.
Specifications
Weights
| Operating Weight | 42512 lb. |
| Operating Weight | 19283 kg |
Dimensions
| Overall Length | 9244 mm |
| Overall Length | 364 in. |
| Overall Width | 3233 mm |
| Overall Width | 127.3 in. |
| Height Over Cab | 3365 mm |
| Height Over Cab | 132.5 in. |
| Wheelbase | 3680 mm |
| Wheelbase | 145 in. |
| Dozer Blade Height | 687.6 mm |
| Dozer Blade Height | 27 in. |
| Ground Clearance | 557 mm |
| Ground Clearance | 22 in. |
| Dozer Blade Width | 2192 mm |
| Dozer Blade Width | 86.3 in. |
| Dozer Blade - Dig Depth | 359 mm |
| Dozer Blade - Dig Depth | 14 in. |
| Tong Opening at Tips | 3226 mm |
| Tong Opening at Tips | 127 in. |
| Enclosure Area | 1.63 m² |
| Enclosure Area | 17.5 sq ft |
| Steering Articulation Angle | 45 degree (angle) |
Performance Data
| Travel Speed | 24.74 km/h |
| Travel Speed | 15.4 mph |
| Oscillation Point | Front axle |
| Oscillation Angle | 15 degree (angle) |
| Rated Line Pull | 49696 lbf |
| Rated Line Pull | 221 kN |
| Rated Line Speed | 90 fpm |
| Rated Line Speed | 27.4 m/min |
| System Voltage | 24 V |
| Pump | Var. piston |
Driveline
| Engine Manufacturer | John Deere |
| Engine Model | PowerTech™ PSS 6.8L |
| Displacement | 6.8 L |
| Displacement | 415 in³ |
| Engine Output | 177 kW |
| Engine Output | 237.4 hp |
| Engine Torque | 1025 Nm |
| Engine Torque | 756 lb-ft |
| Transmission | Continuous Variable Transmission |
| Planetaries | Inboard |
| Service Brake Type | Inboard Wet discs |
| Parking Brake Type | Wet multi-disc in Transmission |
Capacities
| Fuel Tank | 391.8 L |
| Fuel Tank | 103.5 gal. |
| Hydraulic Tank | 123.6 L |
| Hydraulic Tank | 32.6 gal. |
| Alternator Output | 150 amp |
Description
| Standard Arch Function | Dual |
