Features

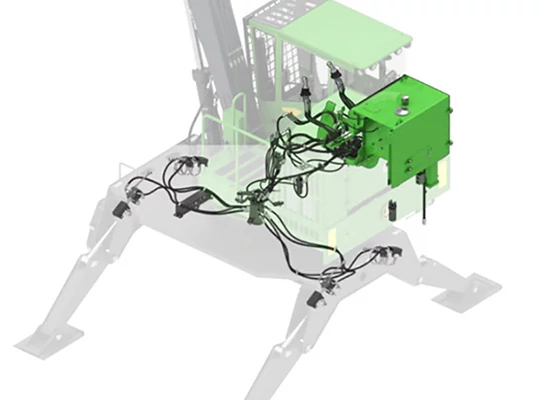

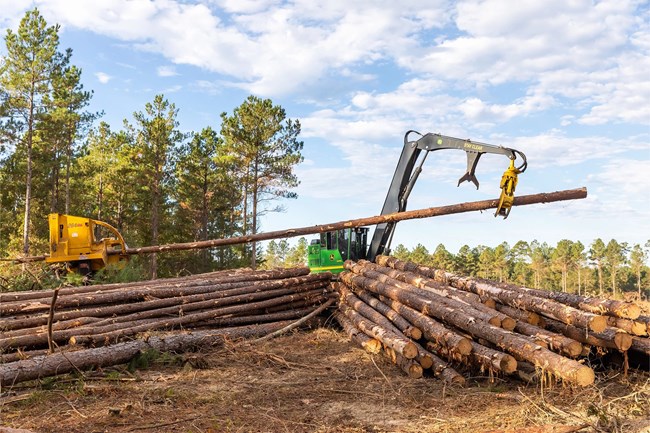

Efficient Hydraulics
Proven pressure-compensated load-sensing hydraulic system delivers power on demand for strong delimbing and loading performance, while minimizing hydraulic heat generation and reducing fuel consumption.

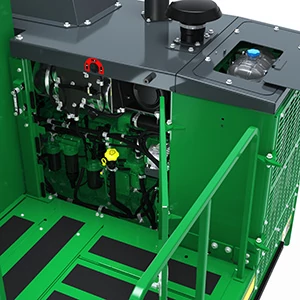

Increase Uptime with Easy Access to Daily Service Points
Daily service points are easily accessible, reducing time spent on maintenance. Features like hinged panels for the engine compartment, same-side fills for fuel and diesel exhaust fluid, and ground-level hydraulic access help in maintaining the machine with minimal effort.

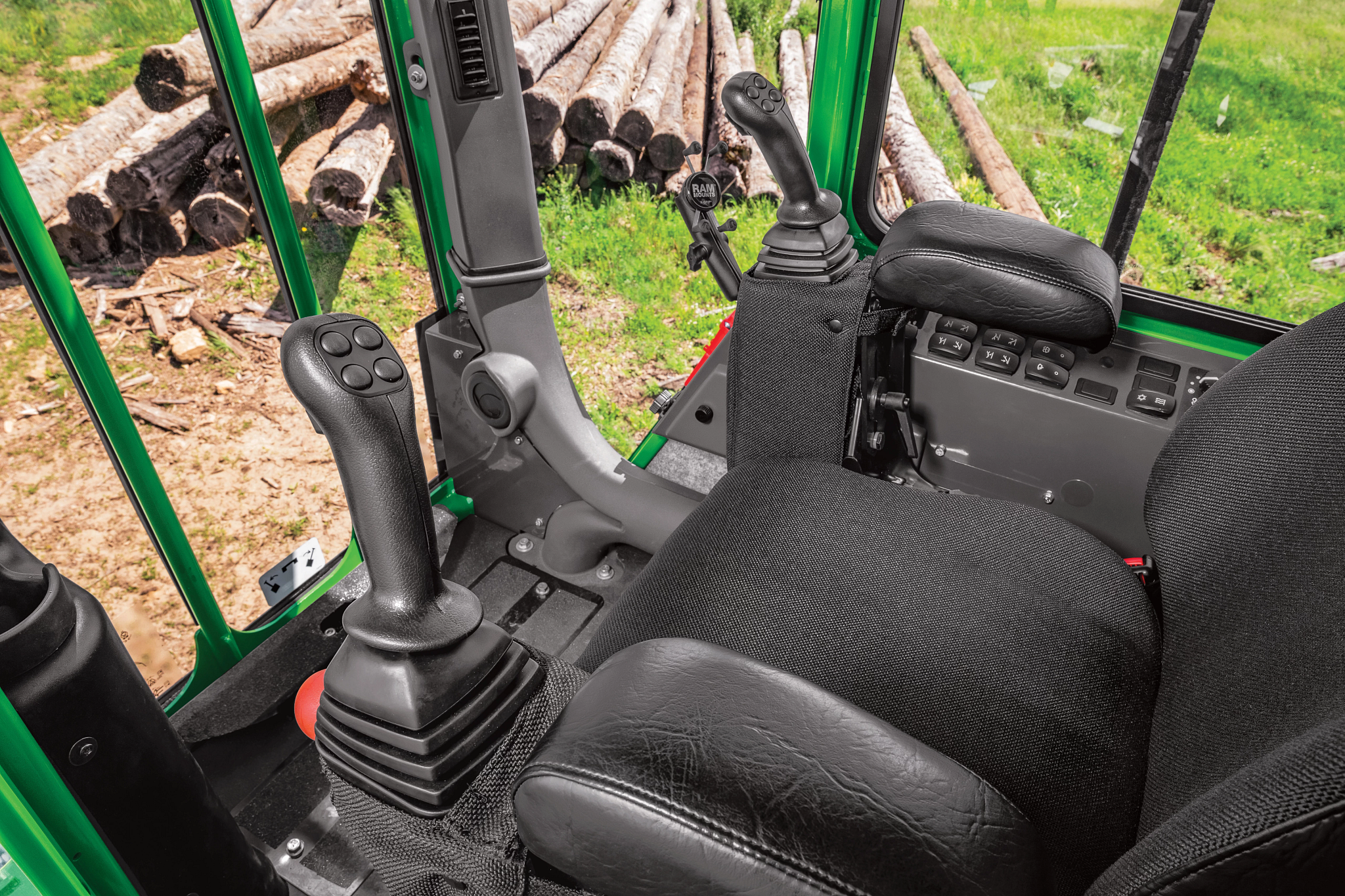

Maximize Comfort and Visibility with a Spacious Cab
The knuckleboom loader's redesigned cab maximizes operator comfort and visibility with enhancements like a large doorway, spacious interior, and superior ventilation. The cab-window features improve forward visibility, while the lower hood profile enhances the side views.
Specifications
Lift capacity (no heel, bare pin) with 4.6-m (15-ft) lift (radius is measured horizontally from centerline of rotation)
| At 15-ft radius (lb) | 19753 lb. |
| At 4.6-m radius (kg) | 8960 kg |
| At 20-ft radius (lb) | 16446 lb. |
| At 6.1-m radius (kg) | 7460 kg |
| At 25-ft radius (lb) | 14286 lb. |
| At 7.6-m radius(kg) | 6480 kg |
| At 30-ft radius (lb) | 11927 lb. |
| At 9.1-m radius (kg) | 5410 kg |
Engine
| Manufacturer | John Deere |
| Model | 6068 HTJ57 PowerTech™ PVS |
| Non-Road Emission Standards | EPA Final Tier 4/EU Stage IV |
| Cylinders | 6 |
| Valves Per Cylinder | 4 |
| Displacement (cu in.) | 415 cu in. |
| Displacement (L) | 6.8 L |
| Gross Rated Power At 2,000 RPM (hp) | 173 hp |
| Gross Rated Power At 2,000 RPM (kW) | 129 kW |
| Net Torque Rise (%) | 21 % |
| Net Peak Torque At 1,500 RPM (lb-ft) | 553 lb-ft |
| Net Peak Torque At 1,500 RPM (lb-ft) | 553 lb-ft |
| Net Peak Torque At 1,500 RPM (Nm) | 749.8 Nm |
| Aspiration | Turbocharged, air-to-air aftercooled |
| Air Cleaner | Dry-type with safety element |
Hydraulics
| Main Pump Type | Tandem variable-displacement, axial-piston, load-sensing system |
| Controls Type | Pilot levers, short stroke, low effort |
| Fill System Type | 12-volt electric-fill pump through return filter |
Machine Dimensions
| Tail swing (in.) | 28 in. |
| Tail swing (mm) | 711.2 mm |
| Machine height (ft in.) | 13, 6 ft, in. |
| Machine height (mm) | 4114.8 mm |
| Maximum stabilizer radius below grade (in.) | 10 in. |
| Maximum stabilizer radius below grade (mm) | 254 mm |
| Trailer height (ft in.) | 3, 2 ft, in. |
| Trailer height (mm) | 965.2 mm |
| Maximum trailer width (in.) | 35 in. |
| Maximum trailer width (mm) | 889 mm |
| Transport width (ft in.) | 8, 7 ft, in. |
| Transport width (mm) | 2616.2 mm |
| Stabilizer spread at ground level (ft in.) | 19, 1 ft, in. |
| Stabilizer spread at ground level (mm) | 5817 mm |
| Overall lower frame length (ft in.) | 13, 7 ft, in. |
| Overall lower frame length (mm) | 4140 mm |
| Stabilizer pad length (in.) | 21 in. |
| Stabilizer pad length (mm) | 533.4 mm |
| Boom radius (ft in.) | 32, 0 ft, in. |
| Boom radius (mm) | 9753.6 mm |
| Stabilizer pad width (in.) | 35 in. |
| Stabilizer pad width (mm) | 889 mm |
Cylinders
| Cylinders Type | Heat-treated, chrome-plated, polished cylinder rods; hardened steel (replaceable bushings) pivot pins |
| Boom (1) Bore (in.) | 7.1 in. |
| Boom (1) Bore (mm) | 180.3 mm |
| Boom (1) Rod Diameter (in.) | 3.7 in. |
| Boom (1) Rod Diameter (mm) | 94 mm |
| Jib (1) Bore (in.) | 6.3 in. |
| Jib (1) Bore (mm) | 160 mm |
| Jib (1) Rod Diameter (in.) | 3.7 in. |
| Jib (1) Rod Diameter (mm) | 94 mm |
| Stabilizers (4) Bore (in.) | 7 in. |
| Stabilizers (4) Bore (mm) | 180 mm |
| Stabilizers (4) Rod Diameter (in.) | 3.9 in. |
| Stabilizers (4) Rod Diameter (mm) | 100 mm |
Serviceability
| Service Points And Features | Hinged engine side shields; local grease points; hydraulic “O”-ring face-seal connectors; ground-level hydraulic oil and filter changes; hydraulic oil electric fill-pump |
| Engine Oil Fluid-Change Interval (hours) | 500 hr |
| Hydraulic Oil Fluid-Change Interval (hours) | 2000 hr |
| Engine Coolant Fluid-Change Interval (hours) | 6000 hr |
| Swing-Drive Gearbox Oil Fluid-Change Interval (hours) | 1000 hr |
| Pump-Drive Gearbox Oil Fluid-Change Interval (hours) | 1000 hr |
| Fuel Tank Capacity (gal.) | 90 gal. |
| Fuel Tank Capacity (L) | 340.7 L |
| Diesel-Exhaust Fluid (DEF) Capacity (gal.) | 5 gal. |
| Diesel-Exhaust Fluid (DEF) Capacity (L) | 18.9 L |
| Cooling System Capacity (gal.) | 7.5 gal. |
| Cooling System Capacity (L) | 28.4 L |
| Engine Crankcase Capacity (gal.) | 5.3 gal. |
| Engine Crankcase Capacity (L) | 20.1 L |
| Hydraulic Tank Capacity (gal.) | 40 gal. |
| Hydraulic Tank Capacity (L) | 151.4 L |
| Swing-Drive Gearbox Capacity (gal.) | 1.4 |
| Swing-Drive Gearbox Capacity (L) | 5.3 L |
| Pump-Drive Gear Case Capacity (gal.) | 1.4 gal. |
| Pump-Drive Gear Case Capacity (L) | 5.3 L |
Electrical
| Voltage (V) | 12 V |
| Number Of Batteries | 2 |
| Battery Capacity At -17.8° C (CCA) | 950 CCA |
| Battery Capacity At 0° F (CCA) | 950 CCA |
| Battery Capacity At 32° F (CCA) | 1110 CCA |
| Battery Capacity At 0° C (CCA) | 1110 CCA |
| Alternator Rating (amp) | 200 amp |
| Lighting Options | Standard halogen lights: 2 front / Optional halogen lights: 2 front, 3 rear, 1 cab right side, 1 cab left side; Optional LED lights: 4 front, 3 rear, 1 cab right side, 1 cab left side |
Boom
| Knuckleboom (ft, in) | 32, 0 ft, in. |
| Knuckleboom (m) | 9.8 m |
Swing Mechanism
| Swing Speed (RPM) | 10 rpm |
| Drive Type | 2-stage planetary gearbox with piston motor |
| Bearing Type | Hardened gear, greaseable from cab |
| Swing Torque (lb-ft) | 38400 lb-ft |
| Swing Torque (Nm) | 52063.5 Nm |
Lift capacity (no heel, bare pin) with 6.1-m (20-ft) lift (radius is measured horizontally from centerline of rotation)
| At 15-ft radius (lb) | 16887 lb. |
| At 4.6-m radius (kg) | 7660 kg |
| At 20-ft radius (lb) | 15102 lb. |
| At 6.1-m radius (kg) | 6850 kg |
| At 25-ft radius (lb) | 13713 lb. |
| At 7.6-m radius (kg) | 6220 kg |
| At 30-ft radius (lb) | 8620 lb. |
| At 9.1-m radius (kg) | 3910 kg |
Lift capacity (no heel, bare pin) with 1.5-m (5-ft) lift (radius is measured horizontally from centerline of rotation)
| At 10-ft radius (lb) | 13625 lb. |
| At 3.1-m radius (kg) | 6180.2 kg |
| At 15-ft radius (lb) | 25860 lb. |
| At 4.6-m radius (kg) | 11730 kg |
| At 20-ft radius (lb) | 19158 lb. |
| At 6.1-m radius (kg) | 8690 kg |
| At 25-ft radius (lb) | 15322 lb. |
| At 7.6-m radius (kg) | 6850 kg |
| At 30-ft radius (lb) | 12280 lb. |
| At 9.1-m radius (kg) | 5570 kg |
Log Grapple Specifications
| Maximum Opening With 4048 Log Grapple (in.) | 48 in. |
| Maximum Opening With 4048 Log Grapple (mm) | 1219.2 mm |
| Minimum Opening With 4048 Log Grapple (in.) | 4 in. |
| Minimum Opening With 4048 Log Grapple (mm) | 101.6 mm |
| Maximum opening with 4552 log grapple (in.) | 52.2 in. |
| Maximum opening with 4552 log grapple (mm) | 1325.9 mm |
| Minimum opening with 4552 log grapple (in.) | 4.5 in. |
| Minimum opening with 4552 log grapple (mm) | 114.3 mm |
Maximum lift capacity (no heel, bare pin) at maximum distance (radius is measured horizontally from centerline of rotation)
| At 29.9-ft radius and 20-ft lift (lb) | 8102 lb. |
| At 9.1-m radius and 6.1-m lift (kg) | 3675 kg |
| At 31.4-ft radius and 15-ft lift (lb) | 7893 lb. |
| At 9.6-m radius and 4.6-m lift (kg) | 3580 kg |
| At 32-ft radius and 10-ft lift (lb) | 8378 lb. |
| At 9.8-m radius and 3.1-m lift (kg) | 3800.2 kg |
| At 31.8-ft radius and 5-ft lift (lb) | 8554 lb. |
| At 9.7-m radius and 1.5-m lift (kg) | 3880 kg |
Lift capacity (no heel, bare pin) with 3.1-m (10-ft) lift (radius is measured horizontally from centerline of rotation)
| At 10-ft radius (lb) | 19798 lb. |
| At 3.1-m radius (kg) | 8980.2 kg |
| At 15-ft radius (lb) | 23149 lb. |
| At 4.6-m radius (kg) | 10500 kg |
| At 20-ft radius (lb) | 17990 lb. |
| At 6.1-m radius (kg) | 8160 kg |
| At 25-ft radius (lb) | 14947 lb. |
| At 7.6-m radius (kg) | 6779.8 kg |
| At 30-ft radius (lb) | 12588 lb. |
| At 9.1-m radius (kg) | 5710 kg |
Operating Weight (Less Attachment)
| Operating Weight With Standard Equipment, Half-Full fuel Tank, All Fluids, 175-lb Operator, And Grapple (lb) | 40073 lb. |
| Operating Weight With Standard Equipment, Half-Full fuel Tank, All Fluids, 80-kg Operator, And Grapple (kg) | 18177 kg |
Cooling
| Fan Type | Engine-driven ECU-controlled viscous clutch |
