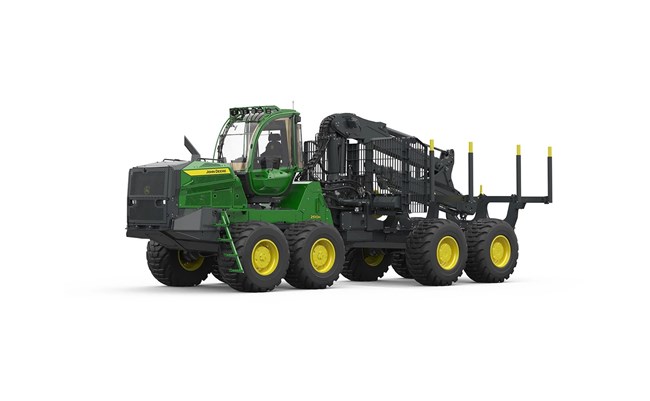

John Deere 2510H
Double tap to zoom
2510H
Forwarders
Overview:
The John Deere 2510H Forwarder hauls 30% more wood per load with boosted power, speed, and Intelligent Boom Control for peak efficiency.
- Net Power: 252 kW (337 hp)
- Boom Reach: 8.7 m (28.5 ft) / 10.2 m (33.5 ft) / 10.7 m (35.1 ft)
- Tractive Force: 300 kN (67,442 lbf)
- Load Rating: 25 t (25 ton)
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Loan Calculator
Use the Loan Calculator to help you determine the financing and payment options that are best for you.
**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. You should obtain personal advice from qualified professionals. This information is provided for illustrative purposes only and does not constitute an application. This notice does not guarantee loan approval, nor is it an offer or commitment to make a loan to you on the above terms.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Share This Product:
Features
Rotating and Leveling Cabin
The rotating and leveling cabin ensures the best visibility to the working area and ensures operator comfort in all conditions. It allows the operator to sit upright even when the machine is on uneven terrain. The machine can also be driven when the cabin is turned in a sideways position.
Intelligent Boom Control as Standard
With Intelligent Boom Control (IBC), the operator controls the tip of the boom rather than the individual boom sections. Sensors detect the location of the grapple and the system automatically adjusts the trajectory of the boom and extension
TimberMatic™ H Operating System
The TimberMatic™ H operating system is easy to use and visual. The precise location of stems at the logging site and the progress of the work are displayed on the map in real-time. Intelligent diagnostics take care of the machine’s performance.
Specifications
Machine Dimensions
| Short Wheelbase Length | 5900 mm |
| Short Wheelbase Length | 19.4 ft |
| Long Wheelbase Length | 6900 mm |
| Long Wheelbase Length | 22.6 ft |
| Width from | 3200 mm |
| Width from | 10.5 ft |
| Turning Angle | 44 degrees |
| Transport Height With Tires from | 3950 mm |
| Transport Height With Tires from | 13 ft |
| Ground Clearance - 8 Wheel | 780 mm |
| Ground Clearance - 8 Wheel | 2.6 in. |
| Front Tires - 8-Wheel Options | 28.5 in. |
| Rear Tires Options | 30.5 in. |
| Minimum Machine Weight With 8 Wheels | 29800 kg |
| Minimum Machine Weight With 8 Wheels | 65697.7 lb. |
Boom F10
| Maximum Reach Length | 10.2 m |
| Maximum Reach Length | 33.5 ft |
| Gross Lifting Torque | 210 kNm |
| Gross Lifting Torque | 154887 lb-ft |
| Slewing Torque | 50 kNm |
| Slewing Torque | 36878 lb-ft |
| Slewing Angle | 380 degrees |
Engine
| Load Rating, Standard | 25000 kg |
| Load Rating, Standard | 55115.5 lb. |
| Manufacturer | John Deere |
| Model | John Deere 6090 |
| Engine Speed Used For Net Peak Power | 1900 rpm |
| Net Peak Power At Engine Speed Power | 252 kW |
| Engine Speed Used For Net Peak Torque | 1400 rpm |
| Net Peak Power At Engine Speed Torque | 1550 Nm |
| Fuel Tank Capacity | 380 L |
| Fuel tank capacity | 100.4 gal. |
Transmission
| Tractive Force | 300 kN |
| Tractive Force | 67442 lbf |
Hydraulics
| DEF-liquid tank | 28.5 L |
| DEF-liquid tank | 7.5 gal. |
| Hydraulic Tank | 225 L |
| Hydraulic Tank | 59.4 gal. |
Boom F9
| Maximum Reach Length | 10.7 m |
| Maximum Reach Length | 35.1 ft |
| Gross Lifting Torque | 170 kNm |
| Gross Lifting Torque | 125385 lb-ft |
| Slewing Torque | 45 kNm |
| Slewing Torque | 33190 lb-ft |
Load-Space Options (Measurements Are Guidelines Only And May Vary Depending On Production Tolerances)
| Cross-Sectional Load Space Area | 8.5 m² |
| Cross-Sectional Load Space Area | 91.5 sq ft |
| Cross-Sectional Area VLS | 6.5 m² |
| Cross-Sectional Area VLS | 21.3 sq ft |
Operator Station
| Type | Rotating and leveling |
| Rotating Angle | 290 degrees |
