Features

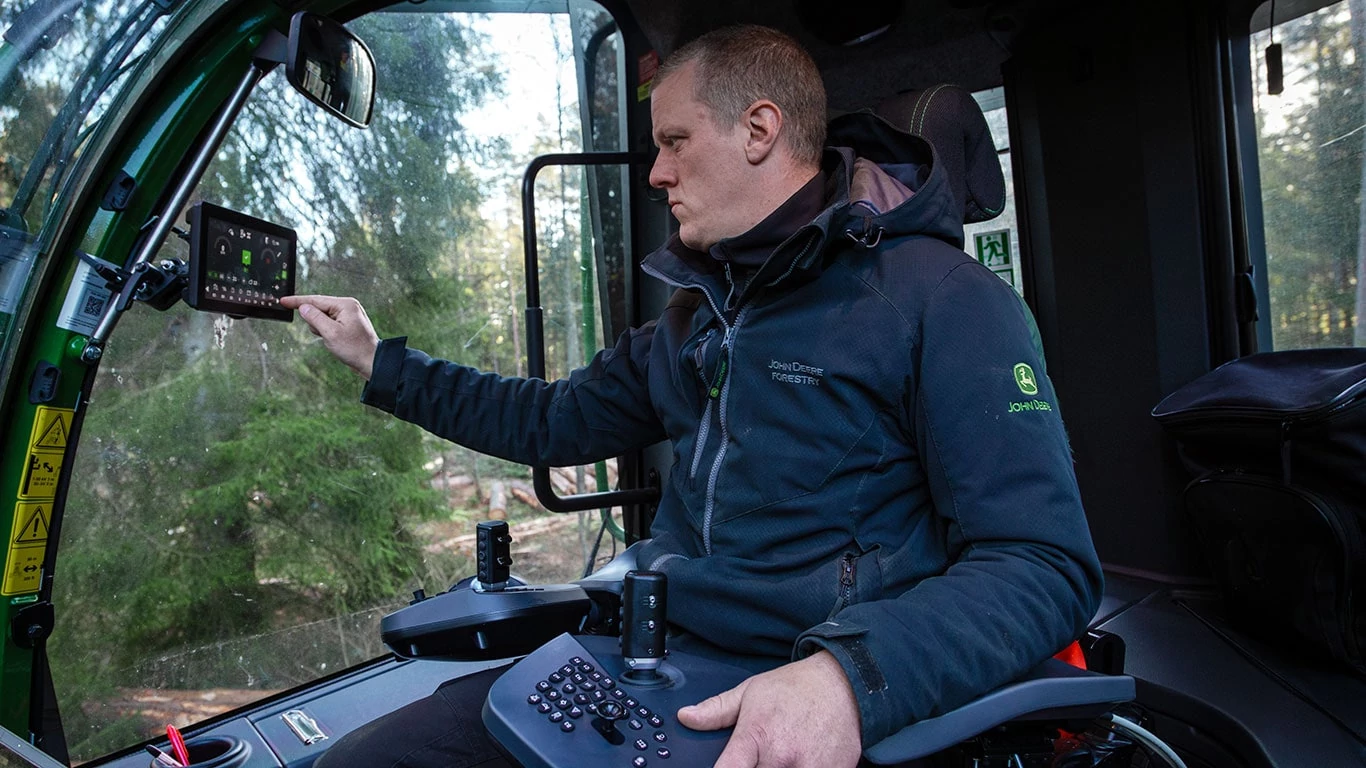

Rotating and Leveling Cabin
The rotating and leveling cabin ensures the best visibility to the working area and ensures operator comfort in all conditions. It allows the operator to sit upright even when the machine is on uneven terrain. The machine can also be driven when the cabin is turned in a sideways position.

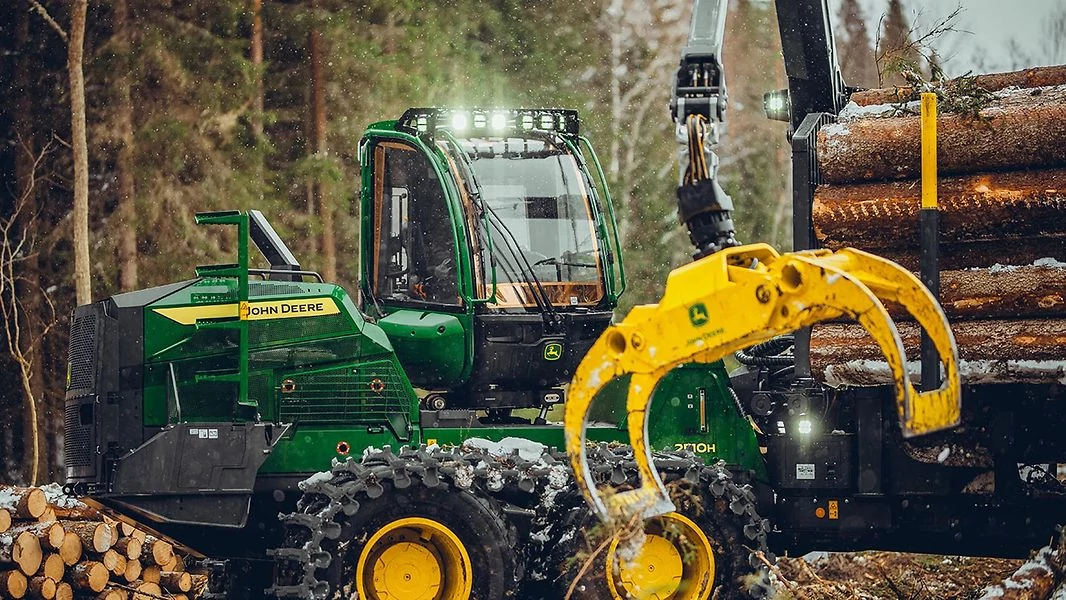

Intelligent Boom Control as Standard
With Intelligent Boom Control (IBC), the operator controls the tip of the boom rather than the individual boom sections. Sensors detect the location of the grapple and the system automatically adjusts the trajectory of the boom and extension

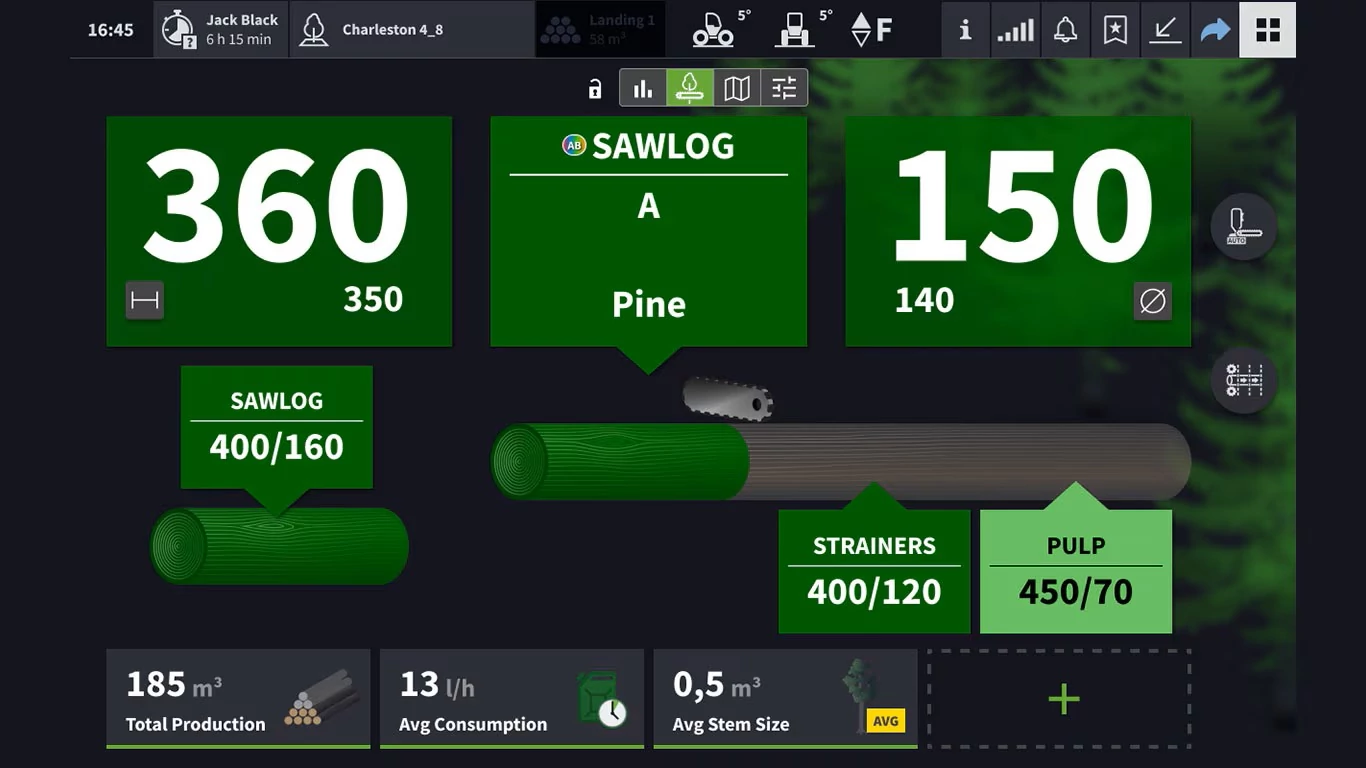

TimberMatic™ H Operating System
The TimberMatic™ H operating system is easy to use and visual. The precise location of stems at the logging site and the progress of the work are displayed on the map in real-time. Intelligent diagnostics take care of the machine’s performance.
Specifications
Machine Dimensions
| Short Wheelbase Length | 5900 mm |
| Short Wheelbase Length | 19.4 ft |
| Long Wheelbase Length | 6900 mm |
| Long Wheelbase Length | 22.6 ft |
| Width from | 2990 mm |
| Width from | 9.8 ft |
| Turning Angle | 44 degrees |
| Transport Height With Tires from | 3950 mm |
| Transport Height With Tires from | 13 ft |
| Ground Clearance - 8 Wheel | 750 mm |
| Ground Clearance - 8 Wheel | 2.5 in. |
| Front Tires - 6-Wheel Options | 34 in. |
| Front Tires - 8-Wheel Options | 26.5 in., 28.5 in. |
| Rear Tires Options | 26.5 in., 28.5 in. |
| Minimum Machine Weight With 6 Wheels | 25500 kg |
| Minimum Machine Weight With 6 Wheels | 56218 lb. |
| Minimum Machine Weight With 8 Wheels | 28200 kg |
| Minimum Machine Weight With 8 Wheels | 62170 lb. |
Boom F10
| Maximum Reach Length | 10.2 m |
| Maximum Reach Length | 33.5 ft |
| Gross Lifting Torque | 210 kNm |
| Gross Lifting Torque | 154887 lb-ft |
| Slewing Torque | 50 kNm |
| Slewing Torque | 36878 lb-ft |
| Slewing Angle | 380 degrees |
Engine
| Load Rating, Standard | 20000 kg |
| Load Rating, Standard | 44092.4 lb. |
| Manufacturer | John Deere |
| Model | John Deere 6090 |
| Engine Speed Used For Net Peak Power | 1900 rpm |
| Net Peak Power At Engine Speed Power | 220 kW |
| Net Peak Power At Engine Speed Power | 295 hp |
| Engine Speed Used For Net Peak Torque | 1400 rpm |
| Net Peak Power At Engine Speed Torque | 1400 Nm |
| Net Peak Power At Engine Speed Torque | 1032.6 lb-ft |
| Fuel Tank Capacity | 380 L |
| Fuel tank capacity | 100.4 gal. |
Hydraulics
| DEF-liquid tank | 28.5 L |
| DEF-liquid tank | 7.5 gal. |
| Hydraulic Tank | 225 L |
| Hydraulic Tank | 59.4 gal. |
Boom F9
| Maximum Reach Length | 10.7 m |
| Maximum Reach Length | 35.1 ft |
| Gross Lifting Torque | 170 kNm |
| Gross Lifting Torque | 125385 lb-ft |
| Slewing Torque | 45 kNm |
| Slewing Torque | 33190 lb-ft |
Load-Space Options (Measurements Are Guidelines Only And May Vary Depending On Production Tolerances)
| Cross-Sectional Load Space Area | 7.5 m² |
| Cross-Sectional Load Space Area | 80.7 sq ft |
| Cross-Sectional Area VLS | 6.5 m² |
| Cross-Sectional Area VLS | 70 sq ft |
Transmission
| Tractive Force | 6W: 235 kN (52,830 lbf) 8W: 260 kN (58,450 lbf) 8W heavy-duty (HD) axles: 285 kN (64,070 lbf) |
Operator Station
| Type | Rotating and leveling |
| Rotating Angle | 290 degrees |
