Features

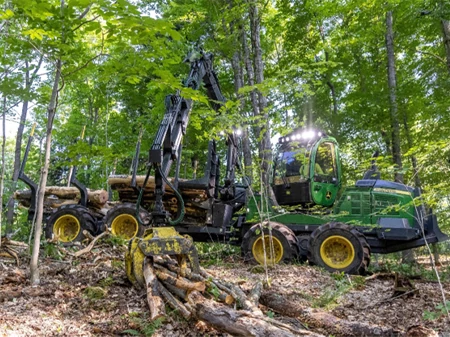

Smooth- and Auto-Leveling Cab
The cabin follows the boom slew, remaining level and providing excellent visibility. The cabin's 290-degree rotation ensures uninterrupted views of boom activities and job sites, reducing the operator's need to turn their head, promoting comfort and operational efficiency.
Intelligent Boom Control (IBC) Smooths Boom Operations
Intelligent Boom Control (IBC) enhances boom operations by making them smoother, more precise, and efficient, increasing operator productivity compared to a regular forwarder. IBC automates the boom functions, allowing operators to control the boom's head direction with a simple lever, offering improved efficiency and control.
TimberMatic™ Maps and TimberManager™
TimberMatic™ Maps offers a real-time production view, optimized routes, and shared machine connectivity, enhancing jobsite awareness. TimberManager™ allows web-based jobsite monitoring, enabling progress tracking and fleet optimization to streamline communication and boost efficiency.
Specifications
Engine
| Load Rating, Standard | 19000 kg |
| Load Rating, Standard | 41888 lb. |
| Manufacturer | John Deere |
| Model | PowerTech™ Plus 6090 |
| Non-Road Emission Standards | EPA Final Tier 4 (FT4)/EU Stage V |
| Engine Speed Used For Net Peak Power | 1900 rpm |
| Net Peak Power At Engine Speed Power | 200 kW |
| Net Peak Power At Engine Speed Power | 268 hp |
| Engine Speed Used For Net Peak Torque | 1400 rpm |
| Net Peak Power At Engine Speed Torque | 1315 Nm |
| Net Peak Power At Engine Speed Torque | 970 lb-ft |
| Fuel Tank Capacity | 185.5 L |
| Fuel tank capacity | 49 gal. |
Boom CF7S
| Maximum Reach Length | 10 m |
| Maximum Reach Length | 32.8 ft |
| Gross Lifting Torque | 143 kNm |
| Gross Lifting Torque | 105500 lb-ft |
| Slewing Torque | 32.5 kNm |
| Slewing Torque | 24000 lb-ft |
| Slewing Angle | 380 degrees |
Machine Dimensions
| Short Wheelbase Length | 5750 mm |
| Short Wheelbase Length | 18 ft |
| Long Wheelbase Length | 6250 mm |
| Long Wheelbase Length | 20 ft |
| Bogie Center - Middle Joint | 2164 mm |
| Bogie Center - Middle Joint | 7.1 ft |
| Short Wheelbase, Middle Joint - Bogie Center | 3597 mm |
| Short Wheelbase, Middle Joint - Bogie Center | 11.8 ft |
| Long Wheelbase, Middle Joint - Bogie Center | 4084 mm |
| Long Wheelbase, Middle Joint - Bogie Center | 13.4 ft |
| Bogie Center - Middle Joint Plus Medium Wheelbase, Middle Joint - Bogie Center | 5761 mm |
| Bogie Center - Middle Joint Plus Medium Wheelbase, Middle Joint - Bogie Center | 18.9 ft |
| Bogie Center - Middle Joint Plus Long Wheelbase, Middle Joint - Bogie Center | 6248 mm |
| Bogie Center - Middle Joint Plus Long Wheelbase, Middle Joint - Bogie Center | 20.5 ft |
| Short Wheelbase, Headboard - Bogie Center | 2621 mm |
| Short Wheelbase, Headboard - Bogie Center | 8.6 ft |
| Long Wheelbase, Headboard - Bogie Center | 3139 mm |
| Long Wheelbase, Headboard - Bogie Center | 10.3 ft |
| Short Wheelbase, Bogie Center - Rear | 2103 mm |
| Short Wheelbase, Bogie Center - Rear | 6.9 ft |
| Long Wheelbase, Bogie Center - Rear | 2500 mm |
| Long Wheelbase, Bogie Center - Rear | 8.2 ft |
| 700-Series Width With Tires | 3078 mm |
| 700-Series Width With Tires | 10.1 ft |
| Turning Angle | 42 degrees |
| Outer Turning Radius With 700-Series Tires And Short Wheelbase | 9418 mm |
| Outer Turning Radius With 700-Series Tires And Short Wheelbase | 30.9 ft |
| Outer Turning Radius With 700-Series Tires And Long Wheelbase | 10150 mm |
| Outer Turning Radius With 700-Series Tires And Long Wheelbase | 33.3 ft |
| Inner Turning Radius With 700-Series Tires And Short Wheelbase | 3078 mm |
| Inner Turning Radius With 700-Series Tires And Short Wheelbase | 10.1 ft |
| Inner Turning Radius With 700-Series Tires And Long Wheelbase | 6218 mm |
| Inner Turning Radius With 700-Series Tires And Long Wheelbase | 20.4 ft |
| Transport Height With Tires | 4023 mm |
| Transport Height With Tires | 13.2 ft |
| Ground Clearance - 8 Wheel | 803 mm |
| Ground Clearance - 8 Wheel | 31.6 in. |
| Front Tires - 6-Wheel Options | 34–16 |
| Front Tires - 8-Wheel Options | 26.5–20 |
| Rear Tires Options | 26.5–20 |
| Minimum Machine Weight With 6 Wheels | 19485 kg |
| Minimum Machine Weight With 6 Wheels | 42957 lb. |
| Minimum Machine Weight With 8 Wheels | 22227 kg |
| Minimum Machine Weight With 8 Wheels | 49002 lb. |
| Approach Angle - 8 Wheel | 39 degrees |
Load-Space Options (Measurements Are Guidelines Only And May Vary Depending On Production Tolerances)
| Headboard - Bogie Center, Plus Bogie Center - Rear, Short Wheelbase Load Space | 5639 mm |
| Headboard - Bogie Center, Plus Bogie Center - Rear, Short Wheelbase Load Space | 18.5 ft |
| Headboard - Bogie Center, Plus Bogie Center - Rear, Long Wheelbase Load Space | 4724 mm |
| Headboard - Bogie Center, Plus Bogie Center - Rear, Long Wheelbase Load Space | 15.5 ft |
| Load-Space Width Minimum | 2957 mm |
| Load-Space Width Minimum | 9.7 ft |
| Load-Space Width Maximum | 3597 mm |
| Load-Space Width Maximum | 11.8 ft |
| Load-Space Width VLS | 3000 mm |
| Load-Space Width VLS | 9 ft |
| Cross-Sectional Load Space Area | 6.8 m² |
| Cross-Sectional Area VLS | 6.8 m² |
| Cross-Sectional Area VLS | 73.2 sq ft |
Transmission
| Type | Hydrostatic-mechanical, 2-speed gearbox |
| Tractive Force | 230 kN |
| Tractive Force | 51704 lbf |
| Gear 1 Travel Speed Range | 7 km/h |
| Gear 1 Travel Speed Range | 4.3 mph |
| Gear 2 Travel Speed Range | 21 km/h |
| Gear 2 Travel Speed Range | 13 mph |
Axles And Bogies
| Type | Hydromechanical differential lock in front and rear |
| Axles Front | Single rigid axle, non-balanced- or balanced-gear heavy-duty (HD) bogie axle |
| Axles Rear | Balanced-gear HD bogie axle or unbalanced long bogie (LGP) |
Hydraulics
| Type | Load sensing |
| Pump Capacity | 180.26 cm³ |
| Pump Capacity | 11 cu in. |
| Operating Pressure | 24 MPa |
| Operating pressure | 3480 psi |
| Hydraulic Tank | 185.5 L |
| Hydraulic Tank | 49 gal. |
Brakes
| Parking/Emergency | Spring actuated |
| Service | Hydraulically actuated, oil-immersed, multi-disc |
| Frame | Automated |
Operator Station
| Type | Fixed or rotating and leveling |
| Rotating Angle | 290 degrees |
| Sideways Tilt | 10 degrees |
| Forward And Backward Tilt | 6 degrees |
Boom CF8
| Maximum Reach Length | 8.5 m |
| Maximum Reach Length | 27.9 ft |
| Gross Lifting Torque | 151 kNm |
| Gross Lifting Torque | 111371.7 lb-ft |
| Slewing Torque | 41 kNm |
| Slewing Torque | 30240 lb-ft |
| Slewing Angle | 380 degrees |
Steering
| Type | Proportional steering with electrical joystick |
| Turning Angle | 42 degrees |
Precision Forestry
| Software/Operating System Type | PC / Windows®-based TimberMatic™ F-16 |
| Standard Boom Control Aid | Smooth Boom Control (SBC) algorithm |
| Optional Boom Control Aid | Intelligent Boom Control (IBC) on CF7, CF7S, and CF8 |
Electrical
| Voltage | 24 V |
| Batteries | 149 amp-hr |
| Alternator | 150 amp |
| Lights | Halogen |
