Features

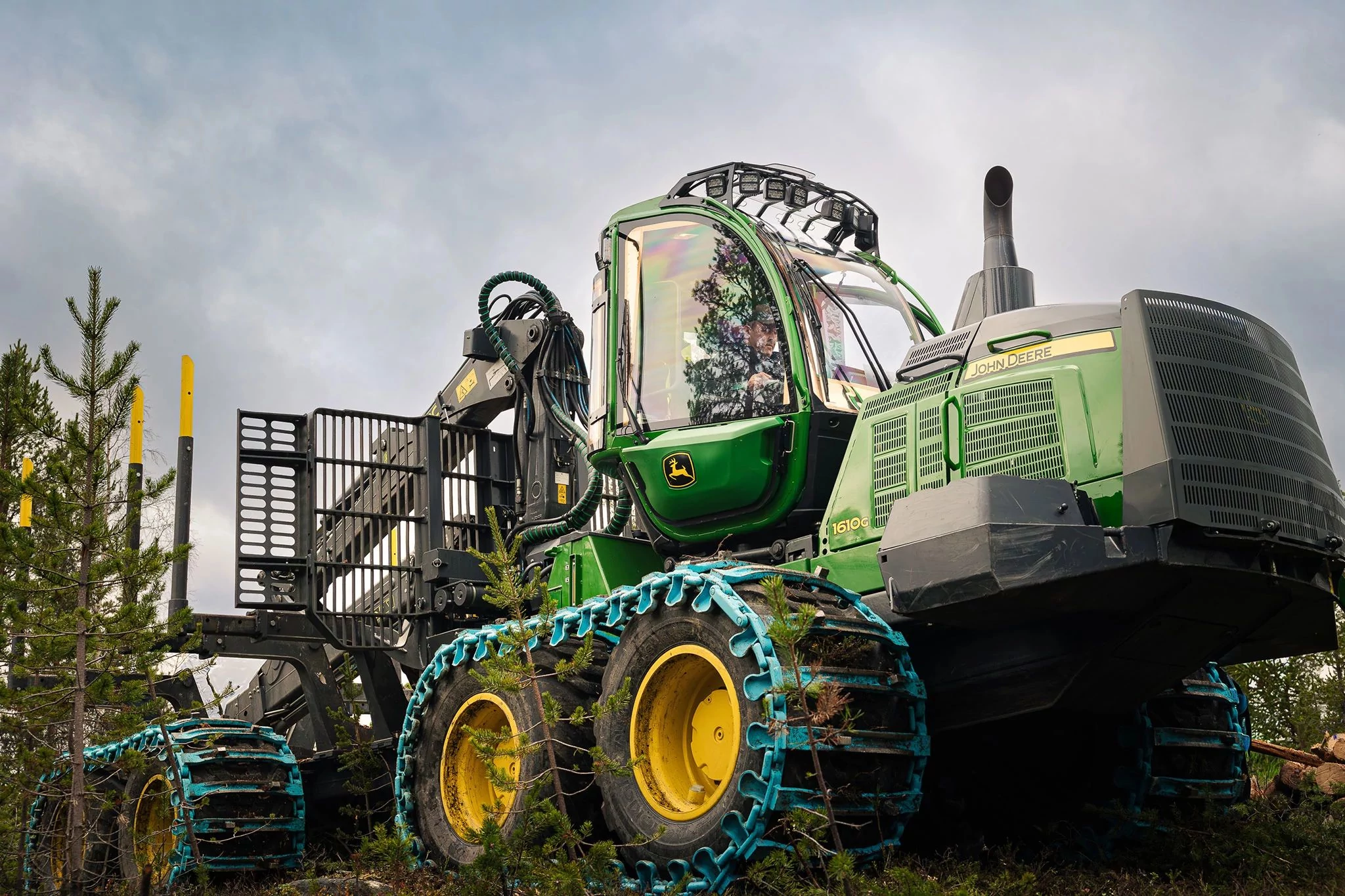

Large and Versatile 6.1 m² Load Space
Thanks to its configurable load space, the 1610G is narrow and agile at thinning sites but offers maximum capacity for use in regeneration felling. The integrated sorting system speeds up and facilitates the handling of different types of timber, increasing the smoothness and efficiency of work.

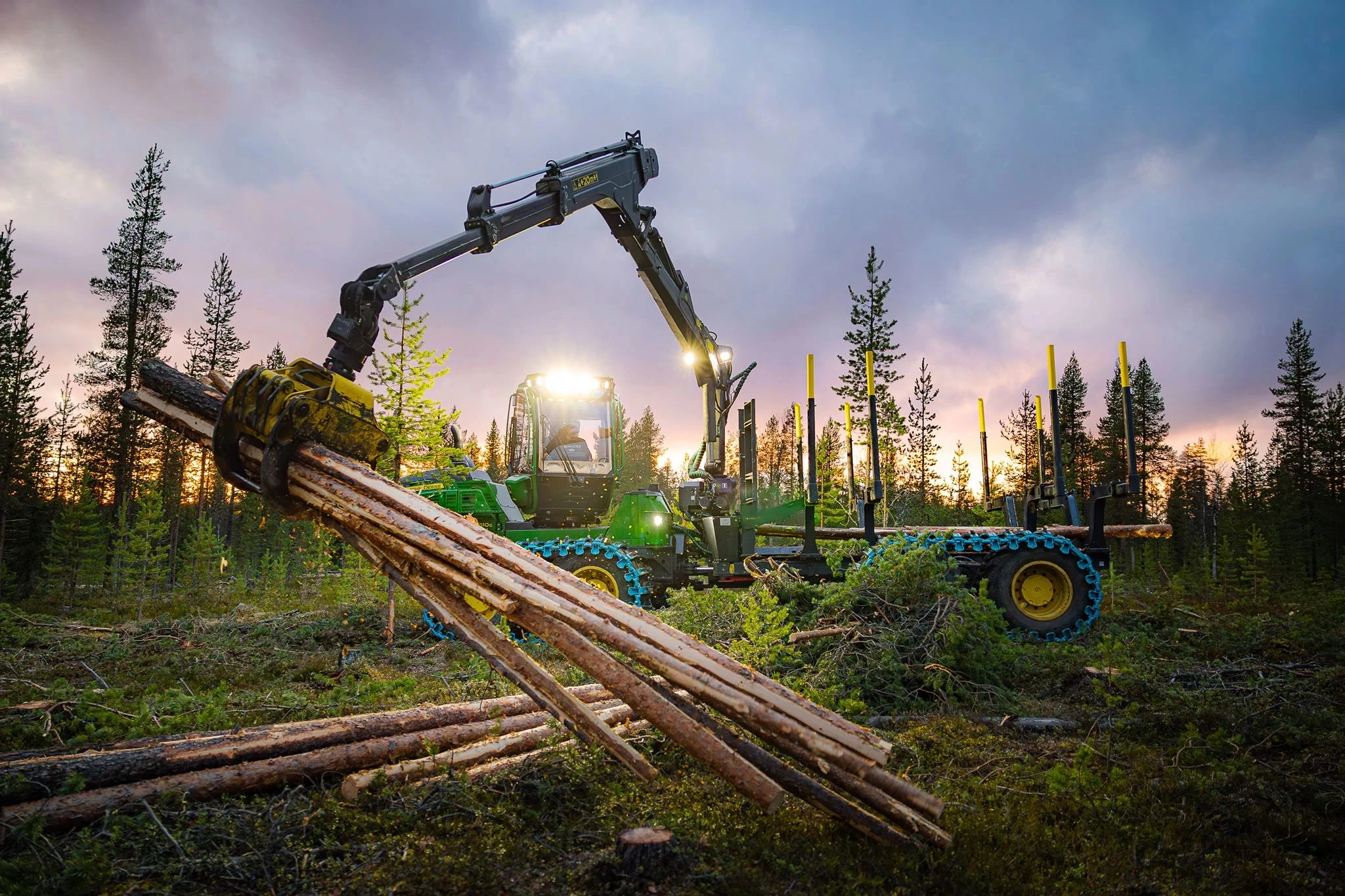

Precise and Efficient Boom
At the heart of the 1610G’s productivity is the standard CF7S XI Power+ boom. The 10-meter extension with internal hoses ensures reliable boom performance, reduces wear and tear, and facilitates thinning work in dense forests.

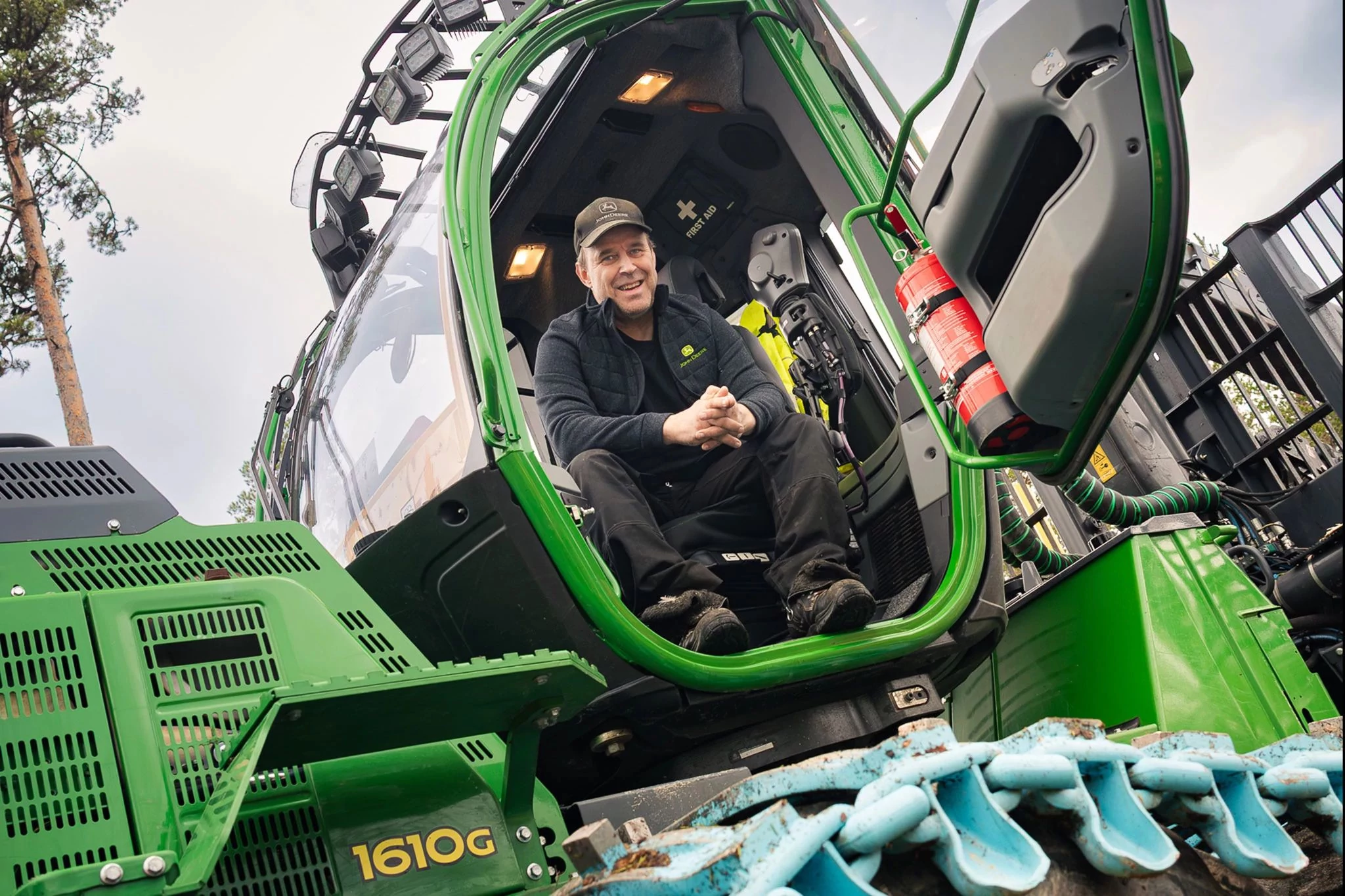

The Rotating and Leveling Cabin
The cabin is designed with the operators in mind to support concentration and work capacity. Excellent visibility facilitates precision work at different stages. Working position remains stable and the advanced dampening system significantly reduces vibration, minimizing physical strain during work.
Specifications
Machine Dimensions
| Short Wheelbase Length | 5300 mm |
| Short Wheelbase Length | 17.4 ft |
| Long Wheelbase Length | 5900 mm |
| Long Wheelbase Length | 19.4 ft |
| Width from | 2950 mm |
| Width from | 9.7 ft |
| Transport Height With Tires from | 3800 mm |
| Transport Height With Tires from | 12.5 ft |
| Ground Clearance - 8 Wheel | 650 mm |
| Ground Clearance - 8 Wheel | 25.6 in. |
| Front Tires - 6-Wheel Options | 86.4 cm (34 in.) |
| Front Tires - 8-Wheel Options | 67.3 cm (26.5 in.) |
| Rear Tires Options | 67.3 cm (26.5 in.) |
| Minimum Machine Weight With 6 Wheels | 16400 kg |
| Minimum Machine Weight With 6 Wheels | 36156 lb. |
| Minimum Machine Weight With 8 Wheels | 18300 kg |
| Minimum Machine Weight With 8 Wheels | 40345 lb. |
Engine
| Load Rating, Standard | 16000 kg |
| Load Rating, Standard | 35273 lb. |
| Manufacturer | John Deere |
| Model | 6068 |
| Engine Speed Used For Net Peak Power | 1800 rpm |
| Net Peak Power At Engine Speed Power | 187 kW |
| Net Peak Power At Engine Speed Power | 251 hp |
| Engine Speed Used For Net Peak Torque | 1500 rpm |
| Net Peak Power At Engine Speed Torque | 1025 Nm |
| Net Peak Power At Engine Speed Torque | 756 lb-ft |
| Fuel Tank Capacity | 167 L |
| Fuel tank capacity | 44 gal. |
Boom CF7S
| Maximum Reach Length | 10 m |
| Maximum Reach Length | 32.8 ft |
| Gross Lifting Torque | 143 kNm |
| Gross Lifting Torque | 105471 lb-ft |
| Slewing Torque | 32 kNm |
| Slewing Torque | 23602 lb-ft |
| Slewing Angle | 380 degrees |
Transmission
| Tractive Force | 205 kN |
| Tractive Force | 46086 lbf |
Boom CF7
| Maximum Reach Length | 8.5 m |
| Maximum Reach Length | 27.9 ft |
| Gross Lifting Torque | 125 kNm |
| Gross Lifting Torque | 92195 lb-ft |
| Slewing Torque | 32 kNm |
| Slewing Torque | 23602 lb-ft |
| Slewing Angle | 380 degrees |
Hydraulics
| DEF-liquid tank | 16 L |
| DEF-liquid tank | 4.23 gal. |
| Hydraulic Tank | 161 L |
| Hydraulic Tank | 42.5 gal. |
Load-Space Options (Measurements Are Guidelines Only And May Vary Depending On Production Tolerances)
| Cross-Sectional Load Space Area | 6.1 m² |
| Cross-Sectional Load Space Area | 65.7 sq ft |
Steering
| Turning Angle | 44 degrees |
