John Deere 1010G

New Products / John Deere / John Deere Products / Forestry Equipment / Forwarders / 1010G

Double tap to zoom



Features

Intelligent Boom Control (IBC) Smooths Boom Operations

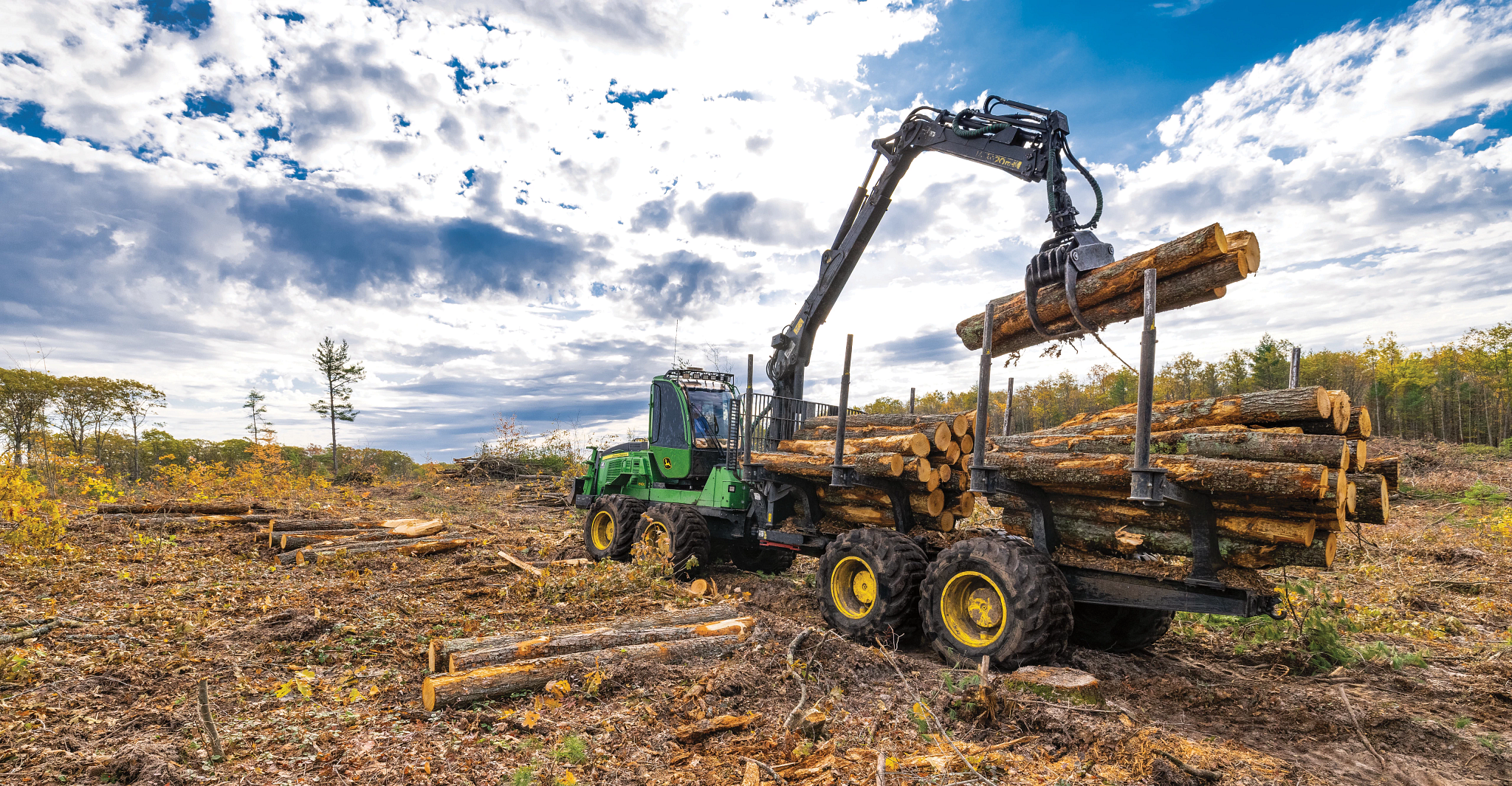

Forestry forwarder loading cut logs onto its trailer using a hydraulic boom and grapple in a harvested timber area under a partly cloudy sky

Intelligent Boom Control (IBC) enhances boom operations by making them smoother, more precise, and efficient, increasing operator productivity compared to a regular forwarder. IBC automates the boom functions, allowing operators to control the boom's head direction with a simple lever, offering improved efficiency and control.

Compact Capability

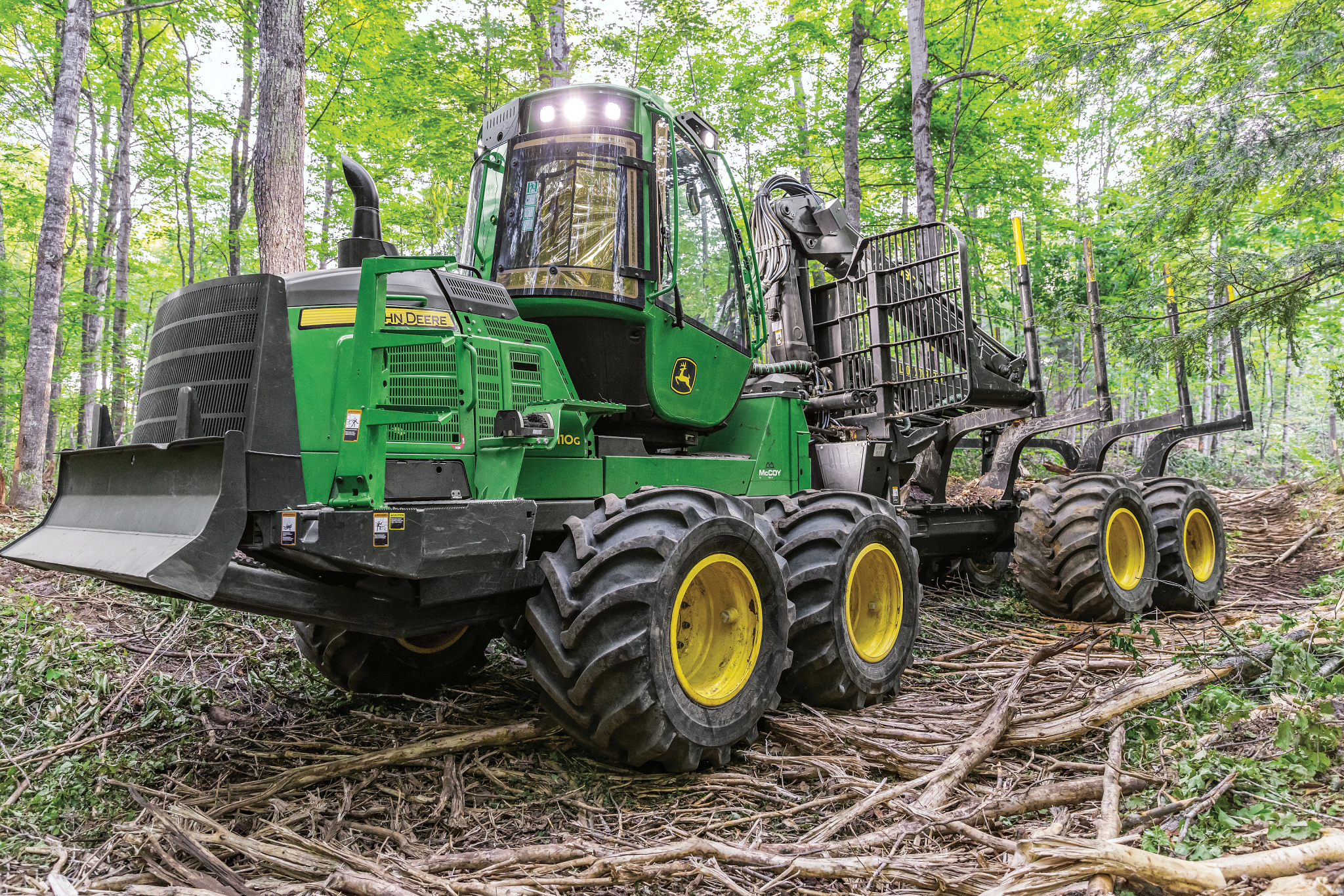

A green forestry forwarder with large articulated tires in a wooded area, carrying a rear log‑loading cradle and surrounded by fallen branches

This forwarder features a compact design. These compact dimensions provide the agility needed to maximize productivity and power in the most demanding conditions. The ability to get into tight areas to gather harvested timber helps increase productivity.

TimberMatic™ Maps and TimberManager™

A rugged touchscreen monitor displaying a GPS field map with highlighted rows, guidance paths, and machine location

TimberMatic™ Maps offers a real-time production view, optimized routes, and shared machine connectivity, enhancing jobsite awareness. TimberManager™ allows web-based jobsite monitoring, enabling progress tracking and fleet optimization to streamline communication and boost efficiency.

Specifications

Boom CF5

Maximum Reach Length10 m
Maximum Reach Length32.8 ft
Gross Lifting Torque102 kNm
Gross Lifting Torque75000 lb-ft
Slewing Torque24.4 kNm
Slewing Torque18000 lb-ft
Slewing Angle380 degrees

Machine Dimensions

Short Wheelbase Length4400 mm
Short Wheelbase Length14 ft
Medium Wheelbase Length4800 mm
Medium Wheelbase Length15 ft
Long Wheelbase Length5200 mm
Long Wheelbase Length17 ft
Bogie Center - Middle Joint1798 mm
Bogie Center - Middle Joint5.9 ft
Short Wheelbase, Middle Joint - Bogie Center2591 mm
Short Wheelbase, Middle Joint - Bogie Center8.5 ft
Medium Wheelbase, Middle Joint - Bogie Center2987 mm
Medium Wheelbase, Middle Joint - Bogie Center9.8 ft
Long Wheelbase, Middle Joint - Bogie Center3414 mm
Long Wheelbase, Middle Joint - Bogie Center11.2 ft
Bogie Center - Middle Joint Plus Short Wheelbase, Middle Joint - Bogie Center4389 mm
Bogie Center - Middle Joint Plus Short Wheelbase, Middle Joint - Bogie Center14.4 ft
Bogie Center - Middle Joint Plus Medium Wheelbase, Middle Joint - Bogie Center4785 mm
Bogie Center - Middle Joint Plus Medium Wheelbase, Middle Joint - Bogie Center15.7 ft
Bogie Center - Middle Joint Plus Long Wheelbase, Middle Joint - Bogie Center5212 mm
Bogie Center - Middle Joint Plus Long Wheelbase, Middle Joint - Bogie Center17.1 ft
Short Wheelbase, Headboard - Bogie Center1798 mm
Short Wheelbase, Headboard - Bogie Center5.9 ft
Medium Wheelbase, Headboard - Bogie Center2195 mm
Medium Wheelbase, Headboard - Bogie Center7.2 ft
Long Wheelbase, Headboard - Bogie Center2591 mm
Long Wheelbase, Headboard - Bogie Center8.5 ft
Bogie Center - Rear1920 mm
Bogie Center - Rear6.3 ft
600-Series Width With 24.5 Tires2560 mm
600-Series Width With 24.5 Tires8.4 ft
600-Series Width With 26.5 Tires2591 mm
600-Series Width With 26.5 Tires8.5 ft
700-Series Width With Tires2790 mm
700-Series Width With Tires9.15 ft
710-Series Width With 24.5 Tires2774 mm
710-Series Width With 24.5 Tires9.1 ft
710-Series Width With 26.5 Tires2804 mm
710-Series Width With 26.5 Tires9.2 ft
800-Series Width With Tires2926 mm
800-Series Width With Tires9.6 ft
Turning Angle44 degrees
Outer Turning Radius With 700-Series Tires And Short Wheelbase7100 mm
Outer Turning Radius With 700-Series Tires And Short Wheelbase23 ft
Outer Turning Radius With 700-Series Tires And Medium Wheelbase7650 mm
Outer Turning Radius With 700-Series Tires And Medium Wheelbase25 ft
Outer Turning Radius With 700-Series Tires And Long Wheelbase8250 mm
Outer Turning Radius With 700-Series Tires And Long Wheelbase27 ft
Outer Turning Radius With 710 x 24.5-Series Tires And Short Wheelbase7102 mm
Outer Turning Radius With 710 x 24.5-Series Tires And Short Wheelbase23.3 ft
Outer Turning Radius With 710 x 24.5-Series Tires And Medium Wheelbase7650 mm
Outer Turning Radius With 710 x 24.5-Series Tires And Medium Wheelbase25.1 ft
Outer Turning Radius With 710 x 24.5-Series Tires And Long Wheelbase8230 mm
Outer Turning Radius With 710 x 24.5-Series Tires And Long Wheelbase27 ft
Inner Turning Radius With 710 x 24.5-Series Tires And Short Wheelbase3871 mm
Inner Turning Radius With 710 x 24.5-Series Tires And Short Wheelbase12.7 ft
Inner Turning Radius With 710 x 24.5-Series Tires And Medium Wheelbase4298 mm
Inner Turning Radius With 710 x 24.5-Series Tires And Medium Wheelbase14.1 ft
Inner Turning Radius With 710 x 24.5-Series Tires And Long Wheelbase4694 mm
Inner Turning Radius With 710 x 24.5-Series Tires And Long Wheelbase15.4 ft
Transport Height With Tires3700 mm
Transport Height With Tires12 ft
Transport Height With 24.5 Tires3688 mm
Transport Height With 24.5 Tires12.1 ft
Transport Height With 26.5 Tires3718 mm
Transport Height With 26.5 Tires12.2 ft
Ground Clearance - 8 Wheel650 mm
Ground Clearance - 8 Wheel2.1 in.
Ground Clearance - 8 Wheel, With 24.5 Tires635 mm
Ground Clearance - 8 Wheel, With 24.5 Tires25 in.
Ground Clearance - 8 Wheel, With 26.5 Tires660 mm
Ground Clearance - 8 Wheel, With 26.5 Tires26 in.
Front Tires - 6-Wheel Options34–14/24.5–20/26.5–20
Front Tires - 8-Wheel Options34–14/24.5–20/26.5–20
Rear Tires Options24.5–20/26.5–20
Minimum Machine Weight With 6 Wheels14950 kg
Minimum Machine Weight With 6 Wheels32959 lb.
Minimum Machine Weight With 8 Wheels16600 kg
Minimum Machine Weight With 8 Wheels36596.7 lb.
Approach Angle - 8 Wheel41 degrees
Approach Angle With 24.5 Tires38 degrees
Approach Angle With 26.5 Tires40 degrees

Engine

Load Rating, Standard11000 kg
Load Rating, Standard24251 lb.
ManufacturerJohn Deere
ModelPowerTech Plus 4045
Non-Road Emission StandardsEPA Final Tier 4/EU Stage V
Engine Speed Used For Net Peak Power1900 rpm
Net Peak Power At Engine Speed Power132.7 kW
Net Peak Power At Engine Speed Power178 hp
Engine Speed Used For Net Peak Torque1600 rpm
Net Peak Power At Engine Speed Torque729.4 Nm
Net Peak Power At Engine Speed Torque538 lb-ft
Fuel Tank Capacity150 L
Fuel tank capacity 39.6 gal.

Transmission

TypeHydrostatic-mechanical, 2-speed gearbox
Tractive Force With 24.5 Tires150 kN
Tractive Force With 24.5 Tires33721 lbf
Tractive Force With 26.5 Tires160 kN
Tractive Force With 26.5 Tires35969 lbf
Gear 1 Travel Speed Range7.6 km/h
Gear 1 Travel Speed Range4.7 mph
Gear 2 Travel Speed Range23 km/h
Gear 2 Travel Speed Range14.3 mph

Load-Space Options (Measurements Are Guidelines Only And May Vary Depending On Production Tolerances)

Headboard - Bogie Center, Plus Bogie Center - Rear, Short Wheelbase Load Space3688 mm
Headboard - Bogie Center, Plus Bogie Center - Rear, Short Wheelbase Load Space12.1 ft
Headboard - Bogie Center, Plus Bogie Center - Rear, Medium Wheelbase Load Space4084 mm
Headboard - Bogie Center, Plus Bogie Center - Rear, Medium Wheelbase Load Space13.4 ft
Headboard - Bogie Center, Plus Bogie Center - Rear, Long Wheelbase Load Space4481 mm
Headboard - Bogie Center, Plus Bogie Center - Rear, Long Wheelbase Load Space14.7 ft
Load-Space Width Minimum2500 mm
Load-Space Width Minimum8.2 ft
Load-Space Width Maximum3150 mm
Load-Space Width Maximum10 ft
Load-Space Width VLS2550 mm
Load-Space Width VLS8 ft
Cross-Sectional Load Space Area4.4 m²
Cross-Sectional Load Space Area47.4 sq ft

Axles And Bogies

TypeHydromechanical differential lock in front and rear
Axles FrontSingle rigid axle, non-balanced- or balanced-gear bogie axle
Axles RearBalanced-gear bogie axle or unbalanced long bogie (LGP) (available only with 26.5 axles)

Hydraulics

TypeLoad sensing
Pump Capacity140 cm³
Pump Capacity8.5 cu in.
Operating Pressure24 MPa
Operating pressure 3480 psi
Hydraulic Tank150 L
Hydraulic Tank39.6 gal.

Brakes

Parking/EmergencySpring actuated
ServiceHydraulically actuated, oil-immersed, multi-disc
FrameAutomated

Operator Station

TypeFixed, rotating, or rotating and leveling
Rotating Angle290 degrees
Sideways Tilt10 degrees
Forward And Backward Tilt6 degrees

Steering

TypeProportional steering with electrical joystick
Turning Angle44 degrees

Precision Forestry

Software/Operating System TypeWindows®-based TimberMatic™ F-16 with high performance / Standard PC
Standard Boom Control AidSmooth Boom Control (SBC) algorithm
Optional Boom Control AidIntelligent Boom Control (IBC) on CF5

Electrical

Voltage 24 V
Batteries 115 amp-hr
Alternator 150 amp
LightsHalogen or LED
