John Deere H219
Double tap to zoom
H219
Forestry Attachments, Accessories and Implements
Overview:

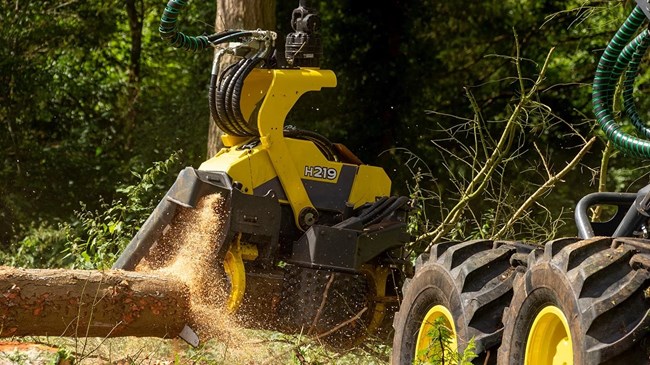

H219 is intended for large trees.
- Dual-Speed Feeding
- Powerful
- Durable
- Easy Maintenance
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Loan Calculator
Use the Loan Calculator to help you determine the financing and payment options that are best for you.
**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. You should obtain personal advice from qualified professionals. This information is provided for illustrative purposes only and does not constitute an application. This notice does not guarantee loan approval, nor is it an offer or commitment to make a loan to you on the above terms.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Share This Product:
Features
Delimbing Quality
The ideal geometry of the harvester heads, along with advanced feeding, stem holding, hydraulics, mechanics and automation, ensure high delimbing quality.
Measuring Accuracy
John Deere harvester heads provide the best measuring accuracy in the market. This is a result of seamless co-functioning of the technology of the harvesters and harvester heads – something that is characteristic of John Deere.
High Saw Performance
The John Deere-specific saw unit offers high cutting performance, thanks to the excellent automation, mechanics and hydraulics of John Deere. It also features easy saw chain change, reliable saw chain tensioner, and a wide range of saw bars and lubrication systems.
Specifications
Feed System, Two-Wheel-Drive
| Gross Feed Force | 944 / 1295-cc motors: 28.1 / 37.7 kN 1050 / 1404-cc motors: 31.2 / 41.6 kN |
| Gross Feed Force | 944 / 1295-cc motors: 6317.1 / 8475.3 lb-ft 1050 / 1404-cc motors: 7014 / 9352.1 lb-ft |
| Maximum Feed Speed | 4.5-6.0 m/s |
| Maximum Feed Speed | 14.8-19.7 fps |
| Maximum Roller Opening | 760 mm |
| Maximum Roller Opening | 30 in. |
Delimbing
| Delimbing Knives | 4 moving, 1 fixed |
| Delimbing Diameter, Tip To Tip | 510 mm |
| Delimbing Diameter, Tip To Tip | 20 in. |
| Maximum Opening Upper Knives | 800 mm |
| Maximum Opening Upper Knives | 32 in. |
| Maximum Opening Lower Knives | 870 mm |
| Maximum Opening Lower Knives | 34 in. |
Hydraulic System
| Maximum Operating Pressure | 28 MPa |
| Maximum Operating Pressure | 4061.1 psi |
| Recommended Pump Capacity | 320-380 L/min |
| Recommended Pump Capacity | 84.5-100.4 gpm |
Felling/Cutting
| SuperCut 100S Saw Unit, Automatic Chain Tensioning | Standard |
| Maximum Cut Diameter | 750 mm |
| Maximum Cut Diameter | 29.5 in. |
| Length Of Saw Bar | 900 mm |
| Length Of Saw Bar | 35.4 in. |
| Chain Type | 404 |
| Chain Speed | 40 m/s |
| Chain Speed | 131 fpm |
Dimensions
| Width, Head Open | 1900 mm |
| Width, Head Open | 75 in. |
| Width, Head Closed | 1190 mm |
| Width, Head Closed | 46.9 in. |
| Height Without Rotator and Link | 1970 mm |
| Height Without Rotator and Link | 77.6 in. |
| Weight Without Rotator and Link | 1930 kg |
| Weight Without Rotator and Link | 4255 lb. |
Optional Equipment
| Stump Treatment | Yes |
| Multi-Tree-Handling (MTH) | No |
| Mense Feed Rollers | Yes |
| Steel Thumbnail Feed Rollers | Yes |
| Steel Ribbed Feed Rollers | No |
| Hydraulic Hose Kit | Yes |
| Top Saw | Yes |
Tank Capacities
| Color Marking | 1.9 L |
| Color Marking | Yes |
| Color Marking | 0.5 gal. |
| Chain Oil | 8.8 L |
| Chain Oil | 2.3 gal. |
