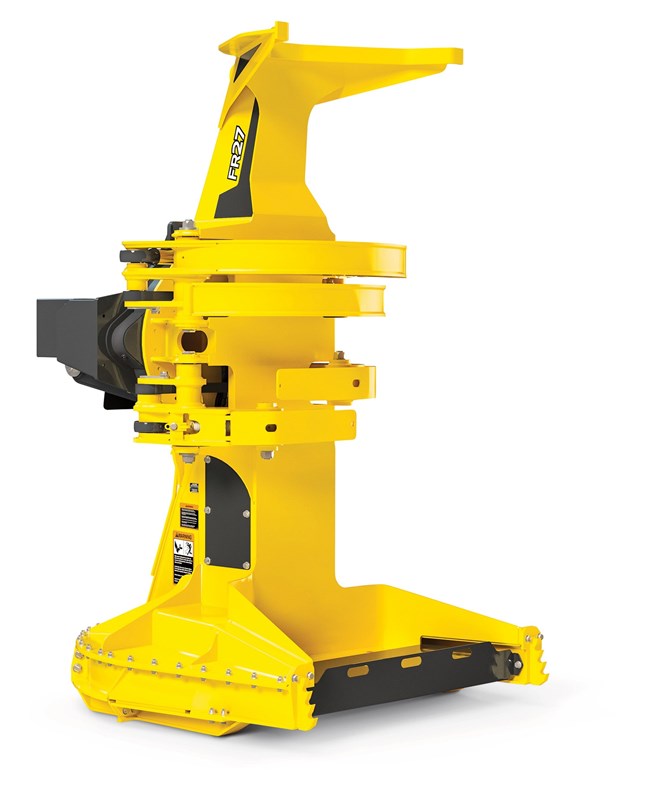

John Deere FR27

New Products / John Deere / John Deere Products / Forestry Equipment / Forestry Attachments, Accessories and Implements / FR27

Double tap to zoom



Features

Maximum Cutting Capacity

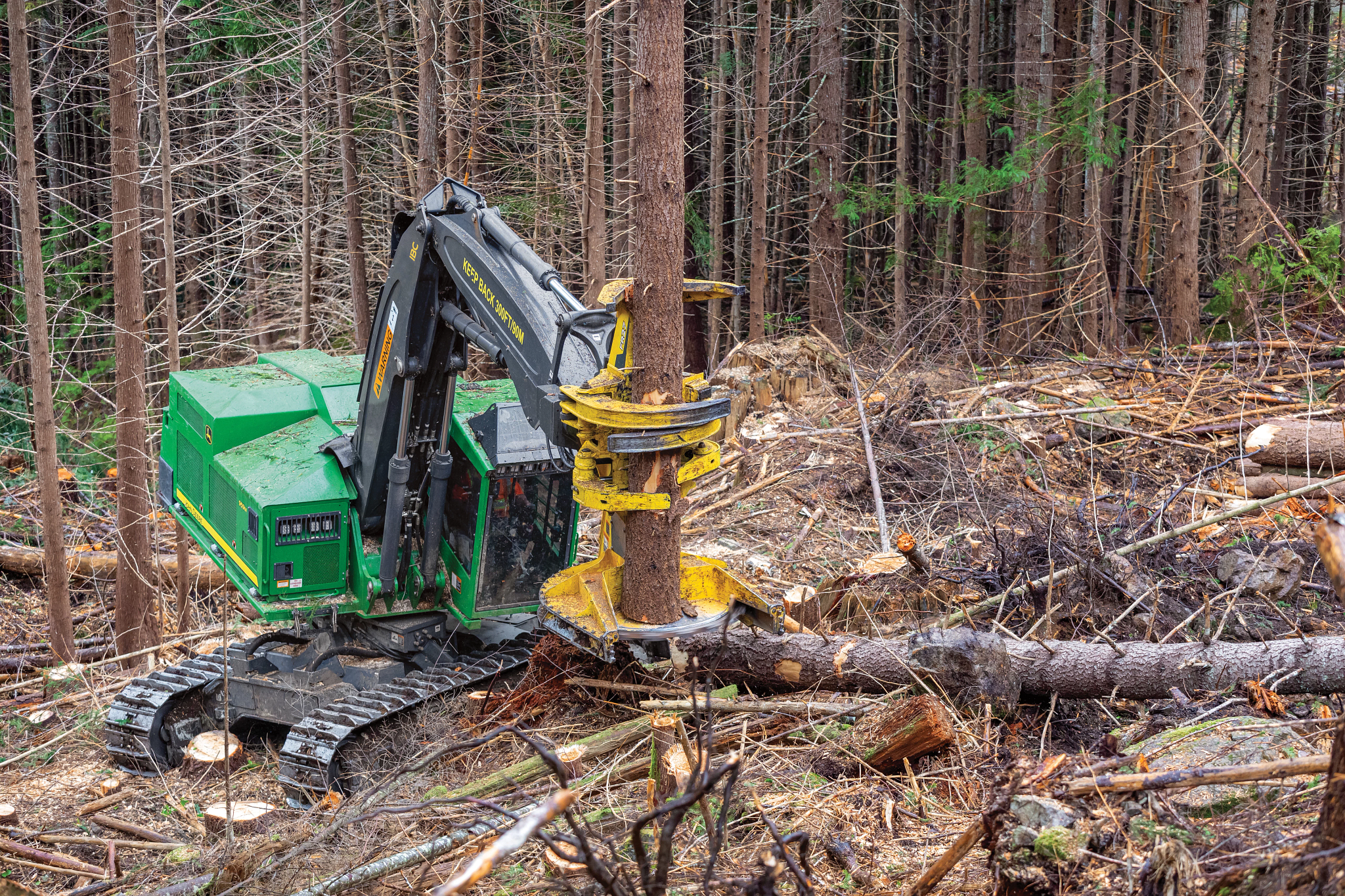

John Deere tracked forestry machine grips and cuts a tree with a harvesting head in a logged forest area, surrounded by felled timber, branches, and dense stands of tall trees on uneven terrain.

Handle the largest timber with industry-leading single-cut capacity for high-impact performance.

Move More Wood per Pass

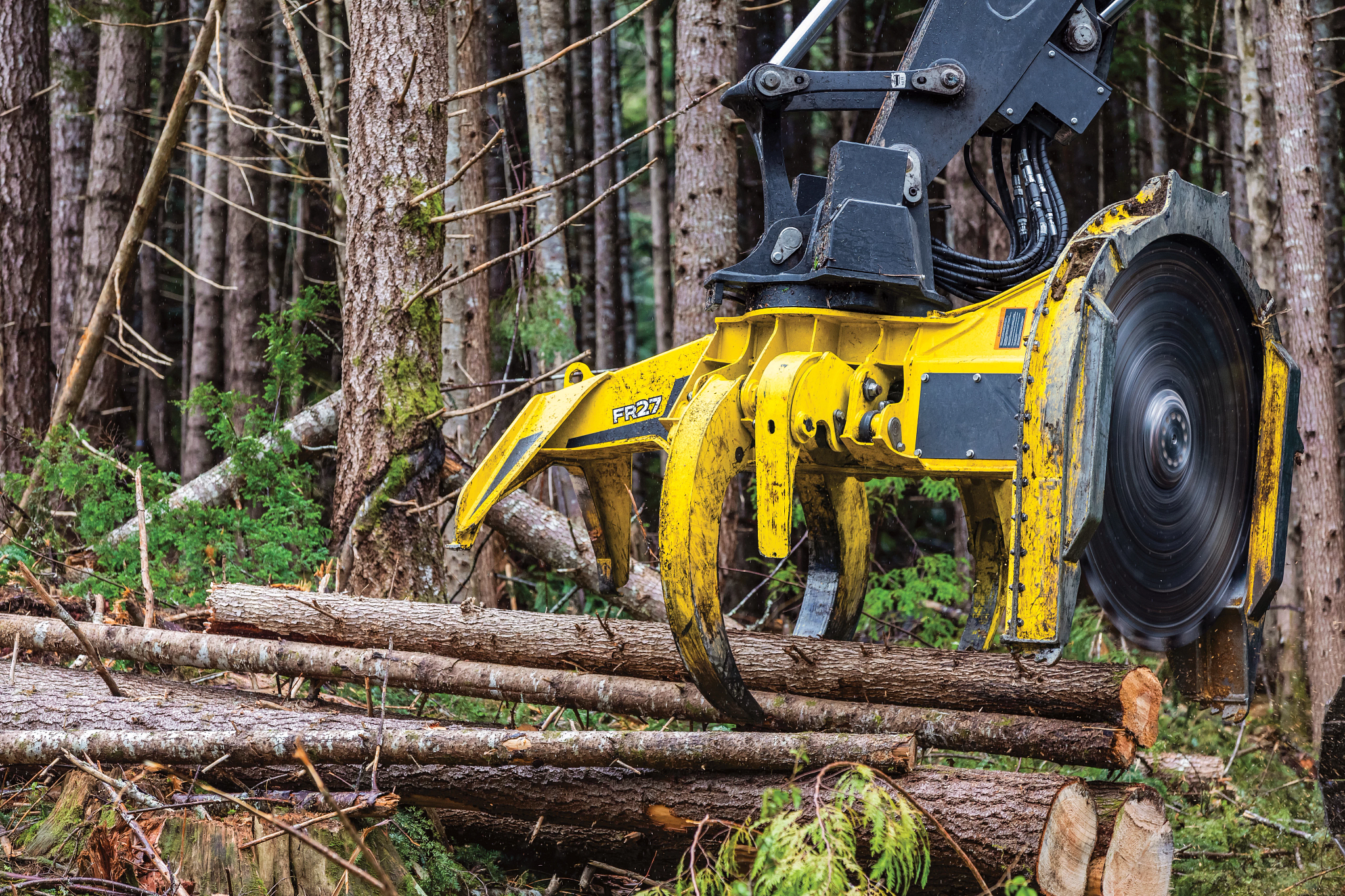

Close-up of a forestry cutting head sawing through a log, with blades and gripping arms visible, surrounded by stacked timber and dense forest vegetation in the background.

Boost productivity with a large accumulation area designed for high-volume operations.

Built for Extreme Conditions

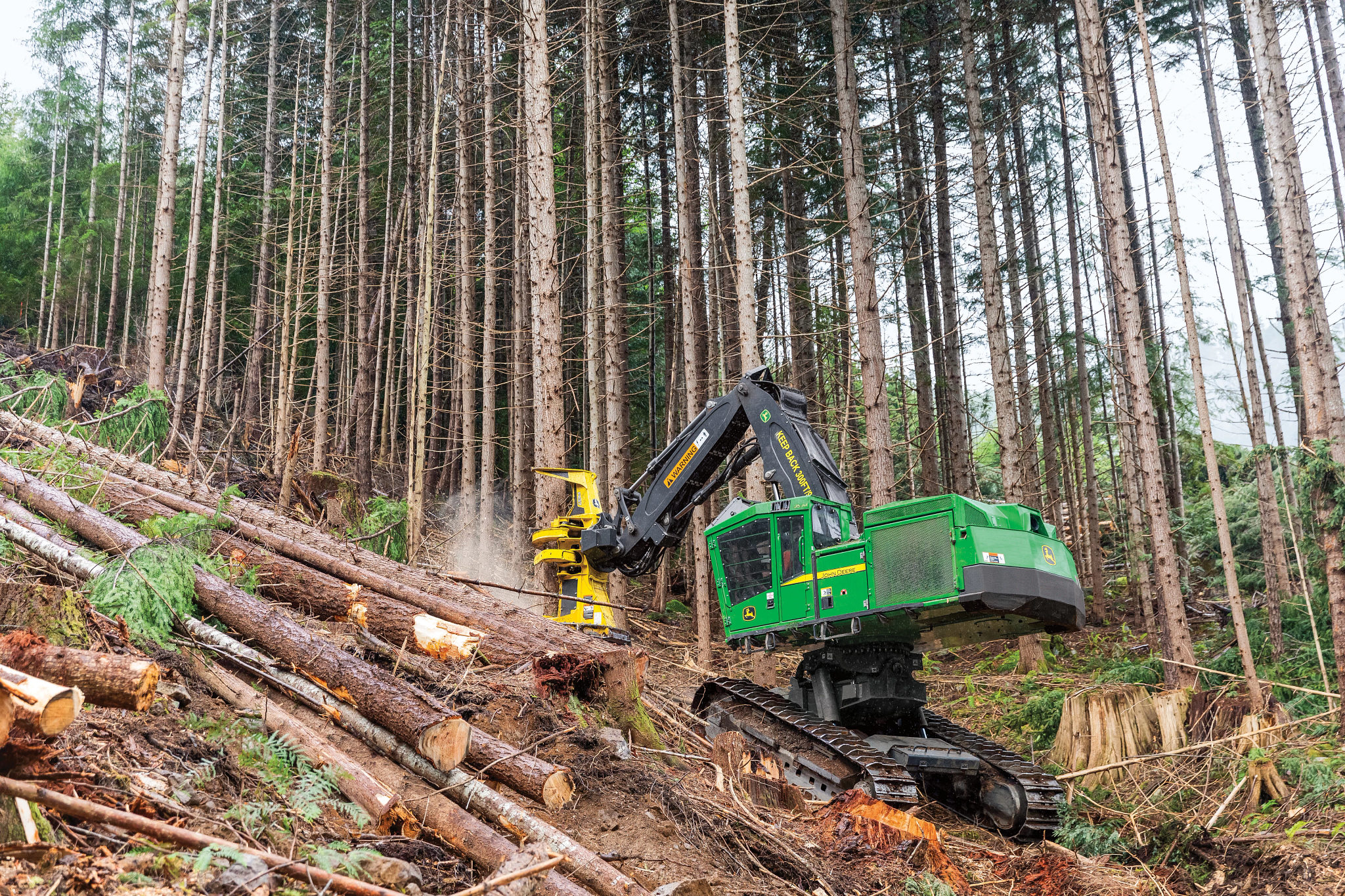

John Deere tracked harvester processes stacked logs on a steep forest slope, using a yellow cutting head amid tall pine trees, with cut timber and debris covering the uneven ground.

Maintain uptime in tough environments with a durable, high-capacity design.

Specifications

Dimensions

Maximum Cutting Capacity27 in.
Maximum Cutting Capacity685.8 mm
Maximum Accumulation Capacity7.5 sq ft
Maximum Accumulation Capacity0.7 m²
Opening At Front Of Housing54.4 in.
Opening At Front Of Housing1831.8 mm
Blade Diameter66 in.
Blade Diameter1676.4 mm
Number Of Teeth18
Saw Speed1000 rpm
Wrist Rotation300 degree (angle)
Width At Saw Housing75.1 in.
Width At Saw Housing1907.5 mm
Height121.8 in.
Height3093.7 mm
Weight Measure Inclusions Or ExclusionsAdapter and wrist
Weight9310 lb.
Weight4223 kg
Boom Requirements6.1-m (20-ft) boom only
