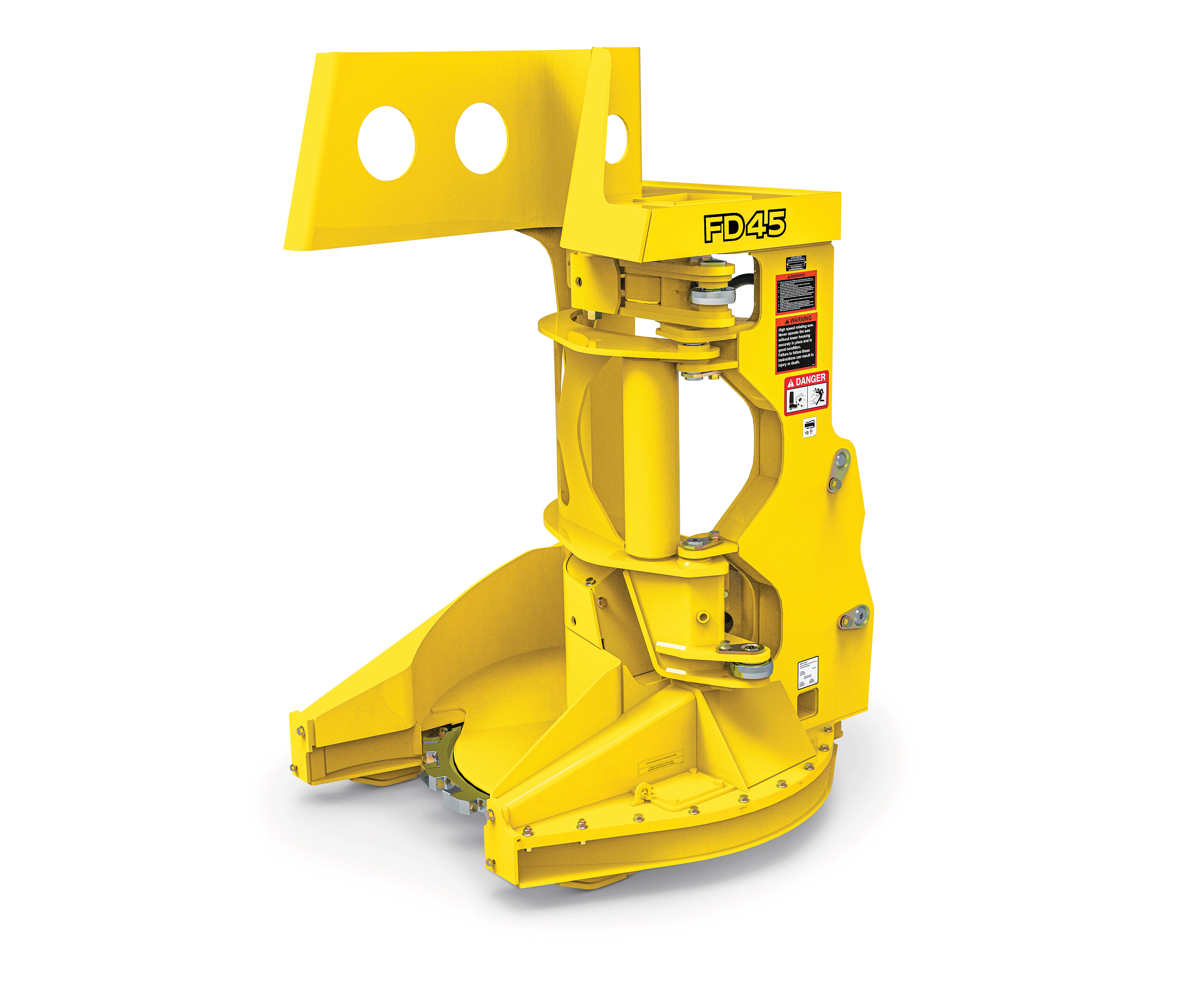

John Deere FD45
Double tap to zoom
FD45
Forestry Attachments, Accessories and Implements
Overview:
The deepest accumulation capacity of all our drive-to-tree heads, featuring a twin-post design that gives the operator more visibility compared to previous models.
- Weight: 2424 kg (5,345 lb.)
- Cut Capacity: 50.8 cm (20 in.)
- Accumulation Capacity: 0.65 m² (7.0 sq. ft.)
- Height: 2515 mm (99.0 in.)
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Loan Calculator
Use the Loan Calculator to help you determine the financing and payment options that are best for you.
**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. You should obtain personal advice from qualified professionals. This information is provided for illustrative purposes only and does not constitute an application. This notice does not guarantee loan approval, nor is it an offer or commitment to make a loan to you on the above terms.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Share This Product:
Features
Move More Per Pass
Maximize multi-stem handling efficiency with high accumulation capacity that processes more trees each cycle.
Stay Nimble in Tight Spaces
Improve maneuverability with a lighter-weight design suited for variable or confined terrain.
Balanced Performance, Everyday Productivity
Increase jobsite efficiency across small-to-mid timber with a strong balance of cutting and accumulation capability.
Specifications
Dimensions
| Maximum Cutting Capacity | 20 in. |
| Maximum Cutting Capacity | 508 mm |
| Maximum Accumulation Capacity | 7 sq ft |
| Maximum Accumulation Capacity | 75.3 m² |
| Opening At Front Of Housing | 34 in. |
| Opening At Front Of Housing | 863.6 mm |
| Blade Diameter | 53 in. |
| Blade Diameter | 1346.2 mm |
| Number Of Teeth | 18 |
| Width At Saw Housing | 62.3 in. |
| Width At Saw Housing | 1582.4 mm |
| Height | 99 in. |
| Height | 2514.6 mm |
| Weight Measure Inclusions Or Exclusions | No blade cover or tilt links |
| Weight | 5345 lb. |
| Weight | 2424.5 kg |
