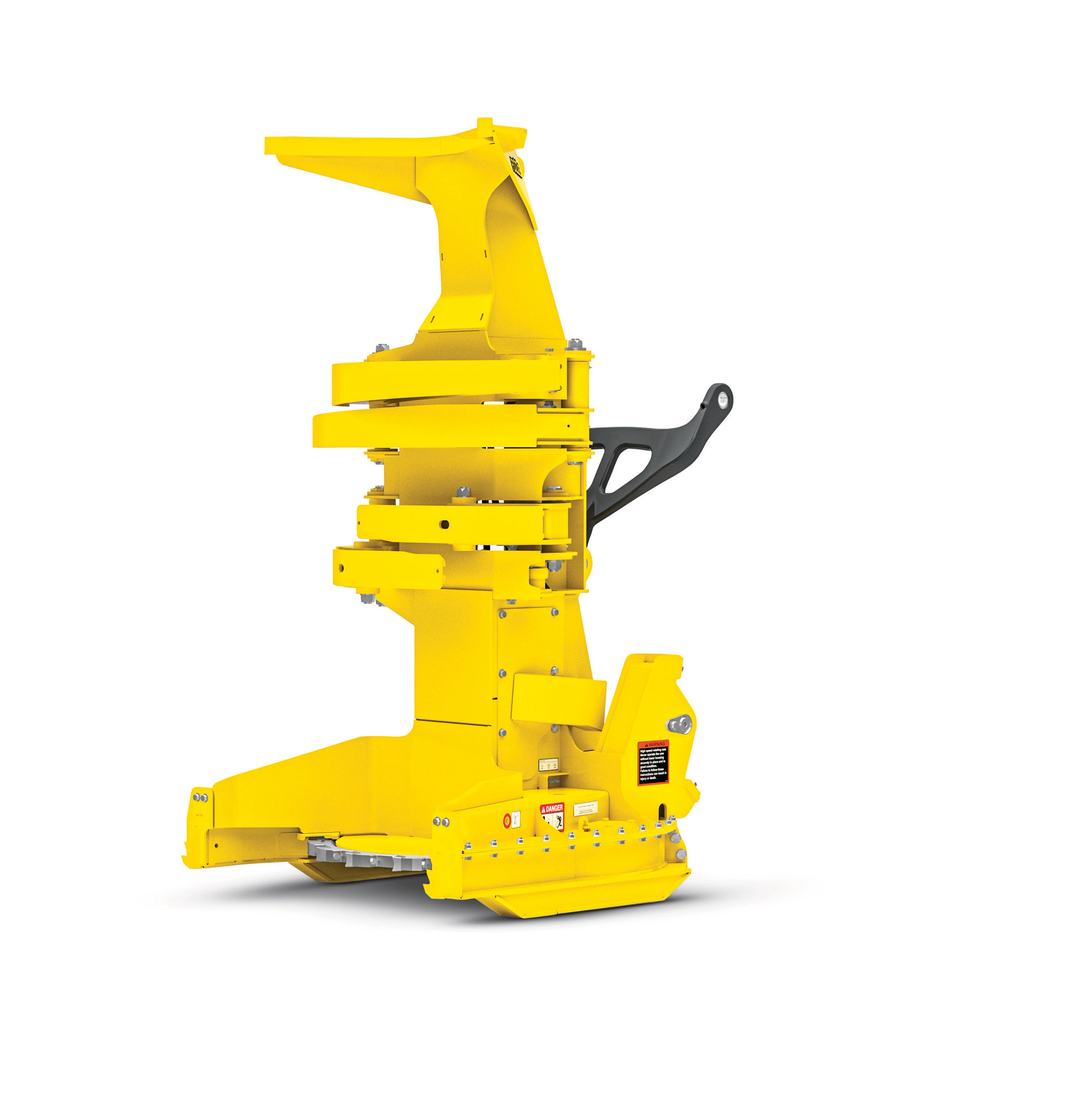

John Deere FD22B
Double tap to zoom
FD22B
Forestry Attachments, Accessories and Implements
Overview:
Big enough to tackle the largest, most mature trees or accumulate several mid-sized trees.
- Weight: 3071 kg (6,770 lb.)
- Cut Capacity: 55.9 cm (22 in.)
- Accumulation Capacity: 0.48 m² (5.2 sq. ft.)
- Height: 3068 mm (120.8 in.)
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Loan Calculator
Use the Loan Calculator to help you determine the financing and payment options that are best for you.
**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. You should obtain personal advice from qualified professionals. This information is provided for illustrative purposes only and does not constitute an application. This notice does not guarantee loan approval, nor is it an offer or commitment to make a loan to you on the above terms.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Share This Product:
Features
Built for Mid-Size Efficiency
Deliver efficient cutting and accumulation in mid-sized timber with a balanced capacity designed for versatile forestry applications.
Versatility Across Job Types
Improve productivity across varied jobsites with a design suited for both thinning and general harvesting operations.
Seamless Deere Integration

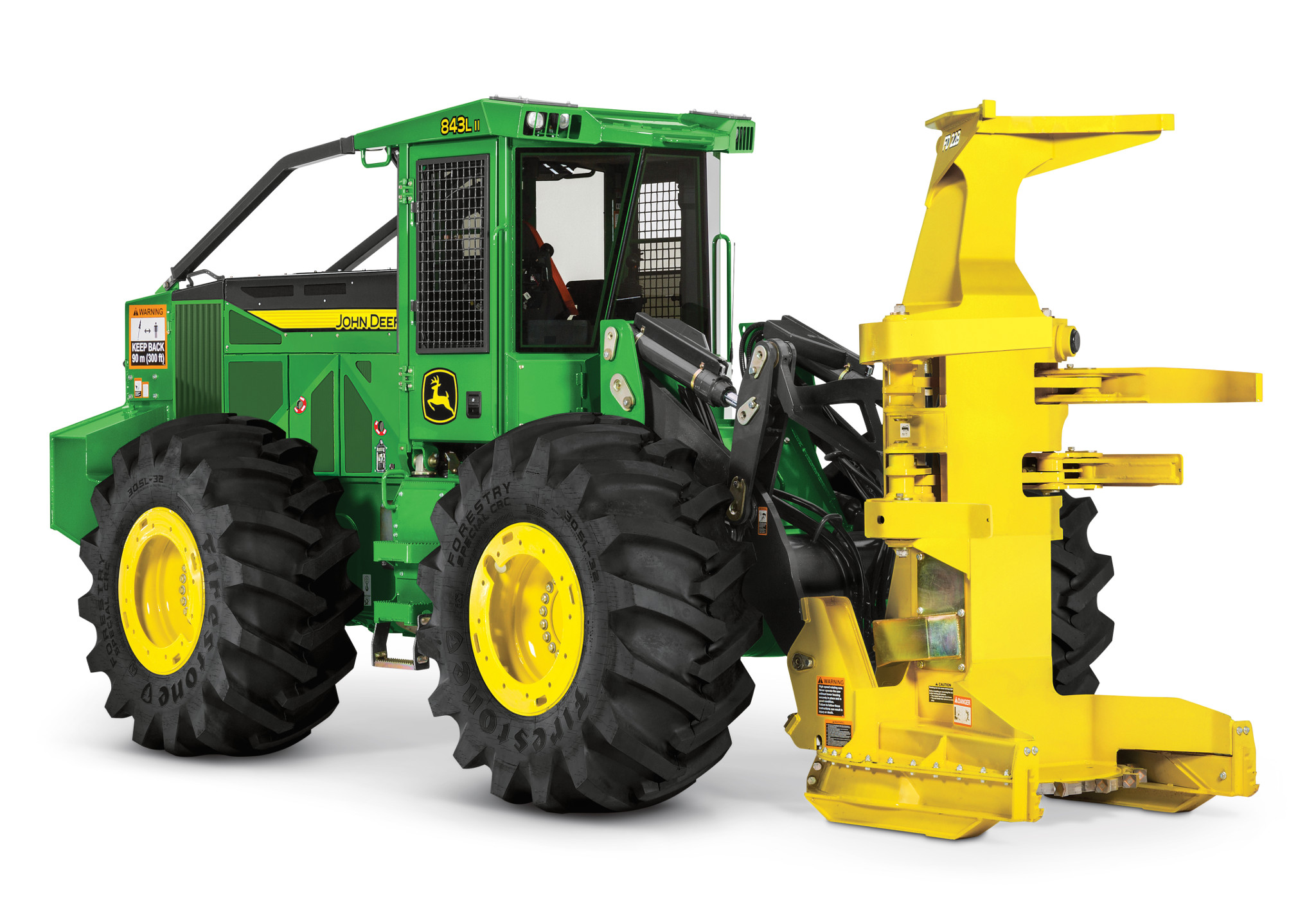

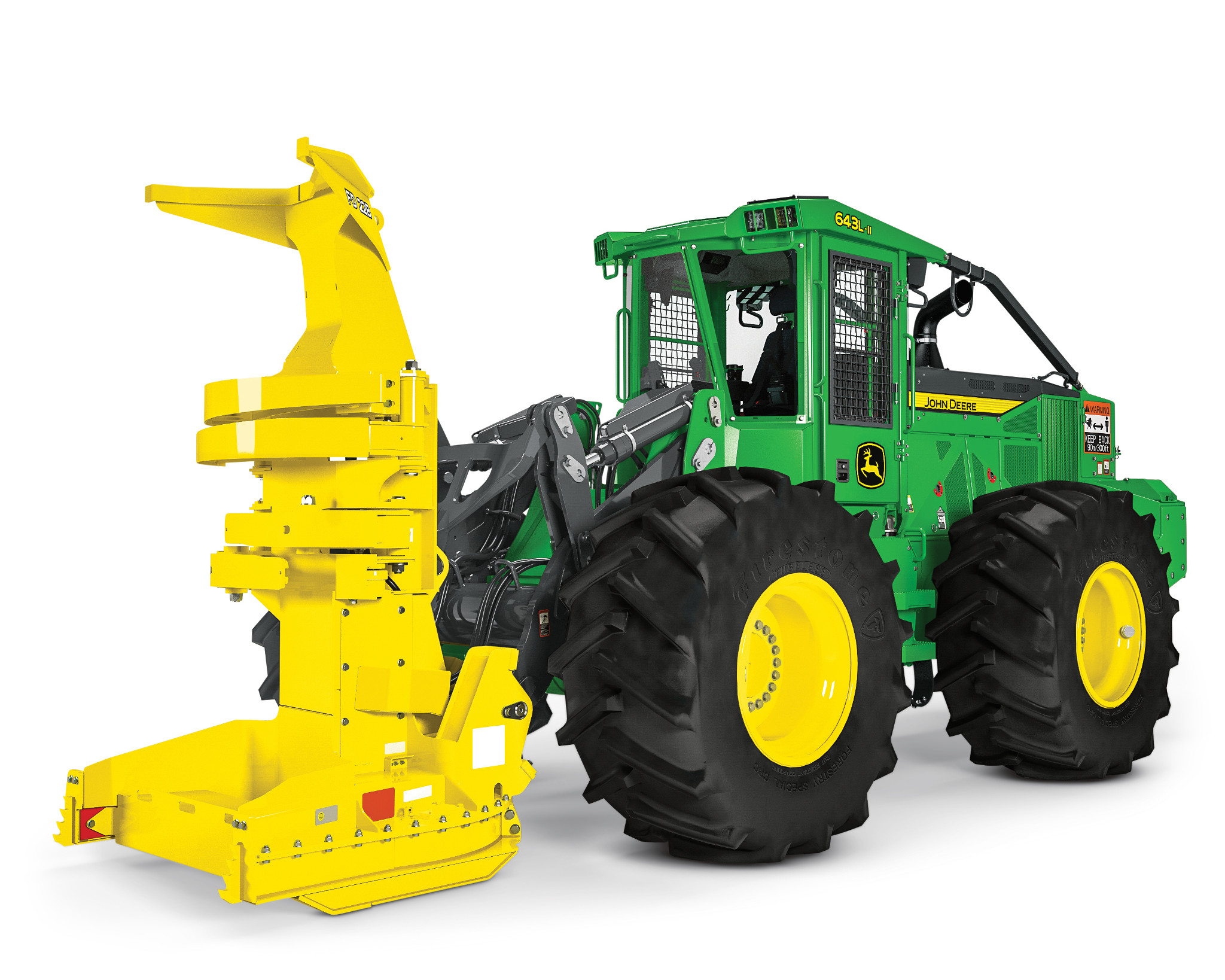

Optimize performance with a head engineered to pair seamlessly with Deere carriers for consistent output.
Specifications
Dimensions
| Maximum Cutting Capacity | 22 in. |
| Maximum Cutting Capacity | 559 mm |
| Maximum Accumulation Capacity | 5.2 sq ft |
| Maximum Accumulation Capacity | 0.48 m² |
| Opening At Front Of Housing | 50.8 in. |
| Opening At Front Of Housing | 1290.3 mm |
| Blade Diameter | 56 in. |
| Blade Diameter | 1422.4 mm |
| Number Of Teeth | 18 |
| Width At Saw Housing | 63.7 in. |
| Width At Saw Housing | 1618 mm |
| Height | 120.8 in. |
| Height | 3068.3 mm |
| Weight Measure Inclusions Or Exclusions | No blade cover or tilt links |
| Weight | 6770 lb. |
| Weight | 3070.8 kg |
