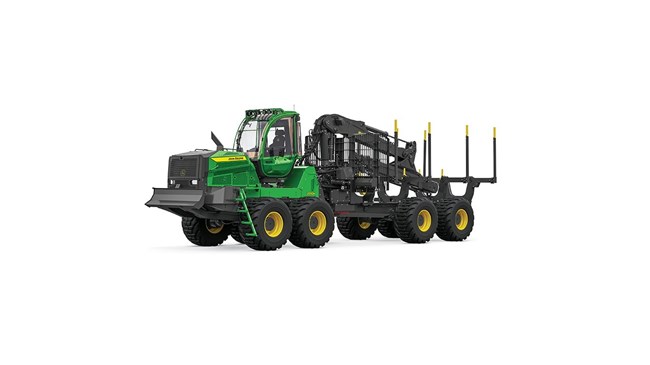

John Deere 2510H Forwarder

New Products / John Deere Products / Forestry / Forwarders / 2510H Forwarder

Double tap to zoom



Features

Smooth and Suspended

  • Rotating and leveling cab turns 290 degrees for clear views of boom movements and the surrounding jobsite.
  • Leveling function helps keep the operator ergonomically balanced in steep and uneven terrain.
  • Included standard with the rotating-cab option, the cab-suspension system is designed to reduce vibrations when navigating rough ground conditions.

On the Move

  • This 25-ton taskmaster boasts the capacity to carry 30-percent more wood in each load, with increased engine horsepower, tractive force, and driving speeds compared to G-Series models.

Stable and Able

  • New Cylinder Frame Lock is designed to keep the machine stable while loading, unloading, or driving with full loads and at high speeds.

Streamlined Service

  • Improved serviceability and diagnostics over previous models boosts uptime and productivity.
  • Grouped checkpoints and easy fluid refills streamline daily maintenance.

Operator Essentials

  • Comfortable cab is sealed and isolation mounted to minimize outside noise and cushion the ride.
  • Powerful LED lights illuminate the jobsite in dark environments.
  • Storage for workday essentials is spacious and convenient.

Rely on the Reach

  • New F9 and F10 booms deliver higher lifting torque than earlier models, to help you lift heavier stems.
  • Add a single- or double-extension option to either boom to increase its reach.

Intelligent Boom Control

  • Standard Intelligent Boom Control (IBC) 3.0 makes load handling more efficient and boosts productivity.
  • With IBC activated, a single button press enables a range of intuitive functions: – Folding and Unfolding: Automatically folds the boom for transport or unfolds it into working position, with the headboard adjusting automatically.
    • – Return to Load: Returns the empty grapple to the load space after unloading. – Back to Bunch: Returns the boom to the exact location of the previous bunch

Specifications

DRIVELINE

Engine Manufacturer John Deere
Engine Model 6090
Displacement, ltr (Inches³) 9 (549)
Engine Output, kW (hp) 252 (337)
Engine Torque, Nm (lbf / ft) 1550 (1143)
Drive Configuration 8 x 8
Transmission Hydrostatic-Mechanical
Std tire size front 28.5
Std tire size rear 28.5

DIMENSIONS

Base Carrier Length, mm (inches) 10700 (421.2)
Transport Height, mm (inches) 3990 (156)
Width, mm (inches) 3200 (126)
Wheelbase, mm (inches) 5900 (231.6)
Ground Clearance, mm (inches) 800 (31.5)
Horizontal Reach, m (ft/in) 10.7 (35 ft 1 in)
Load Length, mm (inches) 4500 (176.4)

CAPACITIES

Fuel Tank, ltr (gallons (US)) 380 (100)
Hydraulic Tank, ltr (gallons (US)) 225 (59)

PERFORMANCE

Lifting Moment - Standard Crane, kNm (lbf / ft) 170 (125385)
Load Capacity, tonnes (tons (short)) 25 (28)
Travel Speed, kph (mph) 20 (12)
Tractive Force, kN (lbf) 300 (67442)

WEIGHTS

Operating Weight, kg (lbs) 29800 (65600)
