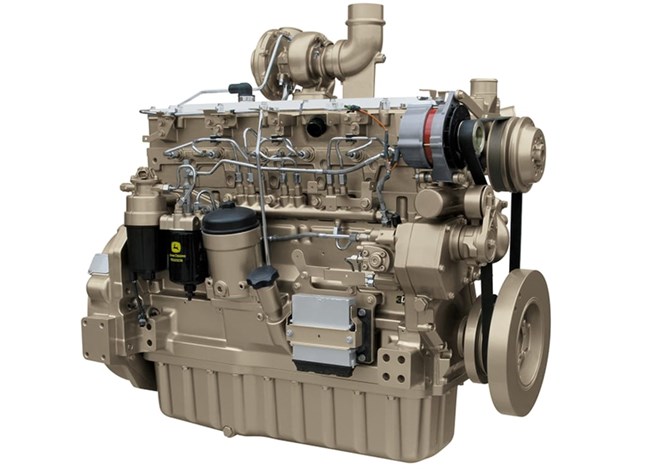

John Deere 6090HFG84 9.0L Generator Drive Engine

New Products / John Deere Products / Engines and Drivetrain / Generator Drive Engines / 6090HFG84 9.0L Generator Drive Engine

Double tap to zoom



Features

Fixed geometry turbocharger

  • Fixed geometry turbochargers are sized for a specific power range and optimized to provide excellent performance across the entire torque curve. They are also designed to maximize fuel economy between the engine's rated speed and peak torque.

High-pressure common-rail (HPCR) and engine control unit (ECU)

  • The HPCR fuel system provides variable common rail pressure, multiple injections, and higher injection pressures, up to 1,600 bar (23,000 psi). It also controls fuel injection timing and provides precise control for the start, duration, and end of injection.

4-valve cylinder head

  • The 4-valve cylinder head provides excellent airflow with the cross-flow design.

Air-to-air aftercooled

  • This is the most efficient method of cooling intake air to help reduce engine emissions. It enables an engine to meet emissions regulations with better fuel economy and the lowest installed costs.

Compact size

  • Horsepower/displacement ratio is best-in-class
  • Lower installed cost
  • Mounting points are the same as previous engine models

John Deere electronic engine controls

  • Electronic engine controls monitor critical engine functions, providing warning and/or shutdown to prevent costly engine repairs and eliminate the need for add-on governing components, all lowering total installed costs.

Dual frequency

  • 50 Hz/60 Hz dual frequency is available on these engines and meet EPA Interim Tier 3 and EU Stage III A emissions regulations.

Additional features

  • Self-adjusting poly-vee fan drive
  • Forged-steel connecting rods
  • Replaceable wet-type cylinder liners
  • Either-side service
  • Gear driven auxiliary drive

Specifications

Emissions Certifications

EPA Tier 3

General engine data

Model 6090HFG84
Number of cylinders 6
Displacement-- L (cu in) 9.0 (549)
Bore and Stroke-- mm (in) 118.4 x 136 (4.66 x 5.35)
Compression Ratio 16.0 : 1
Engine Type In-line, 4-Cycle
Aspiration Turbocharged and air-to-air aftercooled
Length - mm (in) 1208 (47.6)
Width-- mm (in) 630 (24.8)
Height-- mm (in) 1113 (43.8)
Weight, dry - kg (lb) 901 (1986)

Performance data range

Hz (rpm) 60 ( 1800 )
50 ( 1500 )
Generator Efficiency % 90-94
90-94
Power Factor 0.8
0.8
Engine power - Prime kW 235-286
230-277
Engine power - Prime hp 315-384
308-371
Engine power - Standby kW 258-315
253-304
Engine power - Standby hp 346-422
339-408
Rated Fan Power - kW 29.4
17
Rated Fan Power - hp 39.4
22.8
Calculated generator set output - Prime kWe 185-242
192-244
Calculated generator set output - Prime kVA 232-302
240-305
Calculated generator set output - Standby kWe 206-268
213-270
Calculated generator set output - Standby kVA 258-336
266-337
