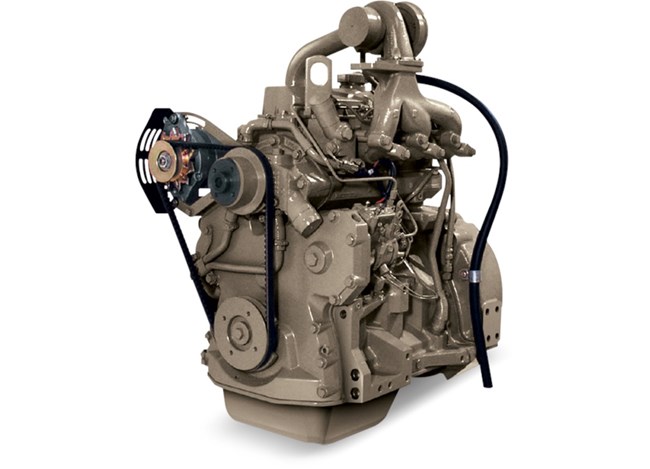

John Deere 3029TFG89 2.9L Generator Drive Engine

New Products / John Deere Products / Engines and Drivetrain / Generator Drive Engines / 3029TFG89 2.9L Generator Drive Engine

Double tap to zoom



Features

Fixed geometry turbocharger

  • Fixed geometry turbochargers are sized for a specific power range and optimized to provide excellent performance across the entire torque curve. They are also designed to maximize fuel economy between the engine's rated speed and peak torque.

Mechanical rotary pump

  • The timing and fuel injection pressures are optimized to maximize performance and fuel economy at a given rated speed.

2-valve cylinder head

  • Cross-flow head design provides excellent breathing from a lower-cost 2-valve cylinder head.

Compact size

  • Horsepower/displacement ratio is best-in-class
  • Lower installed cost
  • Mounting points are the same as previous engine models

Dual frequency

  • 50 Hz/60 Hz dual frequency is available on these engines and meet EPA Interim Tier 4 and EU Stage III A emissions regulations.

Specifications

Emissions Certifications

EPA Tier 3

General engine data

Model 3029TFG89
Number of cylinders 3
Displacement - L (cu in) 2.9 (177)
Bore and Stroke – mm (in) 106x110 (4.2x4.3)
Compression ratio 17.2:1
Engine Type In-line, 4-cycle
Aspiration Turbocharged
Length – mm (in) to rear of block 717 (28.2)
Width – mm (in) 529 (20.8)
Height – mm (in) 961 (37.8)
Weight, dry – kg (lb) 316 (697)

Performance data range

Rated speed Hz (rpm) 60 (1800)
Engine power - Prime kW (hp) 31 (42)
Engine power - Standby kW (hp) 35 (47)
Generator efficiency % 88-92
Rated fan power kW (hp) 2.2 (3)
Power factor 0.8
Calculated generator set output - Prime kWe* (kVa) 25-27 (32-34)
Calculated generator set output - Standby kWe (kVa) 28-30 (35-37)
  *Electrical power is calculated from the typical generator efficiency and fan power percentages shown. Applications may vary.
