Harlo HP6500

Harlo HP6500

Double tap to zoom

Harlo HP6500



Features

Tightest Turn Radius in Industry
Industry's Fastest Lift Speeds
23 Mast Configurations
Extended Mast Tilt Standard
Cab Enclosure Optional (can include A/C and Heat )
Extended Mast Tilt Standard

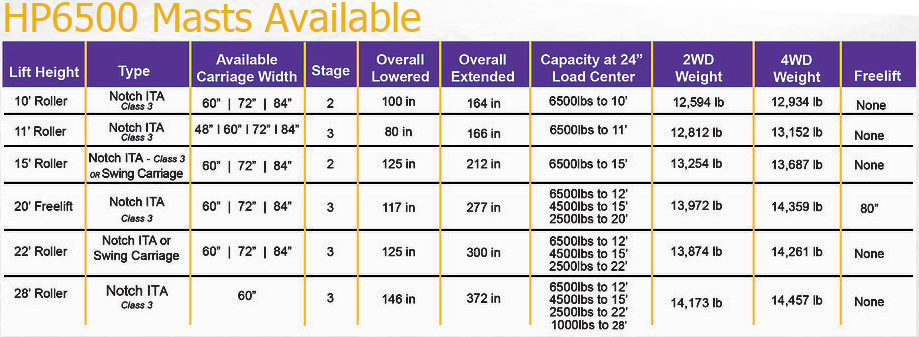

HP6500Masts

Features for HP6500 with Cummins Engine:

  • Cummins 4.5L turbo charged Diesel
  • Easy Operator Access to Engine
  • Excellent Visibility
  • 25mph max speed
  • 110hp @ 2500rpm
  • Torque: 347ft-lbs @ 1300rpm
  • Lifting Capacity up to 6500lbs
  • Lifting Height up t0 14'



Features for HP6500 with John Deere Engine:

  • John Deere Turbocharged Diesel Engine
  • Easy Operator Access to Engine
  • Excellent Visibility
  • 25mph max speed
  • 74hp @ 2400rpm
  • Torque: 195 ft-lbs @ 1700 rpm
  • Lifting Capacity up to 6500 lbs
  • Lifting Height varies by Mast Option

Specifications

HP6500 with Cummins Engine HP6500 with John Deere Engine
Engine​ Engine​
Emission Rating:
Tier 3
Emission Rating:
Tier 4 Interim
Gross Power - hp (kW):
110 (80)
Gross Power - hp:
74
Rated Speed - rpm:
2500
Rated Speed - rpm:
2400
No. of Cylinders:
4
No. of Cylinders:
4
Displacement - Cu in:
275 (4.5)
Displacement - Cu in:
275 (4.5)
Drive Train Drive Train
Transmission:
Synchromesh
Transmission:
Synchromesh
Travel Speed:
 25 mph
Travel Speed:
25 mph
No. of Speeds FWD:
4
No. of Speeds FWD:
4
No. of Speeds REV:
4
No. of Speeds REV
4
Front Tire Size (4WD/2WD):
16.9 - 24
Front Tire Size (4WD/2WD):
16.9 - 24
Rear Tire Size  (2WD):
11L - 16
Rear Tire Size  (2WD):
11L - 16
Rear Tire Size  (4WD):
12 - 16.5
Rear Tire Size  (4WD):
12 - 16.5
Hydraulic System Hydraulic System
Main Pump Type:
Gear Pump
Main Pump Type:
Piston Pump
Pump Flow gallons/min:
32gpm @2500
Pump Flow gallons/min:
32gpm @2500
Performance Performance
Load Center - in (mm):
24 (610)
Load Center - in (mm):
24 (610)
Mast Tilt Backward:
11*
Mast Tilt Backward
11*
Mast Tilt Forward:
30*
Mast Tilt Forward:
30*
Side Shift:
6 in
Side Shift:
6 in
