Bush Hog 4815

Double tap to zoom

Bush Hog 4815



Features

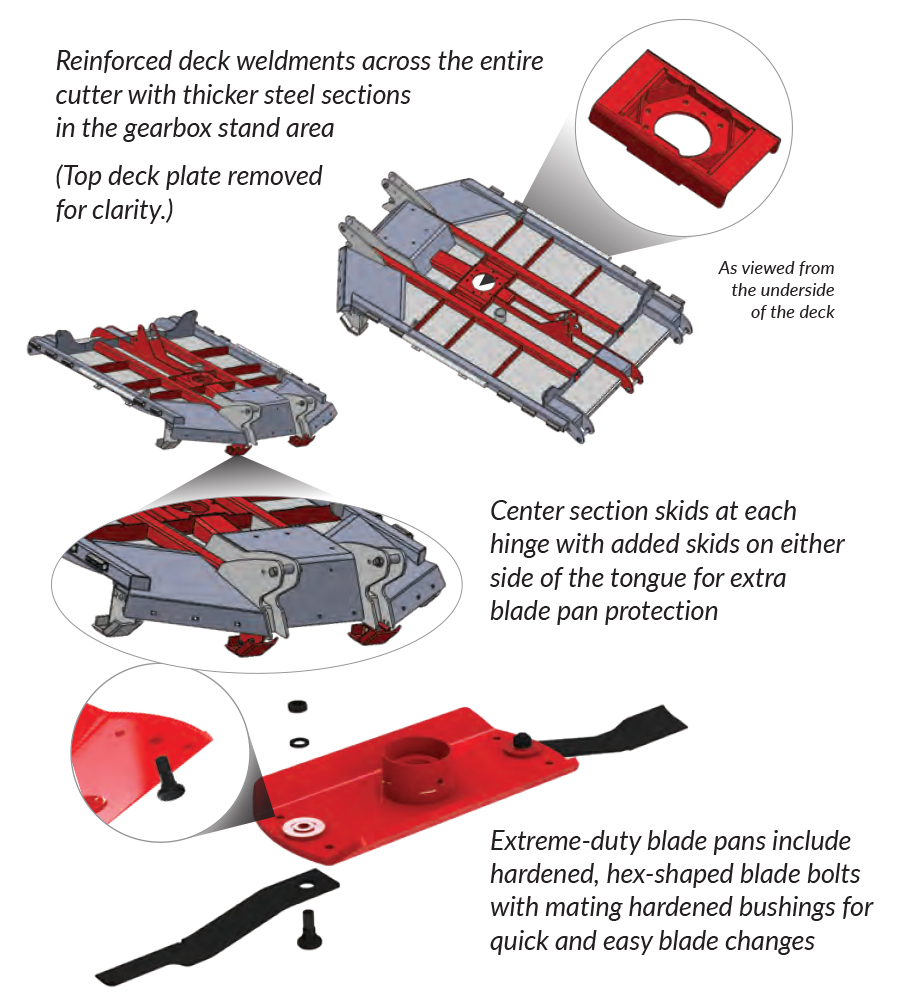

CONSTRUCTION FEATURES

  • Heavy structure on center section and wings.
  • Wing skids are 3/8” thick with an outside angle of 45 degrees to stop “ground dig-in” during turns.
  • All axle spindles are half shafts for quick and less costly maintenance.
  • Center section blades align closely with outside center tires to closely cut out the bottom of ditches.
  • Grease fittings and spring steel bushings are at axle pivot points for longer life.
  • Each cutting gearbox has a 3 inch output shaft with more and deeper splines than competitor models for maximum torque load capabilities.
  • All drivelines are EZ lube with grease points aligned and the cross bearing fitting is in the end cap.



SAFETY FEATURES

  • Highway Safety Lights Standard

Specifications

MODELS 4815
CUTTING WIDTH 15'
CUTTING HEIGHT 2″ -14″
CUTTING CAPACITY 4 1/2"
TRANSPORT WIDTH* 8' 2"
TRANSPORT HEIGHT** 7' 3"
TRANSPORT LENGTH*** 15' 3"
APPROXIMATE WEIGHT (LB) 6,200
APPROXIMATE TONGUE WEIGHT (LB.) 2,700
MINIMUM TRACTOR PTO HP 70
HITCH "PERMA-LEVEL" OR BALL HITCH
CENTER DECK 11GA OVER 7GA
WING DECKS 7GA
WING CUTTING ANGLES 22° DOWN AND 45° UP
WING LEVEL ADJUSTMENT TURNBUCKLES
SIDEBANDS 1/4″ X 13 1/2″
TRANSFER GEARBOX (HP) 250
CUTTING GEARBOX (HP) 225
INPUT DRIVELINE CATEGORY 6
CUTTING DRIVELINES CATEGORY 5
BLADE HOLDER 7GA ROUND
BLADES 1/2″ X 4″
BLADE TIP SPEED (FPM) 16,268
AXLE SUSPENSION SPRINGS @ EACH AXLE
CENTER & WING HYDRAULICS 3 HOSES STANDARD
SAFETY TOW CHAIN STANDARD
DISTRIBUTION BAFFLES OPTIONAL
PTO DRIVELINE SUPPORT OPTIONAL
