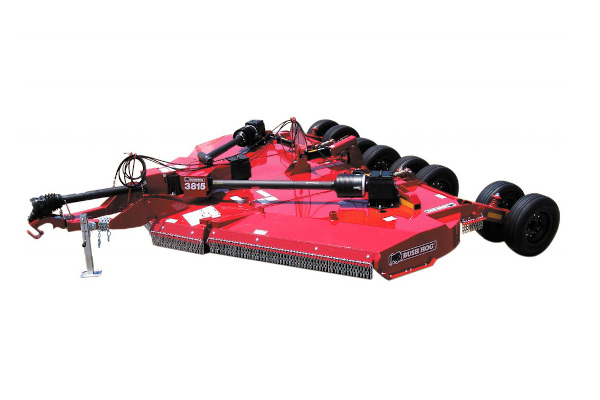

Bush Hog 3815

Double tap to zoom

Bush Hog 3815



Features

PERFORMANCE FEATURES

  • Wing and center skids are 3/8-inch thick for extended wear and outside edges are turned up at 45 degrees to stop heavy ground contact that might damage the sidebands.
  • Center section axle spindles are centered on the axle arm for equalized loading of vertical forces.
  • Grease fittings and spring steel bushings at axle pivot points for longer life.
  • Free wing float without movement of the hydraulic cylinder rod is 22° down and 45° up.
  • Improved suspension that absorbs more shock loads at the tires.



CONSTRUCTION FEATURES

  • Industry first — 3-inches O.D. output shaft in cutting gearboxes.
  • Reinforced blade pans for maximum durability in heavy cutting conditions.
  • Wing drivelines are ASAE Cat.5 for use in heavy cutting conditions.
  • Patent Pending oil sight gauge takes the guess work out of checking the oil. In less than 10 seconds, all three cutting box oil levels can be checked and rechecked
  • E-Z lube drivelines are quick and easy to service. All grease fittings on the PTO CV driveline and wing drivelines align for quick location of grease points, reducing service times.



SAFETY FEATURES

  • Seven gauge deck plates for stronger decks that are less susceptible to damage.
  • Heavy, durable axle arms withstand the shock and bending loads generated when used on the roughest terrain.



PRODUCT FEATURES

  • The Patent Pending oil sight gauge takes the guess work out of checking the oil. In less than 10 seconds, all three cutting box oil levels can be checked and rechecked as often as you walk around the machine. Never climb onto the cutter again to check the gearbox oil levels.
  • Bush Hog’s E-Z lube drivelines are quick and easy to service. All grease fittings on the pto CV driveline and wing drivelines align for quick location of grease points. Since all grease fittings on all drivelines are in an up position on every 5th revolution, service times are reduced

Specifications

MODELS 3815
CUTTING WIDTH 15'
CUTTING HEIGHT 2″ -14″
CUTTING CAPACITY 4 1/2"
TRANSPORT WIDTH* 8' 2"
TRANSPORT HEIGHT** 7' 3"
TRANSPORT LENGTH*** 15' 3"
APPROXIMATE WEIGHT (LB) 6,000
APPROXIMATE TONGUE WEIGHT (LB.) 2,200
MINIMUM TRACTOR PTO HP 60
HITCH "PERMA-LEVEL" OR BALL HITCH
CENTER DECK 11GA OVER 7GA
WING DECKS 7GA
WING CUTTING ANGLES 22° DOWN AND 45° UP
WING LEVEL ADJUSTMENT TURNBUCKLES
SIDEBANDS 1/4″ X 13 1/2″
TRANSFER GEARBOX (HP) 250
CUTTING GEARBOX (HP) 225
INPUT DRIVELINE CATEGORY 6
CUTTING DRIVELINES CATEGORY 5
BLADE HOLDER 7GA ROUND
BLADES 1/2″ X 4″
BLADE TIP SPEED (FPM) 16,286
AXLE SUSPENSION SPRINGS @ EACH AXLE
CENTER & WING HYDRAULICS 3 HOSES STANDARD
SAFETY TOW CHAIN STANDARD
DISTRIBUTION BAFFLES OPTIONAL
PTO DRIVELINE SUPPORT OPTIONAL

*Measured from Wing Skid to Wing Skid when Folded



**Measured at Maximum Transport Height



***Measured from hitch tip to rear of 21″ Laminated Tire
