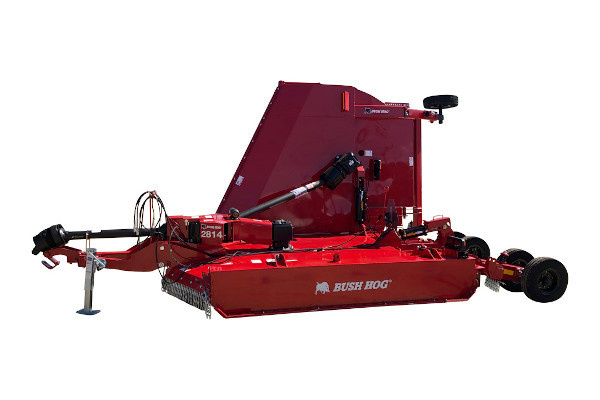

Bush Hog 2814

Double tap to zoom

Bush Hog 2814



Features

PERFORMANCE FEATURES

  • Perma-level hitch allows the cutter to glide along ground contours
  • Wings are free to float 22° down and 45° up without engaging the hydraulic cylinder for longer cylinder life
  • Each cutting gearbox has the industry’s first massive 3-inch output shaft with deeper splines for maximum transmission of torque to the blade pan.
  • Heavy-duty CV drivelines transfer power from the tractor PTO to the Transfer Gearbox
  • Independent coil springs at each wheel take the brunt of rough field conditions instead of the axle
  • Bush Hog® branded blades rip through tough vegetation



CONSTRUCTION FEATURES

  • Decks are smooth on top as well as the underside for easy cleanup and better flow of clippings
  • Deck rings come standard to provide additional deck support and to protect the deck from blade deflection
  • 7ga reinforced blade pans protect the cutter, blade bar, and gearbox output shaft from unexpected obstacles
  • Tough ¼” thick wing skids are formed at a 45° angle to protect the sidebands and reduce digging into the ground
  • Grease fittings and Spring steel bushings minimize wear at each axle pivot point
  • Six tire options from 21” Laminated to 29” Aircraft allow you customize the ride to your needs



SAFETY FEATURES

  • Double row chains come standard to prevent thrown objects from exiting the cutter
  • Highway travel lights come standard for safer travel on roadsides and in-between fields

Specifications

MODELS 2814
CUTTING WIDTH 13' 6"
CUTTING HEIGHT 2″ -14″
CUTTING CAPACITY 3"
TRANSPORT WIDTH* 9'
TRANSPORT HEIGHT** 9'
TRANSPORT LENGTH*** 17' 2"
APPROXIMATE WEIGHT (LB) 6,050
APPROXIMATE TONGUE WEIGHT (LB.) 2,600
MINIMUM TRACTOR PTO HP 90
HITCH "PERMA-LEVEL" OR BALL HITCH
CENTER DECK 11GA OVER 10GA
WING DECKS 10GA
WING CUTTING ANGLES 22° DOWN AND 45° UP
WING LEVEL ADJUSTMENT TURNBUCKLES
SIDEBANDS 1/4″ X 13 1/2″
TRANSFER GEARBOX (HP) 250
CUTTING GEARBOX (HP) 225
INPUT DRIVELINE CATEGORY 6
CUTTING DRIVELINES CATEGORY 4
BLADE HOLDER 7GA ROUND
BLADES 1/2″ X 4″
BLADE TIP SPEED (FPM) 15,936
AXLE SUSPENSION SPRINGS @ EACH AXLE
CENTER & WING HYDRAULICS 3 HOSES STANDARD
SAFETY TOW CHAIN STANDARD
DISTRIBUTION BAFFLES OPTIONAL
PTO DRIVELINE SUPPORT OPTIONAL
