Rhino 1D6018
Double tap to zoom

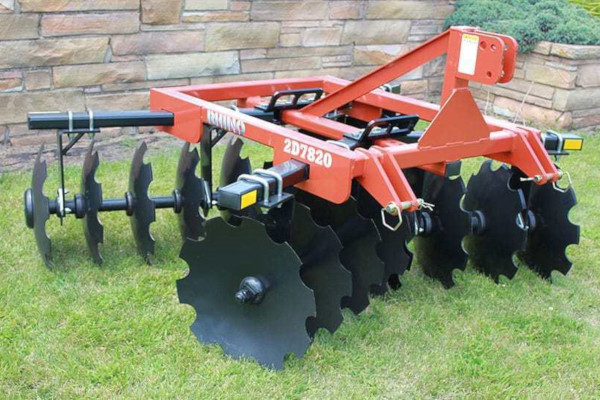

Lift-Type Compact Disc Harrows 1D6018
Three classes of harrows ready for jobs of any size!
Rhino’s three classes of lift-type compact disc harrow are ready for soil jobs of every size. With working widths of 60 to 118” and power requirements anywhere from 30 to 95 horses, our lift discs are can work for all types of farmers! Rhino Harrows run discs from 16 to 22” and use engineered self-aligned, sealed ball bearings to ensure long life and low maintenance!
- Less
Three classes of harrows ready for jobs of any size!
Rhino’s three classes of lift-type compact disc harrow are ready for soil jobs of every size. With working widths of 60 to 118” and power requirements anywhere from 30 to 95 horses, our lift discs are can work for all types of farmers! Rhino Harrows run discs from... + Read More
-
Get a Quote
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
-
Request Brochure
Request Brochure
Fields with asterisks* are required.
- Specials
-
Send to a Friend
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
-
Payment Calculator
Loan Calculator
Use the Loan Calculator to help you determine the financing and payment options that are best for you.
**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. You should obtain personal advice from qualified professionals. This information is provided for illustrative purposes only and does not constitute an application. This notice does not guarantee loan approval, nor is it an offer or commitment to make a loan to you on the above terms.
Share This Product:
Features
- Strong Square Framing Tubes
- High Carbon Steel Axles
- CAT 1 Studded Hutches
- Horsepower Requirements for Any Tractor
Specifications
| Model | 1D6018 |
| Hitch | 3 pt CAT 1 & CAT 1 QH |
| Working Width | 60'' |
| Recommended HP | 35 |
| Disc Size | 18'' |
| No. of Disc Blades - 7.5'' Front & Rear | 16 |
| No. of Disc Blades - 9'' Front & Rear | 12 |
| No. of Disc Blades - 9'' Front, 7.5'' Rear | 14 |
| Weight (Lbs.) - 7.5'' Front & Rear | 530 |
| Weight (Lbs.) - 9'' Front & Rear | 420 |
| Weight (Lbs.) - 9'' Front, 7.5'' Rear | 525 |
| Weight Per Disc - 7.5'' Front & Rear | 33 |
| Weight Per Disc - 9'' Front & Rear | 35 |
| Weight Per Disc - 9'' Front, 7.5'' Rear | 38 |
| Bearing Hanger | 3/8'' x 6'' Plate, with Dual 1/2'' U-Bolts |
| Ball Bearing Type | Self-Aligning, Sealed |
| Disc Gang Angles | Front & Rear: 0°, 7°, 14°, 21° |
| Frame Tubes | 2'' Square |
| Gang Tube | 3'' x 1-1/2'' |
| Gang Axle | 1'' Square High Carbon Steel |
