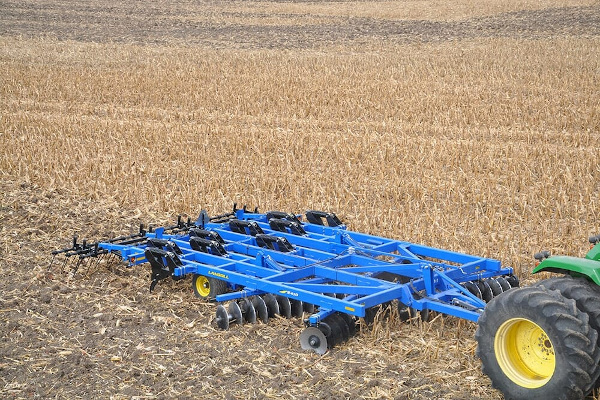

Landoll 2410AFG-9-24

Landoll 2410AFG-9-24

Double tap to zoom

Landoll 2410AFG-9-24



Features

Simplicity is in the Features

  • Laser Cut, Robotically Welded Frame
  • 5 1/2” Lift Axles with Maintenance-Free Lift System
  • Walking Tandems on All Sizes
  • Slip-In Spindles
  • 340/60R x 16.5-11, 380/55R x 16.5-12, 440/55R x 18-14 Tires (Model Dependent)
  • Self-Leveling Hitch
  • Cast Single Lip Hitch Cat. IV
  • Single-Point Depth Control
  • 24” or 26” Disc Blades Spaced at 10 1/2”
  • 15 Degree Gang Angle Front and Rear
  • Heavy-Duty Scrapers
  • 1 3/4” Gang Bolt
  • Trunnion Mount Bearings
  • C-Cushion Bearing Mounts
  • Overlapping/Staggered Offset Tandem Disc Gangs
  • Staggered Shank Arrangement
  • Auto-Reset Shanks with 3,600 lb. Point Load
  • Choice of Points with Integral Wear Strips
  • Adjustment/Maintenance Wrenches
  • Blue Powder Coat Paint
  • Safety Warning Lights

Specifications

Product Attributes 2410AFG-9-24
Approximate Weight 25,440 lbs. (11,539 kg)
Working Width 18 ft. 0 in. (5.5 m)
Transport Width 14 ft. 8 in. (4.5 m)
Transport Height 13 ft. 7 in. (4.1 m)
Number of Disc Blades - Front 22
Number of Disc Blades - Rear 24
Blade Spacing - Front 10.5 in. (267 mm)
Blade Spacing - Rear 10.5 in. (267 mm)
Blade Sizes 24 in. x 0.25 in. (610 x 6.4 mm) Rollable
  24 in. x 0.25 in. (610 x 6.4 mm)
  26 in. x 0.25 in. (660 x 6.4 mm)
  26 in. x 0.3125 in. (660 x 7.9 mm)
Blade Concavity 3 in. (76.2 mm)
Blade Scrapers 4.5 in. (114 mm) Adjustable
Blade Scraper Mount Heavy-Duty 0.5 in. (12.7 mm) Spring Steel Arm
Gang Spools - Front 5.5 in. (140 mm) Diameter
Gang Spools - Rear 5.5 in. (140 mm) Diameter
Gang Angle 15 Degrees Non- Adjustable
Gang Shaft 1.75 in. (44.5 mm) Round
Number of Gang Bearings - Front 8
Number of Gang Bearings - Rear 6
Gang Bearing Type C-Cushion Trunnion Mount, Greaseable Triple Lip Seals
Number of Shanks 9
Shank Spacing 24 in. (610 mm)
Shank Depth (Maximum) 16 in. (406 mm)
Shank Mounts Semi-Wrap Around with 1 in. (25.4 mm) U-bolts
Point Load - Auto Reset 3,600 lbs. (1633 kg)
Trip Height 16 in. (406 mm)
Shank Size 1.25 in. x 4 in. (31.8 x 102 mm)
Shank Type Auto-Reset Parabolic
Standard Points 2.375 in. (60.3 mm) V-Cap with Wear Guard
Frame 8 in. x 4 in. x 0.375 in. (203 x 102 x 9.5 mm) and 6 in. x 4 in. x 0.375 in. (153 x 102 x 9.5 mm)
Frame Construction Laser Cut/Matchcut Components, Robotically Welded
Transport Lift Axles 5.5 in. (140 mm) with UHMW Maintenance Free Pivots
Transport Axle Type Walking Tandems with Greaseable Pivots
Tire Size - Main Frame (4) 440/55R x 18-14
Wheel Hubs - Main Frame 8-Bolt
Spindles - Main Frame 4 in. (102 mm) Slip-In Spindles
Tire Size - Wing Frame N/A
Wheel Hubs - Wing Frame N/A
Spindles - Wing Frame N/A
Hitch Type Self-Leveling with Manual Adjustment
Hitch Category Cat. IV Single Lip with 2.25 (57.2 mm) Hole
Machine Depth Control Single Point, Front Mounted
Safety Warnings Lights and SMV Emblem Standard
Safety Chain Kit Standard
Adjustment Wrenches Standard
Powder Coat Paint, Blue Sapphire Standard
Rear Jack Standard
Cat. III Single Lip Hitch Clevis (2 in. Hole) Optional
Cat. V Single Lip Hitch Clevis (3 in. Hole) Optional
Shark Fin Point Optional
7 in. Wing Point Optional
Spare Tire & Wheel Assembly Optional
Rigid Shear Bolt Shank Optional
Horsepower Requirements 50 HP and up (27 kW) per Shank
